Overview
LF DriverKAPPA series
Eminence

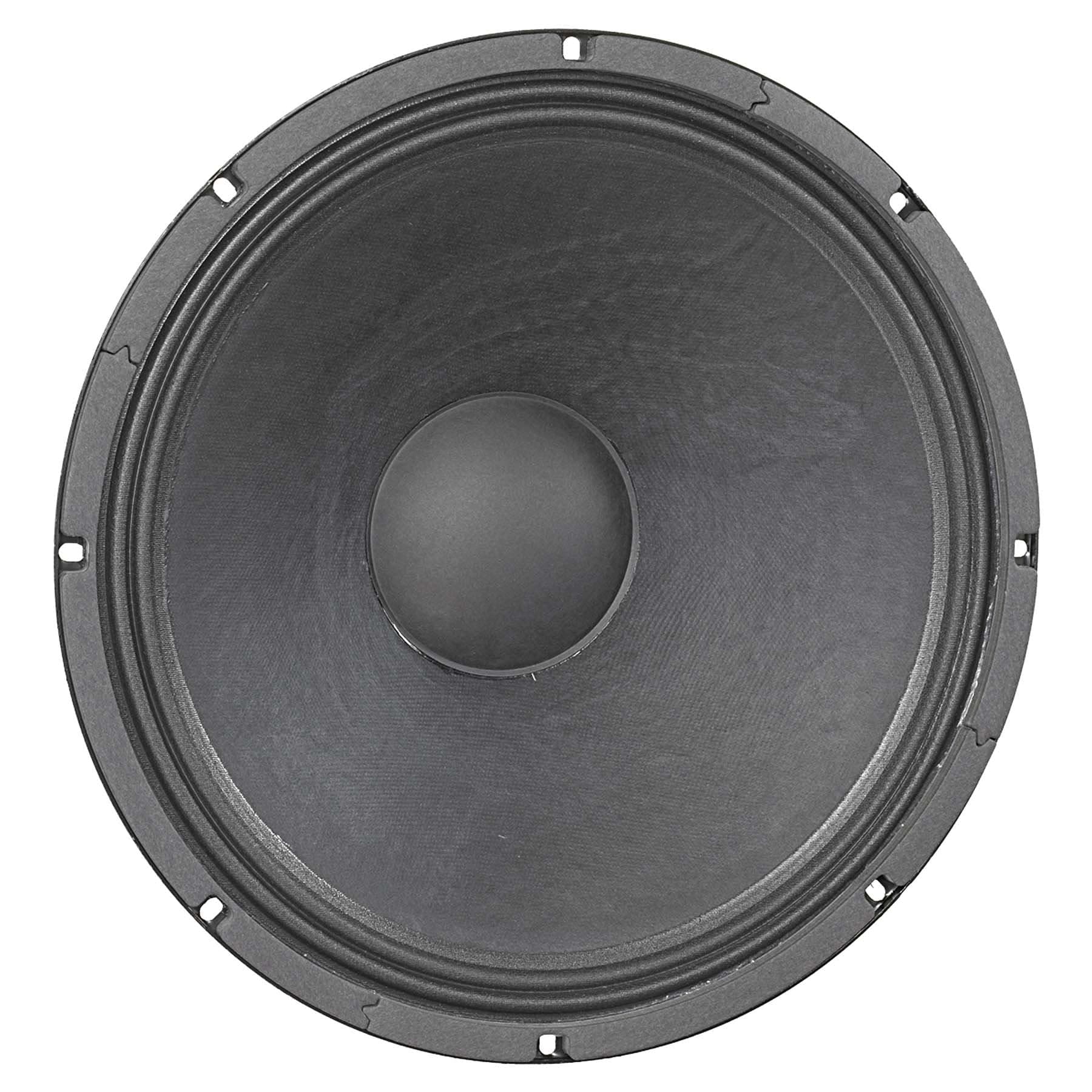

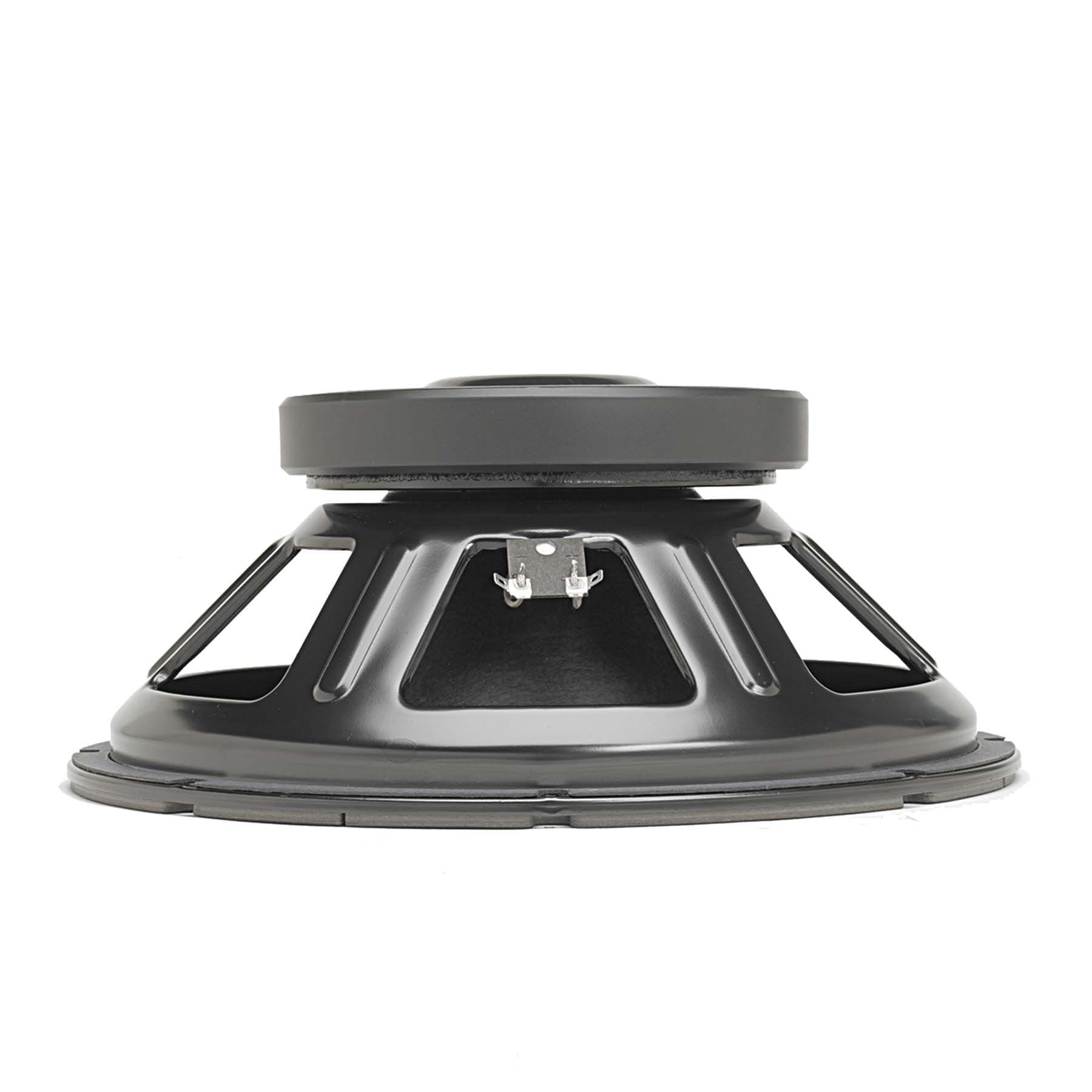

Eminence KAPPA-15LFA
Eminence KAPPA-15LFA is a 15" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 39Hz, Qts 0.38, Vas 159L, Xmax 5.5mm, sensitivity 95.6dB, plus 471cm³ Vd and 95 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £162.00.
Size
15"
Impedance
8Ω
RMS Power
600W
Sensitivity
95.6dB
99.0dBmanufacturer; using T/S-derived value (3.4dB delta).
EBP
95
Either alignment
Vd
471cm³
T/S Parameters
Valid
Fs39Hz
Qts0.38
Qes0.41
Qms6.1
Vas159.0L
Re5.4Ω
Le1.27mH
BL18.6Tm
Sd856cm²
Mms105g
Xmax5.5mm
SPL96dB
Power600W
Impedance8Ω
F Low38Hz
F High2000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£162.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.1kg
Diameter385.1mm
Overall Depth162.1mm
Cutout Diameter352.3mm
Bolt Circle Diameter369.8mm
