Overview
LF DriverPD series
Precision Devices

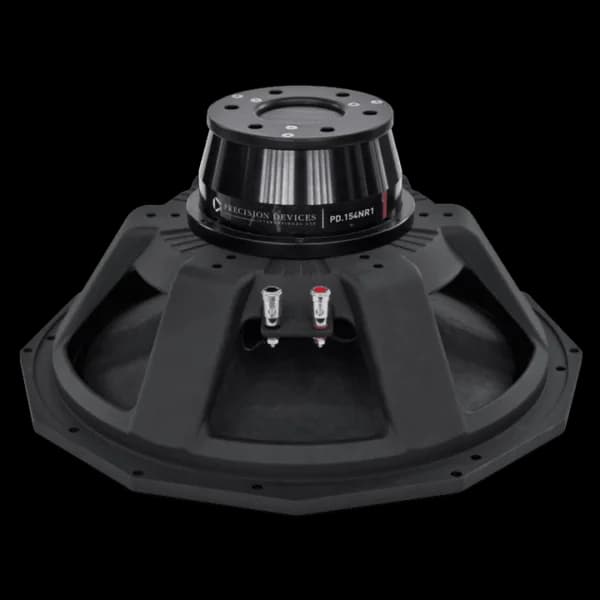

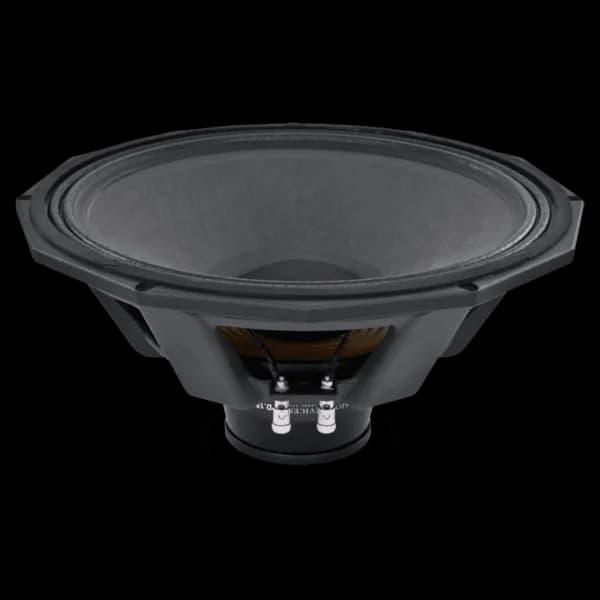

Precision Devices PD.154NR1
Precision Devices PD.154NR1 is a 15" 8 ohm LF driver rated at 900W RMS. The validated T/S data includes Fs 46Hz, Qts 0.40, Vas 158L, Xmax 8.5mm, sensitivity 97.6dB, plus 762cm³ Vd and 107 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
900W
Sensitivity
97.6dB
99.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
107
Vented alignment
Vd
762cm³
T/S Parameters
Valid
Fs46Hz
Qts0.40
Qes0.43
Qms7.0
Vas158.0L
Re6.1Ω
Le1.73mH
BL18.5Tm
Sd897cm²
Mms84g
Xmax8.5mm
SPL98dB
Power900W
Impedance8Ω
F Low45Hz
F High4000Hz
Voice Coil102mm
Flux Density1.25T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.0kg
Diameter408.3mm
Overall Depth180.0mm
Cutout Diameter356.0mm
Bolt Circle Diameter395.0mm
