LF Driver
BMS
BMS 15N630
BMS 15N630 is a 15" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 39Hz, Qts 0.42, Vas 152L, Xmax 8mm, sensitivity 95dB, plus 704cm³ Vd and 87 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
600W
Sensitivity
95.0dB
98.0dBmanufacturer; using T/S-derived value (3.0dB delta).
EBP
87
Either alignment
Vd
704cm³
T/S Parameters
Valid
Fs39Hz
Qts0.42
Qes0.45
Qms6.7
Vas152.0L
Re6.0Ω
Le0.70mH
BL19.8Tm
Sd880cm²
Mms121g
Xmax8.0mm
SPL95dB
Power600W
Impedance8Ω
F Low35Hz
F High2500Hz
Voice Coil76mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

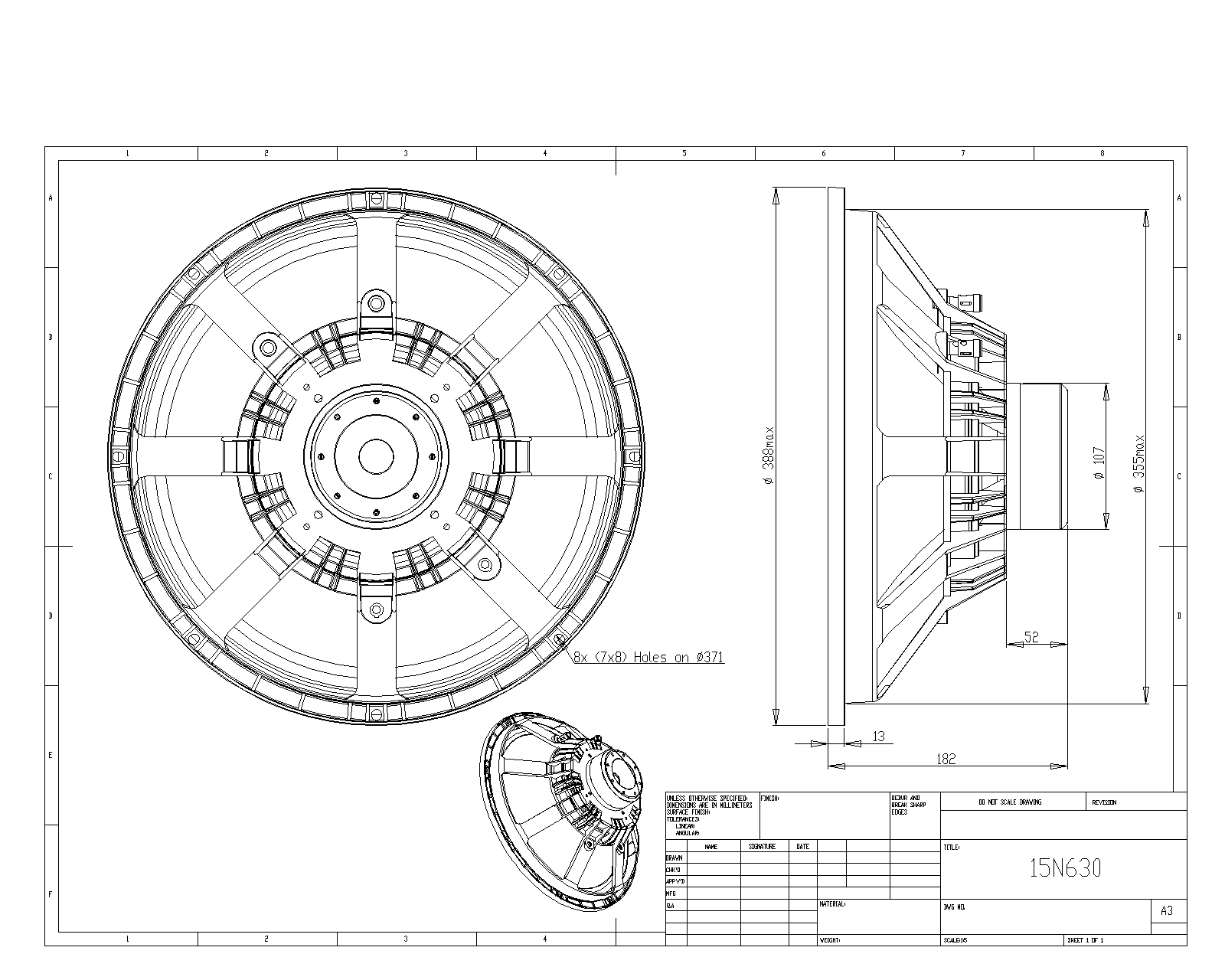

Dimensions & Physical
Weight4.3kg
Diameter388.0mm
Overall Depth182.0mm
Cutout Diameter358.0mm
Bolt Circle Diameter371.0mm
