LF Driver
Dayton Audio
Dayton Audio MX15-22
Dayton Audio MX15-22 is a 15" 2 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 22Hz, Qts 0.40, Vas 146.1L, Xmax 19mm, sensitivity 87.1dB, plus 1558cm³ Vd and 47 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
2Ω
RMS Power
800W
Sensitivity
87.1dB
90.2dBmanufacturer; using T/S-derived value (3.1dB delta).
EBP
47
Sealed alignment
Vd
1558cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
on-axis240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
on-axis
Frequency response
240 plotted pointsMedium confidence5,064 selected pixels of 5,064
T/S Parameters
Valid
Fs22Hz
Qts0.40
Qes0.46
Qms4.3
Vas146.1L
Re4.0Ω
Le5.51mH
BL20.6Tm
Sd820cm²
Mms348g
Xmax19.0mm
SPL87dB
Power800W
Impedance2Ω
F Low18Hz
F High400Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight15.4kg
Diameter391.7mm
Overall Depth231.9mm
Cutout Diameter355.9mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
MX15-22
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
81%
Similarity
£468.81

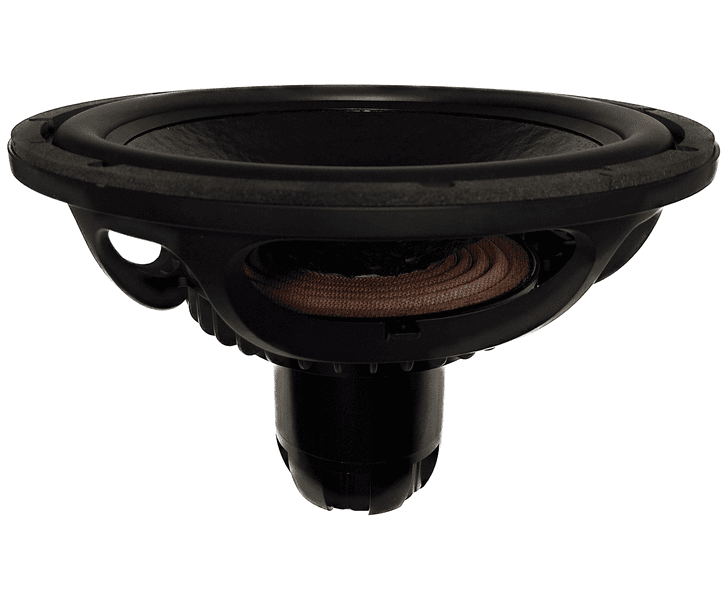

Eighteen Sound
