Overview
LF Driver
Eighteen Sound
Eighteen Sound 15TLW3000
Eighteen Sound 15TLW3000 is a 15" 8 ohm LF driver rated at 1500W RMS. The validated T/S data includes Fs 42Hz, Qts 0.44, Vas 140L, Xmax 9mm, sensitivity 95.6dB, plus 793cm³ Vd and 91 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £357.73.
Size
15"
Impedance
8Ω
RMS Power
1500W
Sensitivity
95.6dB
EBP
91
Either alignment
Vd
793cm³

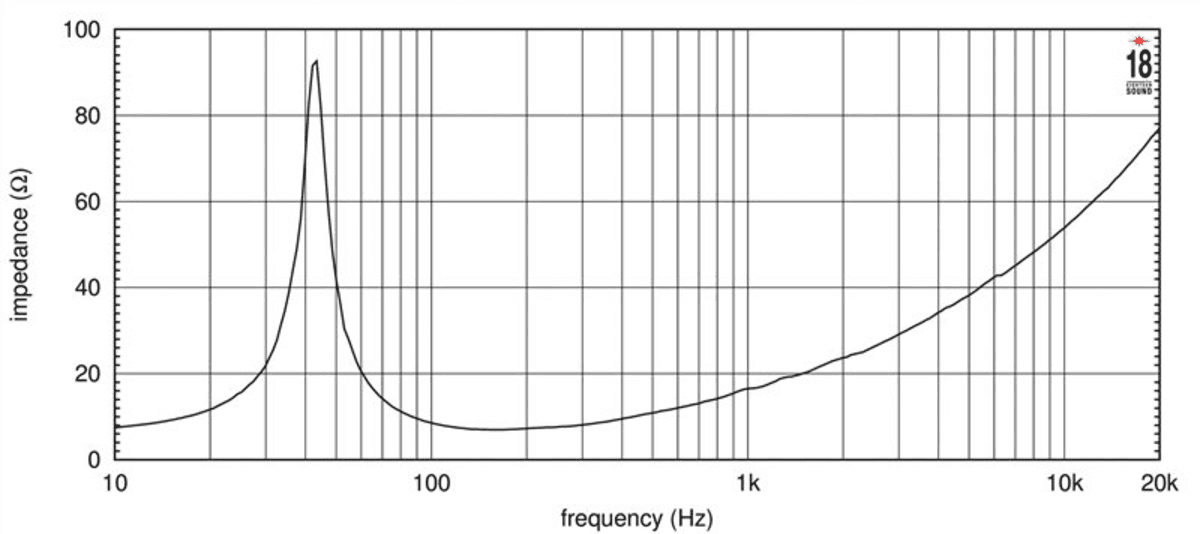

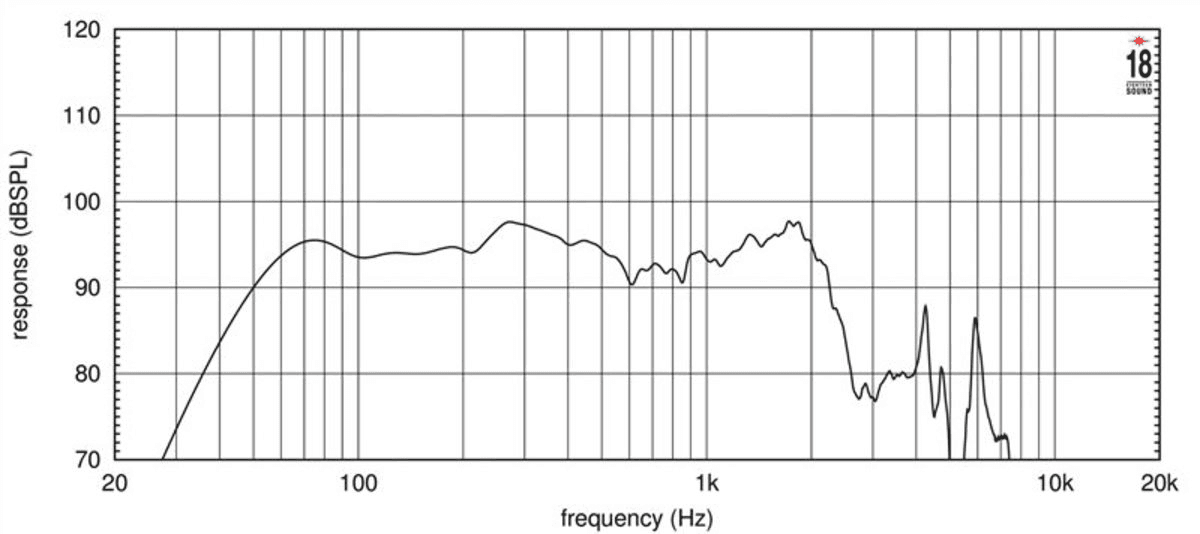

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,299 selected pixels of 1,624
T/S Parameters
Valid
Fs42Hz
Qts0.44
Qes0.46
Qms10.5
Vas140.0L
Re6.0Ω
Le1.78mH
BL23.4Tm
Sd881cm²
Mms157g
Xmax9.0mm
SPL96dB
Power1500W
Power Nominal1500W
Impedance8Ω
F Low50Hz
F High2000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£357.73
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.5kg
Diameter393.0mm
Overall Depth245.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter371.0mm
