Overview
LF Driver
PRV Audio
PRV Audio 15W1600
PRV Audio 15W1600 is a 15" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 54Hz, Qts 0.42, Vas 91.2L, Xmax 7mm, sensitivity 97.1dB, plus 689cm³ Vd and 122 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £134.74.
Size
15"
Impedance
8Ω
RMS Power
800W
Sensitivity
97.1dB
EBP
122
Vented alignment
Vd
689cm³
T/S Parameters
Valid
Fs54Hz
Qts0.42
Qes0.44
Qms13.8
Vas91.2L
Re5.8Ω
Le1.78mH
BL24.1Tm
Sd984cm²
Mms131g
Xmax7.0mm
SPL97dB
Power800W
Impedance8Ω
F Low55Hz
F High2500Hz
Xover75Hz
Voice Coil101mm
Pricing & availability
Price definitionsPrice movement
Best current price
£134.74
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.2kg
Diameter388.0mm
Overall Depth152.0mm
Cutout Diameter357.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
15W1600
15"
Best current price
£134.74
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
42%
Similarity
27% cheaper£99.00
Celestion
TF1525E
15"
Lower price
Xmax5.3mm-25%
Qts0.47+13%
BL17.8Tm-26%
Vas141.8L+55%
Qes0.53+20%
56%
Similarity
3% more£138.54
B&C
15CL76
15"
Higher price
Xmax7mm0%
Qts0.33-21%
BL21Tm-13%
Vas135L+48%
Qes0.34-23%
51%
Similarity
11% more£149.39
Beyma
15MCS500
15"
Higher price
Xmax8mm+14%
Qts0.48+14%
BL17.6Tm-27%
Vas134L+47%
Qes0.5+14%
84%
Similarity
13% more£152.08
RCF
L15P540
15"
Higher price
Xmax7mm0%
Qts0.39-7%
BL21.4Tm-11%
Vas100L+10%
Qes0.41-7%
57%
Similarity
15% more£155.00
Celestion
FTR15-3070E
15"
Higher price
Xmax7.8mm+11%
Qts0.38-10%
BL17.9Tm-26%
Vas145.8L+60%
Qes0.43-3%
60%
Similarity
29% more£173.88
Beyma
15MC500
15"
Higher price
Xmax8mm+14%
Qts0.45+7%
BL18.3Tm-24%
Vas134L+47%
Qes0.47+7%
55%
Similarity
29% more£173.91
SB Audience
ROSSO-15MW500
15"
Higher price
Xmax8.4mm+20%
Qts0.33-21%
BL23.2Tm-4%
Vas121.3L+33%
Qes0.35-20%
76%
Similarity
35% more£181.46
B&C
15FW88
15"
Higher price
Xmax8mm+14%
Qts0.43+2%
BL19.3Tm-20%
Vas103.7L+14%
Qes0.45+2%
78%
Similarity
40% more£189.00
B&C
15PS100
15"
Higher price
Xmax8mm+14%
Qts0.43+2%
BL21.2Tm-12%
Vas103L+13%
Qes0.47+7%
56%
Similarity
46% more£197.38
RCF
MB15N301
15"
Higher price
Xmax6mm-14%
Qts0.37-12%
BL19.2Tm-20%
Vas134L+47%
Qes0.39-11%
66%
Similarity
50% more£202.21
Eminence
OMEGA PRO-15-2KW-8
15"
Higher price
Xmax7.4mm+6%
Qts0.44+5%
BL19.1Tm-21%
Vas142.5L+56%
Qes0.46+5%
58%
Similarity
52% more£205.00

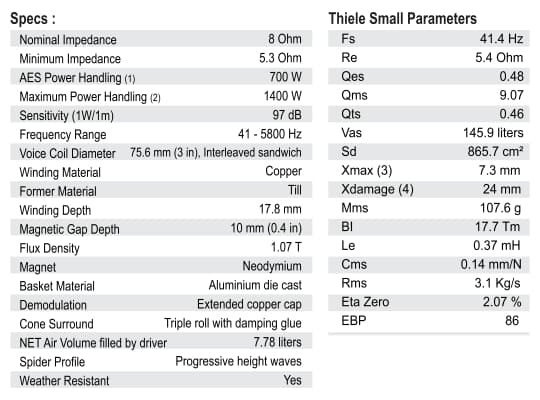

SB Audience
NERO-15MWN700D
15"
Higher price
Xmax7.3mm+4%
Qts0.46+10%
BL17.7Tm-27%
Vas145.9L+60%
Qes0.48+9%
