FaitalPRO 15XL1200 8Ω
8 Ω · 40–2000 Hz
No price for delivery to the UK
- Fs
- 40Hz
- Xmax
- 12.4mm
- SPL
- 93dB
- Pe
- 1400W
- BL
- 23.6T·m
- Vd
- 1047cm³
- Qts
- 0.40
- Vas
- 87L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
127 plotted pointsMedium confidence712 selected pixels of 1,325 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,153 selected pixels of 1,248 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,515 selected pixels of 1,515

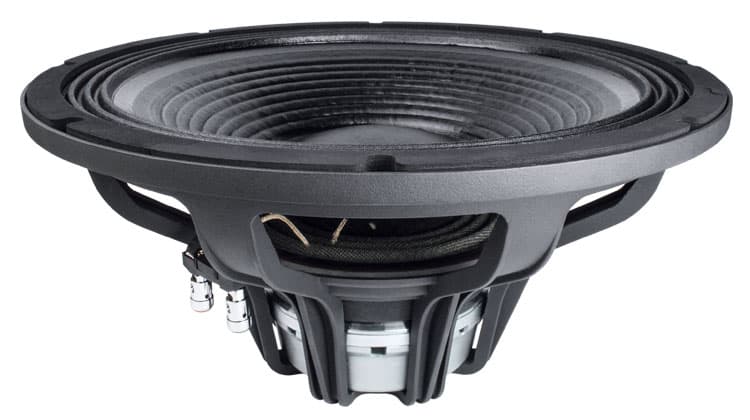

FaitalPRO 15XL1200 is a 15-inch 8 ohm LF driver rated at 1400 W RMS. The validated T/S data includes Fs 40 Hz, Qts 0.40, Vas 86.9 L, Xmax 12.4 mm, sensitivity 93.4 dB, plus 1047 cm³ Vd and 98 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £334.09.
The published T/S values agree with each other
Thiele/Small
- Fs
- 40Hz
- Qts
- 0.40
- Qes
- 0.41
- Qms
- 10.9
- Vas
- 86.9L
- Re
- 5Ω
- Le
- 1.34mH
Motor and cone
- BL
- 23.6T·m
- Sd
- 841cm²
- Mms
- 180g
- Xmax
- 12.4mm
- Vd †
- 1047cm³
Power and response
- Sensitivity †
- 93.4dB
- Manufacturer sensitivity
- 95dB
- Power
- 1400W
- Impedance
- 8Ω
- Range
- 40–2000Hz
- EBP †
- 98 · Sealed or vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Depth
- 194.3mm
- Weight
- 7.3kg
Other published values
- Cms
- 0.09mm/N
- Rms
- 4.20kg/s
- Power Program
- 2800
Sensitivity shows 93.4 dB, calculated from the T/S values. FaitalPRO publishes 95.0 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 15″
- BL
- 23.6T·m
- Fs
- 40Hz
- Le
- 1.34mH
- Re
- 5Ω
- Sd
- 841cm²
- Cms
- 0.09mm/N
- Mms
- 180g
- Qes
- 0.41
- Qms
- 10.9
- Qts
- 0.40
- Rms
- 4.20kg/s
- SPL
- 93.4dB
- Vas
- 86.9L
- Xmax
- 12.4mm
- Power
- 1400W
- Impedance
- 8Ω
- Sensitivity
- 95dB
- Low limit
- 40Hz
- Power Program
- 2800
- Calculated sensitivity †
- 93.4dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 95dB
- Weight
- 7.3kg
- Diameter
- 393mm
- Depth
- 194.3mm
- Cutout
- 354mm
- Bolt circle
- 374mm
