LF Driver15BG series
B&C
B&C 15BG100
B&C 15BG100 is a 15" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 36Hz, Qts 0.44, Vas 83L, Xmax 10.5mm, sensitivity 91dB, plus 898cm³ Vd and 73 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £298.00.
Size
15"
Impedance
8Ω
RMS Power
1000W
Sensitivity
91.0dB
94.5dBmanufacturer; using T/S-derived value (3.5dB delta).
EBP
73
Either alignment
Vd
898cm³

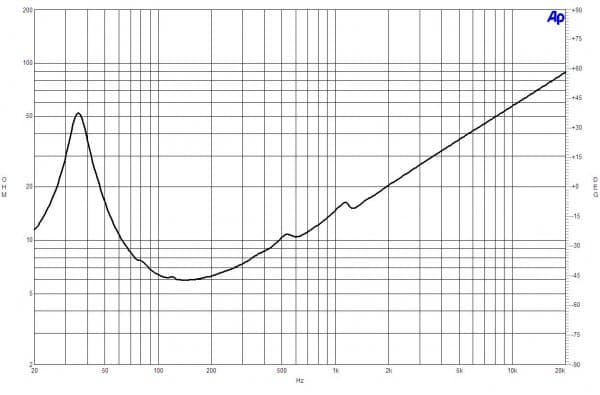

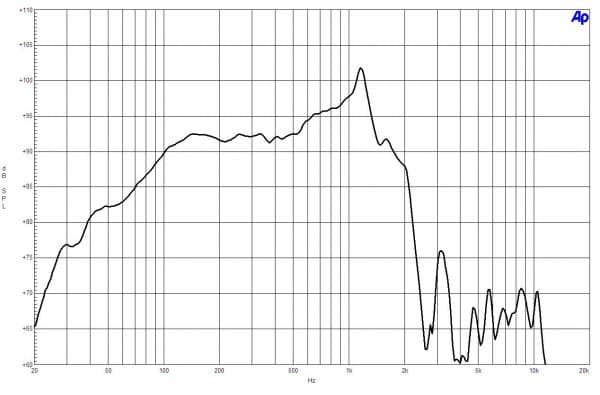

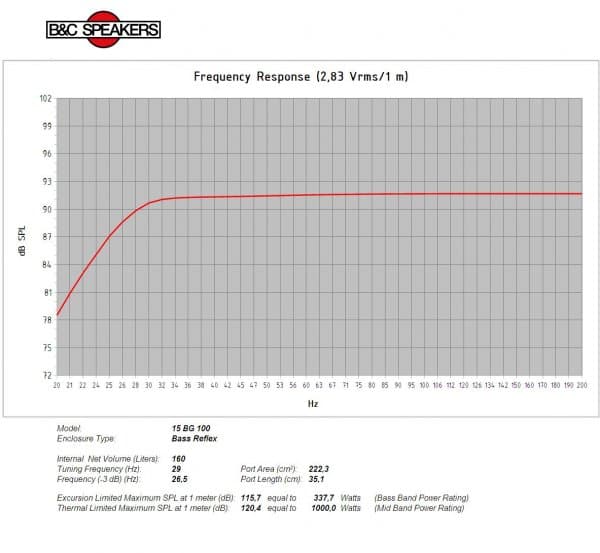

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs36Hz
Qts0.44
Qes0.49
Qms5.0
Vas83.0L
Re5.1Ω
Le1.60mH
BL23.0Tm
Sd855cm²
Mms240g
Xmax10.5mm
SPL91dB
Power1000W
Power Nominal1000W
Impedance8Ω
Min Impedance6.0Ω
F Low35Hz
F High1000Hz
Voice Coil100mm
Flux Density1.25T
Pricing & availability
Price definitionsPrice movement
Best current price
£298.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.8kg
Diameter393.0mm
Overall Depth189.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl23 Tm
Fs36 Hz
Le1.6 mH
Re5.1 Ω
Sd855 cm² (132.5 in²)
Ebp73 Hz
Mms240 g
Qes0.49
Qms5
Qts0.44
Vas83 dm³ (2.93 ft³)
η00.8 %
ConeRCK15BG1008
Xmax10.5 mm
Xvar14 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth27 mm (1.05 in)
Surround ShapeRoll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth11 mm (0.43 in)
Recommended Tuning29 Hz
Bolt Circle Diameter374 mm (14.7 in)
Recommended Enclosure160 dm³ (5.65 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter354 mm (13.9 in)
Flange And Gasket Thickness24 mm (0.94 in)
Air Volume Occupied By Driver6 dm³ (0.21 ft³)
