LF DriverBIANCO series
SB Audience
SB Audience BIANCO-15MW350
SB Audience BIANCO-15MW350 is a 15" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 39Hz, Qts 0.48, Vas 157.5L, Xmax 7.4mm, sensitivity 94.8dB, plus 635cm³ Vd and 80 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £94.10.
Size
15"
Impedance
8Ω
RMS Power
350W
Sensitivity
94.8dB
EBP
80
Either alignment
Vd
635cm³
T/S Parameters
Valid
Fs39Hz
Qts0.48
Qes0.49
Qms13.1
Vas157.5L
Re5.3Ω
Le1.12mH
BL16.9Tm
Sd855cm²
Mms109g
Xmax7.4mm
SPL95dB
Power350W
Impedance8Ω
Min Impedance5.2Ω
F Low39Hz
F High3800Hz
Voice Coil66mm
Flux Density1.23T
Pricing & availability
Price definitionsPrice movement
Best current price
£94.10
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

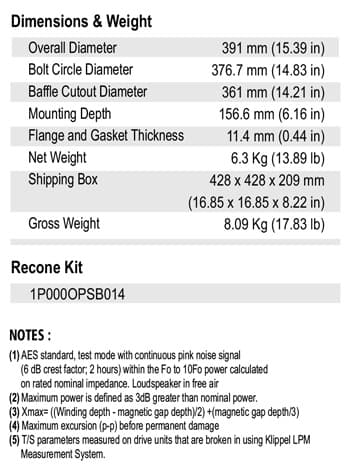

Dimensions & Physical
Weight6.3kg
Diameter391.0mm
Cutout Diameter361.0mm
Bolt Circle Diameter376.7mm
