Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespFane SOVEREIGN PRO 15-600LF 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Fane

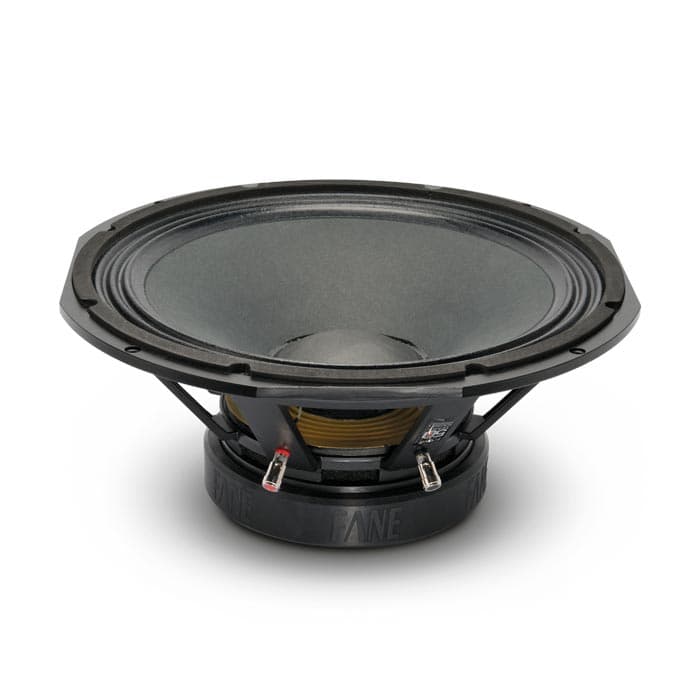

Fane SOVEREIGN PRO 15-600LF
Fane SOVEREIGN PRO 15-600LF is a 15" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 40Hz, Qts 0.37, Vas 188L, Xmax 6.9mm, sensitivity 97dB, plus 591cm³ Vd and 105 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
600W
Sensitivity
97.0dB
98.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
105
Vented alignment
Vd
591cm³
T/S Parameters
Valid
Fs40Hz
Qts0.37
Qes0.38
Qms8.8
Vas188.0L
Re6.5Ω
Le1.85mH
BL19.7Tm
Sd856cm²
Mms89g
Xmax6.9mm
SPL97dB
Power600W
Impedance8Ω
F Low35Hz
F High3500Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight20.5kg
Diameter406.4mm
Overall Depth174.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Fane
SOVEREIGN PRO 15-600LF
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity
RCF
M15P550
15"
Xmax7mm+1%
Qts0.370%
BL19.8Tm+1%
Vas140L-26%
Qes0.41+8%
88%
Similarity
Lavoce
NBASS15-30
15"
Xmax6.6mm-4%
Qts0.36-3%
BL19.2Tm-3%
Vas143.1L-24%
Qes0.380%
88%
Similarity
Oberton
15CX
15"
Xmax7mm+1%
Qts0.35-6%
BL18.4Tm-6%
Vas163.8L-13%
Qes0.37-2%
88%
Similarity
£135.11
Lavoce
WAF153.00
15"
Xmax7mm+1%
Qts0.370%
BL17.9Tm-9%
Vas146.3L-22%
Qes0.39+3%
87%
Similarity
Beyma
15CXA400ND
15"
Xmax6mm-13%
Qts0.36-3%
BL19Tm-4%
Vas196L+4%
Qes0.39+3%
85%
Similarity
£205.89
Beyma
15MCB700
15"
Xmax7mm+1%
Qts0.34-8%
BL20Tm+2%
Vas148L-21%
Qes0.36-5%
84%
Similarity
£310.24
Oberton
15NMB35
15"
Xmax6.8mm-2%
Qts0.34-9%
BL18.5Tm-6%
Vas177.5L-6%
Qes0.35-8%
83%
Similarity
CIARE
PWA15.75
15"
Xmax7mm+1%
Qts0.39+5%
BL19.3Tm-2%
Vas135L-28%
Qes0.41+8%
83%
Similarity
£197.38
RCF
MB15N301
15"
Xmax6mm-13%
Qts0.370%
BL19.2Tm-3%
Vas134L-29%
Qes0.39+3%
81%
Similarity
£125.00
Celestion
TF1530E
15"
Xmax6.5mm-6%
Qts0.33-11%
BL17Tm-14%
Vas191.6L+2%
Qes0.37-2%
81%
Similarity
£156.00
Fane
SOVEREIGN PRO 15-600
15"
Xmax6mm-13%
Qts0.35-5%
BL17.5Tm-11%
Vas201L+7%
Qes0.39+3%
81%
Similarity
£110.00
SB Audience
BIANCO-15MW500
15"
Xmax7.6mm+10%
Qts0.4+8%
BL18.8Tm-5%
Vas171L-9%
Qes0.41+8%
