Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEighteen Sound 15W700 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Eighteen Sound

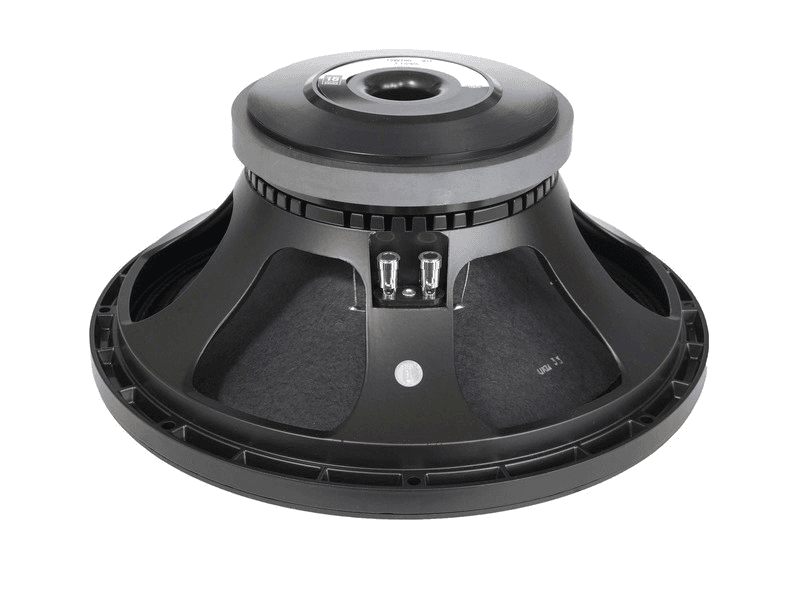

Eighteen Sound 15W700
Eighteen Sound 15W700 is a 15" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 38Hz, Qts 0.30, Vas 217L, Xmax 6.5mm, sensitivity 97.6dB, plus 553cm³ Vd and 115 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £181.89.
Size
15"
Impedance
8Ω
RMS Power
450W
Sensitivity
97.6dB
99.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
115
Vented alignment
Vd
553cm³

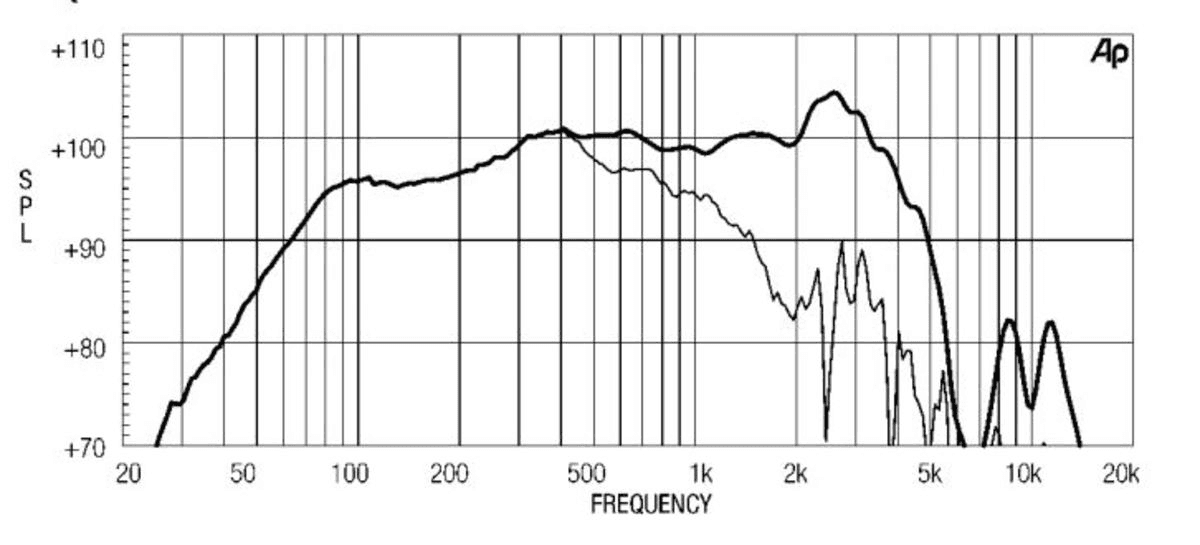

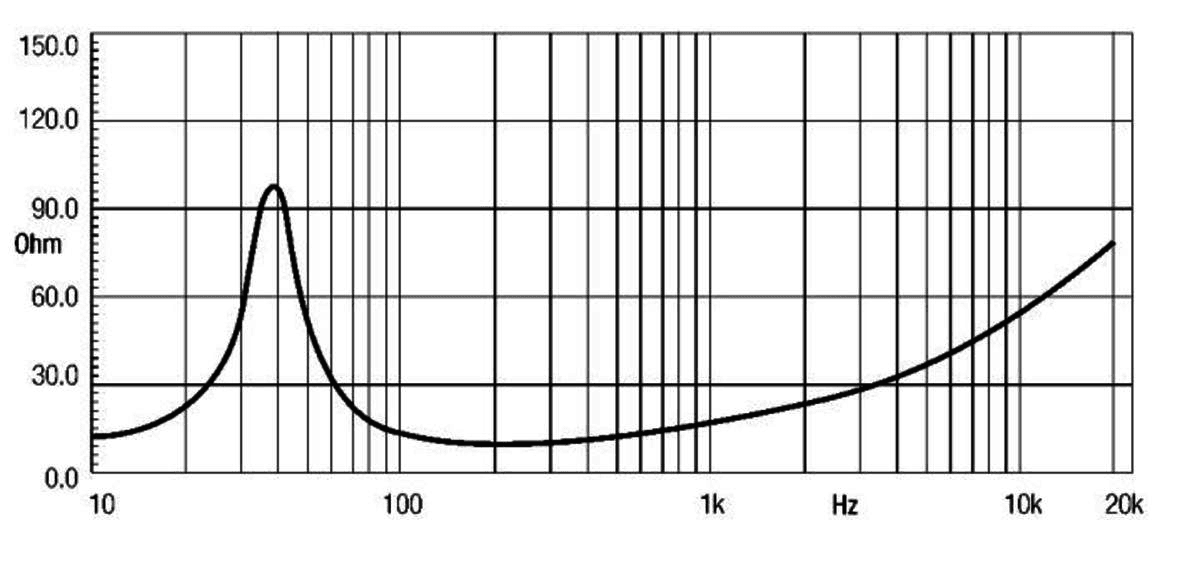

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,178 selected pixels of 1,178
T/S Parameters
Valid
Fs38Hz
Qts0.30
Qes0.33
Qms3.8
Vas217.0L
Re5.7Ω
Le1.57mH
BL18.4Tm
Sd850cm²
Mms80g
Xmax6.5mm
SPL98dB
Power450W
Power Nominal450W
Impedance8Ω
F Low38Hz
F High5000Hz
Pricing & availability
Price definitionsOffers & B-stock
1 hidden from price comparisons
Price movement
Other offers
2 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£181.90
inc VAT
Back order
thomann
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£217.00
inc VAT
In stock
Best current price
Updated 17 May 2026
leanbusiness
£181.89
Avg £199.45£17.56 below avg (-8.8%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.5kg
Diameter387.0mm
Overall Depth168.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter370.0mm
