Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEighteen Sound 15W700 4Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Eighteen Sound

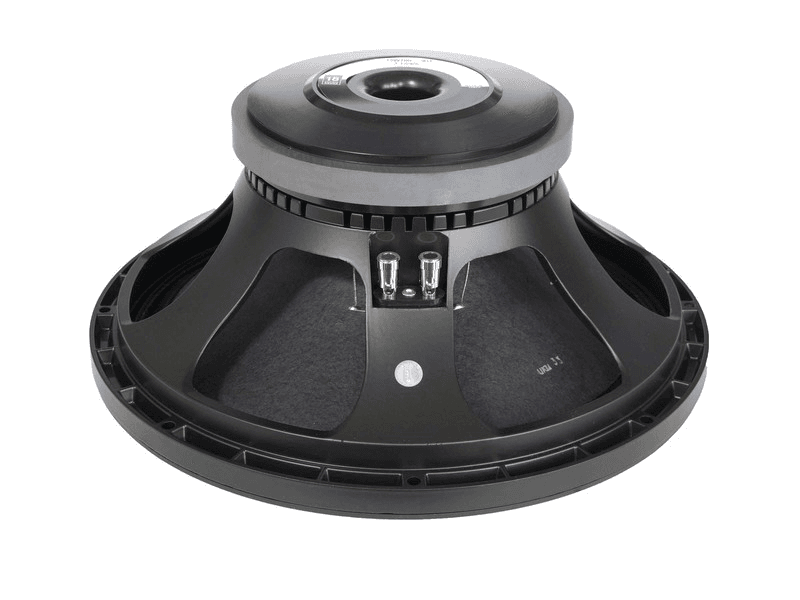

Eighteen Sound 15W700
Eighteen Sound 15W700 is a 15" 4 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 41Hz, Qts 0.27, Vas 180L, Xmax 6.5mm, sensitivity 98.3dB, plus 553cm³ Vd and 141 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
4Ω
RMS Power
450W
Sensitivity
98.3dB
97.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
141
Vented alignment
Vd
553cm³
T/S Parameters
Valid
Fs41Hz
Qts0.27
Qes0.29
Qms4.0
Vas180.0L
Re2.8Ω
Le0.54mH
BL14.7Tm
Sd850cm²
Mms86g
Xmax6.5mm
SPL98dB
Power450W
Power Nominal450W
Impedance4Ω
F Low38Hz
F High5000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.5kg
Diameter387.0mm
Overall Depth168.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter370.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
15W700
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
75%
Similarity
£244.00
B&C
15NDL88
15"
Xmax8mm+23%
Qts0.28+4%
BL16.5Tm+12%
Vas154L-14%
Qes0.290%
73%
Similarity
Eighteen Sound
15NMB420
15"
Xmax6.5mm0%
Qts0.29+7%
BL19Tm+29%
Vas225L+25%
Qes0.3+3%
72%
Similarity
£396.97
B&C
15CXN76
15"
Xmax6mm-8%
Qts0.28+4%
BL17.8Tm+21%
Vas246L+37%
Qes0.3+3%
72%
Similarity
£399.49
B&C
15HCX76
15"
Xmax6mm-8%
Qts0.28+4%
BL17.8Tm+21%
Vas246L+37%
Qes0.3+3%
71%
Similarity
£174.30
Eighteen Sound
15MB700
15"
Xmax5.5mm-15%
Qts0.29+7%
BL17.6Tm+20%
Vas202L+12%
Qes0.31+7%
70%
Similarity
Eighteen Sound
15ND930
15"
Xmax7.5mm+15%
Qts0.24-11%
BL17Tm+16%
Vas182L+1%
Qes0.24-17%
70%
Similarity
£181.89
Eighteen Sound
15W700
15"
Xmax6.5mm0%
Qts0.3+11%
BL18.4Tm+25%
Vas217L+21%
Qes0.33+14%
68%
Similarity
Eighteen Sound
15W750
15"
Xmax8mm+23%
Qts0.29+7%
BL14Tm-5%
Vas253L+41%
Qes0.3+3%
68%
Similarity
£153.00
B&C
15CL76
15"
Xmax7mm+8%
Qts0.25-7%
BL19.1Tm+30%
Vas140L-22%
Qes0.27-7%
67%
Similarity
Oberton
15HCX
15"
Xmax7.8mm+19%
Qts0.3+11%
BL17.1Tm+16%
Vas205.5L+14%
Qes0.32+9%
65%
Similarity
£125.00
Celestion
TF1530E
15"
Xmax6.5mm0%
Qts0.33+21%
BL17Tm+16%
Vas191.6L+6%
Qes0.37+29%
65%
Similarity
£165.43
Beyma
15WR400
15"
Xmax6.3mm-3%
Qts0.3+11%
BL19.2Tm+31%
Vas236L+31%
Qes0.31+7%
