Overview
LF Driver15HCX series
Oberton
Oberton 15HCX
Oberton 15HCX is a 15" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 41Hz, Qts 0.30, Vas 205.5L, Xmax 7.8mm, sensitivity 98.5dB, plus 642cm³ Vd and 129 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
450W
Sensitivity
98.5dB
EBP
129
Vented alignment
Vd
642cm³
T/S Parameters
Valid
Fs41Hz
Qts0.30
Qes0.32
Qms6.1
Vas205.5L
Re5.0Ω
Le0.64mH
BL17.1Tm
Sd829cm²
Mms71g
Xmax7.8mm
SPL99dB
Power450W
Impedance8Ω
F Low50Hz
F High16000Hz
Voice Coil77mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

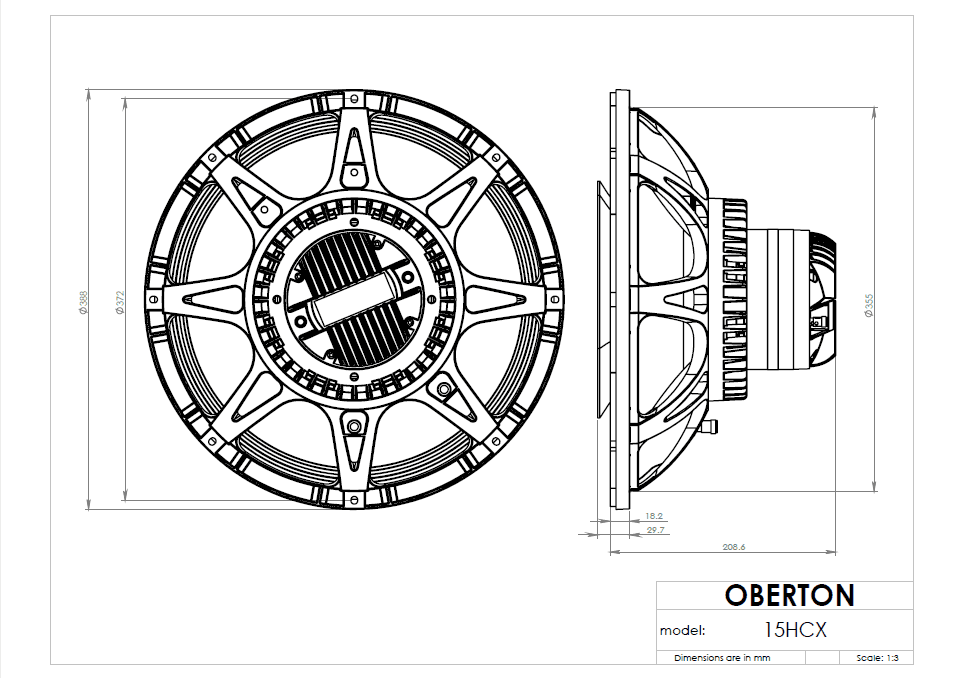

Dimensions & Physical
Weight6.6kg
Diameter388.0mm
Overall Depth220.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter372.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Oberton
15HCX
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
84%
Similarity
£181.89
Eighteen Sound
15W700
15"
Xmax6.5mm-16%
Qts0.30%
BL18.4Tm+8%
Vas217L+6%
Qes0.33+4%
82%
Similarity
£244.00

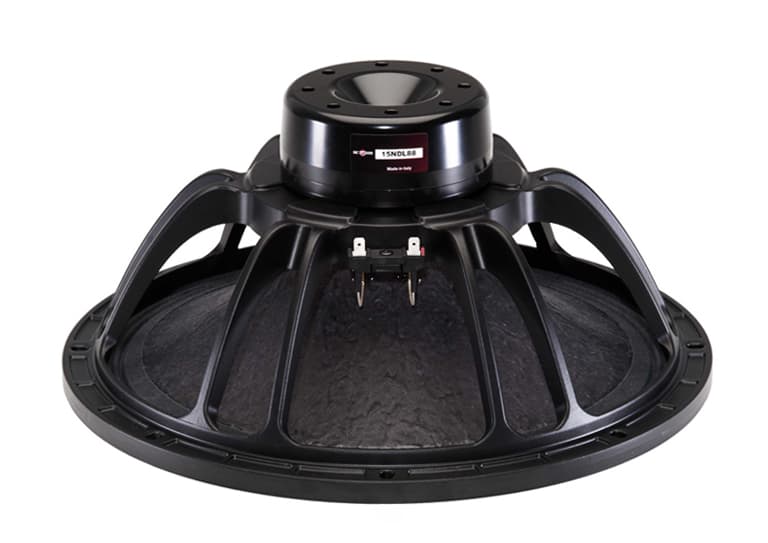

B&C
15NDL88
15"
Xmax8mm+3%
Qts0.28-7%
BL16.5Tm-3%
Vas154L-25%
Qes0.29-8%
80%
Similarity
£210.62
FaitalPRO
15FH500
15"
Xmax9.3mm+19%
Qts0.31+3%
BL19.2Tm+12%
Vas199.2L-3%
Qes0.32+1%
79%
Similarity
£173.41
Eighteen Sound
15MB700
15"
Xmax5.5mm-29%
Qts0.29-3%
BL17.6Tm+3%
Vas202L-2%
Qes0.31-2%
79%
Similarity
Eighteen Sound
15NMB420
15"
Xmax6.5mm-16%
Qts0.29-3%
BL19Tm+11%
Vas225L+9%
Qes0.3-5%
79%
Similarity
Beyma
115WR408
15"
Xmax6.3mm-19%
Qts0.30%
BL19.2Tm+12%
Vas236L+15%
Qes0.31-2%
79%
Similarity
£239.90
Eighteen Sound
15ND830
15"
Xmax6.5mm-16%
Qts0.32+7%
BL18Tm+5%
Vas213L+4%
Qes0.35+11%
79%
Similarity
£153.86
Eminence
KAPPA PRO-15LF
15"
Xmax6.7mm-14%
Qts0.30%
BL21.6Tm+26%
Vas198.8L-3%
Qes0.32+1%
78%
Similarity

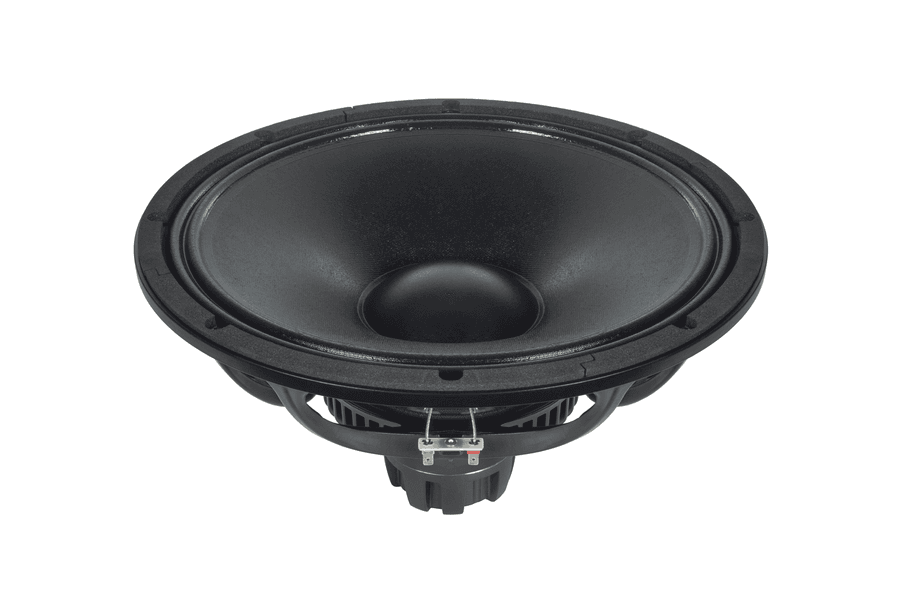

Eighteen Sound
15NTLW2500
15"
Xmax8mm+3%
Qts0.30%
BL21.2Tm+24%
Vas143L-30%
Qes0.31-2%
77%
Similarity

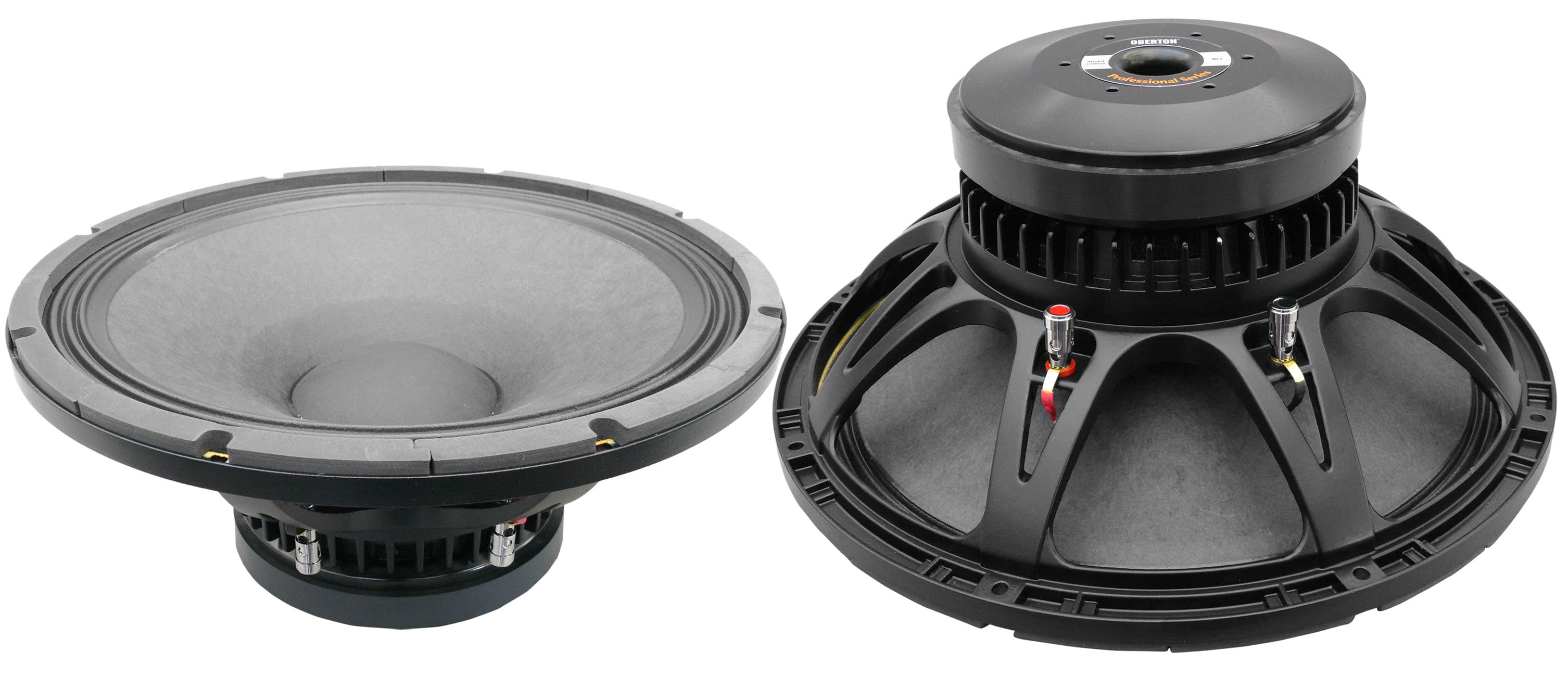

Oberton
15MB500
15"
Xmax7.8mm0%
Qts0.34+13%
BL18.5Tm+9%
Vas161.5L-21%
Qes0.35+10%
76%
Similarity
£125.00
Celestion
TF1530E
15"
Xmax6.5mm-16%
Qts0.33+9%
BL17Tm0%
Vas191.6L-7%
Qes0.37+18%
74%
Similarity

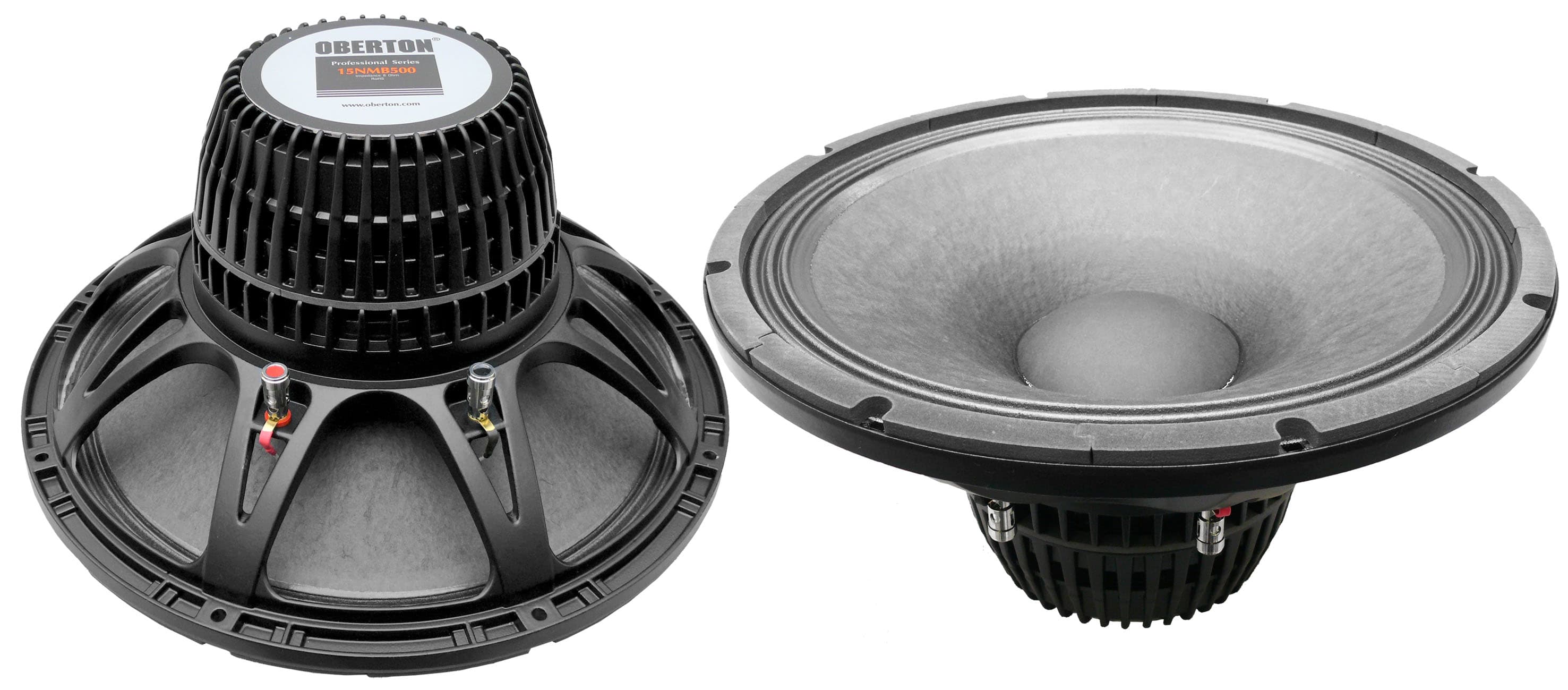

Oberton
