LF DriverFlexunits series
Audio Technology
Audio Technology 15 F 102 25 10 KAP
Audio Technology 15 F 102 25 10 KAP is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 22Hz, Qts 0.29, Vas 410L, Xmax 8.6mm, sensitivity 93.7dB, plus 718cm³ Vd and 73 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
93.7dB
EBP
73
Either alignment
Vd
718cm³
T/S Parameters
Valid
Fs22Hz
Qts0.29
Qes0.30
Qms6.9
Vas410.0L
Re6.0Ω
Le1.10mH
BL18.6Tm
Sd835cm²
Mms126g
Xmax8.6mm
SPL94dB
Power400W
Impedance8Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Audio Technology
15 F 102 25 10 KAP
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
73%
Similarity

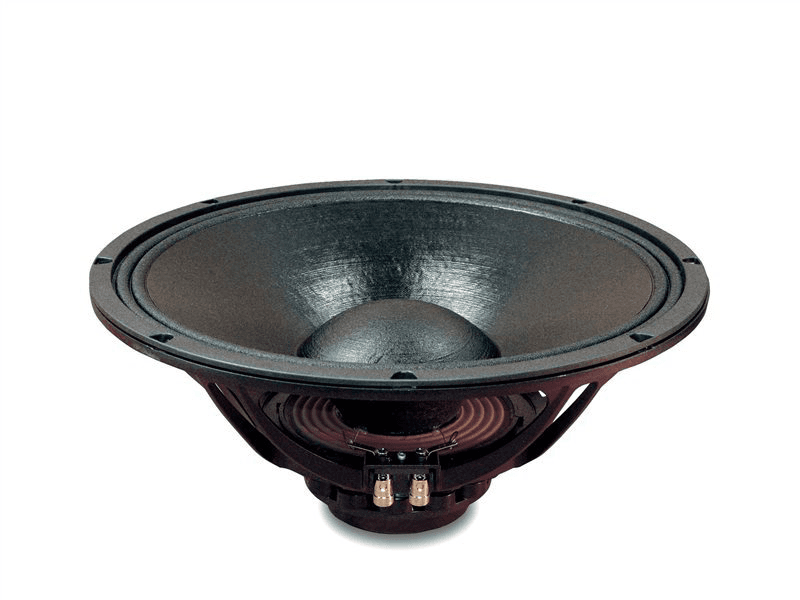

Eighteen Sound
15NMB420
15"
Xmax6.5mm-24%
Qts0.290%
BL19Tm+2%
Vas225L-45%
Qes0.30%
73%
Similarity
Dayton Audio
APOLLO 15LF
15"
Xmax9.3mm+8%
Qts0.26-10%
BL21.1Tm+13%
Vas331.3L-19%
Qes0.27-10%
72%
Similarity
£210.62
FaitalPRO
15FH500
15"
Xmax9.3mm+8%
Qts0.31+7%
BL19.2Tm+3%
Vas199.2L-51%
Qes0.32+7%
72%
Similarity

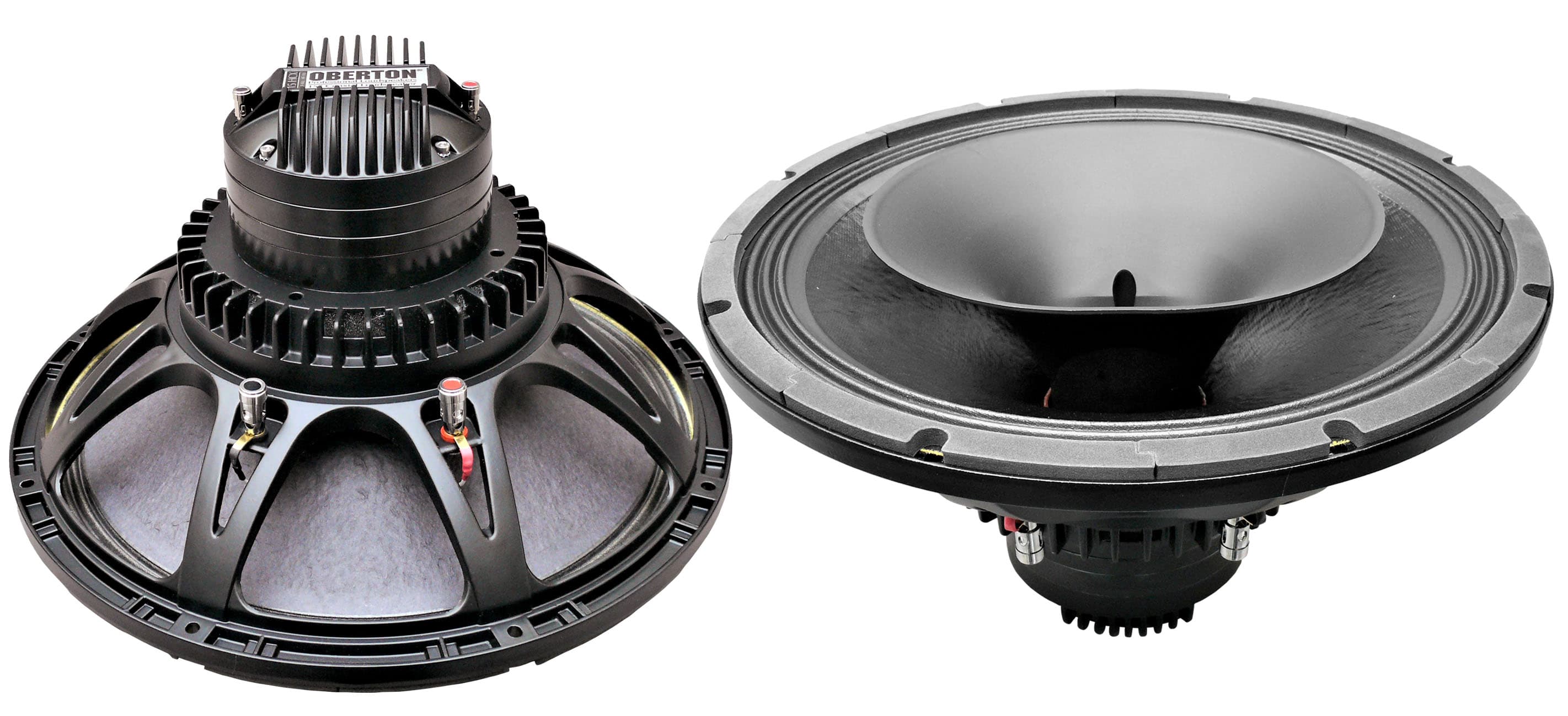

Oberton
15HCX
15"
Xmax7.8mm-10%
Qts0.3+3%
BL17.1Tm-8%
Vas205.5L-50%
Qes0.32+5%
71%
Similarity
£1,674.95
Scanspeak
38WE/8582T00
15"
Xmax10.2mm+19%
Qts0.24-17%
BL18.7Tm+1%
Vas423L+3%
Qes0.26-13%
70%
Similarity
£284.97

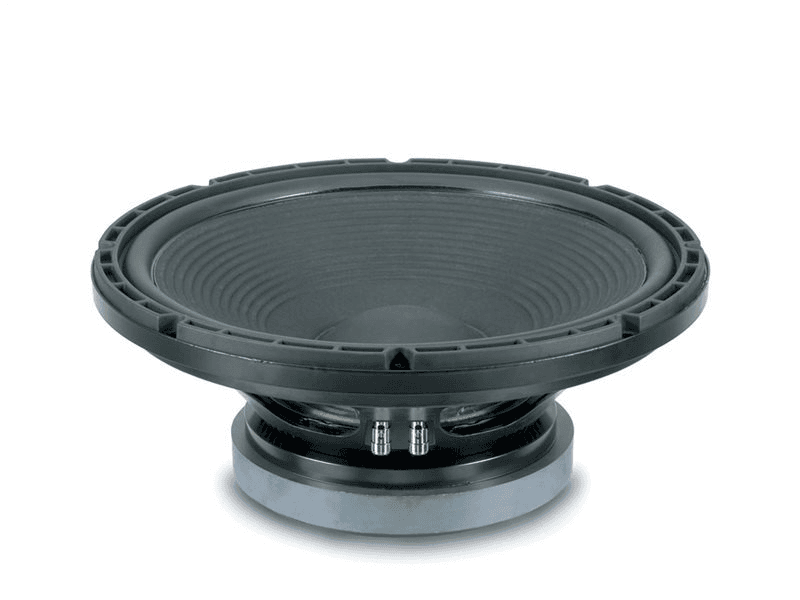

Eighteen Sound
15LW1500
15"
Xmax9mm+5%
Qts0.28-3%
BL22.1Tm+19%
Vas195L-52%
Qes0.29-3%
68%
Similarity
Beyma
115WR408
15"
Xmax6.3mm-27%
Qts0.3+3%
BL19.2Tm+3%
Vas236L-42%
Qes0.31+3%
68%
Similarity

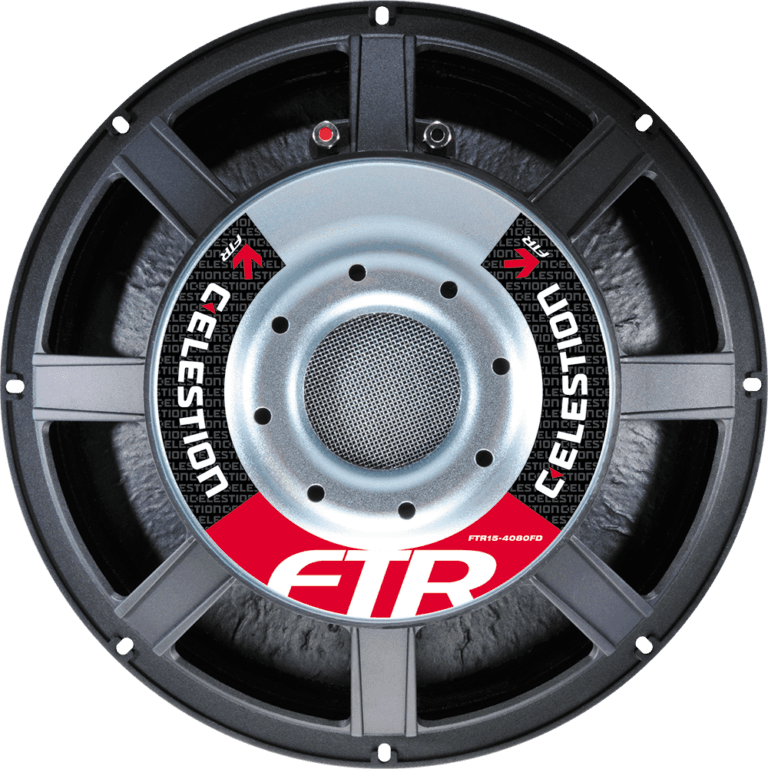

Celestion
FTR15-4080FD
15"
Xmax8.5mm-1%
Qts0.28-4%
BL23.1Tm+24%
Vas164.3L-60%
Qes0.3-1%
66%
Similarity
£181.89

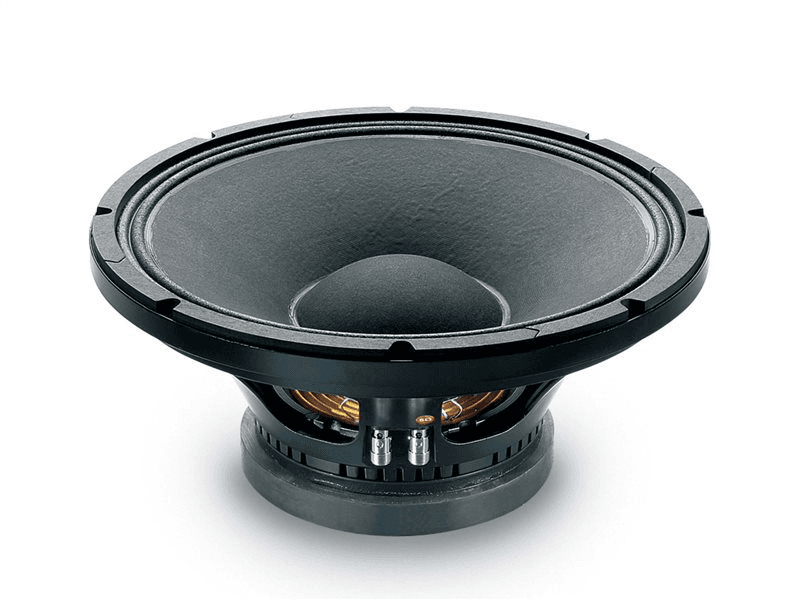

Eighteen Sound
15W700
15"
Xmax6.5mm-24%
Qts0.3+3%
BL18.4Tm-1%
Vas217L-47%
Qes0.33+10%
66%
Similarity

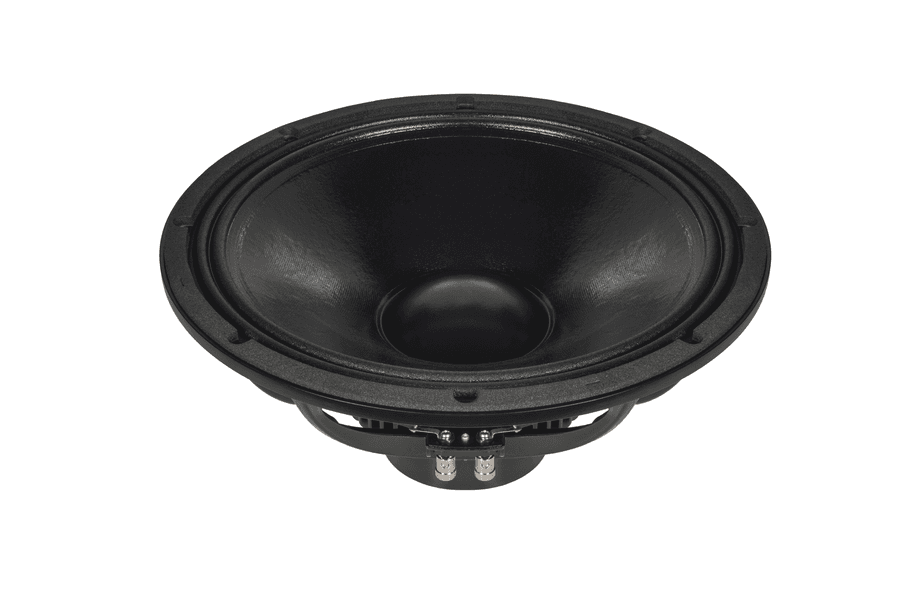

Eighteen Sound
