Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespFaitalPRO 15FH500 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFH series
FaitalPRO

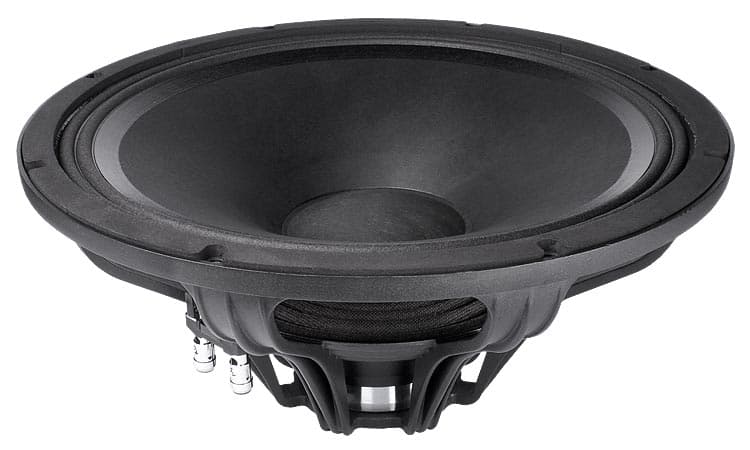

FaitalPRO 15FH500
FaitalPRO 15FH500 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 35Hz, Qts 0.31, Vas 199.2L, Xmax 9.3mm, sensitivity 96.3dB, plus 783cm³ Vd and 109 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £210.62.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
96.3dB
98.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
109
Vented alignment
Vd
783cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees158 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
158 plotted pointsMedium confidence525 selected pixels of 1,231 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence995 selected pixels of 1,898 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,343 selected pixels of 1,504
T/S Parameters
Valid
Fs35Hz
Qts0.31
Qes0.32
Qms10.4
Vas199.2L
Re5.1Ω
Le1.30mH
BL19.2Tm
Sd847cm²
Mms104g
Xmax9.3mm
SPL96dB
Power500W
Impedance8Ω
F Low35Hz
F High3150Hz
Pricing & availability
Price definitionsPrice movement
Other offers
4 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£210.62
inc VAT
2 in stock
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£210.64
inc VAT
soundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£257.71
inc VAT
Out of stock
partsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£321.01
inc VAT
3 in stock
Best current price
Updated 11 Sept 2026
bluearan
£210.62
Avg £238.22£27.60 below avg (-11.6%)
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.3kg
Diameter393.0mm
Overall Depth181.3mm
Cutout Diameter356.0mm
Bolt Circle Diameter374.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
15FH500
15"
Best current price
£210.62
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
66%
Similarity
41% cheaper£125.00
Celestion
TF1530E
15"
Lower price
Xmax6.5mm-30%
Qts0.33+6%
BL17Tm-11%
Vas191.6L-4%
Qes0.37+17%
63%
Similarity
36% cheaper£133.80
Visaton
PAW 38 - 8 OHM
15"
Lower price
Xmax12mm+30%
Qts0.29-6%
BL25Tm+30%
Vas195L-2%
Qes0.31-3%
54%
Similarity
36% cheaper£135.11
Lavoce
WAF153.00
15"
Lower price
Xmax7mm-24%
Qts0.37+19%
BL17.9Tm-7%
Vas146.3L-27%
Qes0.39+22%
66%
Similarity
34% cheaper£138.54
B&C
15CL76
15"
Lower price
Xmax7mm-24%
Qts0.33+6%
BL21Tm+9%
Vas135L-32%
Qes0.34+6%
59%
Similarity
27% cheaper£153.00
B&C
15CL76
15"
Lower price
Xmax7mm-24%
Qts0.25-19%
BL19.1Tm-1%
Vas140L-30%
Qes0.27-16%
76%
Similarity
27% cheaper£153.86
Eminence
KAPPA PRO-15LF
15"
Lower price
Xmax6.7mm-28%
Qts0.3-3%
BL21.6Tm+13%
Vas198.8L0%
Qes0.320%
52%
Similarity
26% cheaper£155.00
Celestion
FTR15-3070E
15"
Lower price
Xmax7.8mm-16%
Qts0.38+22%
BL17.9Tm-7%
Vas145.8L-27%
Qes0.43+33%
63%
Similarity
26% cheaper£156.00
Fane
SOVEREIGN PRO 15-600LF
15"
Lower price
Xmax6.9mm-25%
Qts0.37+19%
BL19.7Tm+3%
Vas188L-6%
Qes0.38+19%
57%
Similarity
23% cheaper£161.93
FaitalPRO
15HP1010
15"
Lower price
Xmax9.8mm+5%
Qts0.37+19%
BL22Tm+15%
Vas107.5L-46%
Qes0.38+19%
66%
Similarity
17% cheaper£173.91
SB Audience
ROSSO-15MW500
15"
Lower price
Xmax8.4mm-9%
Qts0.33+6%
BL23.2Tm+21%
Vas121.3L-39%
Qes0.35+9%
75%
Similarity
14% cheaper£181.89
Eighteen Sound
15W700
15"
Lower price
Xmax6.5mm-30%
Qts0.3-3%
BL18.4Tm-4%
Vas217L+9%
Qes0.33+3%
61%
Similarity
14% cheaper£182.15
RCF
LF15G401
15"
Lower price
Xmax9mm-3%
Qts0.26-16%
BL24.6Tm+28%
Vas150L-25%
Qes0.27-16%
