LF DriverEllipticor series
Scanspeak

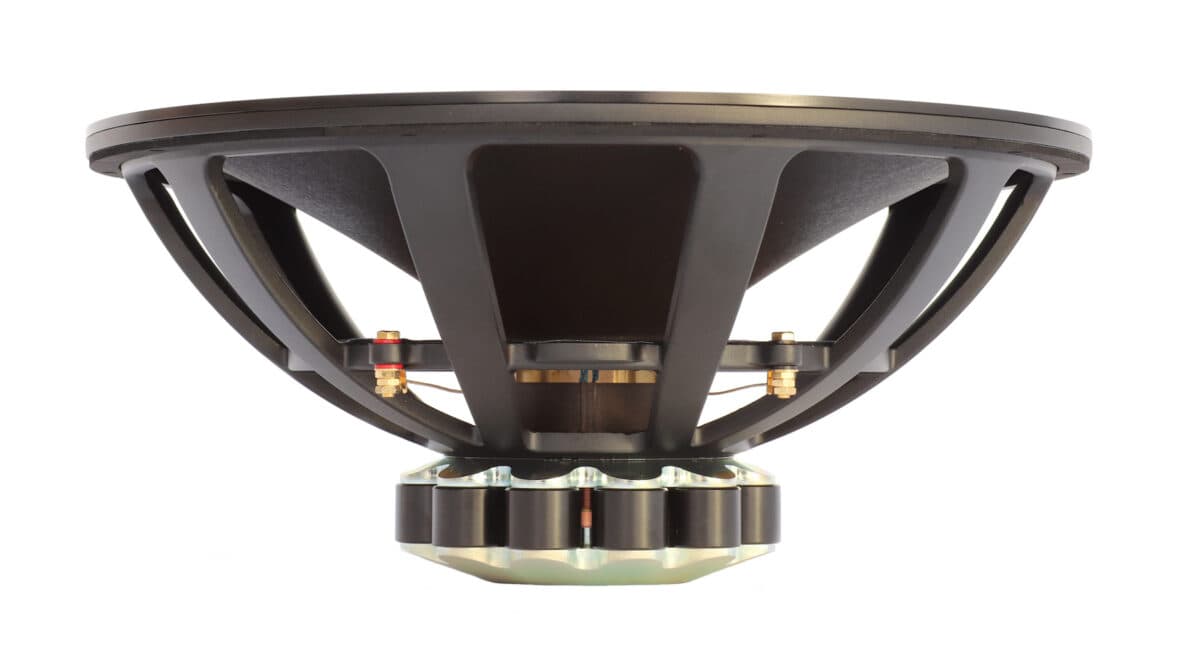

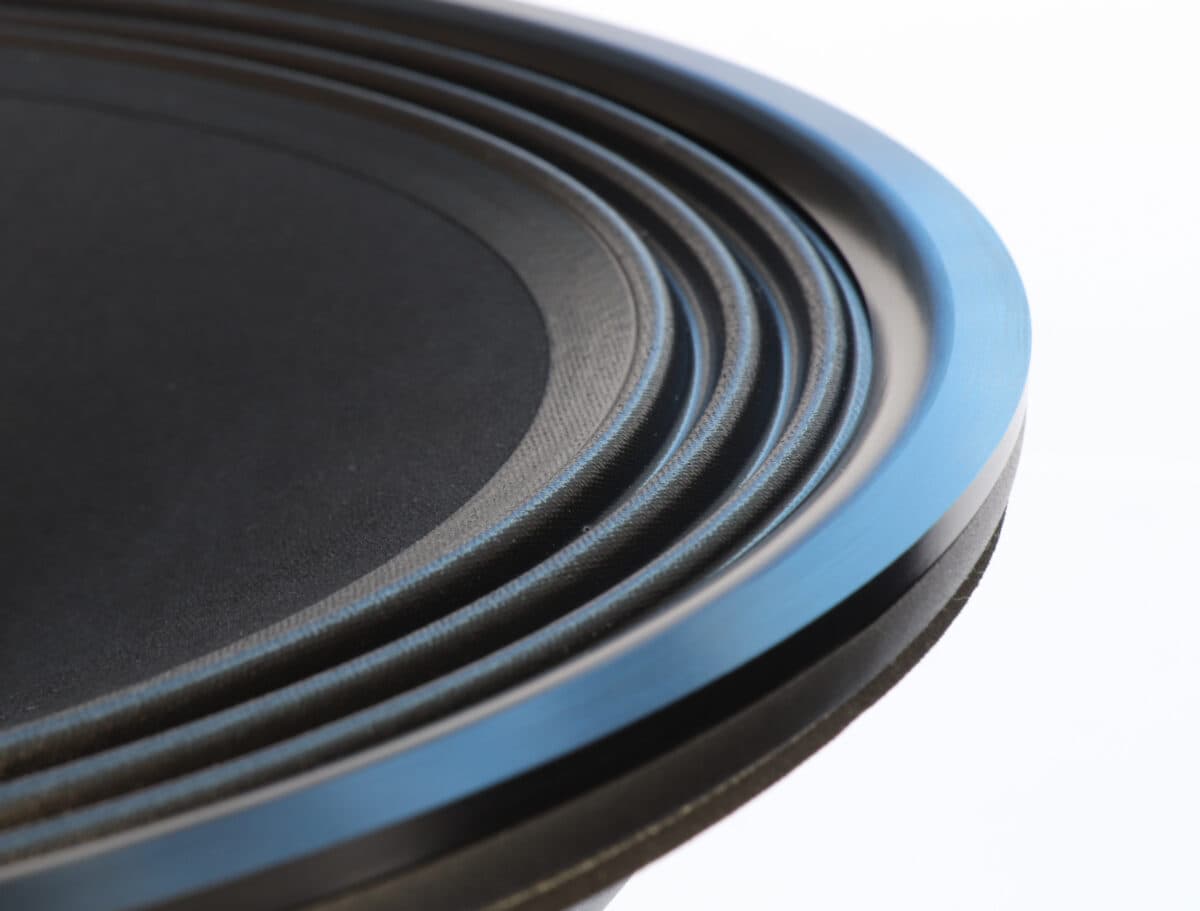

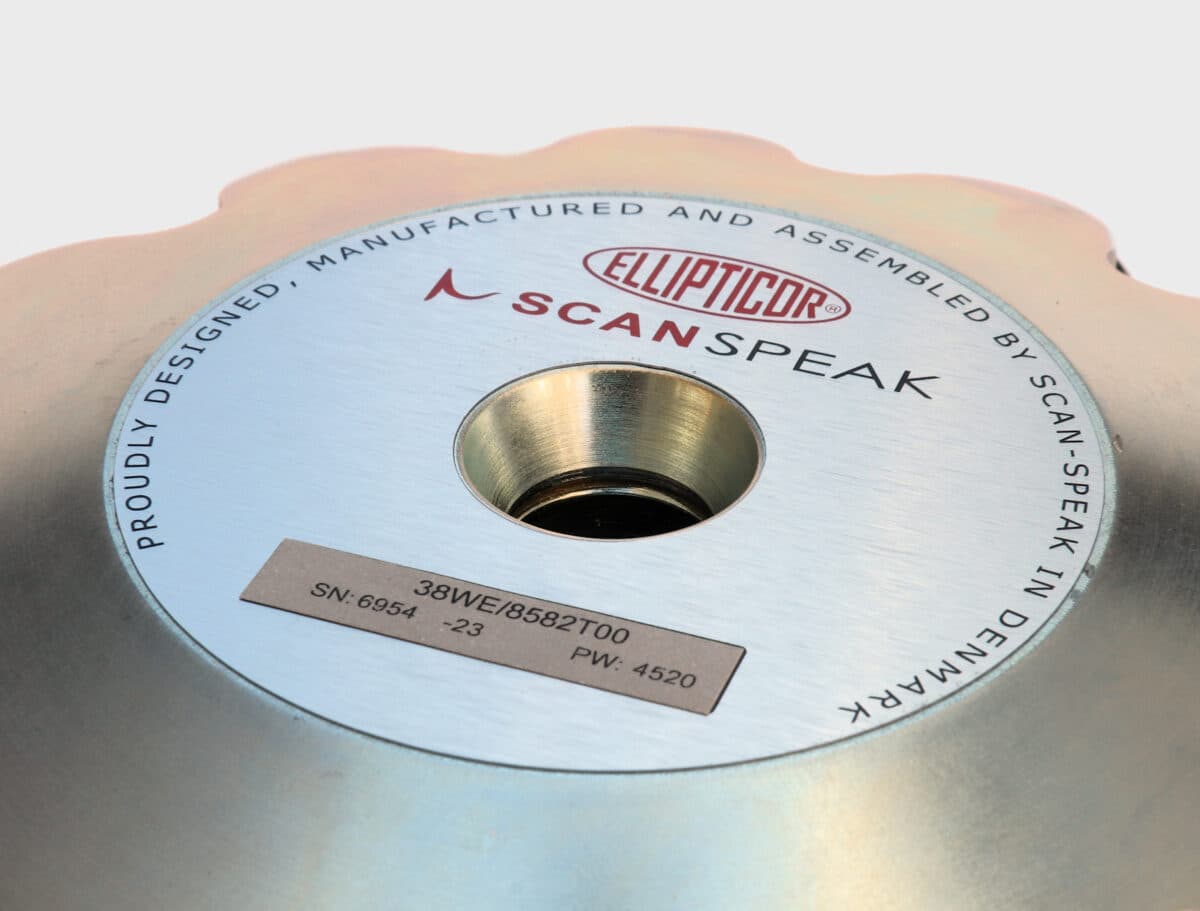

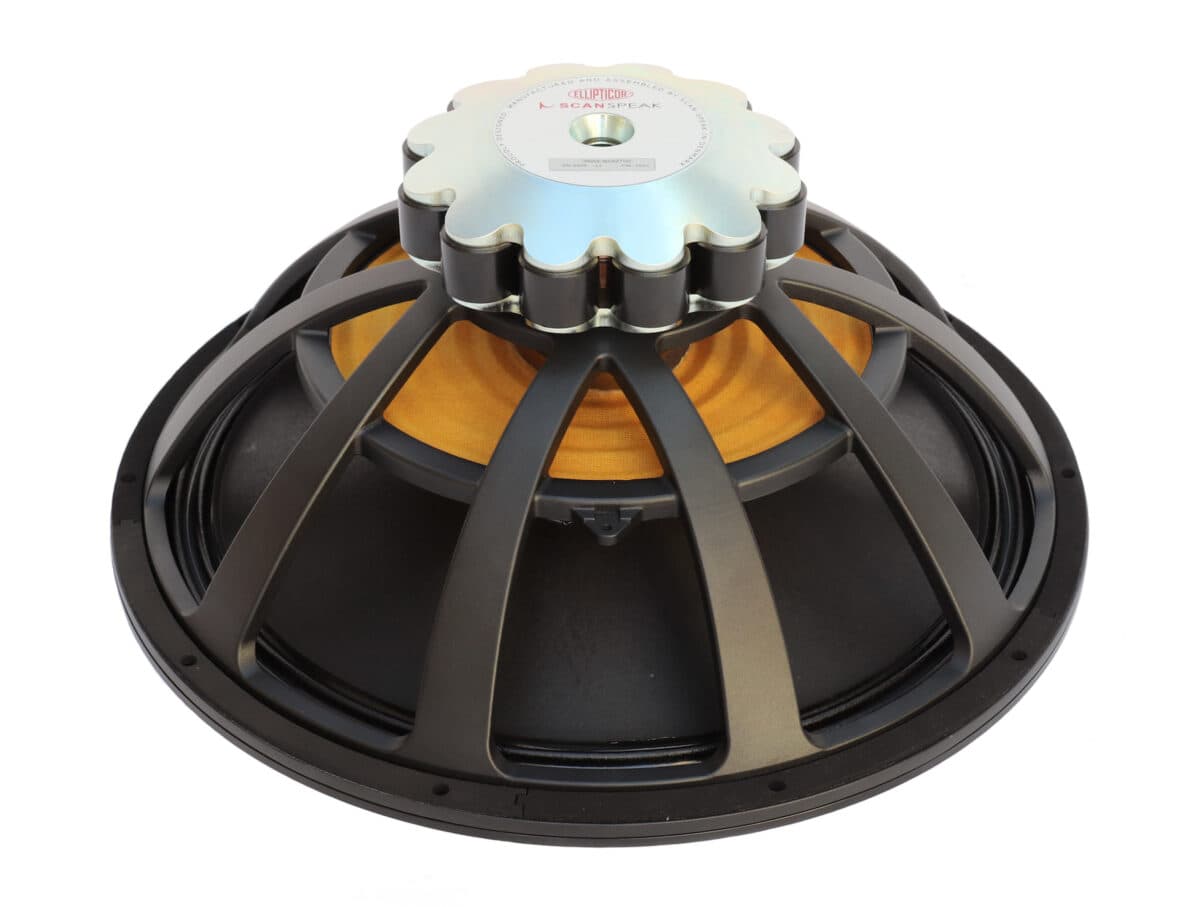

Scanspeak 38WE/8582T00
Scanspeak 38WE/8582T00 is a 15" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 26Hz, Qts 0.24, Vas 423L, Xmax 10.2mm, sensitivity 96.6dB, plus 842cm³ Vd and 100 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £1674.95.
Size
15"
Impedance
8Ω
RMS Power
350W
Sensitivity
96.6dB
95.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
100
Either alignment
Vd
842cm³
T/S Parameters
Valid
Fs26Hz
Qts0.24
Qes0.26
Qms3.8
Vas423.0L
Re6.4Ω
Le0.80mH
BL18.7Tm
Sd825cm²
Mms86g
Xmax10.2mm
SPL97dB
Power350W
Impedance8Ω
Min Impedance8.1Ω
Pricing & availability
Price definitionsPrice movement
Best current price
£1,674.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter380.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
38WE/8582T00
15"
Best current price
£1,674.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
54%
Similarity
88% cheaper£193.05
Eighteen Sound
15W930
15"
Lower price
Xmax7.5mm-26%
Qts0.22-8%
BL22.1Tm+18%
Vas240L-43%
Qes0.23-12%
67%
Similarity
88% cheaper£198.42
FaitalPRO
15FH510
15"
Lower price
Xmax9.3mm-9%
Qts0.26+8%
BL21Tm+12%
Vas191.8L-55%
Qes0.27+4%
63%
Similarity
87% cheaper£225.95

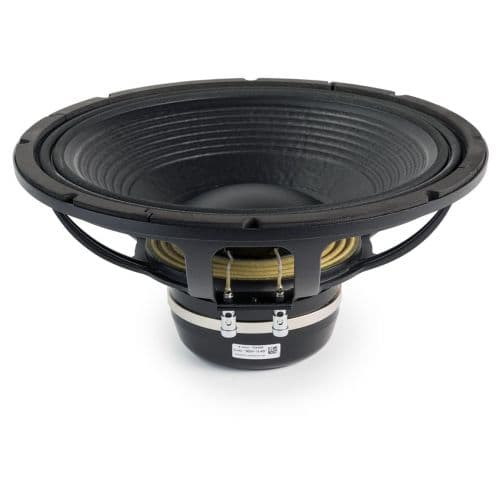

CIARE
