LF DriverKAPPA series
Eminence

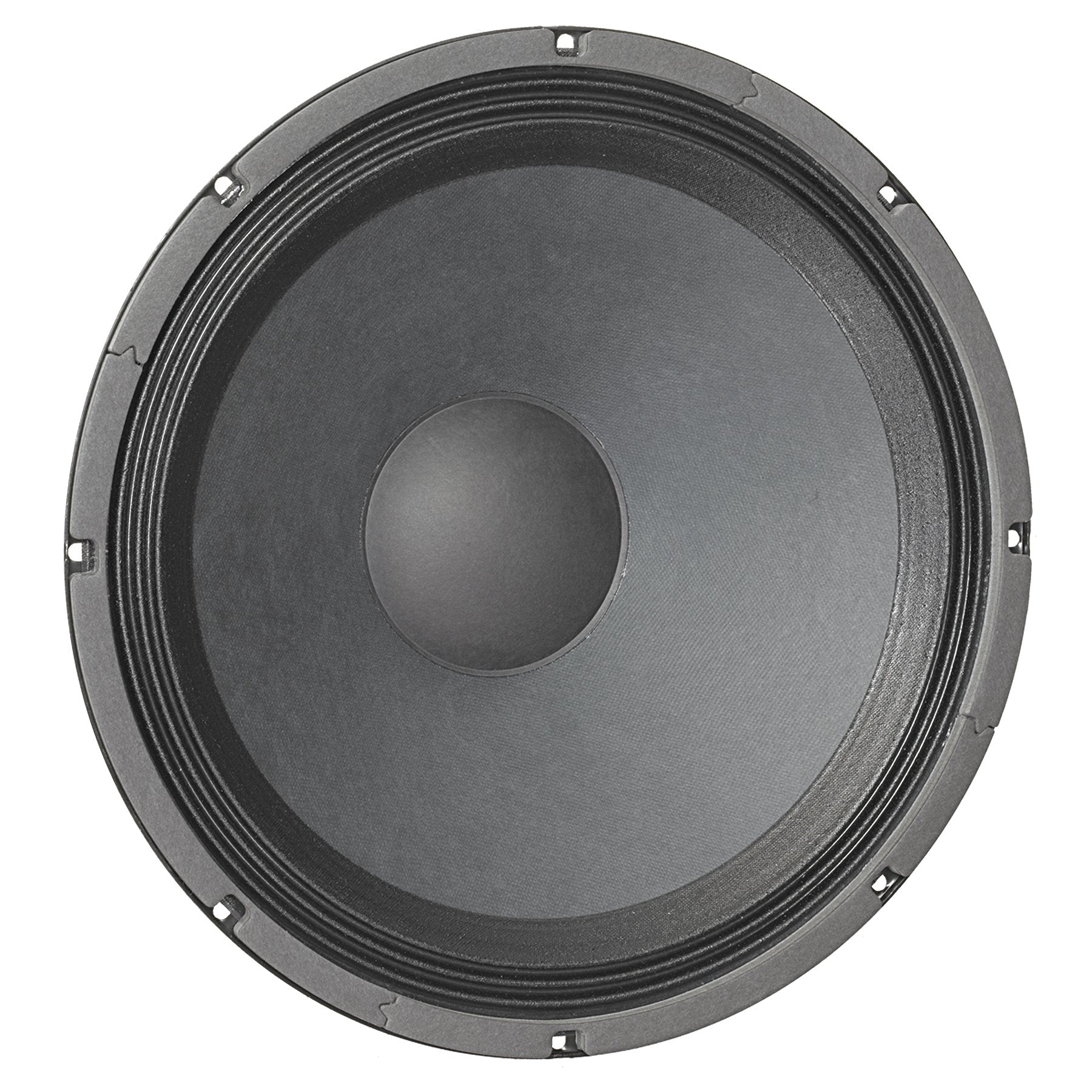

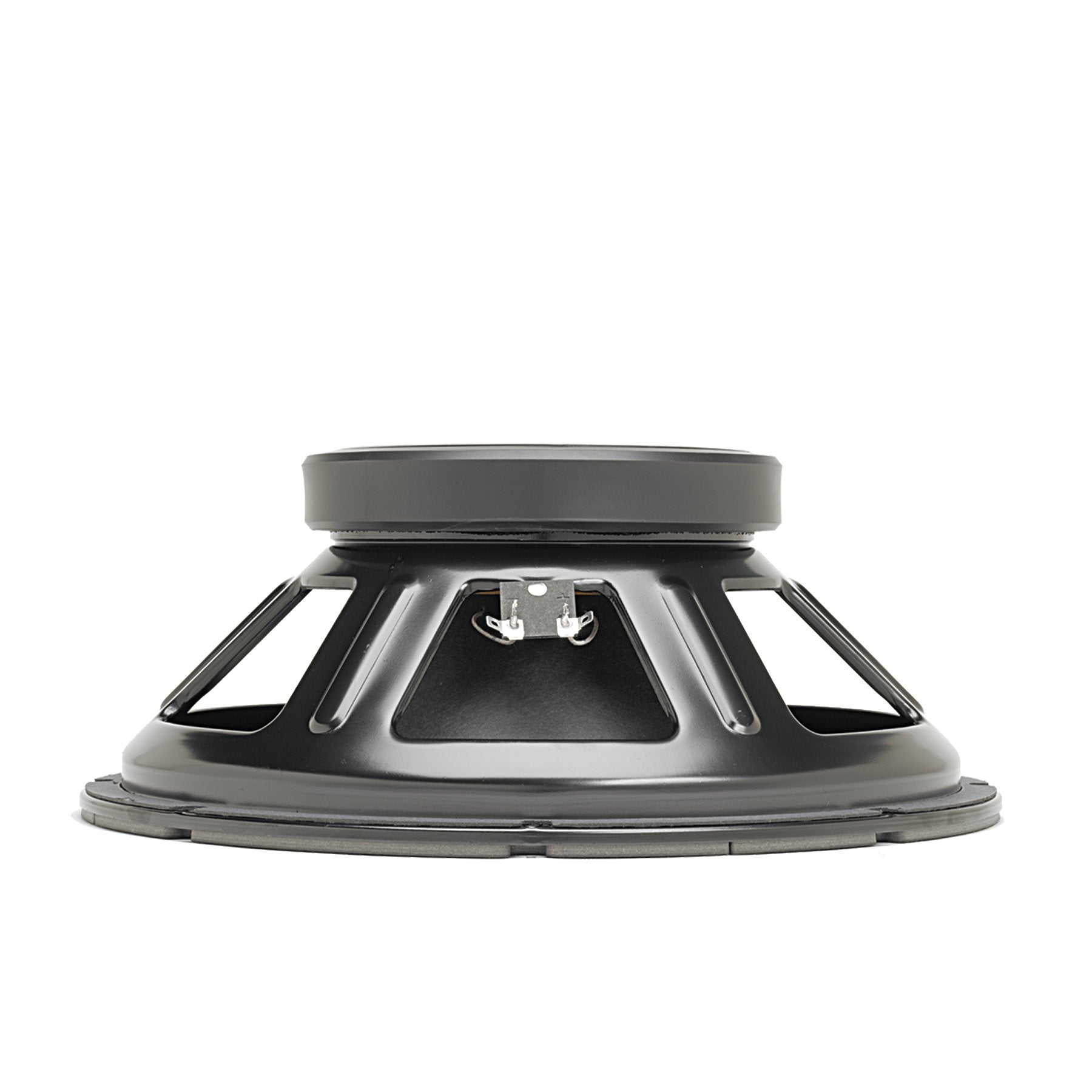

Eminence KAPPA 15C
Eminence KAPPA 15C is a 15" 4 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 31Hz, Qts 0.25, Vas 329.9L, Xmax 2.4mm, sensitivity 98dB, plus 206cm³ Vd and 124 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £130.00.
Size
15"
Impedance
4Ω
RMS Power
450W
Sensitivity
98.0dB
EBP
124
Vented alignment
Vd
206cm³
T/S Parameters
Valid
Fs31Hz
Qts0.25
Qes0.25
Qms10.1
Vas329.9L
Re3.7Ω
Le0.88mH
BL14.7Tm
Sd856cm²
Mms77g
Xmax2.4mm
SPL98dB
Power450W
Impedance4Ω
F Low63Hz
F High2000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£130.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.0kg
Diameter385.1mm
Overall Depth155.7mm
Cutout Diameter352.3mm
Bolt Circle Diameter369.8mm
