- Net volume
- 110L
- Tuning
- 45Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
15-inch LF driver · 1,200 W
Eighteen Sound 15NLW9401 4Ω
37–2300 Hz
£288.50
SteadyLean Audio · 2 in stock · All 4 offers
- Fs
- 40Hz
- Xmax
- 10mm
- SPL
- 97dB
- Pe
- 1200W
- BL
- 20T·m
- Vd
- 850cm³
- Qts
- 0.25
- Vas
- 114L
Published graphs

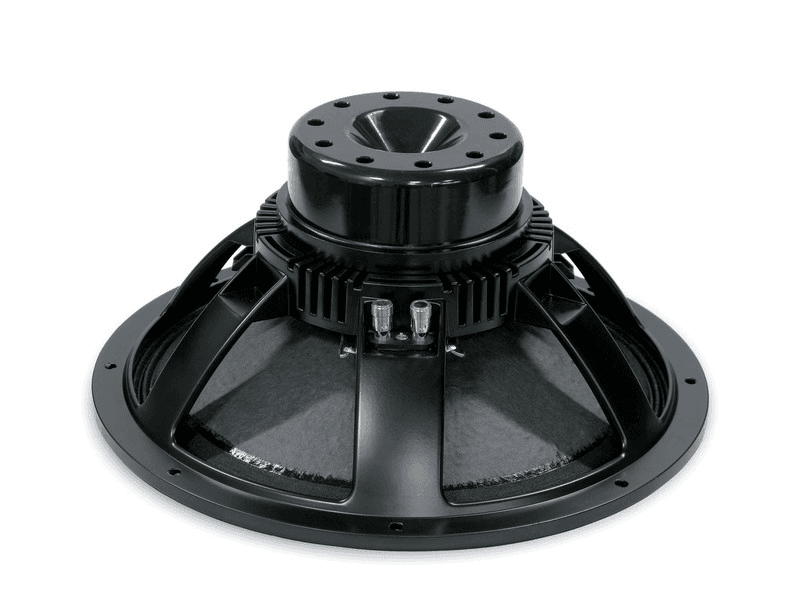

Eighteen Sound 15NLW9401 is a 15-inch 4 ohm LF driver rated at 1200 W RMS. The validated T/S data includes Fs 40 Hz, Qts 0.25, Vas 114 L, Xmax 10 mm, sensitivity 96.5 dB, plus 850 cm³ Vd and 154 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £288.50.
The published T/S values agree with each other
Thiele/Small
- Fs
- 40Hz
- Qts
- 0.25
- Qes
- 0.26
- Qms
- 6.1
- Vas
- 114L
- Re
- 2.8Ω
- Le
- 1.23mH
Motor and cone
- BL
- 20T·m
- Sd
- 850cm²
- Mms
- 150g
- Xmax
- 10mm
- Vd †
- 850cm³
Power and response
- Sensitivity †
- 96.5dB
- Manufacturer sensitivity
- 97.5dB
- Power
- 1200W
- Nominal power
- 1200W
- Impedance
- 4Ω
- Range
- 37–2300Hz
- EBP †
- 154 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 354mm
- Bolt circle
- 371mm
- Depth
- 180mm
- Weight
- 7.5kg
Other published values
- Power Program
- 2400
Sensitivity shows 96.5 dB, calculated from the T/S values. Eighteen Sound publishes 97.5 dB, 1.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 15″
- BL
- 20T·m
- Fs
- 40Hz
- Le
- 1.23mH
- Re
- 2.8Ω
- Sd
- 850cm²
- Mms
- 150g
- Qes
- 0.26
- Qms
- 6.1
- Qts
- 0.25
- SPL
- 96.5dB
- Vas
- 114L
- Xmax
- 10mm
- Power
- 1200W
- Impedance
- 4Ω
- Sensitivity
- 97.5dB
- Low limit
- 37Hz
- Nominal power
- 1200W
- Power Program
- 2400
- Calculated sensitivity †
- 96.5dB
- High limit
- 2300Hz
- Manufacturer sensitivity
- 97.5dB
- Weight
- 7.5kg
- Diameter
- 393mm
- Depth
- 180mm
- Cutout
- 354mm
- Bolt circle
- 371mm
02
Designs
What Eighteen Sound suggests for the 15NLW9401. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 15NLW9401 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 15NLW9401. Clear differences are green when better and red when worse.
This driver15NLW9401
Best price
£288.50
Fs
40 Hz
Qts
0.25
Vas
114 L
BL
20 T·m
Xmax
10 mm
Sensitivity
96.5 dB
Power
1200 W
B&C15CL76
£124.79 · 57% less, betterFs42 Hz +5%
Qts0.25 –
Vas140 L +23%, worse
BL19.1 T·m −4%
Xmax7 mm −30%, worse
Sensitivity97.9 dB +1.4
B&C15PLB76
£191.58 · 34% less, betterFs42 Hz +5%
Qts0.25 –
Vas164 L +44%, worse
BL22.1 T·m +11%, better
Xmax5 mm −50%, worse
Sensitivity98.7 dB +2.2, better
FaitalPRO15FH510
£198.91 · 31% less, betterFs35 Hz −13%, better
Qts0.26 +4%
Vas191.8 L +68%, worse
BL21 T·m +5%
Xmax9.3 mm −8%
Sensitivity96.9 dB –
Dayton Audio15LF500-8
£217.26 · 25% less, betterFs26 Hz −36%, better
Qts0.26 +4%
Vas331.3 L +191%, worse
BL21.1 T·m +6%
Xmax9.3 mm −8%
Sensitivity95.1 dB −1.4
B&C15TBX100
£227.33 · 21% less, betterFs34 Hz −15%, better
Qts0.27 +8%
Vas129.6 L +14%, worse
BL22.1 T·m +11%, better
Xmax9 mm −10%, worse
Sensitivity94.6 dB −1.9
RCFLF15G401
£238.26 · 17% less, betterFs36 Hz −10%, better
Qts0.26 +4%
Vas150 L +32%, worse
BL24.6 T·m +23%, better
Xmax9 mm −10%, worse
Sensitivity96.2 dB –
Oberton15XB1000
£250.00 · 13% less, betterFs37 Hz −7%
Qts0.28 +13%, worse
Vas111.0 L –
BL25.6 T·m +28%, better
Xmax9 mm −10%, worse
Sensitivity94.9 dB −1.6
Eighteen Sound15LW1401
£254.65 · 12% less, betterFs39 Hz –
Qts0.26 +4%
Vas127 L +11%, worse
BL22 T·m +10%, better
Xmax9 mm −10%, worse
Sensitivity96.5 dB –
Eighteen Sound15LW2400
£254.95 · 12% less, betterFs34 Hz −15%, better
Qts0.23 −8%
Vas191 L +68%, worse
BL18 T·m −10%, worse
Xmax9.5 mm −5%
Sensitivity97 dB +0.5
B&C15NW100
£259.00 · 10% less, betterFs34 Hz −15%, better
Qts0.23 −8%
Vas126.1 L +11%, worse
BL24.5 T·m +23%, better
Xmax9 mm −10%, worse
Sensitivity95.4 dB −1.1
FaitalPRO15HP1020
£263.08 · 9% less, betterFs40 Hz –
Qts0.27 +8%
Vas126.6 L +11%, worse
BL24.2 T·m +21%, better
Xmax9 mm −10%, worse
Sensitivity96.6 dB –
B&C15NBX100
£270.79 · 6% less, betterFs37 Hz −8%
Qts0.27 +8%
Vas109.6 L −4%
BL22.7 T·m +13%, better
Xmax10 mm –
Sensitivity94.7 dB −1.8
FaitalPRO15FX600
£283.33 · 2% lessFs38 Hz −5%
Qts0.27 +8%
Vas128.3 L +13%, worse
BL23.2 T·m +16%, better
Xmax11.3 mm +13%, better
Sensitivity96 dB −0.5
FaitalPRO15HX500
£425.41 · 47% more, worseFs40 Hz –
Qts0.28 +12%, worse
Vas150.1 L +32%, worse
BL22.2 T·m +11%, better
Xmax9.4 mm −6%
Sensitivity97.2 dB +0.7
B&C15CXN88
£494.86 · 72% more, worseFs47 Hz +18%, worse
Qts0.30 +20%, worse
Vas124 L +9%
BL20.1 T·m –
Xmax9.5 mm −5%
Sensitivity98.2 dB +1.7
Scanspeak38WE/8582T00
£1,170.04 · 306% more, worseFs26 Hz −35%, better
Qts0.24 −4%
Vas423 L +271%, worse
BL18.7 T·m −7%
Xmax10.2 mm –
Sensitivity96.6 dB –
Oberton15XL700
No current priceFs45 Hz +13%, worse
Qts0.28 +12%, worse
Vas117.0 L –
BL23.1 T·m +15%, better
Xmax8.8 mm −13%, worse
Sensitivity97.8 dB +1.3
Oberton15XL701
No current priceFs45 Hz +13%, worse
Qts0.28 +12%, worse
Vas117.0 L –
BL23.1 T·m +15%, better
Xmax8.8 mm −13%, worse
Sensitivity97.8 dB +1.3
No photo
PHL Audio6301MND
No current priceFs36 Hz −10%, better
Qts0.26 +4%
Vas140 L +23%, worse
BL25.5 T·m +28%, better
Xmax10.5 mm +5%
Sensitivity95.7 dB −0.8
Oberton15NB500
No current priceFs43 Hz +7%
Qts0.26 –
Vas121.5 L +7%
BL24.3 T·m +22%, better
Xmax7.3 mm −28%, worse
Sensitivity97.7 dB +1.2
Eighteen Sound15ND940
No current priceFs39 Hz –
Qts0.26 +4%
Vas170 L +49%, worse
BL16.6 T·m −17%, worse
Xmax9.5 mm −5%
Sensitivity97.8 dB +1.3
Oberton15MB701
No current priceFs44 Hz +11%, worse
Qts0.27 +7%
Vas100.2 L −12%, better
BL26.1 T·m +30%, better
Xmax9.3 mm −8%
Sensitivity97 dB +0.5
RCFCX15N351
No current priceFs55 Hz +38%, worse
Qts0.26 +4%
Vas110 L −4%
BL23.5 T·m +18%, better
Xmax6 mm −40%, worse
Sensitivity100.3 dB +3.8, better
No photo
PHL Audio6121M-20
No current priceFs39 Hz –
Qts0.24 −4%
Vas119.7 L +5%
BL29 T·m +45%, better
Xmax8.5 mm −15%, worse
Sensitivity96.6 dB –
CelestionFTR15-4080F
No current priceFs38 Hz −5%
Qts0.25 –
Vas163.1 L +43%, worse
BL23.5 T·m +18%, better
Xmax8.5 mm −15%, worse
Sensitivity97.2 dB +0.7
No photo
PHL Audio6201MND
No current priceFs36 Hz −10%, better
Qts0.27 +8%
Vas140 L +23%, worse
BL25 T·m +25%, better
Xmax10.5 mm +5%
Sensitivity95.6 dB −0.9
No photo
PHL Audio5241MNDU-7
No current priceFs45 Hz +13%, worse
Qts0.26 +4%
Vas120.5 L +6%
BL24.3 T·m +22%, better
Xmax7.5 mm −25%, worse
Sensitivity98 dB +1.5
Oberton15NXL701
No current priceFs43 Hz +8%
Qts0.30 +20%, worse
Vas127.1 L +11%, worse
BL21.7 T·m +9%
Xmax9.3 mm −8%
Sensitivity97.3 dB +0.8
Oberton15NB451
No current priceFs40 Hz –
Qts0.26 –
Vas145.2 L +27%, worse
BL22.9 T·m +14%, better
Xmax7 mm −30%, worse
Sensitivity97.4 dB +0.9
Oberton15XB700
No current priceFs37 Hz −7%
Qts0.28 +13%, worse
Vas111.0 L –
BL25.6 T·m +28%, better
Xmax9 mm −10%, worse
Sensitivity94.9 dB −1.6
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £288.50, the lowest price | 2 in stock | Visit shop at Lean Audio | |
Lean Business | £288.50 | Stock not listed | Visit shop at Lean Business |
Best price over time
Tracked since 1 Apr
