- Net volume
- 114L
- Tuning
- 35Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

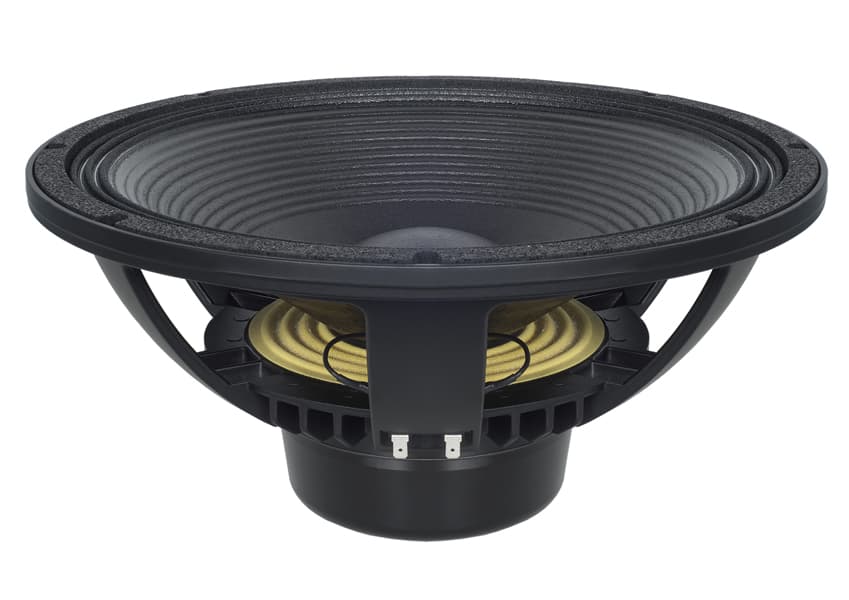

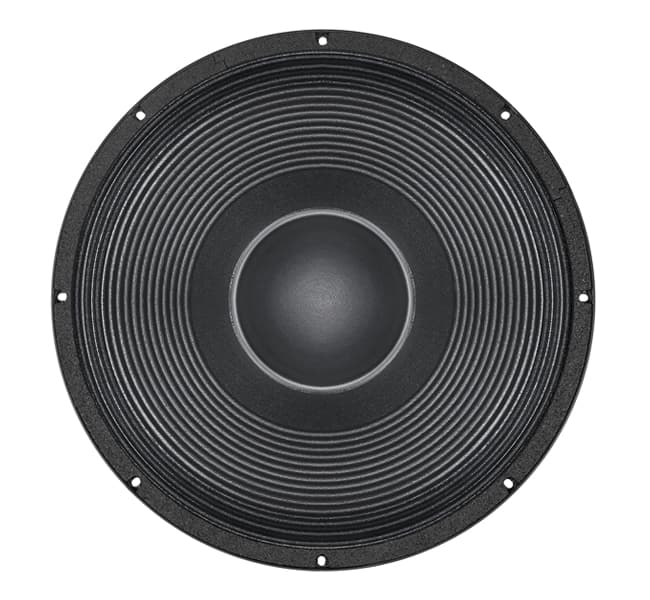

15-inch LF driver · 15NBX series · 100 mm voice coil · 1,000 W
B&C 15NBX100 4Ω
35–1500 Hz
No price for delivery to the UK
- Fs
- 37Hz
- Xmax
- 10mm
- SPL
- 95dB
- Pe
- 1000W
- BL
- 22.7T·m
- Vd
- 855cm³
- Qts
- 0.27
- Vas
- 110L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
free-air SPL

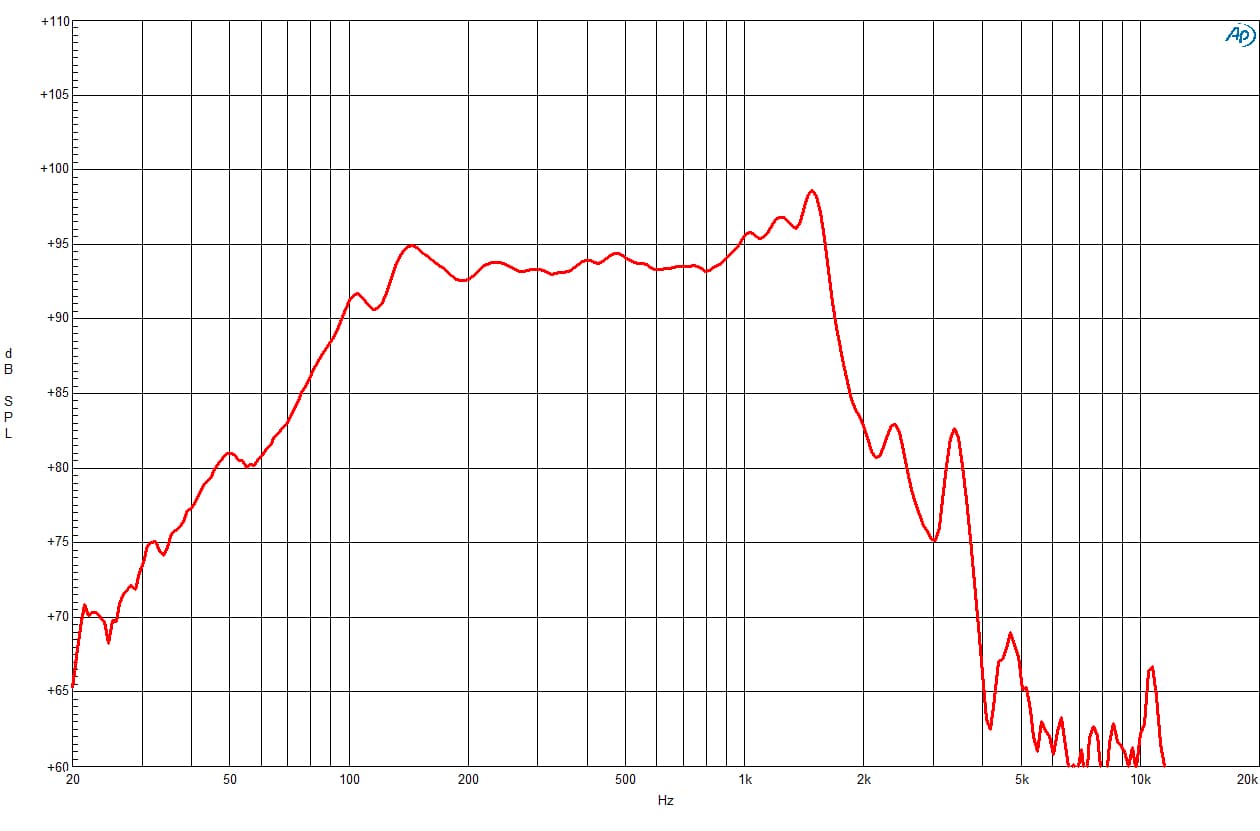

Frequency response
240 plotted pointsSource file SHA-256 d133d55b705a…Medium confidence5,218 selected pixels of 5,919 - Trace datasheet-response-trace-poc/v2
free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 d133d55b705a…Medium confidence3,903 selected pixels of 3,903
Published graphs
B&C 15NBX100 is a 15-inch 4 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 37 Hz, Qts 0.27, Vas 109.6 L, Xmax 10 mm, sensitivity 94.7 dB, plus 855 cm³ Vd and 123 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £275.02.
The published T/S values agree with each other
Thiele/Small
- Fs
- 37Hz
- Qts
- 0.27
- Qes
- 0.30
- Qms
- 4.8
- Vas
- 109.6L
- Re
- 3.6Ω
- Le
- 1.58mH
Motor and cone
- BL
- 22.7T·m
- Sd
- 855cm²
- Mms
- 176g
- Xmax
- 10mm
- Vd †
- 855cm³
- Voice coil
- 100mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 94.7dB
- Manufacturer sensitivity
- 95dB
- Power
- 1000W
- Nominal power
- 1000W
- Impedance
- 4Ω
- Min. impedance
- 4.4Ω
- Range
- 35–1500Hz
- EBP †
- 123 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 353mm
- Bolt circle
- 374mm
- Depth
- 179mm
- Weight
- 8.6kg
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 22.7T·m
- Fs
- 37Hz
- Le
- 1.58mH
- Re
- 3.6Ω
- Sd
- 855cm²
- Mms
- 176g
- Qes
- 0.30
- Qms
- 4.8
- Qts
- 0.27
- SPL
- 94.7dB
- Vas
- 109.6L
- Xmax
- 10mm
- Power
- 1000W
- Impedance
- 4Ω
- Flux density
- 1.10T
- Sensitivity
- 95dB
- Low limit
- 35Hz
- Nominal power
- 1000W
- Calculated sensitivity †
- 94.7dB
- High limit
- 1500Hz
- Manufacturer sensitivity
- 95dB
- Min. impedance
- 4.4Ω
- Voice coil
- 100mm
- Weight
- 8.6kg
- Diameter
- 393mm
- Depth
- 179mm
- Cutout
- 353mm
- Bolt circle
- 374mm
- Bl
- 22.69 Tm
- Fs
- 37 Hz
- Le
- 1.58 mH
- Re
- 3.6 Ω
- Sd
- 855 cm² (132.5 in²)
- Ebp
- 123 Hz
- Mms
- 176 g
- Qes
- 0.3
- Qms
- 4.77
- Qts
- 0.27
- Vas
- 109.6 dm³ (3.87 ft³)
- Η0
- 1.82 %
- Cone
- RCK15NBX1004
- Xmax
- 10 mm
- Xvar
- 10 mm
- Depth
- 179 mm (7.05 in)
- Spider
- Double Silicone
- Cone shape
- Exponential
- Net weight
- 8.55 kg (18.85 lb)
- Pole design
- T-Pole
- Sensitivity
- 95 dB
- Flux density
- 1.1 T
- Shipping box
- 425x425x224 mm (16.73x16.73x8.82 in)
- Winding depth
- 25 mm (1 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 35 Hz - 1500 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 9.85 kg (21.72 lb)
- Nominal diameter
- 380 mm (15 in)
- Overall diameter
- 393 mm (15.5 in)
- Winding material
- Copper
- Minimum impedance
- 4.4 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 11 mm (0.43 in)
- Recommended tuning
- 35 Hz
- Voice coil diameter
- 100 mm (4 in)
- Bolt circle diameter
- 374 mm (16.7 in)
- Recommended enclosure
- 114 dm³ (4 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 353 mm (13.9 in)
- Nominal power handling
- 1000 W
- Continuous power handling
- 2000 W
- Flange and gasket thickness
- 14 mm (0.55 in)
- Air volume occupied by driver
- 6 dm³ (0.21 ft³)

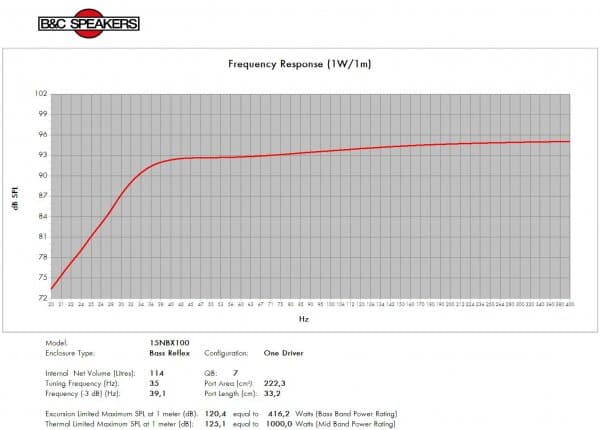

B&C’s suggested box
