S15AN
15" 2000W Subwoofer Enclosure - 15" Neo Subwoofer
- Drivers
- 15NW100, 8 Ω
- Power
- 2,000 W
Designed with the 8 Ω version.

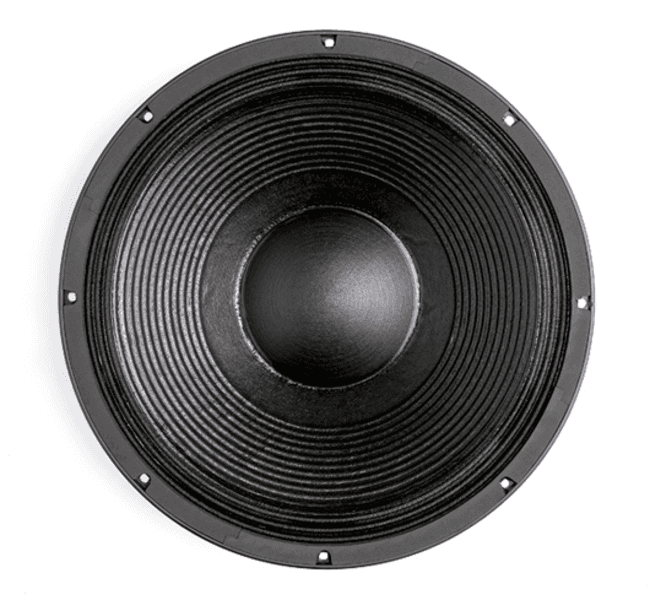

15-inch LF driver · 15NW series · 100 mm voice coil · 1,000 W
B&C 15NW100 4Ω
35–1500 Hz
£259.00
SteadyBlue Aran · 2 in stock · All 9 offers
- Fs
- 34Hz
- Xmax
- 9mm
- SPL
- 95dB
- Pe
- 1000W
- BL
- 24.5T·m
- Vd
- 770cm³
- Qts
- 0.23
- Vas
- 126L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2

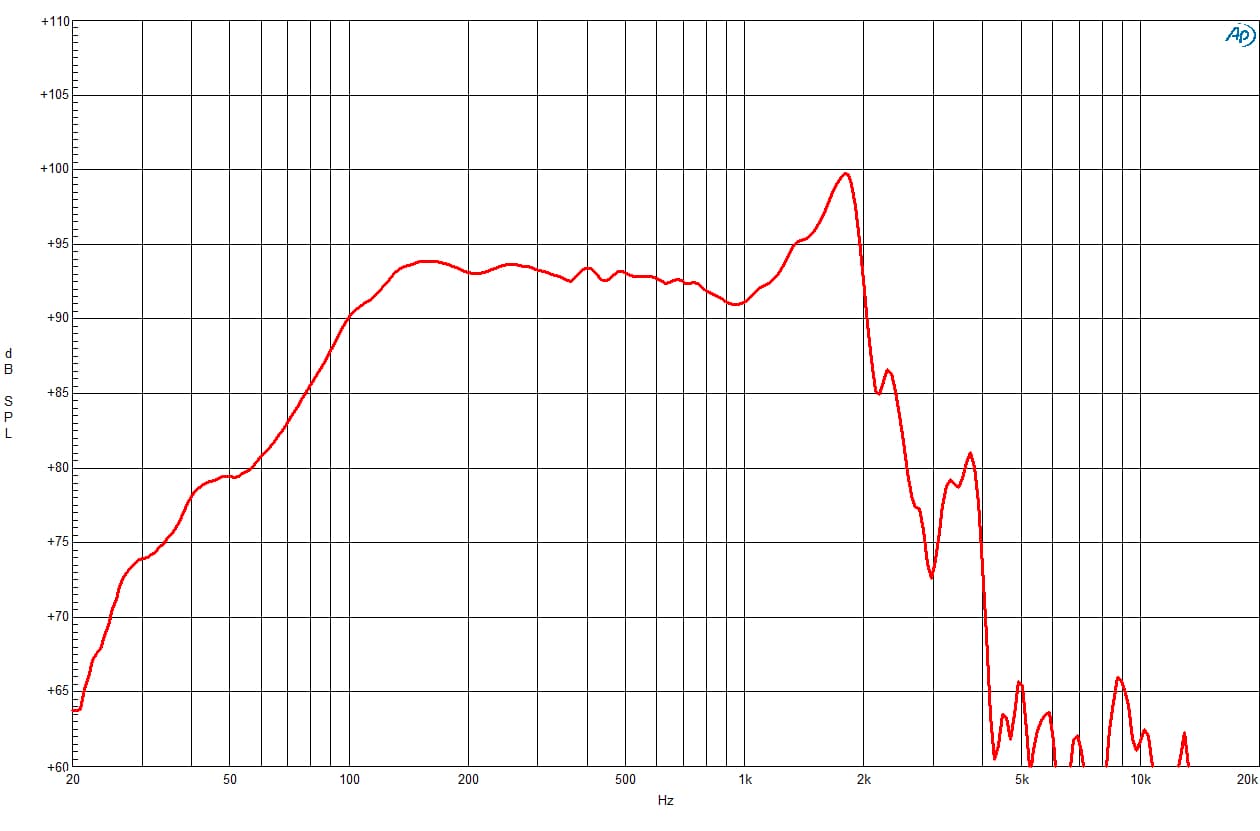

free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 b50abb4b6a43…Medium confidence5,016 selected pixels of 5,623 - Trace datasheet-response-trace-poc/v2

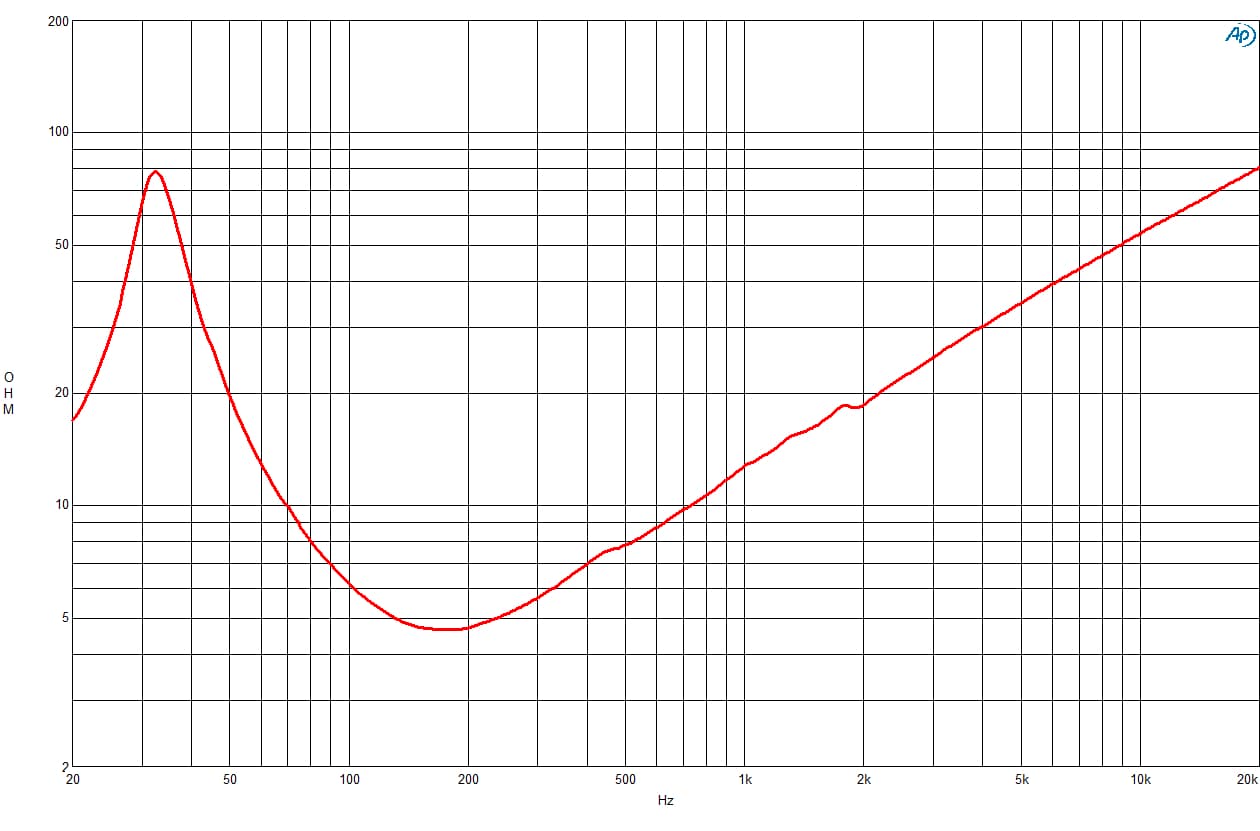

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 b50abb4b6a43…Medium confidence3,806 selected pixels of 3,806
Published graphs
B&C 15NW100 is a 15-inch 4 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 34 Hz, Qts 0.23, Vas 126.1 L, Xmax 9 mm, sensitivity 95.4 dB, plus 770 cm³ Vd and 148 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £252.39.
The published T/S values agree with each other
Thiele/Small
- Fs
- 34Hz
- Qts
- 0.23
- Qes
- 0.23
- Qms
- 5.4
- Vas
- 126.1L
- Re
- 3.7Ω
- Le
- 1.74mH
Motor and cone
- BL
- 24.5T·m
- Sd
- 855cm²
- Mms
- 180g
- Xmax
- 9mm
- Vd †
- 770cm³
- Voice coil
- 100mm
- Flux density
- 1.20T
Power and response
- Sensitivity †
- 95.4dB
- Manufacturer sensitivity
- 95dB
- Power
- 1000W
- Nominal power
- 1000W
- Impedance
- 4Ω
- Min. impedance
- 4.7Ω
- Range
- 35–1500Hz
- EBP †
- 148 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Depth
- 181mm
- Weight
- 8.7kg
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 24.5T·m
- Fs
- 34Hz
- Le
- 1.74mH
- Re
- 3.7Ω
- Sd
- 855cm²
- Mms
- 180g
- Qes
- 0.23
- Qms
- 5.4
- Qts
- 0.23
- SPL
- 95.4dB
- Vas
- 126.1L
- Xmax
- 9mm
- Power
- 1000W
- Impedance
- 4Ω
- Flux density
- 1.20T
- Sensitivity
- 95dB
- Low limit
- 35Hz
- Nominal power
- 1000W
- Calculated sensitivity †
- 95.4dB
- High limit
- 1500Hz
- Manufacturer sensitivity
- 95dB
- Min. impedance
- 4.7Ω
- Voice coil
- 100mm
- Weight
- 8.7kg
- Diameter
- 393mm
- Depth
- 181mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Bl
- 24.54 Tm
- Fs
- 34 Hz
- Le
- 1.74 mH
- Re
- 3.7 Ω
- Sd
- 855 cm² (132.5 in²)
- Ebp
- 148 Hz
- Mms
- 180 g
- Qes
- 0.23
- Qms
- 5.41
- Qts
- 0.23
- Vas
- 126.1 dm³ (4.45 ft³)
- Η0
- 2 %
- Cone
- RCK15NW1004
- Xmax
- 9 mm
- Xvar
- 11 mm
- Depth
- 181 mm (7.1 in)
- Spider
- Double Silicone
- Cone shape
- Radial
- Net weight
- 8.65 kg (19.07 lb)
- Pole design
- T-Pole
- Sensitivity
- 95 dB
- Flux density
- 1.2 T
- Shipping box
- 425x425x224 mm (16.73x16.73x8.82 in)
- Winding depth
- 25 mm (1 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 35 Hz - 1500 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 9.95 kg (21.94 lb)
- Nominal diameter
- 380 mm (15 in)
- Overall diameter
- 393 mm (15.5 in)
- Winding material
- Copper
- Minimum impedance
- 4.7 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 12 mm (0.5 in)
- Recommended tuning
- 40 Hz
- Voice coil diameter
- 100 mm (4 in)
- Bolt circle diameter
- 374 mm (14.7 in)
- Recommended enclosure
- 100 dm³ (3.53 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 354 mm (13.9 in)
- Nominal power handling
- 1000 W
- Continuous power handling
- 2000 W
- Flange and gasket thickness
- 16 mm (0.62 in)
- Air volume occupied by driver
- 6 dm³ (0.21 ft³)
02
Designs
Cabinets for the 15NW100: a design and a suggested box from B&C.
All 15NW100 designsHow we find designsB&C’s design
From the maker, with plans to download

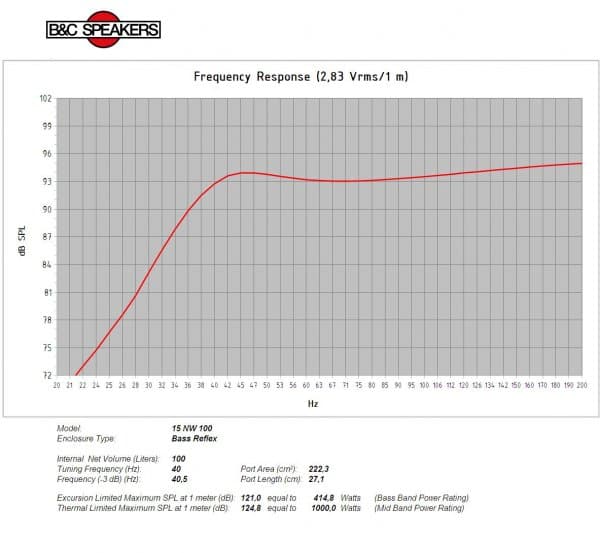

B&C’s suggested box
From B&C’s 15NW100 page
- Net volume
- 100L
- Tuning
- 40Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
