Name: B&C 15DS100 4 Ohm
Brand: B&C
SKU: 15DS100
Availability: InStock

Media

B&C 15DS100 15 inch 4 ohm loudspeaker driver view 1

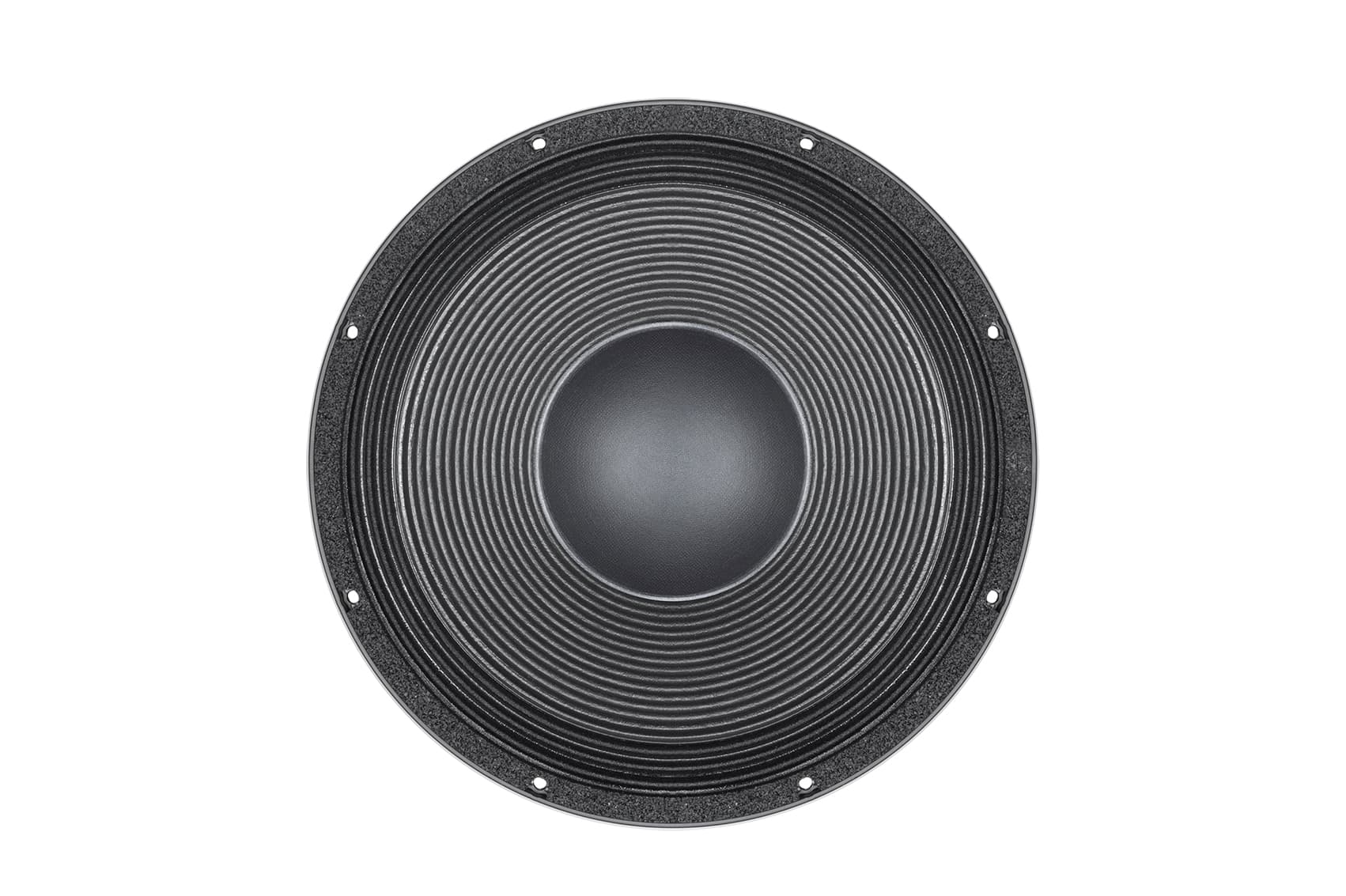

B&C 15DS100 15 inch 4 ohm loudspeaker driver view 2

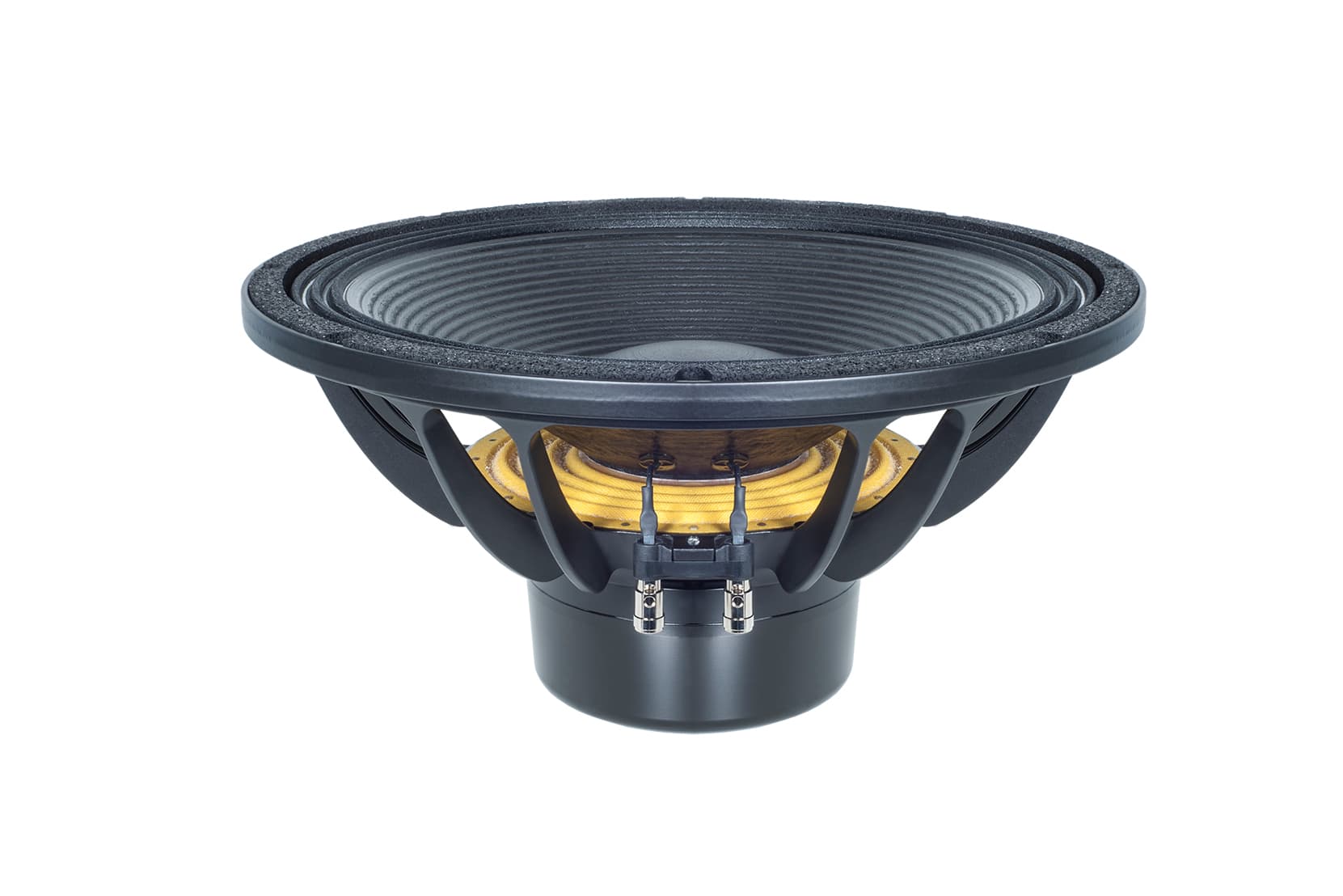

B&C 15DS100 15 inch 4 ohm loudspeaker driver view 3

Auto-advancing

Overview

LF Driver15DS series

B&C

B&C 15DS100

B&C 15DS100 is a 15" 4 ohm LF driver rated at 1500W RMS. The validated T/S data includes Fs 39Hz, Qts 0.23, Vas 73L, Xmax 13mm, sensitivity 94.8dB, plus 1112cm³ Vd and 170 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £340.51.

Size

15"

Impedance

4Ω

RMS Power

1500W

Sensitivity

94.8dB

96.8dBmanufacturer; using T/S-derived value (2.0dB delta).

EBP

170

Vented alignment

V_d

1112cm³

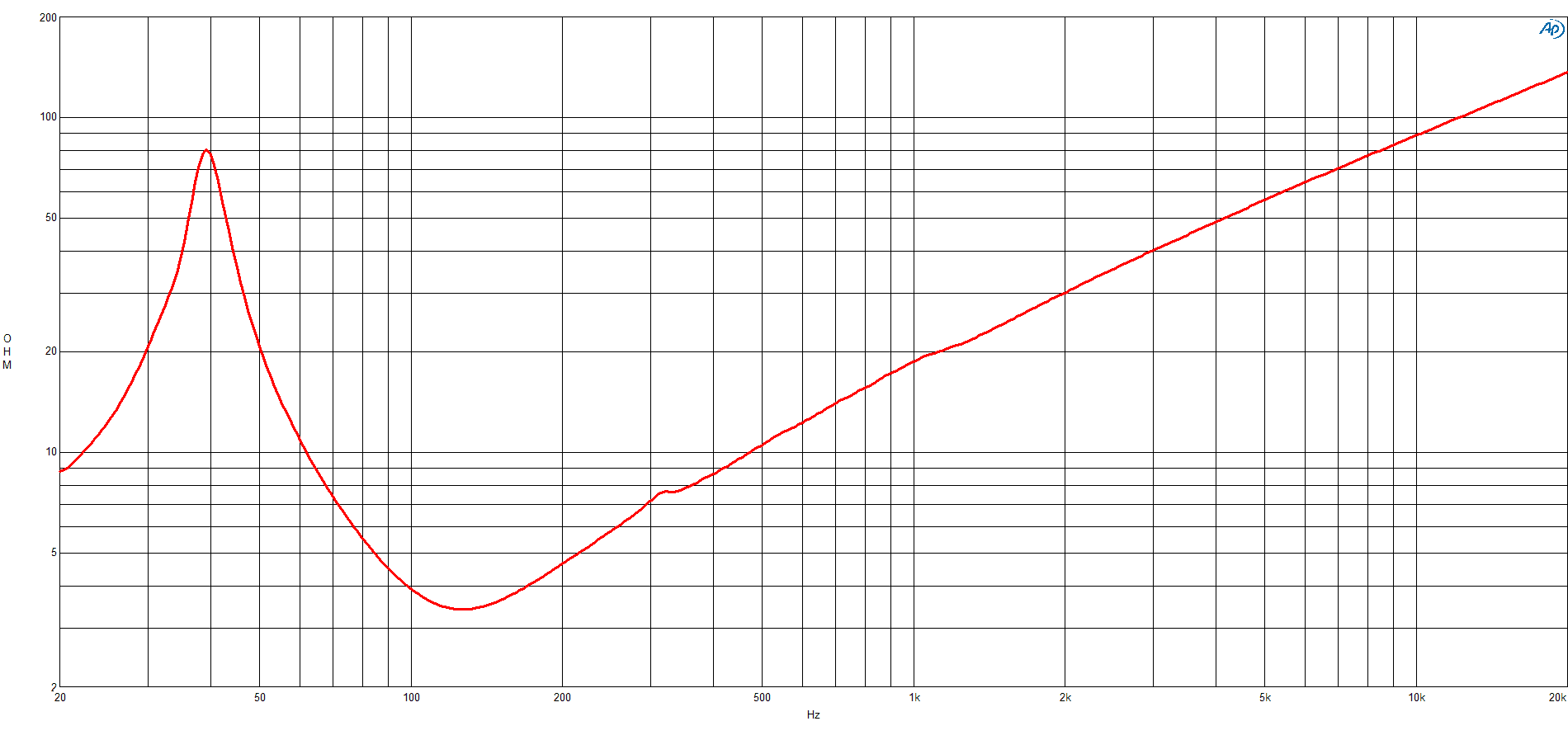

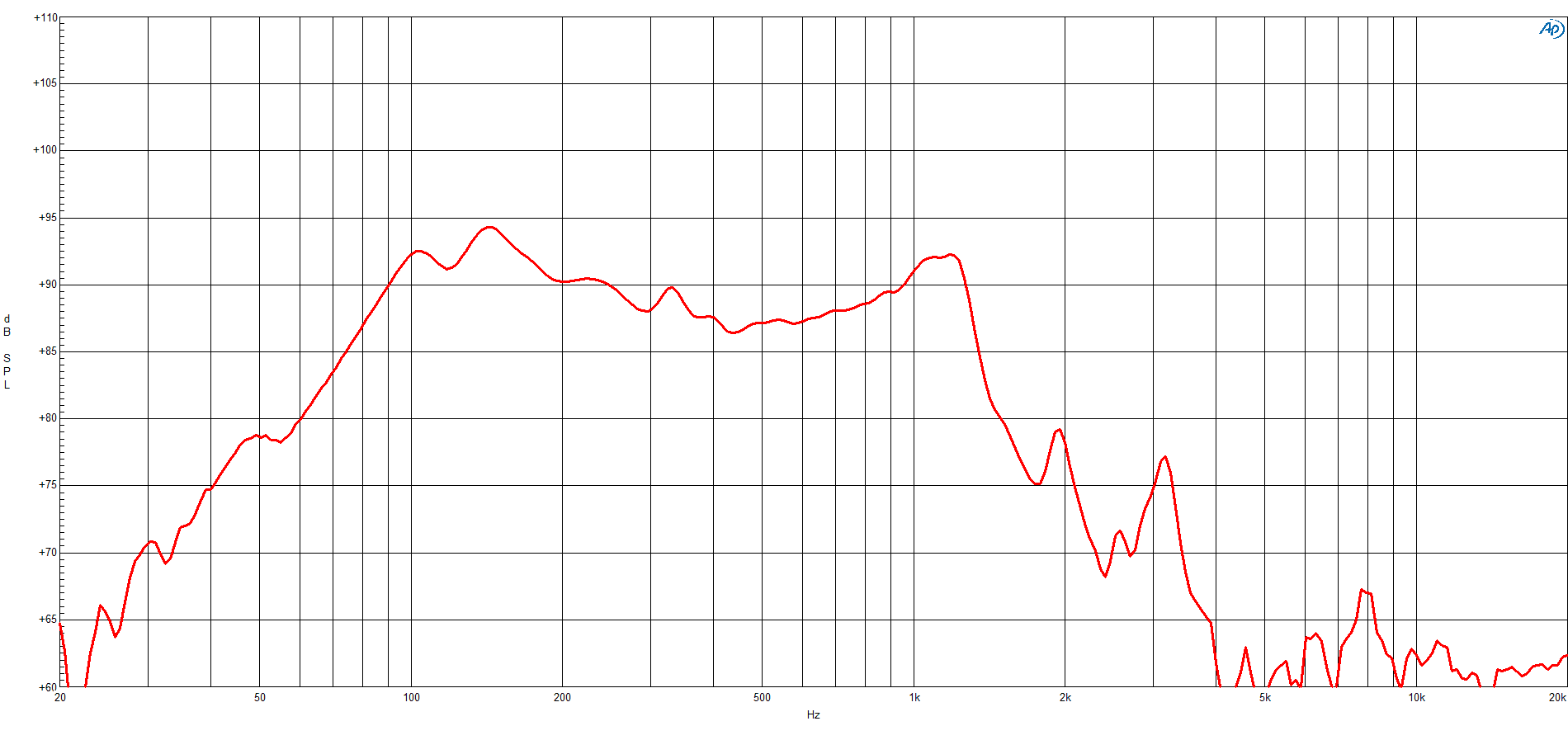

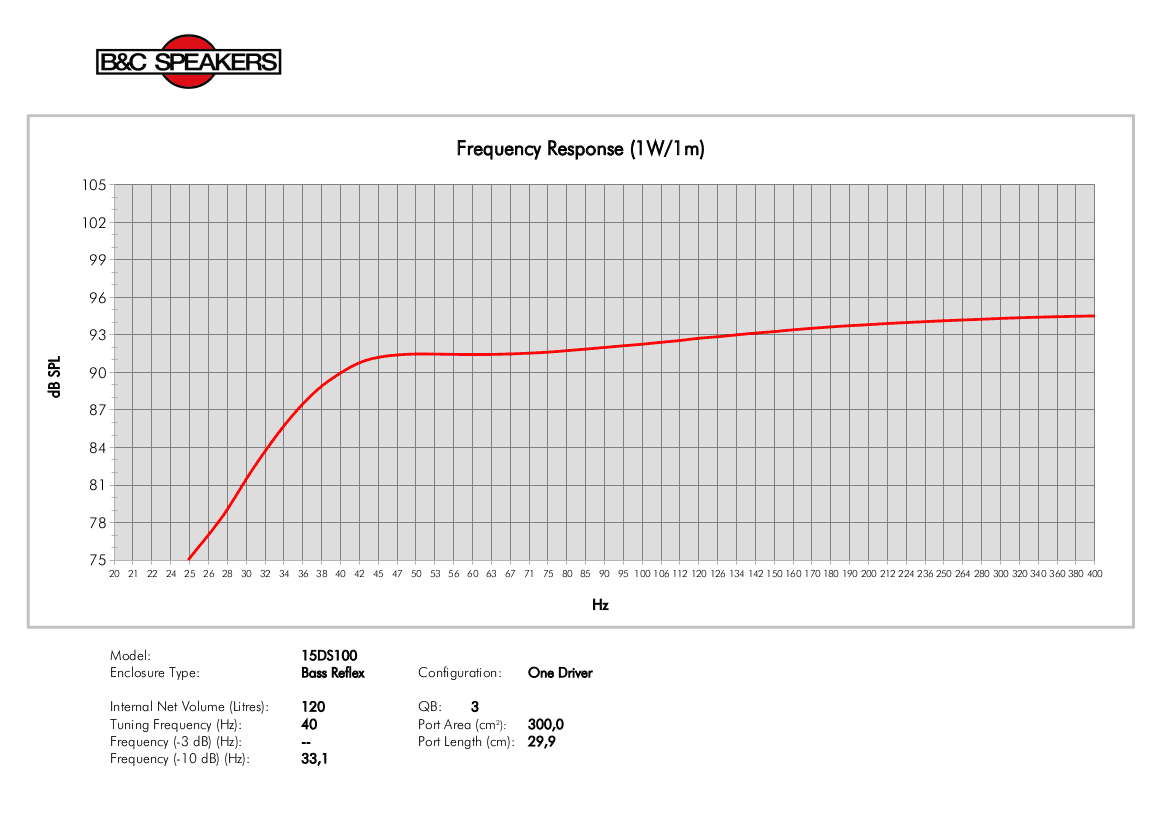

Frequency response

Manufacturer-provided response plots and related charts.

2 images

T/S Parameters

Valid

Canonical

Fs39Hz

Qts0.23

Qes0.23

Qms8.2

Vas73.0L

Re2.4Ω

Le2.80mH

BL24.3Tm

Sd855cm²

Mms233g

Xmax13.0mm

SPL95dB

Power1500W

Power Nominal1500W

Impedance4Ω

Min Impedance3.4Ω

F Low39Hz

F High1000Hz

Voice Coil100mm

Flux Density0.70T

What this validation status means

Pricing & availability

Price definitions

Price movement

Best current price

£340.51

inc VAT·Vendor hidden

View vendor

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight9.6kg

Diameter393.0mm

Overall Depth190.0mm

Cutout Diameter353.0mm

Bolt Circle Diameter374.0mm

Additional Manufacturer Specs

Bl24.3 Tm

Fs39 Hz

Le2.8 mH

Re2.4 Ω

Sd855 cm² (132.53 in²)

Ebp170 Hz

Mms233 g

Qes0.23

Qms8.16

Qts0.23

Vas73 dm³ (2.58 ft³)

η01.8 %

ConeRCK15DS1004

Xmax13 mm

Xvar14 mm

SpiderDouble Silicone

Cone ShapeRadial

Pole DesignT-Pole

Winding Depth34 mm (1.34 in)

Surround ShapeTriple Roll

Former MaterialGlass Fibre

Magnet MaterialNeodymium Inside Slug

Nominal Diameter380 mm (15 in)

Winding MaterialAluminium

Magnetic Gap Depth16 mm (0.63 in)

Recommended Tuning40 Hz

Bolt Circle Diameter374 mm (16.7 in)

Recommended Enclosure120 dm³ (4.24 ft³)

Woofer Cone TreatmentTWP Waterproof Both Sides

Baffle Cutout Diameter353 mm (13.9 in)

Flange And Gasket Thickness16 mm (0.63 in)

Air Volume Occupied By Driver6 dm³ (0.21 ft³)
