LF Driver15DS series
B&C

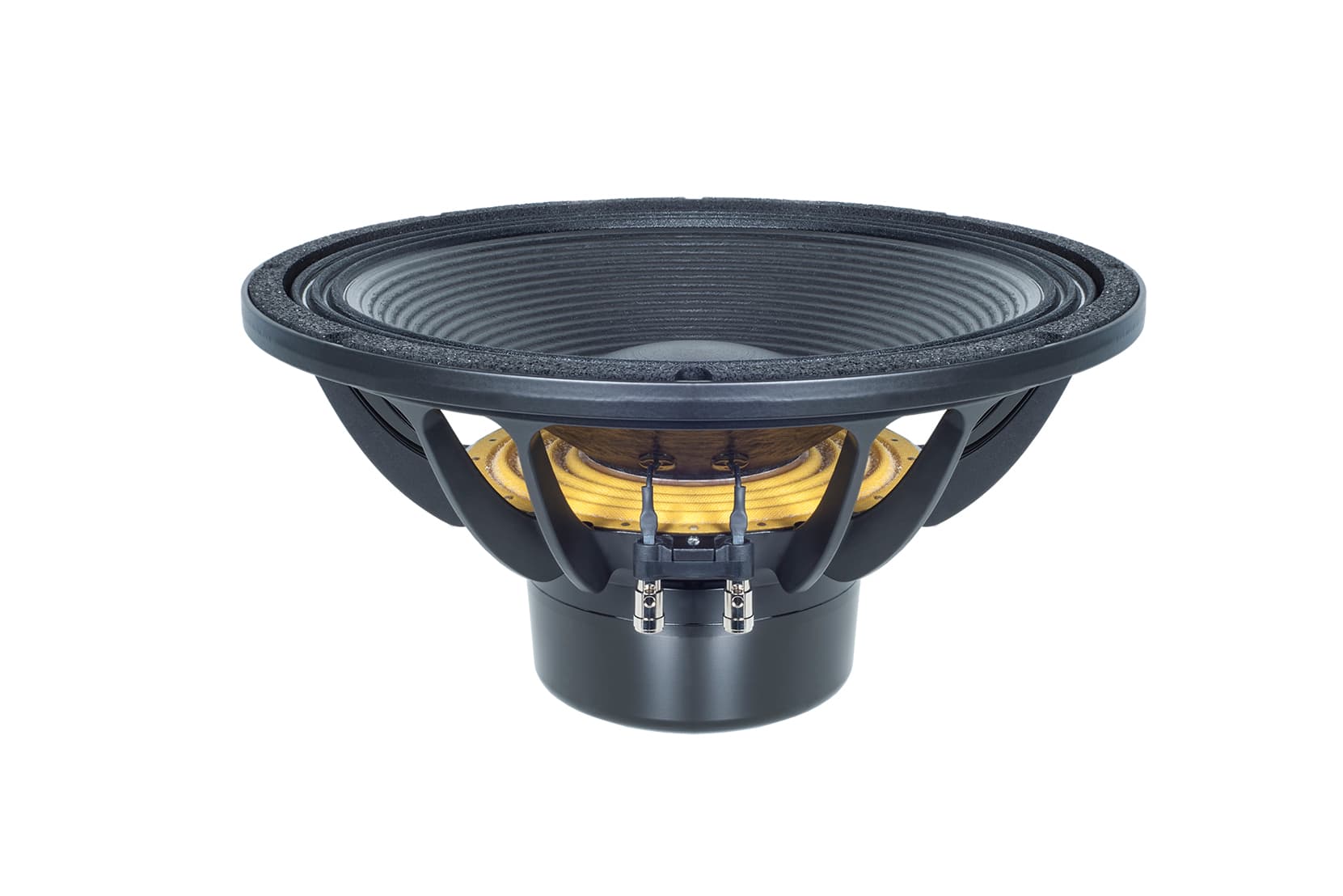

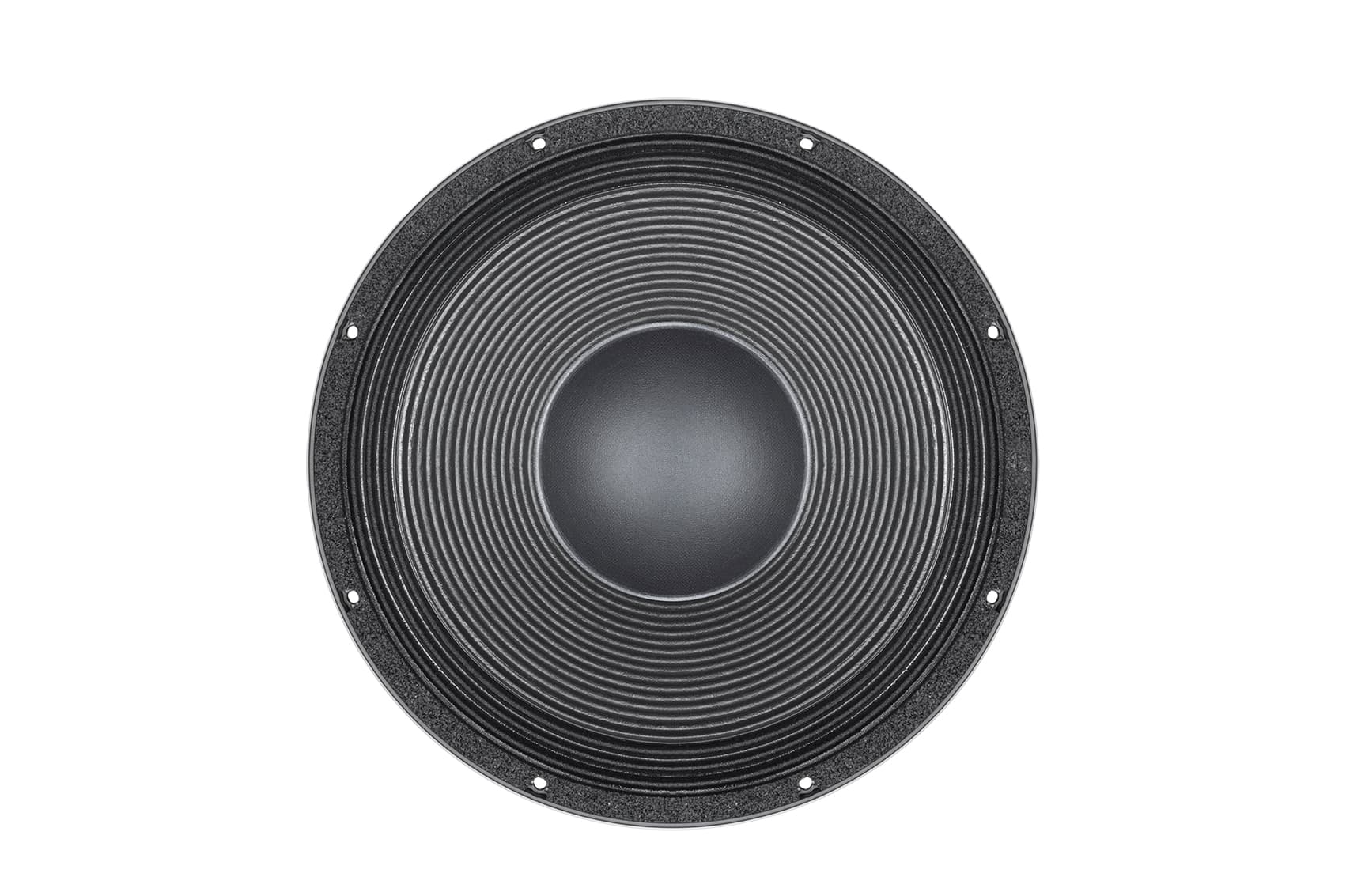

B&C 15DS100
B&C 15DS100 is a 15" 8 ohm LF driver rated at 1500W RMS. The validated T/S data includes Fs 39Hz, Qts 0.26, Vas 76L, Xmax 14.5mm, sensitivity 94.3dB, plus 1240cm³ Vd and 144 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £340.51.
Size
15"
Impedance
8Ω
RMS Power
1500W
Sensitivity
94.3dB
96.8dBmanufacturer; using T/S-derived value (2.5dB delta).
EBP
144
Vented alignment
Vd
1240cm³

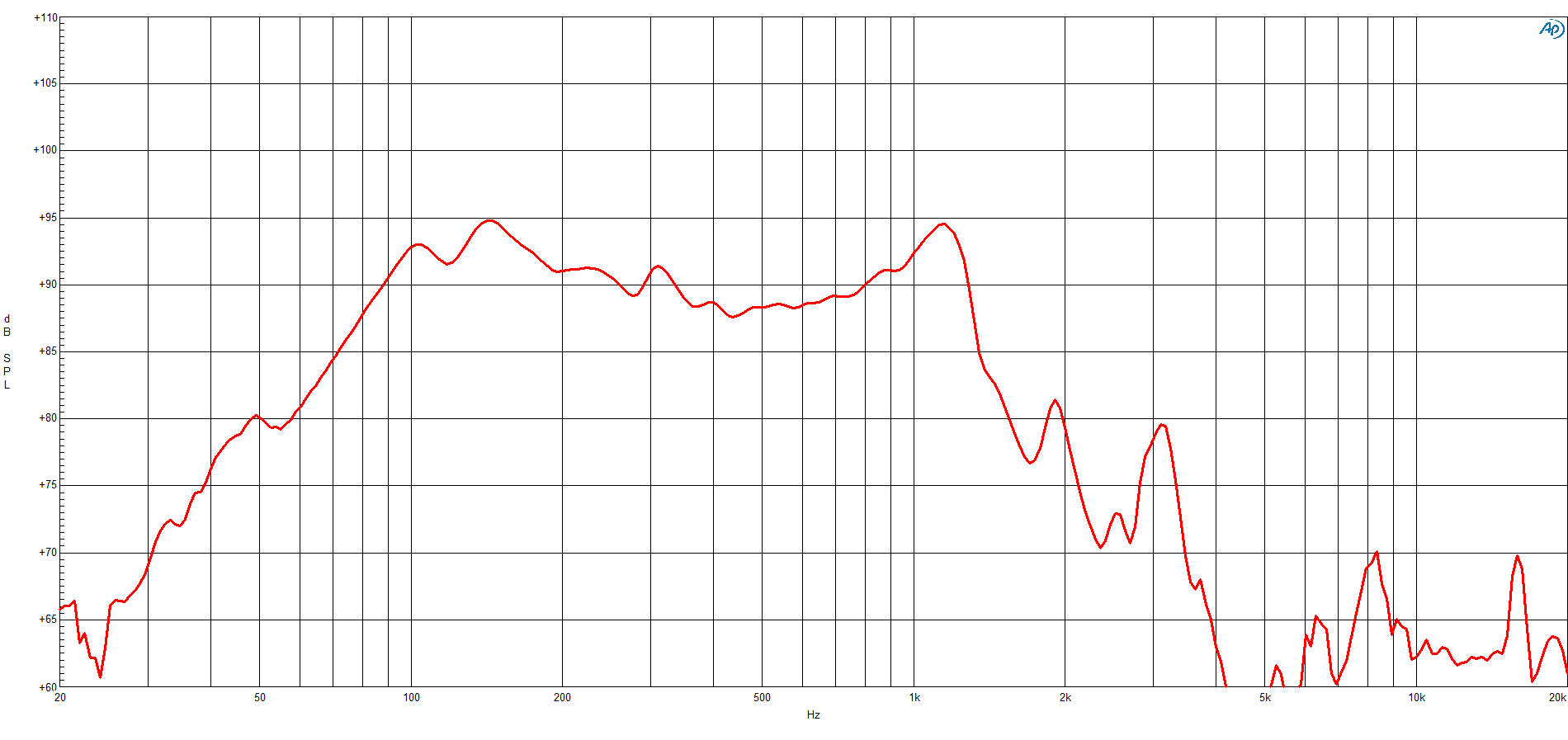

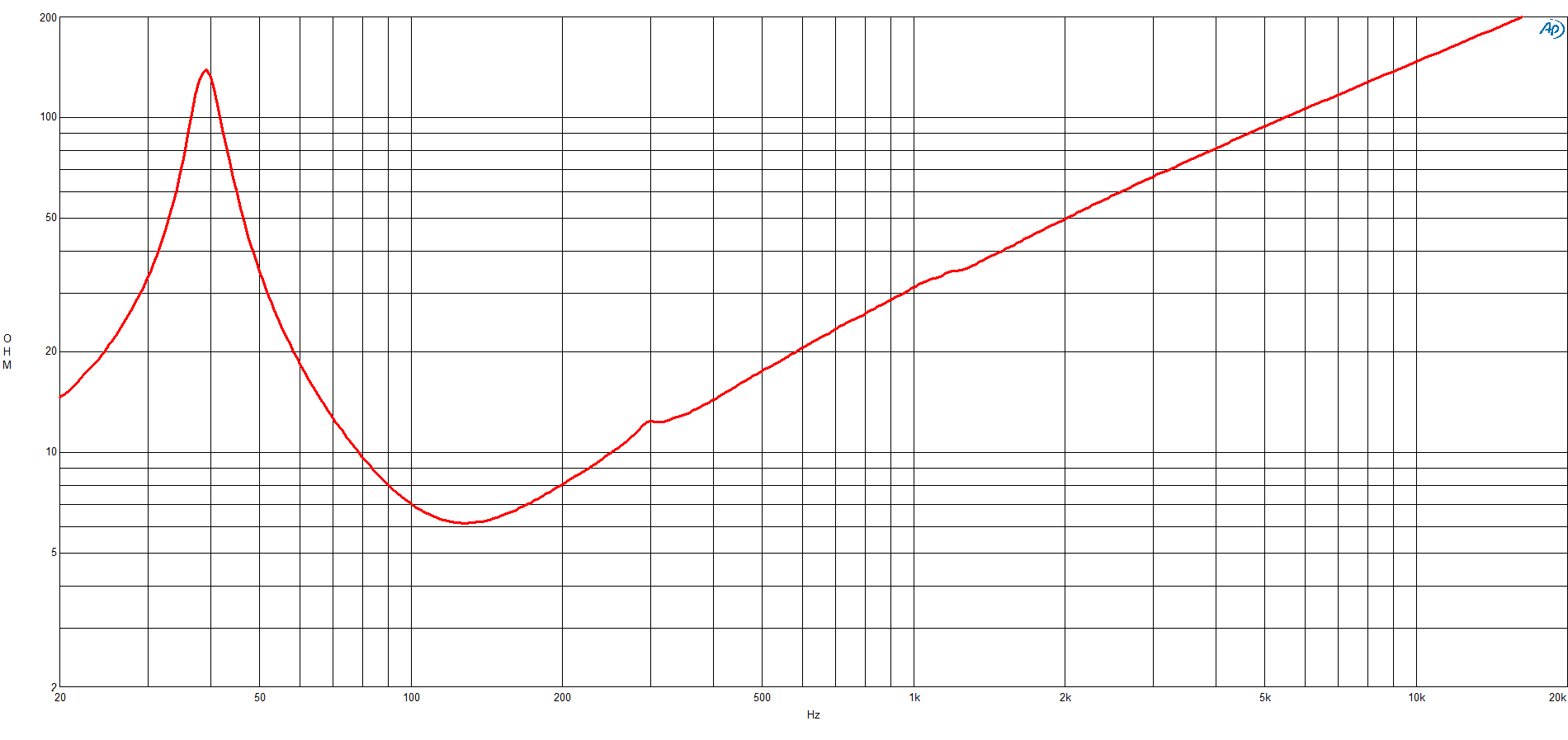

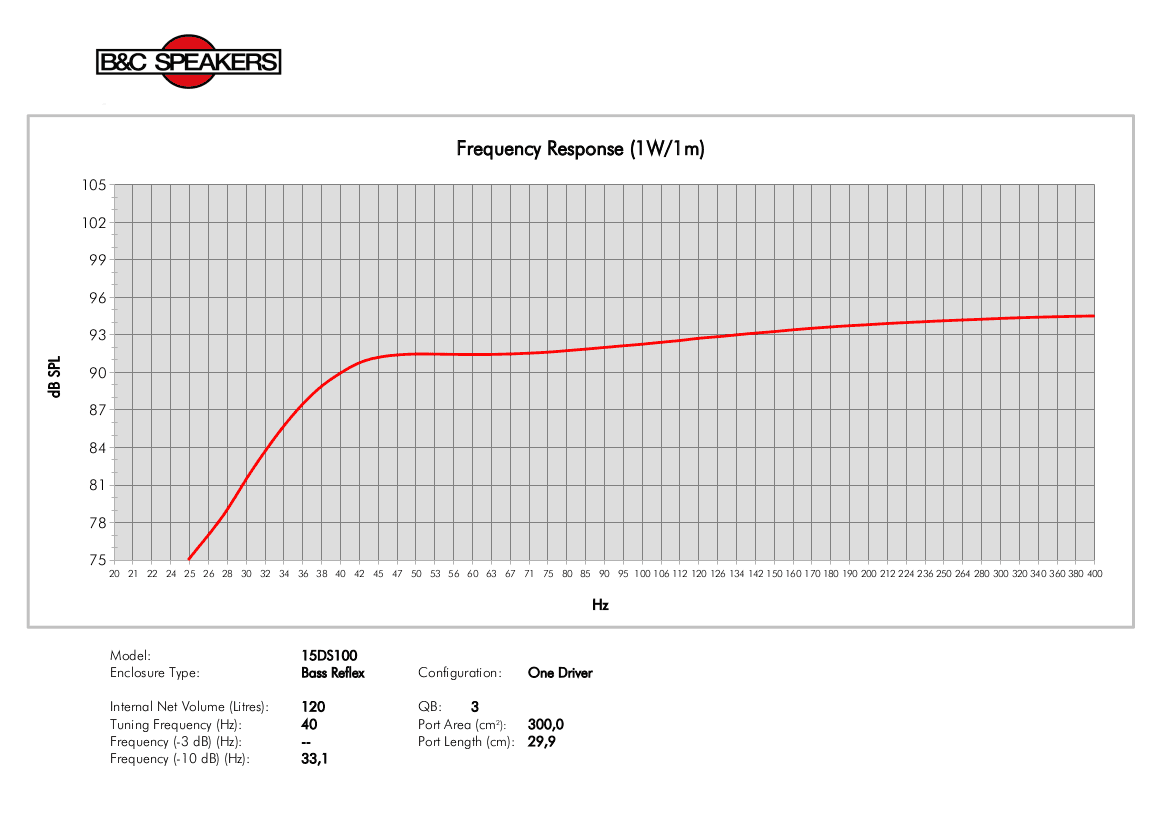

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs39Hz
Qts0.26
Qes0.27
Qms7.8
Vas76.0L
Re4.5Ω
Le4.60mH
BL30.7Tm
Sd855cm²
Mms220g
Xmax14.5mm
SPL94dB
Power1500W
Power Nominal1500W
Impedance8Ω
Min Impedance6.2Ω
F Low39Hz
F High1000Hz
Voice Coil100mm
Flux Density0.70T
Pricing & availability
Price definitionsPrice movement
Best current price
£340.51
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.6kg
Diameter393.0mm
Overall Depth190.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl30.68 Tm
Fs39 Hz
Le4.6 mH
Re4.5 Ω
Sd855 cm² (132.53 in²)
Ebp144 Hz
Mms220 g
Qes0.27
Qms7.75
Qts0.26
Vas76 dm³ (2.68 ft³)
η01.77 %
ConeRCK15DS1008
Xmax14.5 mm
Xvar14 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth37 mm (1.46 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter380 mm (15 in)
Winding MaterialAluminium
Magnetic Gap Depth16 mm (0.63 in)
Recommended Tuning40 Hz
Bolt Circle Diameter374 mm (16.7 in)
Recommended Enclosure120 dm³ (4.24 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter353 mm (13.9 in)
Flange And Gasket Thickness16 mm (0.63 in)
Air Volume Occupied By Driver6 dm³ (0.21 ft³)
