Eighteen Sound design
Single 15 - vented subwoofer
- Drivers
- 15NLW4500, 8 Ω
15-inch LF driver · 1,500 W
Eighteen Sound 15NLW4500 8Ω
40–1000 Hz
£444.77
SteadyLean Audio · 2 in stock · All 3 offers
- Fs
- 35Hz
- Xmax
- 14.5mm
- SPL
- 95dB
- Pe
- 1500W
- BL
- 29.7T·m
- Vd
- 1277cm³
- Qts
- 0.26
- Vas
- 111L

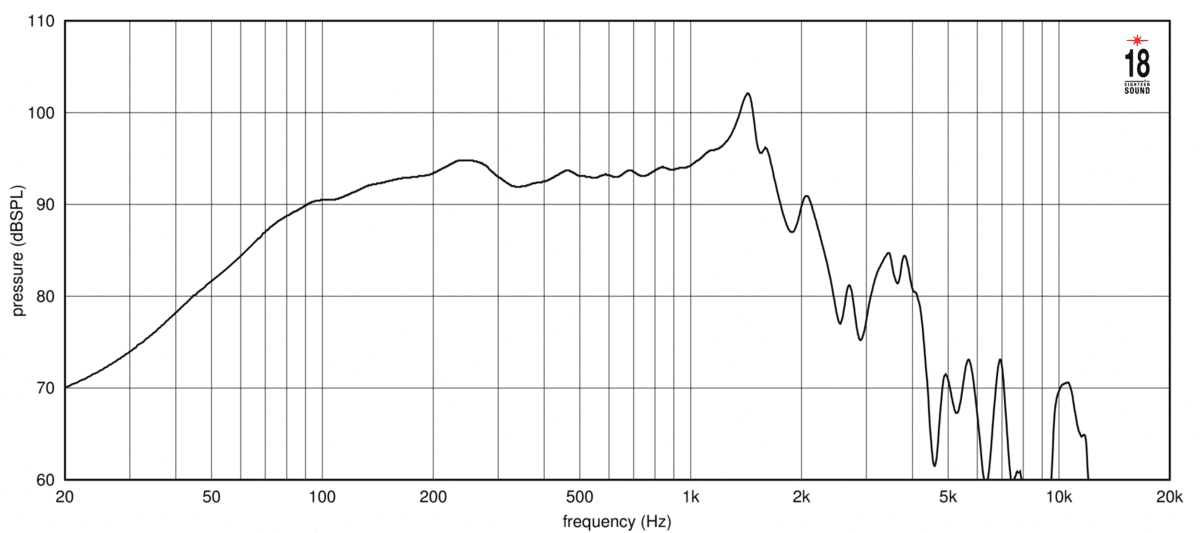

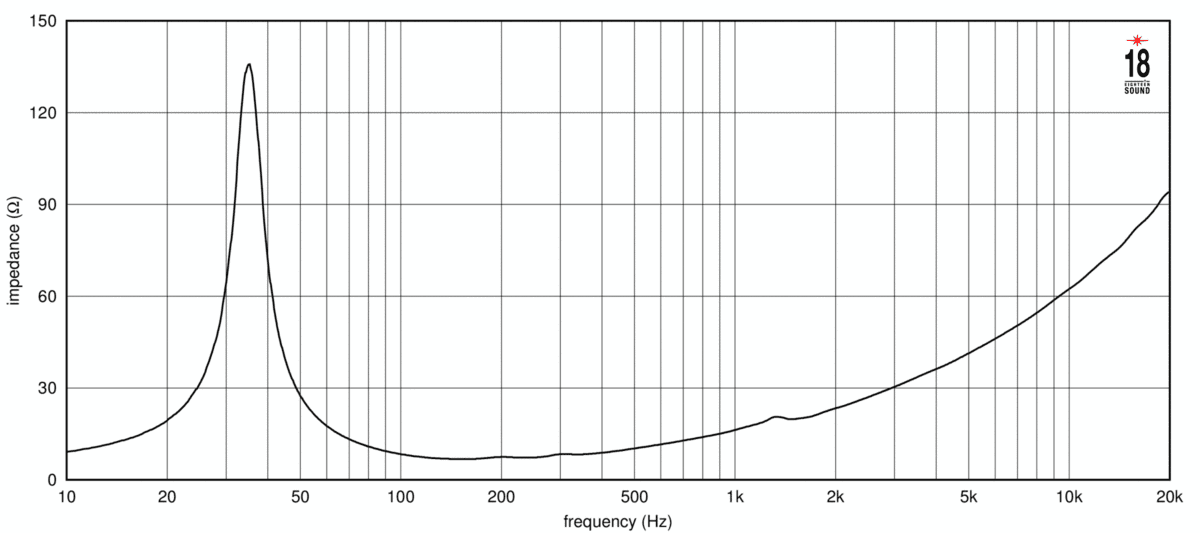

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,527 selected pixels of 1,831
Published graphs
Eighteen Sound 15NLW4500 is a 15-inch 8 ohm LF driver rated at 1500 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.26, Vas 111 L, Xmax 14.5 mm, sensitivity 94.5 dB, plus 1277 cm³ Vd and 130 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £440.65.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 7.8
- Vas
- 111L
- Re
- 5.4Ω
- Le
- 1.62mH
Motor and cone
- BL
- 29.7T·m
- Sd
- 881cm²
- Mms
- 201g
- Xmax
- 14.5mm
- Vd †
- 1277cm³
Power and response
- Sensitivity †
- 94.5dB
- Manufacturer sensitivity
- 96.3dB
- Power
- 1500W
- Nominal power
- 1500W
- Impedance
- 8Ω
- Range
- 40–1000Hz
- EBP †
- 130 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 356mm
- Bolt circle
- 371mm
- Depth
- 199mm
- Weight
- 11.4kg
Other published values
- Power Program
- 3000
Sensitivity shows 94.5 dB, calculated from the T/S values. Eighteen Sound publishes 96.3 dB, 1.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 15″
- BL
- 29.7T·m
- Fs
- 35Hz
- Le
- 1.62mH
- Re
- 5.4Ω
- Sd
- 881cm²
- Mms
- 201g
- Qes
- 0.27
- Qms
- 7.8
- Qts
- 0.26
- SPL
- 94.5dB
- Vas
- 111L
- Xmax
- 14.5mm
- Power
- 1500W
- Impedance
- 8Ω
- Sensitivity
- 96.3dB
- Low limit
- 40Hz
- Nominal power
- 1500W
- Power Program
- 3000
- Calculated sensitivity †
- 94.5dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 96.3dB
- Weight
- 11.4kg
- Diameter
- 393mm
- Depth
- 199mm
- Cutout
- 356mm
- Bolt circle
- 371mm
02
Designs
Cabinets for the 15NLW4500: a design and a suggested box from Eighteen Sound.
All 15NLW4500 designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 15NLW4500 page
- Net volume
- 50L
- Tuning
- 45Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
