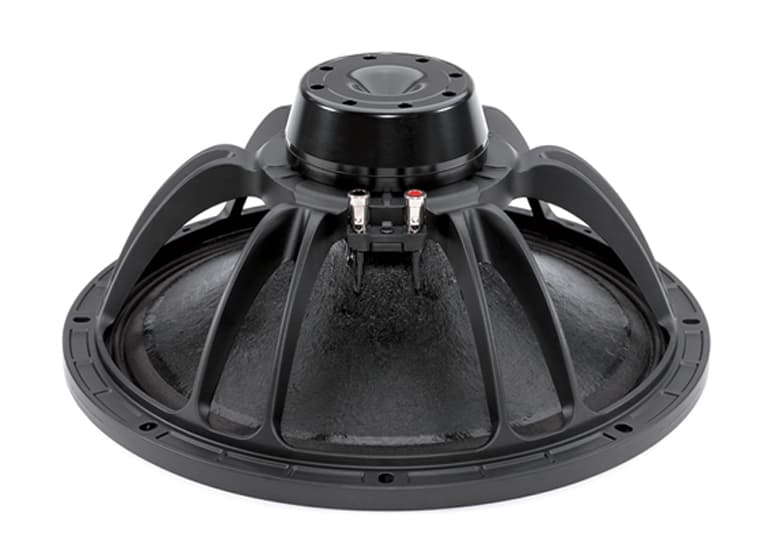

B&C15NDL76
£175.00Fs37 Hz +27%, worse
Qts0.22 −6%
Vas195 L −14%, better
BL22.5 T·m –
Xmax7 mm −19%, worse
Sensitivity98.2 dB +2.5, better
15-inch LF driver · CF1540 series · 100 mm voice coil · 600 W

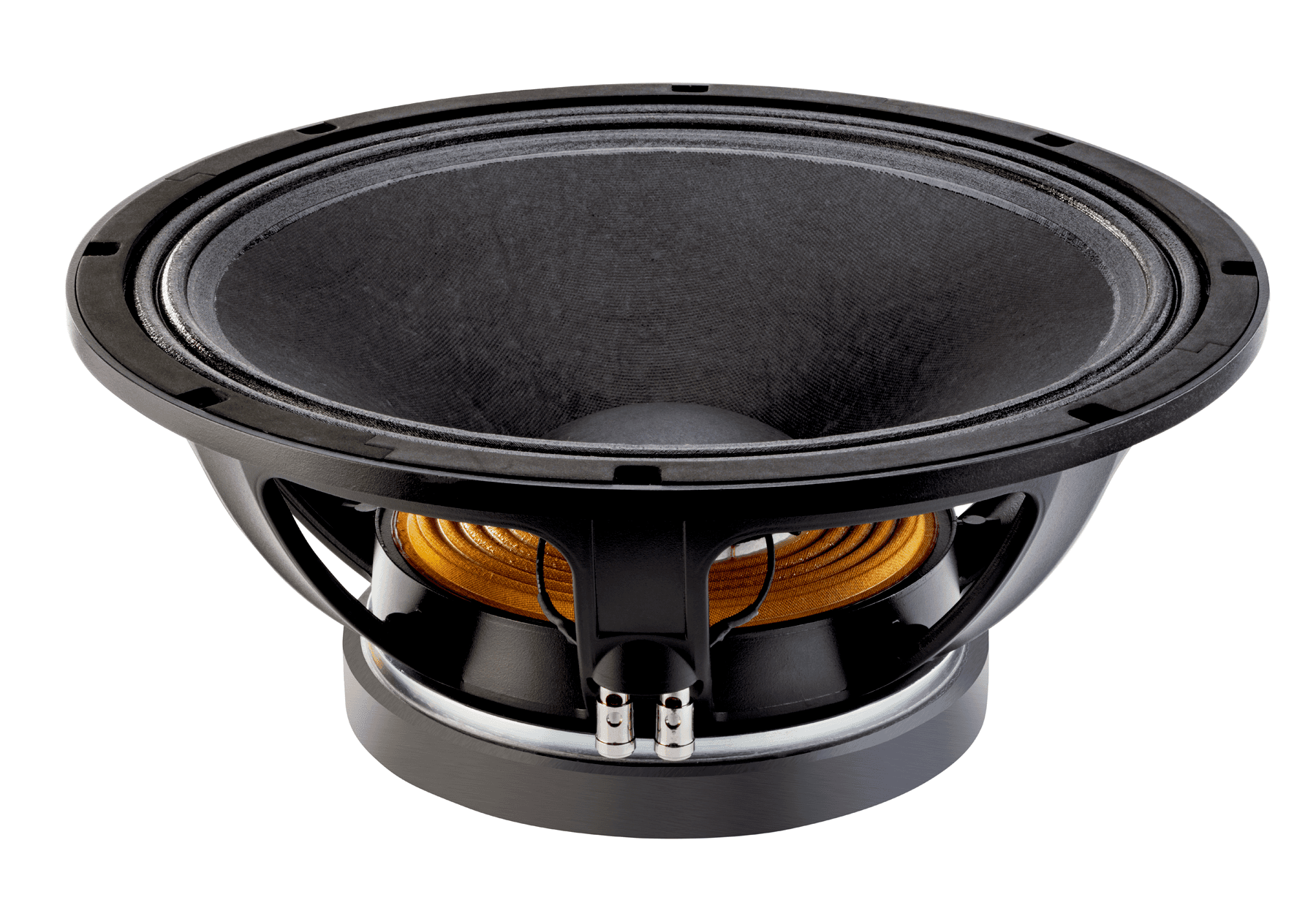

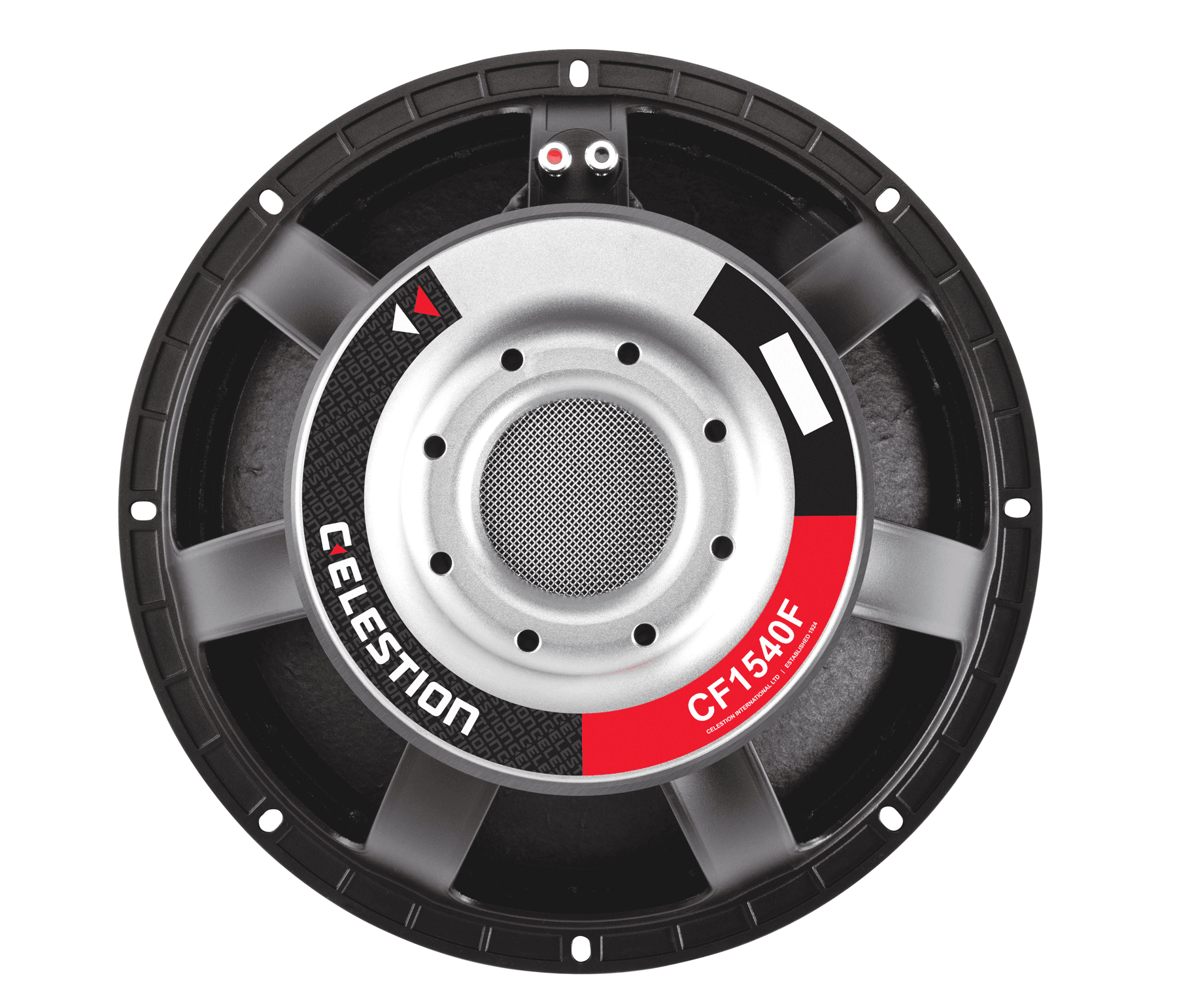

Celestion CF1540F 8Ω
8 Ω · 35–2000 Hz
No current price
- Fs
- 29Hz
- Xmax
- 8.6mm
- SPL
- 96dB
- Pe
- 600W
- BL
- 23.1T·m
- Vd
- 736cm³
- Qts
- 0.23
- Vas
- 228L

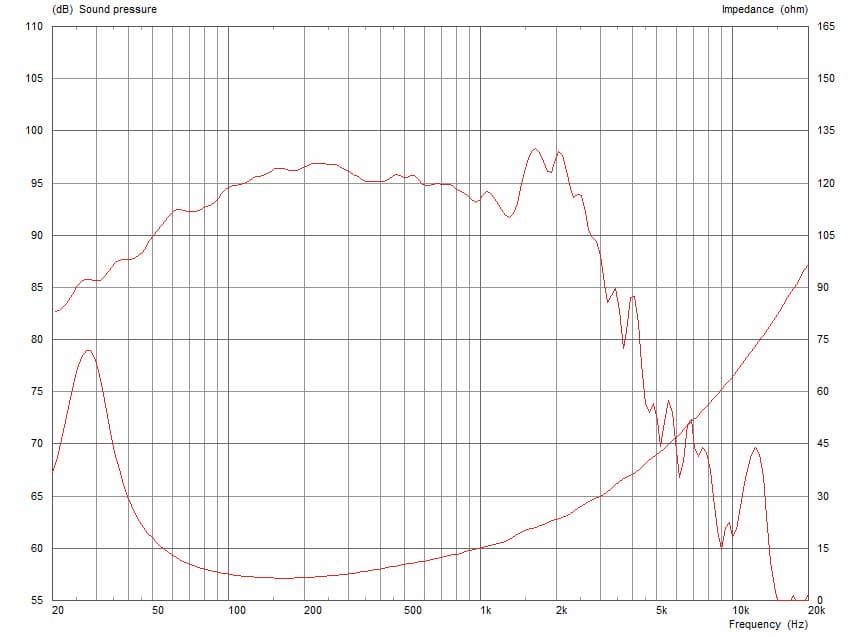

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
135 plotted pointsMedium confidence137 selected pixels of 273
Published graphs
Celestion CF1540F is a 15-inch 8 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 29 Hz, Qts 0.23, Vas 227.9 L, Xmax 8.6 mm, sensitivity 95.7 dB, plus 736 cm³ Vd and 120 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 29Hz
- Qts
- 0.23
- Qes
- 0.24
- Qms
- 6.5
- Vas
- 227.9L
- Re
- 5.5Ω
- Le
- 1.74mH
Motor and cone
- BL
- 23.1T·m
- Sd
- 855cm²
- Mms
- 129g
- Xmax
- 8.6mm
- Vd †
- 736cm³
- Voice coil
- 100mm
Power and response
- Sensitivity †
- 95.7dB
- Manufacturer sensitivity
- 97dB
- Power
- 600W
- Impedance
- 8Ω
- Range
- 35–2000Hz
- EBP †
- 120 · Leans vented
Size and mounting
- Diameter
- 392.7mm
- Cutout
- 354.5mm
- Bolt circle
- 374mm
- Depth
- 181.8mm
- Weight
- 9.6kg
Other published values
- Cms
- 0.23mm/N
- Rms
- 3.61kg/s
- Power Program
- 1200
Sensitivity shows 95.7 dB, calculated from the T/S values. Celestion publishes 97.0 dB, 1.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 15″
- BL
- 23.1T·m
- Fs
- 29Hz
- Le
- 1.74mH
- Re
- 5.5Ω
- Sd
- 855cm²
- Cms
- 0.23mm/N
- Mms
- 129g
- Qes
- 0.24
- Qms
- 6.5
- Qts
- 0.23
- Rms
- 3.61kg/s
- SPL
- 95.7dB
- Vas
- 227.9L
- Xmax
- 8.6mm
- Power
- 600W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 35Hz
- Power Program
- 1200
- Calculated sensitivity †
- 95.7dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 97dB
- Voice coil
- 100mm
- Weight
- 9.6kg
- Diameter
- 392.7mm
- Depth
- 181.8mm
- Cutout
- 354.5mm
- Bolt circle
- 374mm
02
Compare
Same-size drivers, compared with the CF1540F. Clear differences are green when better and red when worse.
This driverCF1540F
Best price
–
Fs
29 Hz
Qts
0.23
Vas
227.9 L
BL
23.1 T·m
Xmax
8.6 mm
Sensitivity
95.7 dB
Power
600 W
B&C15PS76
£184.00Fs38 Hz +31%, worse
Qts0.26 +11%, worse
Vas164 L −28%, better
BL22.1 T·m −5%
Xmax7.5 mm −13%, worse
Sensitivity97.1 dB +1.4
Eighteen Sound15W930
£193.05Fs33 Hz +13%, worse
Qts0.22 −6%
Vas240 L +5%
BL22.1 T·m −5%
Xmax7.5 mm −13%, worse
Sensitivity97.8 dB +2.1, better
FaitalPRO15FH510
£199.28Fs35 Hz +20%, worse
Qts0.26 +11%, worse
Vas191.8 L −16%, better
BL21 T·m −9%
Xmax9.3 mm +8%
Sensitivity96.9 dB +1.2
RCFL15P400
£214.72Fs36 Hz +24%, worse
Qts0.25 +6%
Vas160 L −30%, better
BL24.8 T·m +7%
Xmax8 mm −7%
Sensitivity96.4 dB +0.7
B&C15NW76
£233.82Fs42 Hz +44%, worse
Qts0.22 −6%
Vas130 L −43%, better
BL25.5 T·m +10%, better
Xmax8 mm −7%
Sensitivity98.2 dB +2.5, better
RCFLF15G401
£238.26Fs36 Hz +24%, worse
Qts0.26 +11%, worse
Vas150 L −34%, better
BL24.6 T·m +6%
Xmax9 mm +5%
Sensitivity96.2 dB +0.5
Eighteen Sound15LW2400
£254.95Fs34 Hz +17%, worse
Qts0.23 –
Vas191 L −16%, better
BL18 T·m −22%, worse
Xmax9.5 mm +10%, better
Sensitivity97 dB +1.3

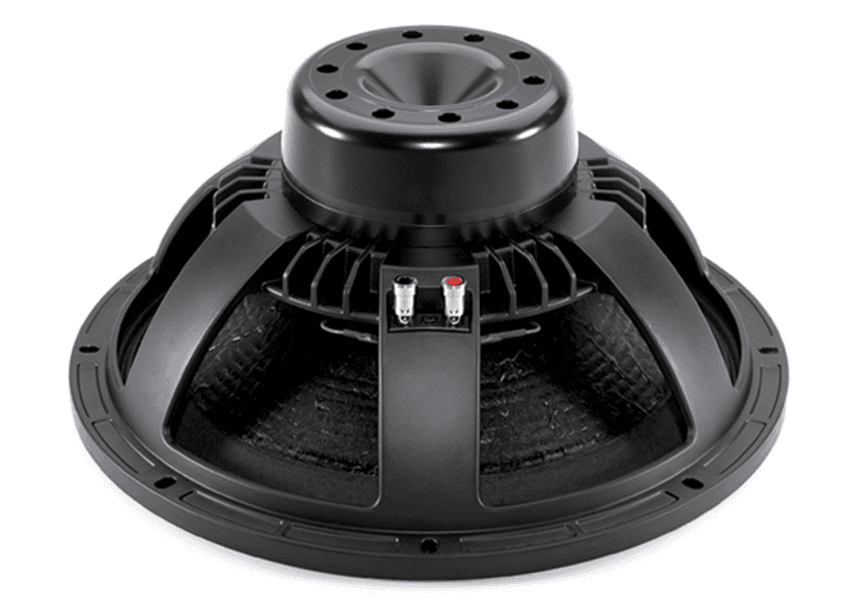

B&C15NW100
£255.00Fs33 Hz +13%, worse
Qts0.22 −6%
Vas139 L −39%, better
BL28 T·m +21%, better
Xmax9 mm +5%
Sensitivity95.4 dB –

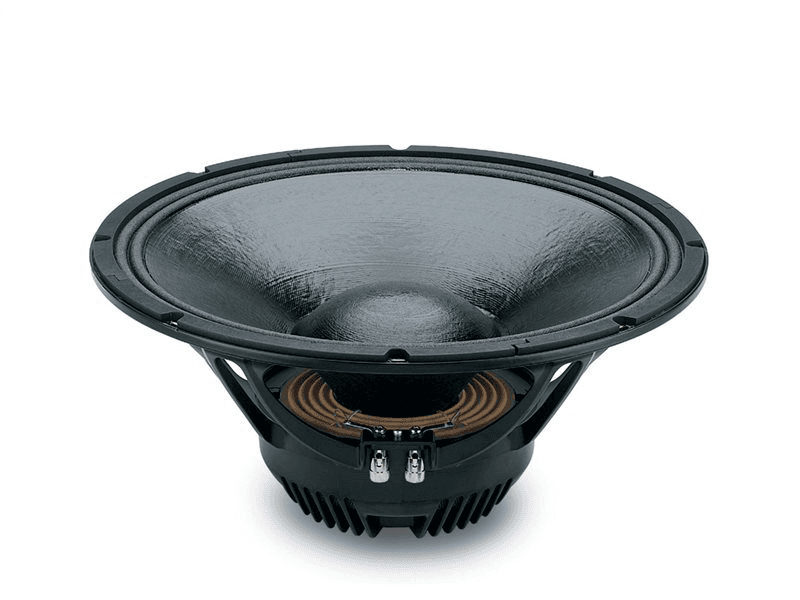

Eighteen Sound15ND930
£266.78Fs36 Hz +24%, worse
Qts0.22 −6%
Vas206 L −10%
BL23.8 T·m –
Xmax7.5 mm −13%, worse
Sensitivity98.2 dB +2.5, better
Eighteen Sound15NMB1000
£285.89Fs46 Hz +58%, worse
Qts0.24 –
Vas124 L −46%, better
BL25.2 T·m +9%
Xmax6.5 mm −24%, worse
Sensitivity99 dB +3.3, better
CIARENDH15-4S
£289.95Fs28 Hz −4%
Qts0.25 +6%
Vas220 L −3%
BL24.2 T·m +4%
Xmax11.5 mm +34%, better
Sensitivity94.7 dB −1
RCFMB15N351
£297.00Fs42 Hz +44%, worse
Qts0.22 −6%
Vas191 L −16%, better
BL22.5 T·m –
Xmax6 mm −30%, worse
Sensitivity99.7 dB +4, better

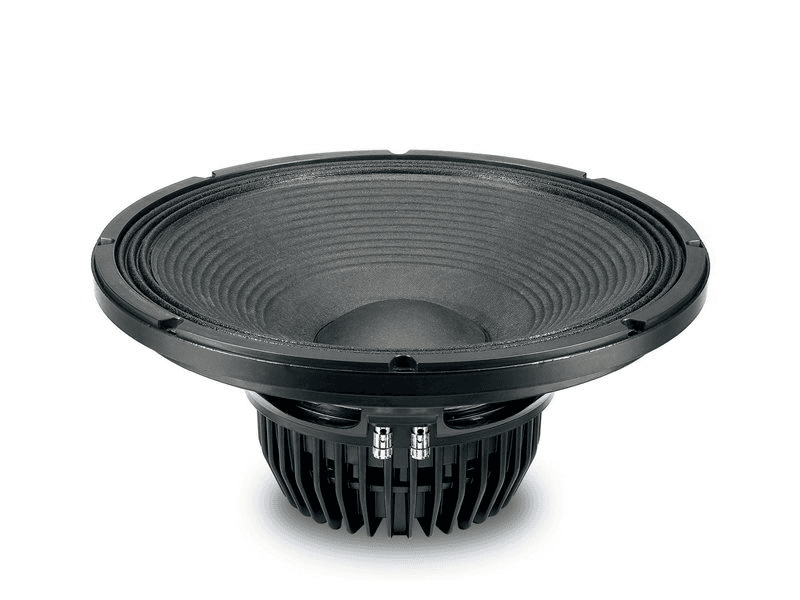

Eighteen Sound15NLW9300
£315.00Fs39 Hz +34%, worse
Qts0.26 +11%, worse
Vas170 L −25%, better
BL24.4 T·m +5%
Xmax8 mm −7%
Sensitivity97.8 dB +2.1, better
Eighteen Sound15LW1500
£315.00Fs34 Hz +17%, worse
Qts0.28 +19%, worse
Vas195 L −14%, better
BL22.1 T·m −5%
Xmax9 mm +5%
Sensitivity96.2 dB +0.5
Beyma15P80ND
£326.51Fs39 Hz +34%, worse
Qts0.21 −11%, better
Vas184 L −19%, better
BL23.8 T·m –
Xmax7.5 mm −13%, worse
Sensitivity99 dB +3.3, better
RCFLF15N401
£329.00Fs34 Hz +17%, worse
Qts0.22 −6%
Vas160 L −30%, better
BL27.8 T·m +20%, better
Xmax9 mm +5%
Sensitivity96.4 dB +0.7

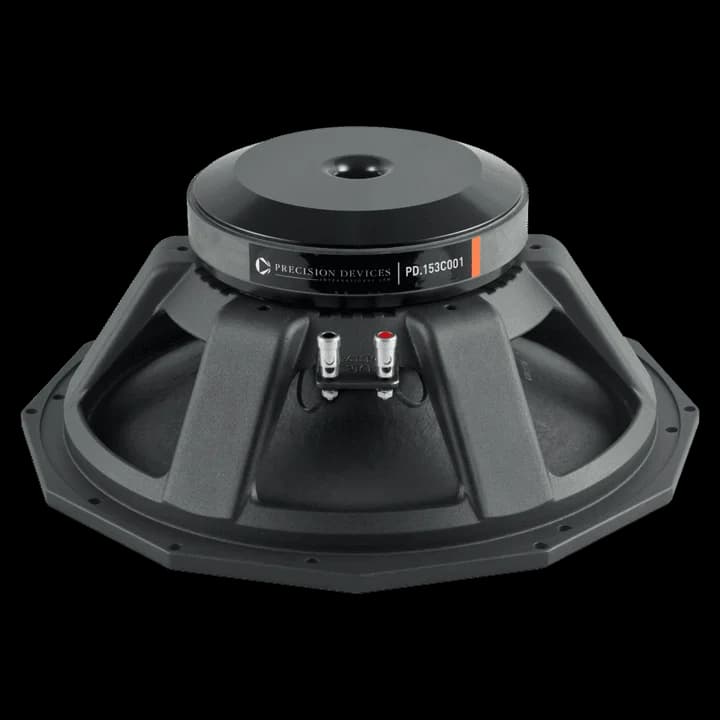

Precision DevicesPD.153C001
No current priceFs38 Hz +31%, worse
Qts0.22 −5%
Vas196 L −14%, better
BL24.2 T·m +4%
Xmax7.7 mm −10%, worse
Sensitivity98.7 dB +3, better

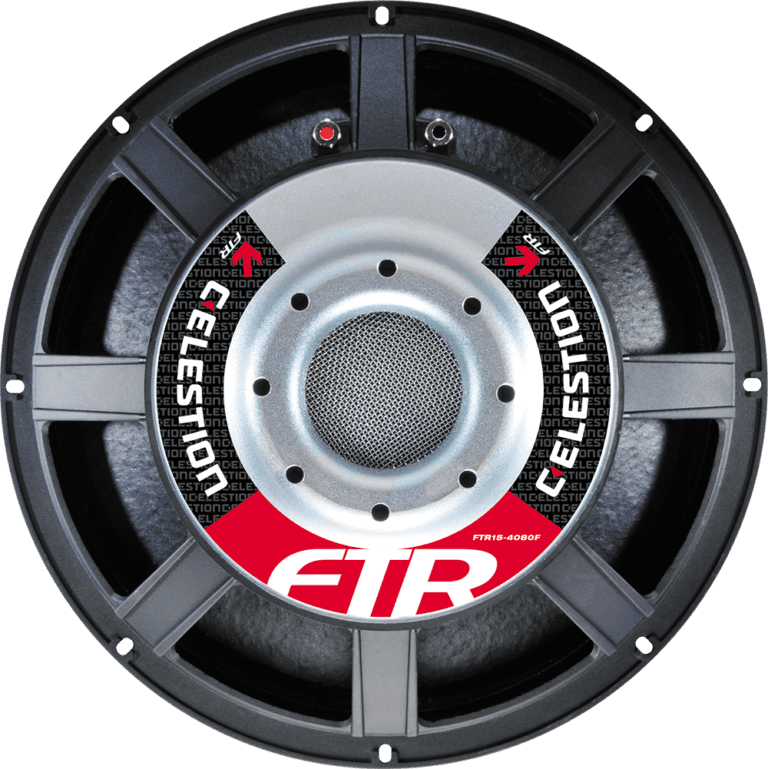

CelestionFTR15-4080F
