Overview
LF Driver
PRV Audio
PRV Audio 15SW2000
PRV Audio 15SW2000 is a 15" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 53Hz, Qts 0.55, Vas 61.5L, Xmax 12.5mm, sensitivity 94.1dB, plus 1135cm³ Vd and 93 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £179.68.
Size
15"
Impedance
8Ω
RMS Power
1000W
Sensitivity
94.1dB
96.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
93
Either alignment
Vd
1135cm³
T/S Parameters
Valid
Fs53Hz
Qts0.55
Qes0.57
Qms16.5
Vas61.5L
Re5.5Ω
Le1.51mH
BL23.2Tm
Sd908cm²
Mms169g
Xmax12.5mm
SPL94dB
Power1000W
Impedance8Ω
F Low53Hz
F High2000Hz
Voice Coil100mm
Pricing & availability
Price definitionsPrice movement
Best current price
£179.68
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.8kg
Diameter393.0mm
Overall Depth195.0mm
Cutout Diameter355.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
15SW2000
15"
Best current price
£179.68
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
4 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
61%
Similarity
2% cheaper£176.66
SB Audience
ROSSO-15SW800
15"
Lower price
Xmax11.3mm-10%
Qts0.46-16%
BL21.1Tm-9%
Vas87.6L+42%
Qes0.48-16%
77%
Similarity
57% more£281.29
B&C

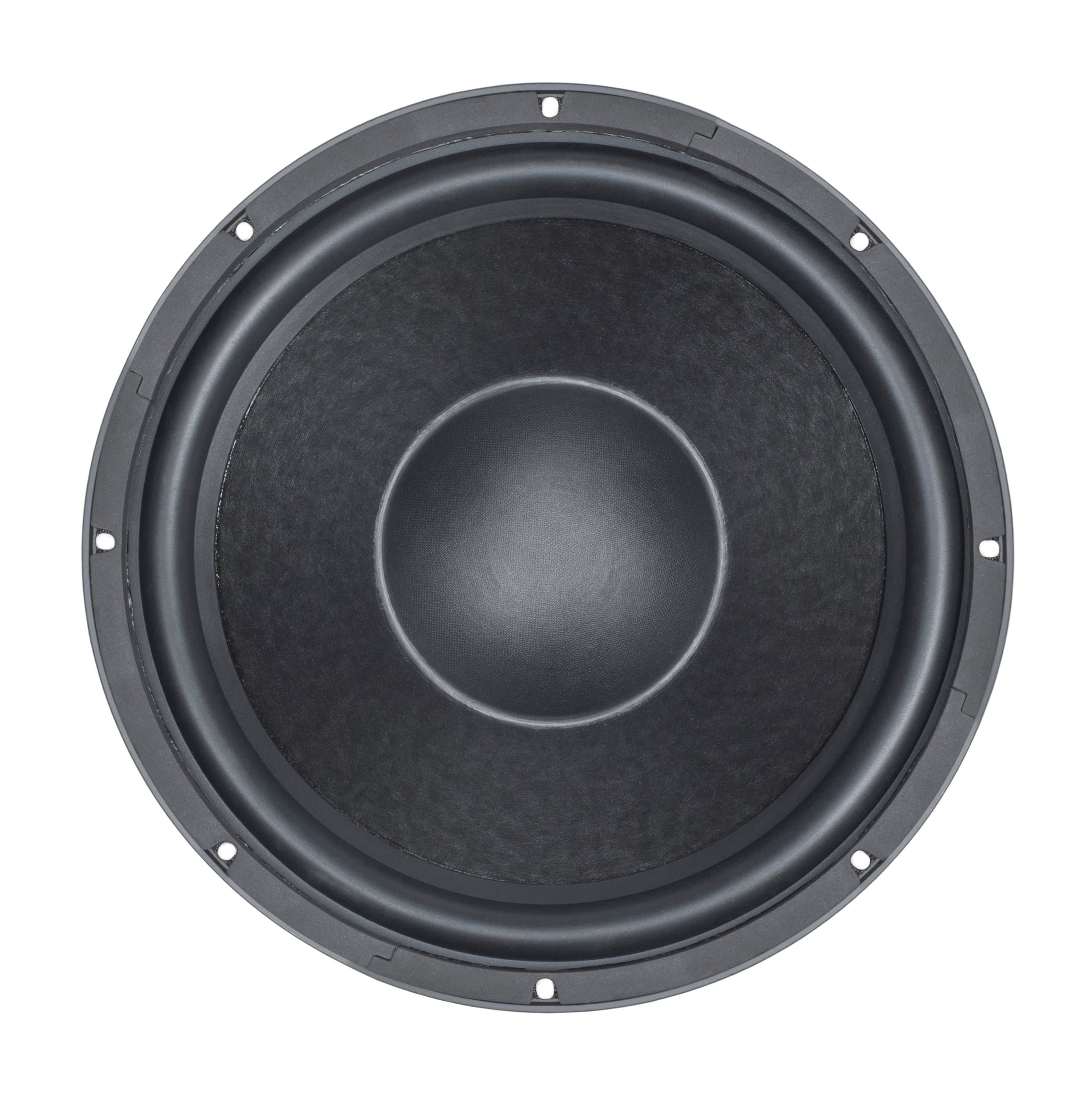

15BG76
15"
Higher price
Xmax9.6mm-23%
Qts0.56+2%
BL21.7Tm-6%
Vas68.4L+11%
Qes0.61+7%
62%
Similarity
66% more£298.00
B&C
15BG100
15"
Higher price
Xmax10.5mm-16%
Qts0.44-20%
BL23Tm-1%
Vas83L+35%
Qes0.49-14%
58%
Similarity
PRV Audio
15SW2000-4
15"
Xmax12.5mm0%
Qts0.44-20%
BL18.2Tm-22%
Vas84.4L+37%
Qes0.45-21%
