Overview
LF DriverDELTA series
Eminence

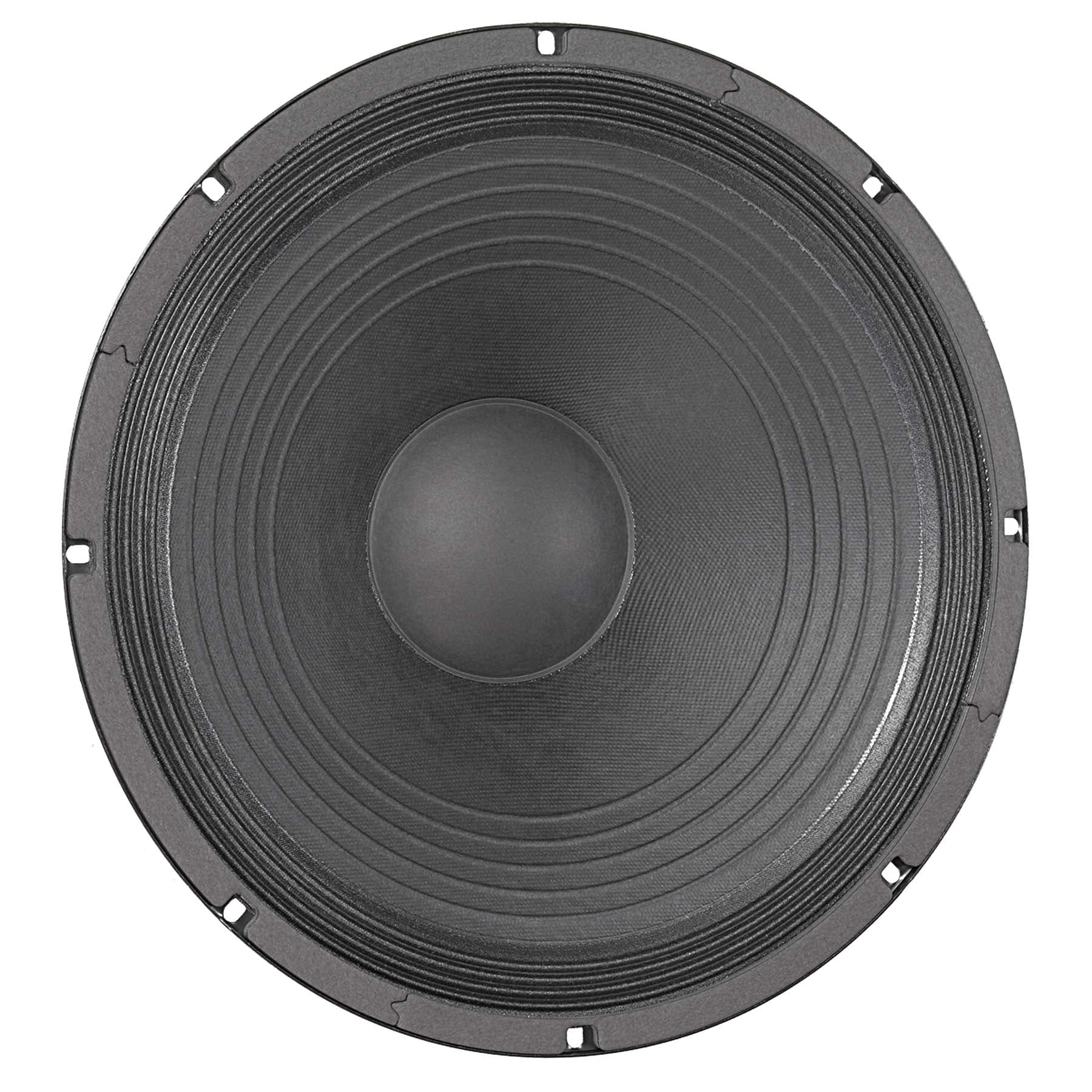

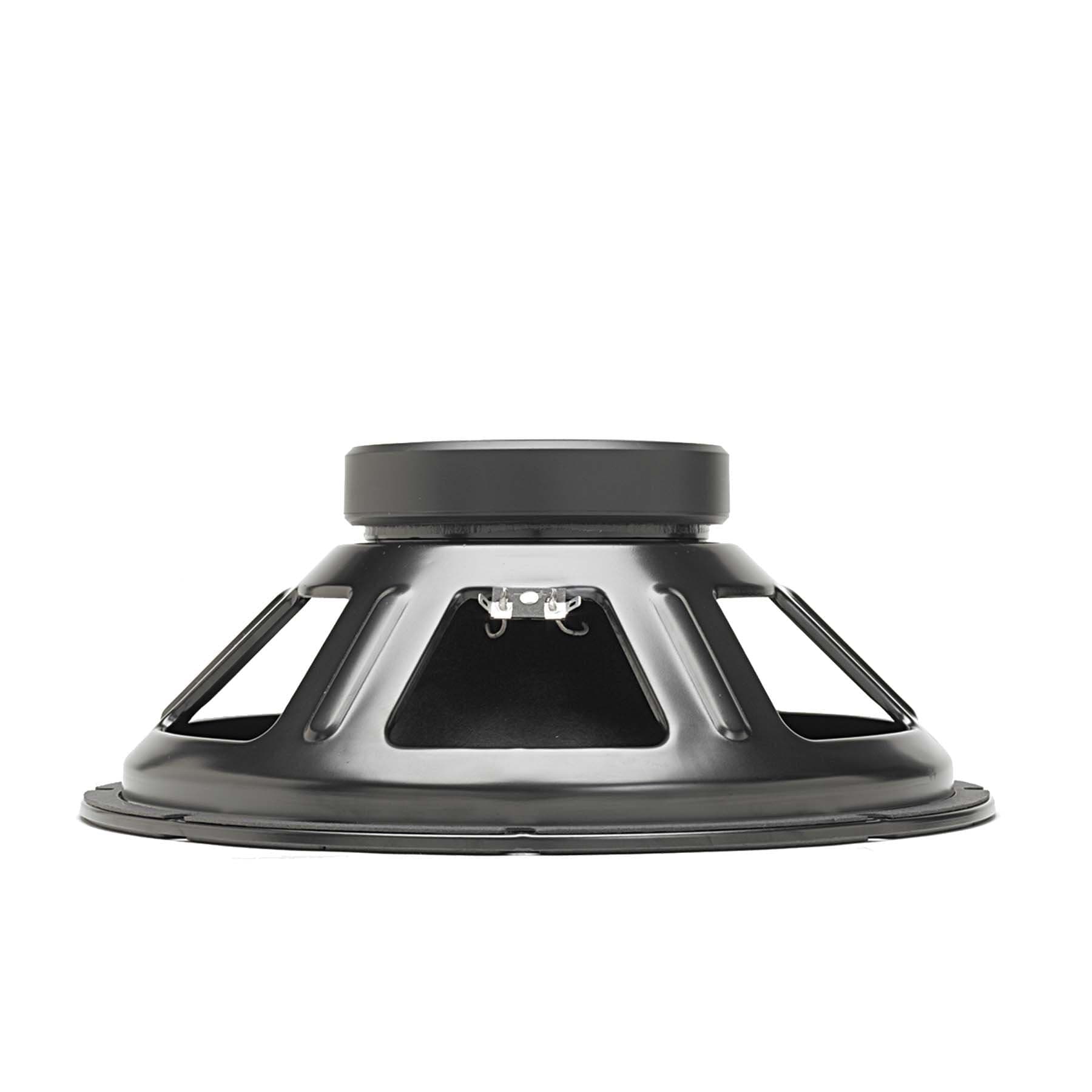

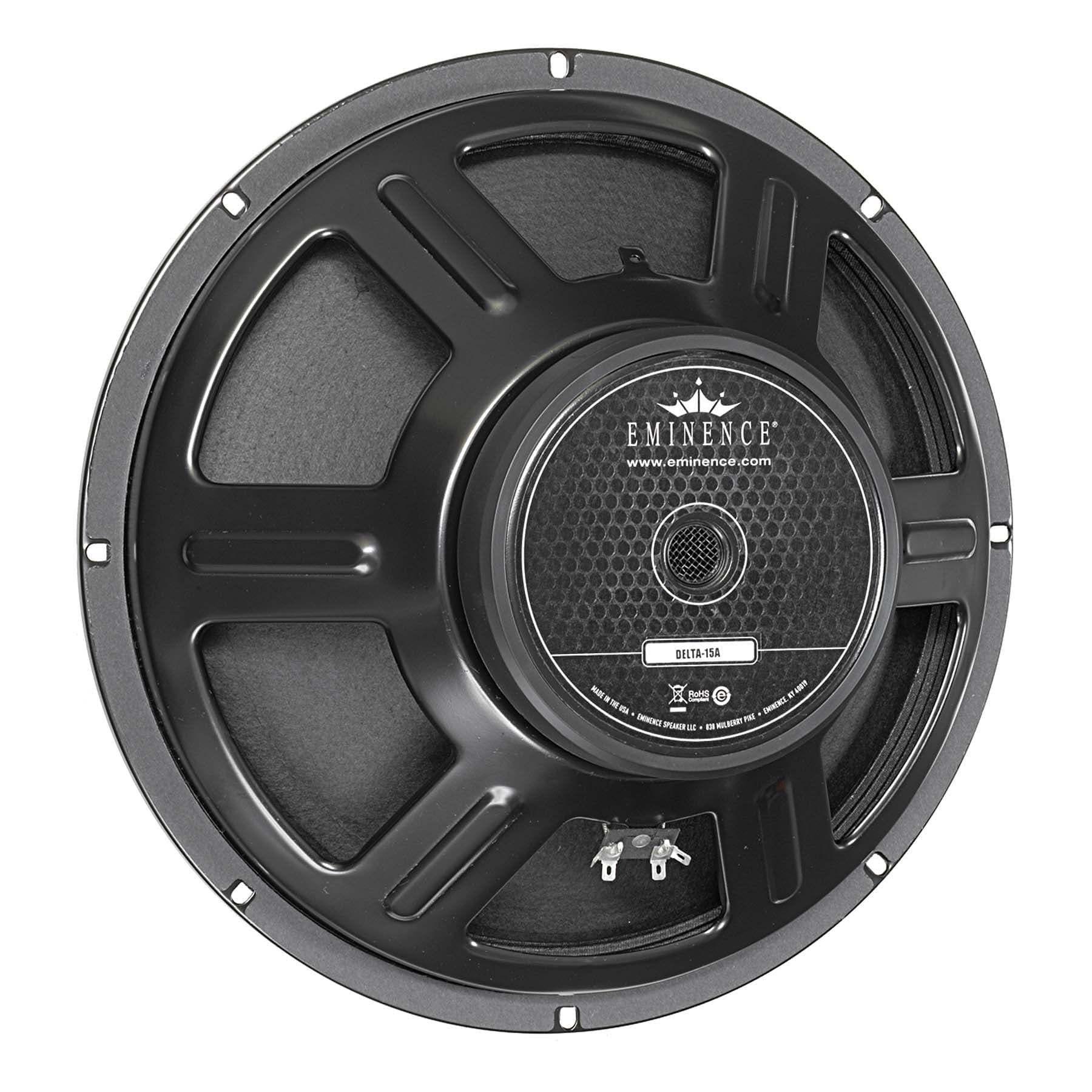

Eminence DELTA-15A
Eminence DELTA-15A is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 40Hz, Qts 0.53, Vas 270.7L, Xmax 2.7mm, sensitivity 96.9dB, plus 233cm³ Vd and 70 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £109.46.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
96.9dB
100.0dBmanufacturer; using T/S-derived value (3.1dB delta).
EBP
70
Either alignment
Vd
233cm³
T/S Parameters
Valid
Fs40Hz
Qts0.53
Qes0.57
Qms8.1
Vas270.7L
Re6.3Ω
Le0.64mH
BL13.2Tm
Sd865cm²
Mms62g
Xmax2.7mm
SPL97dB
Power400W
Impedance8Ω
F Low48Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
5 vendorsbluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£110.00
inc VAT
3 in stock
leanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£115.07
inc VAT
Out of stock
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£115.07
inc VAT
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£145.00
inc VAT
thomann
Updated 11 Sept 2026
Source: inc VAT · 20%
£153.00
inc VAT
In stock
Best current price
Updated 11 Sept 2026
partsexpress
£109.46
Avg £119.88£10.42 below avg (-8.7%)
inc VAT·31 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.6kg
Diameter384.8mm
Overall Depth153.7mm
Cutout Diameter352.3mm
Bolt Circle Diameter369.8mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
DELTA-15A
15"
Best current price
£109.46
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
61%
Similarity
P.Audio
C15-400B-V2
15"
Xmax3.3mm+20%
Qts0.55+4%
BL15.6Tm+18%
Vas142L-48%
Qes0.61+7%
60%
Similarity
Jensen
BP15250-8
15"
Xmax3.4mm+26%
Qts0.51-4%
BL15.3Tm+16%
Vas133.1L-51%
Qes0.58+2%
