Overview
LF Driver
Fane

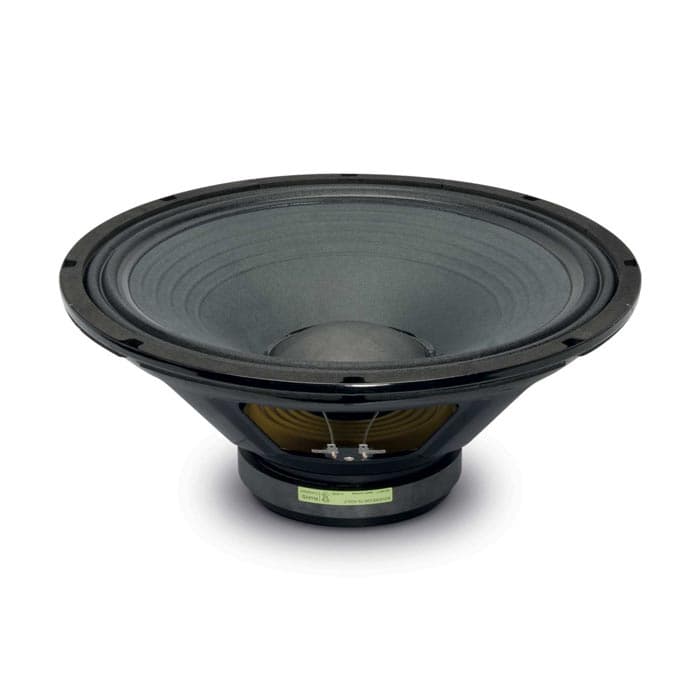

Fane SOVEREIGN 15-400LF
Fane SOVEREIGN 15-400LF is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 41Hz, Qts 0.57, Vas 210L, Xmax 4.6mm, sensitivity 95.7dB, plus 393cm³ Vd and 66 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £94.00.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
95.7dB
97.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
66
Either alignment
Vd
393cm³
T/S Parameters
Valid
Fs41Hz
Qts0.57
Qes0.62
Qms7.6
Vas210.0L
Re5.8Ω
Le2.08mH
BL13.5Tm
Sd855cm²
Mms75g
Xmax4.6mm
SPL96dB
Power400W
Impedance8Ω
F Low40Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£94.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.3kg
Diameter381.0mm
Overall Depth167.9mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Fane
SOVEREIGN 15-400LF
15"
Best current price
£94.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
67%
Similarity
10% cheaper£85.00
Eminence
BETA-15A
15"
Lower price
Xmax4mm-13%
Qts0.58+2%
BL11.5Tm-15%
Vas334.6L+59%
Qes0.63+2%
51%
Similarity
7% cheaper£87.00
Eminence
DELTA 15LF-4
15"
Lower price
Xmax6mm+30%
Qts0.49-14%
BL10.3Tm-24%
Vas253.9L+21%
Qes0.53-15%
74%
Similarity
4% cheaper£90.00
Celestion
TF1525
15"
Lower price
Xmax4.5mm-2%
Qts0.49-14%
BL14.6Tm+8%
Vas148.4L-29%
Qes0.56-9%
51%
Similarity
5% more£99.00
Celestion
TF1525E
15"
Higher price
Xmax5.3mm+14%
Qts0.47-17%
BL17.8Tm+32%
Vas141.8L-32%
Qes0.53-15%
72%
Similarity
44% more£135.00
Eminence
DELTA 15LFA
15"
Higher price
Xmax4.8mm+4%
Qts0.48-16%
BL14.6Tm+8%
Vas241L+15%
Qes0.52-16%
76%
Similarity
55% more£145.52
Eighteen Sound
15W500
15"
Higher price
Xmax4mm-13%
Qts0.52-9%
BL12.6Tm-7%
Vas189L-10%
Qes0.55-11%
65%
Similarity
84% more£172.52
FaitalPRO
15PR300
15"
Higher price
Xmax5.2mm+14%
Qts0.48-16%
BL15.6Tm+15%
Vas220.1L+5%
Qes0.5-19%
82%
Similarity
Lavoce
FBASS15-20
15"
Xmax4.3mm-7%
Qts0.53-7%
BL12.8Tm-5%
Vas234.4L+12%
Qes0.57-8%
74%
Similarity
Monacor
TF1525/8
15"
Xmax4.5mm-2%
Qts0.49-14%
BL14.6Tm+8%
Vas148.4L-29%
Qes0.56-9%
67%
Similarity
SB Audience
BIANCO-15MW200
15"
Xmax5.9mm+29%
Qts0.58+2%
BL15.9Tm+18%
Vas153.3L-27%
Qes0.61-2%
58%
Similarity
Peerless
FSL-1525R04-04
15"
Xmax5.6mm+21%
Qts0.49-14%
BL13.4Tm-1%
Vas115L-45%
Qes0.5-19%
53%
Similarity
Peerless
FSL-1520R02-08
15"
Xmax6mm+30%
Qts0.7+23%
BL11.8Tm-13%
Vas203L-3%
Qes0.74+20%
