Fane SOVEREIGN 15-300TC 8Ω
8 Ω · 50–15000 Hz
No current price
- Fs
- 48Hz
- Xmax
- 3.5mm
- SPL
- 97dB
- Pe
- 300W
- BL
- 11T·m
- Vd
- 299cm³
- Qts
- 0.70
- Vas
- 203L

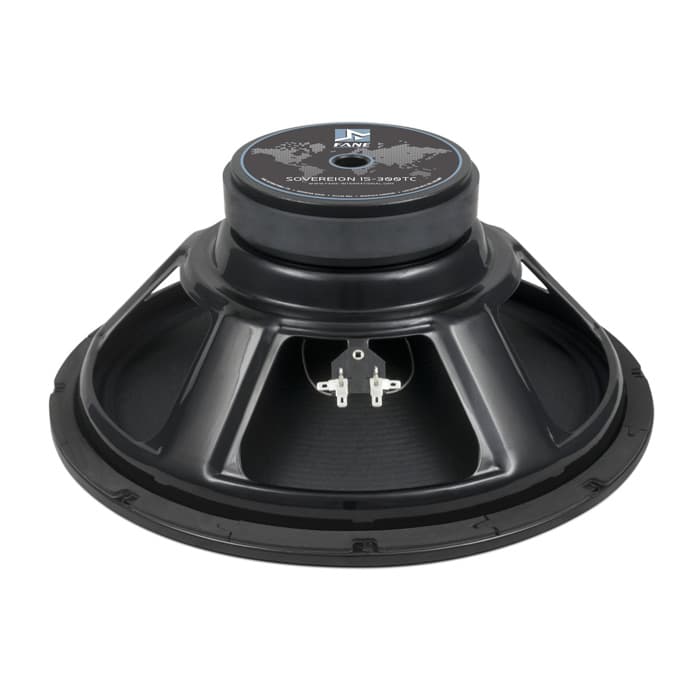

Fane SOVEREIGN 15-300TC is a 15-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 48 Hz, Qts 0.70, Vas 203 L, Xmax 3.5 mm, sensitivity 96.8 dB, plus 299 cm³ Vd and 64 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 48Hz
- Qts
- 0.70
- Qes
- 0.75
- Qms
- 9.9
- Vas
- 203L
- Re
- 5.2Ω
- Le
- 0.17mH
Motor and cone
- BL
- 11T·m
- Sd
- 855cm²
- Mms
- 56g
- Xmax
- 3.5mm
- Vd †
- 299cm³
Power and response
- Sensitivity †
- 96.8dB
- Manufacturer sensitivity
- 101dB
- Power
- 300W
- Impedance
- 8Ω
- Range
- 50–15000Hz
- EBP †
- 64 · Sealed or vented
Size and mounting
- Diameter
- 381mm
- Depth
- 161.8mm
- Weight
- 5kg
Other published values
- Cms
- 0.20mm/N
- Power Peak
- 1200
- Power Program
- 600
Sensitivity shows 96.8 dB, calculated from the T/S values. Fane publishes 101.0 dB, 4.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 15″
- BL
- 11T·m
- Fs
- 48Hz
- Le
- 0.17mH
- Re
- 5.2Ω
- Sd
- 855cm²
- Cms
- 0.20mm/N
- Mms
- 56g
- Qes
- 0.75
- Qms
- 9.9
- Qts
- 0.70
- SPL
- 96.8dB
- Vas
- 203L
- Xmax
- 3.5mm
- Power
- 300W
- Impedance
- 8Ω
- Power Peak
- 1200
- Sensitivity
- 101dB
- Low limit
- 50Hz
- Power Program
- 600
- Calculated sensitivity †
- 96.8dB
- High limit
- 15000Hz
- Manufacturer sensitivity
- 101dB
- Weight
- 5kg
- Diameter
- 381mm
- Depth
- 161.8mm
