Overview
LF DriverNERO series
SB Audience
SB Audience NERO-15OBN450D
SB Audience NERO-15OBN450D is a 15" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 25Hz, Qts 0.80, Vas 319L, Xmax 16mm, sensitivity 89.4dB, plus 1385cm³ Vd and 27 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
450W
Sensitivity
89.4dB
EBP
27
Sealed alignment
Vd
1385cm³

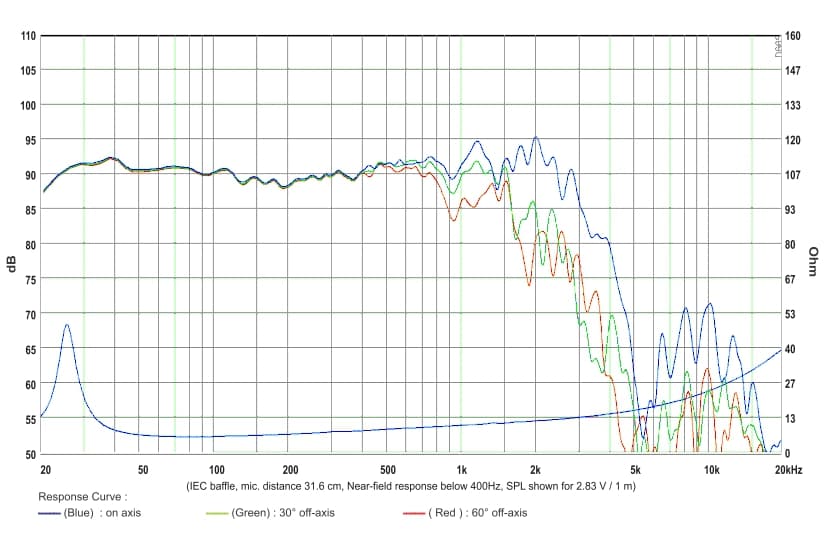

Frequency response
Manufacturer-provided response plots and related charts.

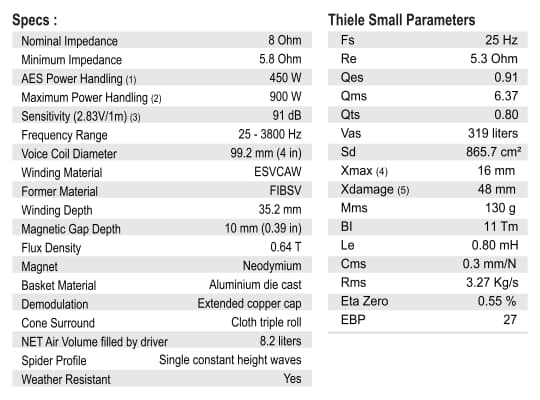

T/S Parameters
Valid
Fs25Hz
Qts0.80
Qes0.91
Qms6.4
Vas319.0L
Re5.3Ω
Le0.80mH
BL11.0Tm
Sd866cm²
Mms130g
Xmax16.0mm
SPL89dB
Power450W
Impedance8Ω
Min Impedance5.8Ω
F Low25Hz
F High3800Hz
Voice Coil99mm
Flux Density0.64T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

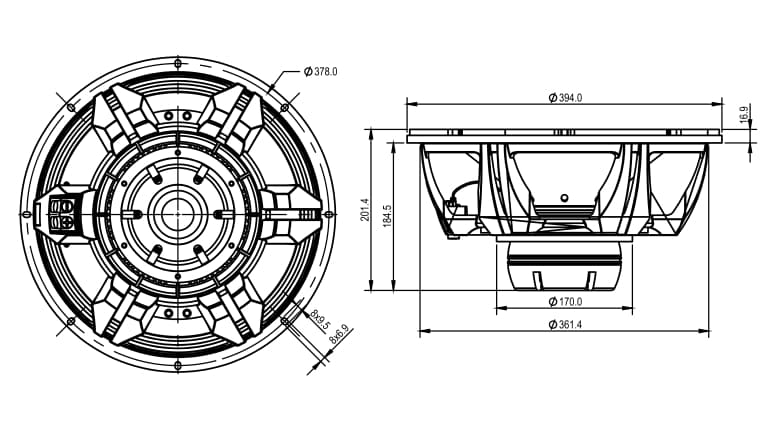

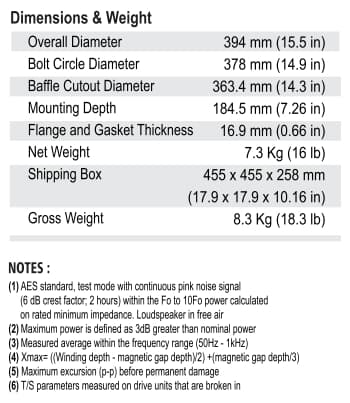

Dimensions & Physical
Weight7.3kg
Diameter394.0mm
Cutout Diameter363.4mm
Bolt Circle Diameter378.0mm
