LF DriverSP series
Monacor

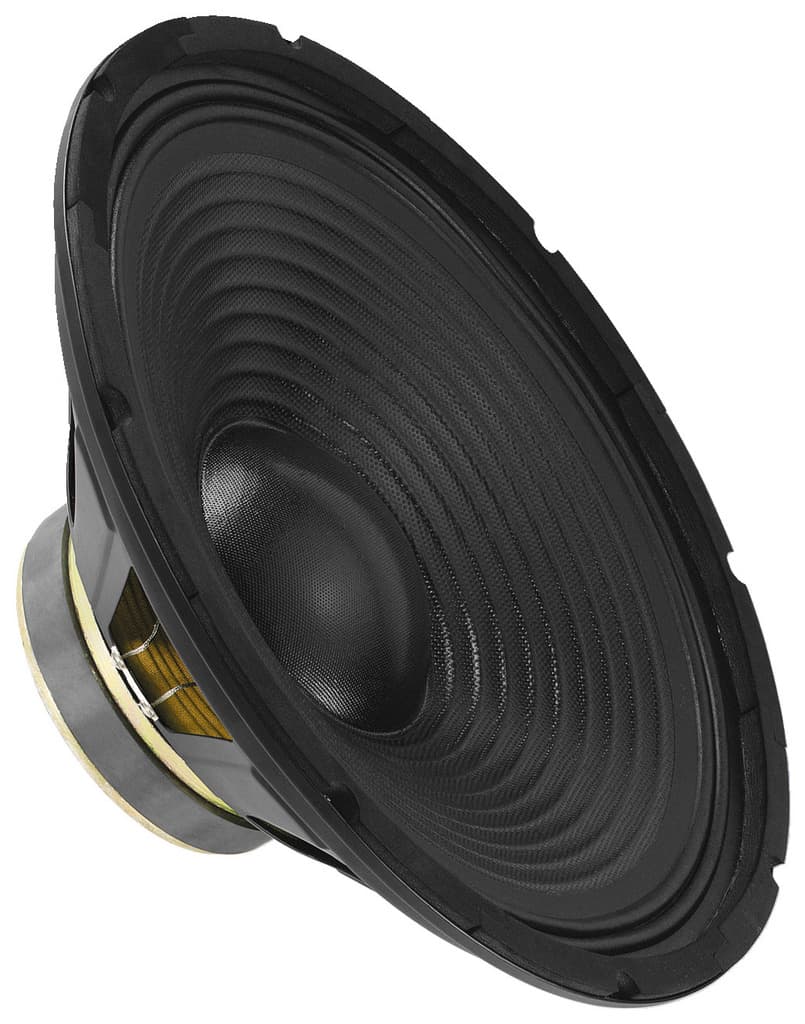

Monacor SP-382PA
Monacor SP-382PA is a 15" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 25Hz, Qts 0.75, Vas 270L, Xmax 3.5mm, sensitivity 88.3dB, plus 289cm³ Vd and 25 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
150W
Sensitivity
88.3dB
94.0dBmanufacturer; using T/S-derived value (5.7dB delta).
EBP
25
Sealed alignment
Vd
289cm³
T/S Parameters
Valid
Fs25Hz
Qts0.75
Qes0.99
Qms3.0
Vas270.0L
Re7.0Ω
Le0.80mH
BL10.9Tm
Sd825cm²
Mms73g
Xmax3.5mm
SPL88dB
Power150W
Impedance8Ω
F Low3Hz
F High4000Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

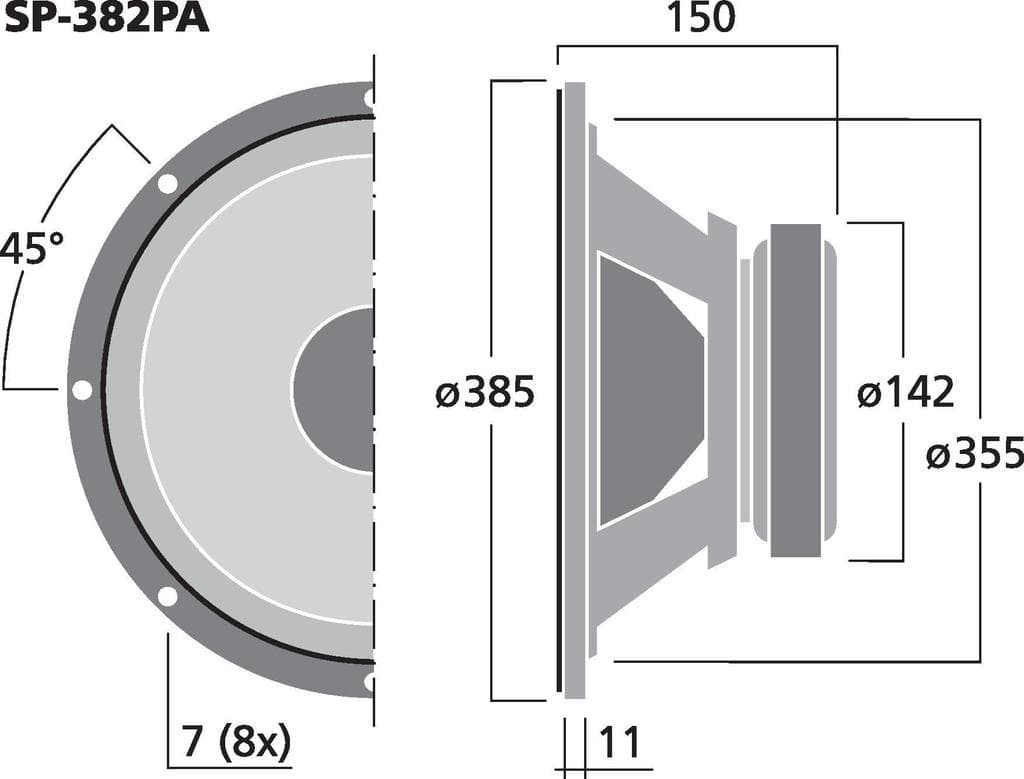

Dimensions & Physical
Weight3.9kg
Diameter385.0mm
Overall Depth150.0mm
Cutout Diameter355.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
SP-382PA
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
63%
Similarity
£75.00

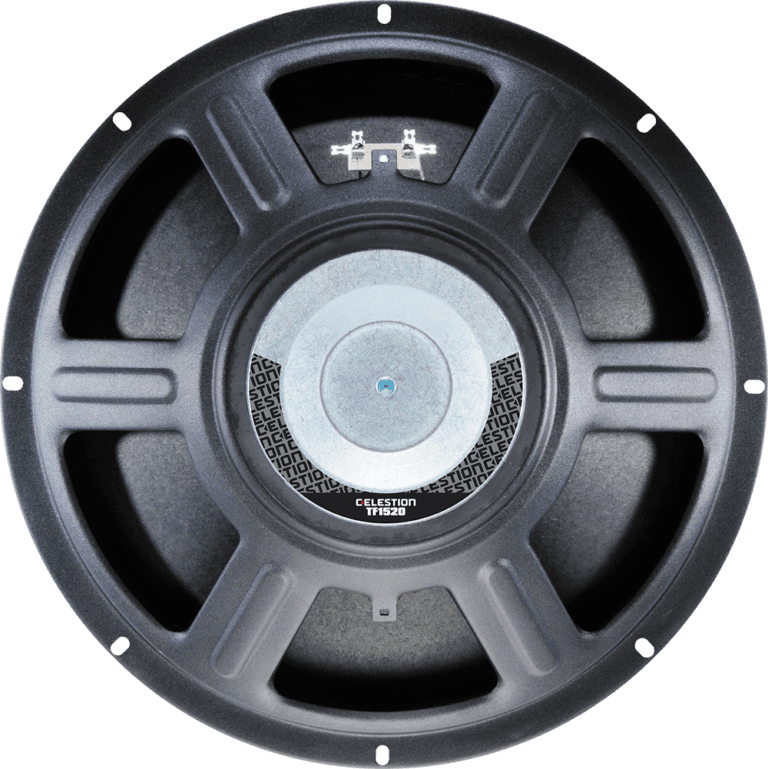

Celestion
