Overview
LF DriverKAPPA series
Eminence

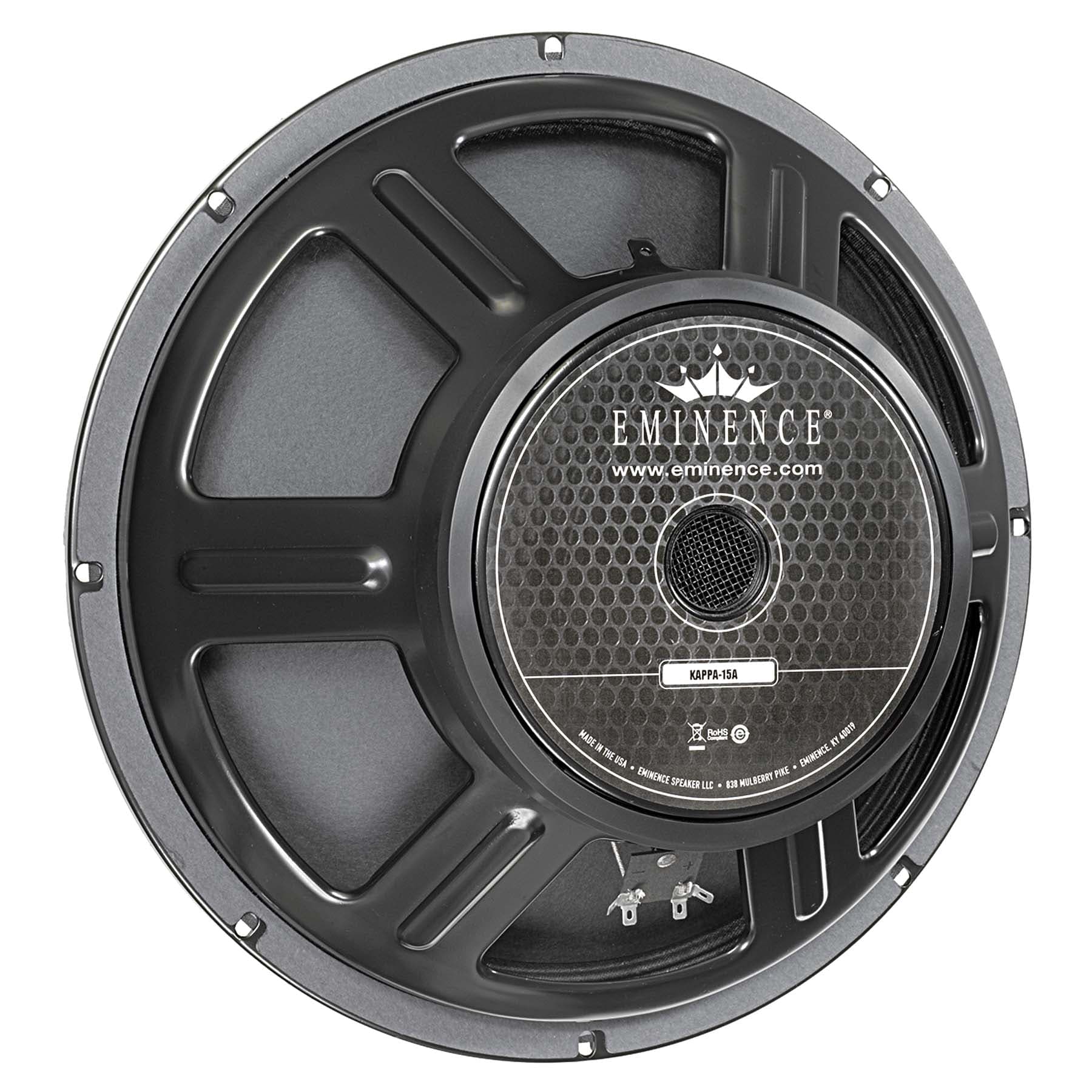

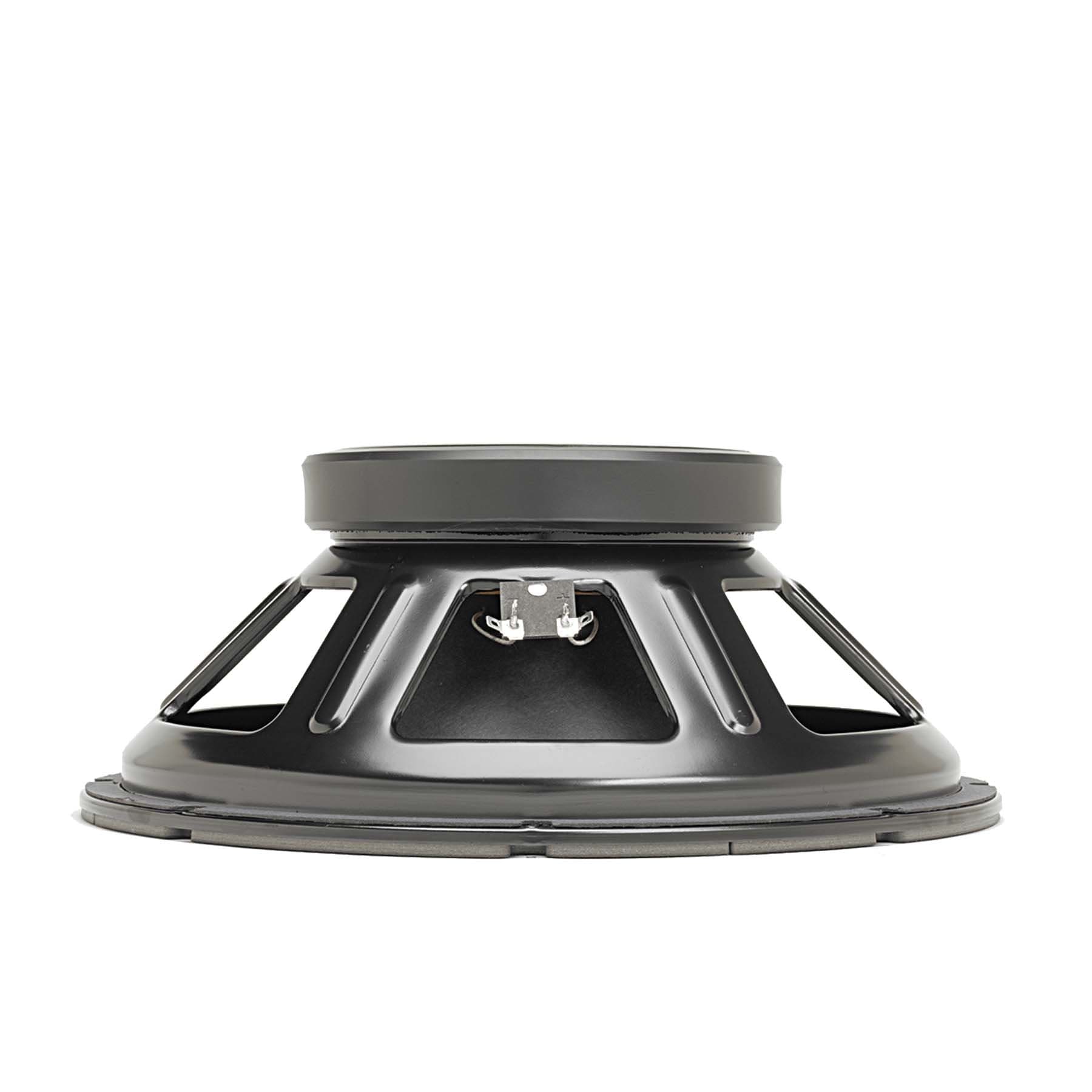

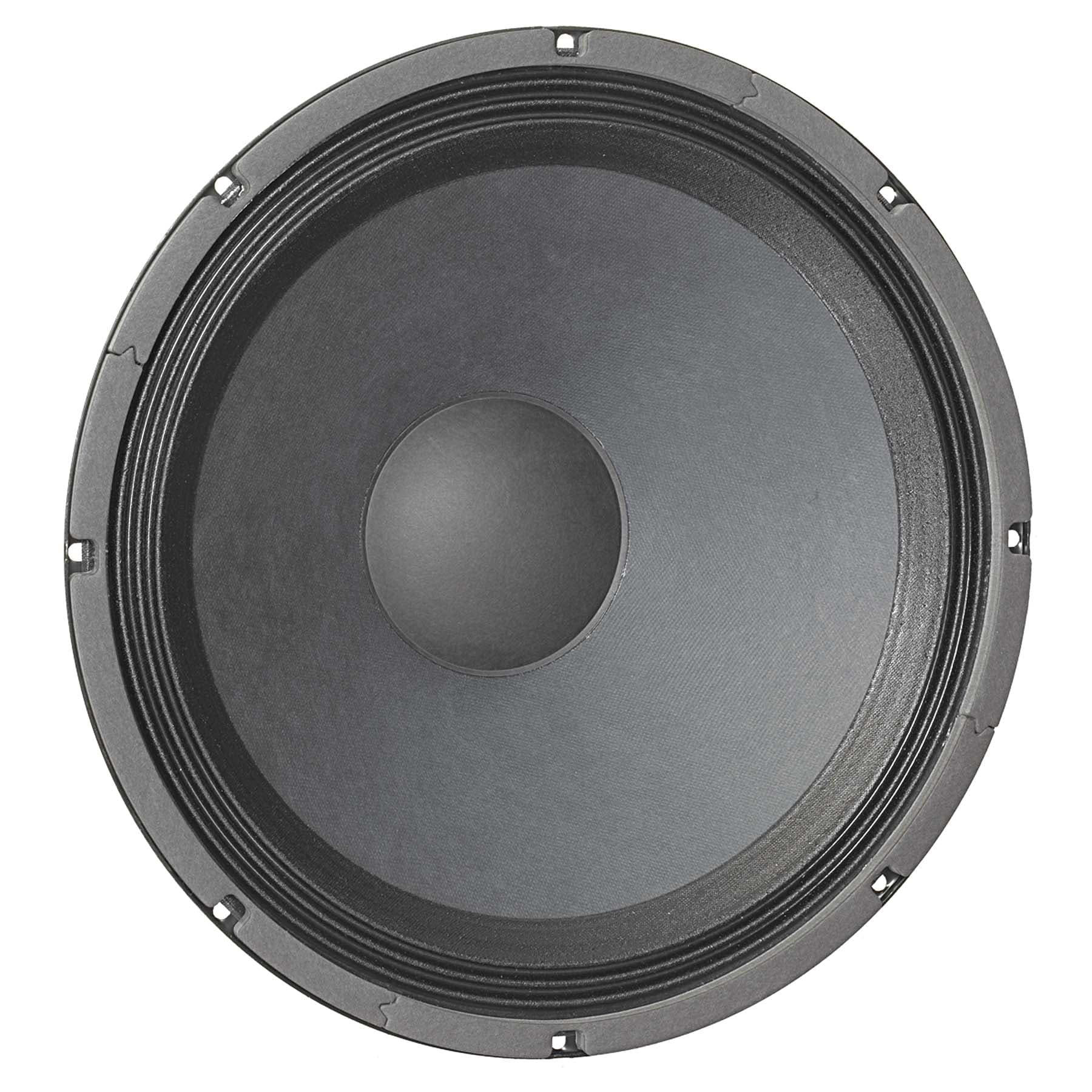

Eminence KAPPA-15A
Eminence KAPPA-15A is a 15" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 33Hz, Qts 0.32, Vas 321.3L, Xmax 4mm, sensitivity 97.5dB, plus 343cm³ Vd and 100 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £145.33.
Size
15"
Impedance
8Ω
RMS Power
450W
Sensitivity
97.5dB
100.5dBmanufacturer; using T/S-derived value (3.0dB delta).
EBP
100
Either alignment
Vd
343cm³
T/S Parameters
Valid
Fs33Hz
Qts0.32
Qes0.33
Qms8.9
Vas321.3L
Re5.2Ω
Le1.05mH
BL15.7Tm
Sd856cm²
Mms76g
Xmax4.0mm
SPL98dB
Power450W
Impedance8Ω
F Low52Hz
F High2000Hz
Pricing & availability
Price definitionsOffers & B-stock
1 hidden from price comparisons
Price movement
Other offers
3 vendorspartsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£124.25
inc VAT
Back order
leanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£142.45
inc VAT
Out of stock
thomann
Updated 11 Sept 2026
Source: inc VAT · 20%
£179.00
inc VAT
In stock
Best current price
Updated 17 May 2026
leanbusiness
£145.33
Avg £162.17£16.84 below avg (-10.4%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.0kg
Diameter385.1mm
Overall Depth155.7mm
Cutout Diameter352.3mm
Bolt Circle Diameter369.8mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
KAPPA-15A
15"
Best current price
£145.33
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
69%
Similarity
41% cheaper£85.04
Dayton Audio
DC380-8
15"
Lower price
Xmax4.3mm+9%
Qts0.3-6%
BL20.4Tm+30%
Vas391.4L+22%
Qes0.34+3%
71%
Similarity
5% more£153.26
Eighteen Sound
15MB606
15"
Higher price
Xmax4.5mm+13%
Qts0.35+9%
BL15.1Tm-4%
Vas223L-31%
Qes0.37+12%
78%
Similarity
15% more£166.41

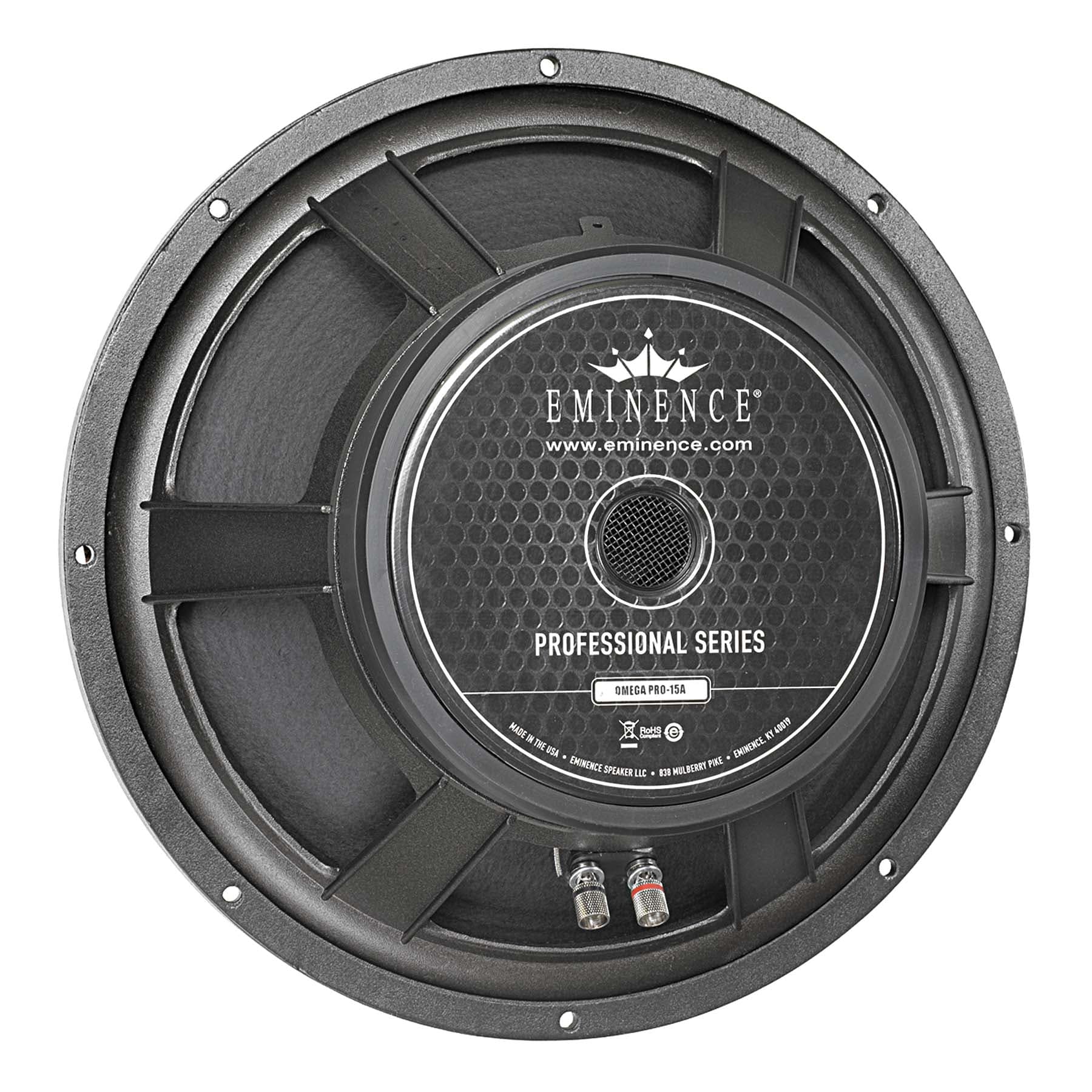

Eminence
OMEGA PRO-15A
15"
Higher price
Xmax4.8mm+20%
Qts0.320%
BL17.5Tm+11%
Vas258.5L-20%
Qes0.330%
49%
Similarity
44% more£210.00
Celestion
NTR15-3018E
15"
Higher price
Xmax5mm+25%
Qts0.28-12%
BL21.1Tm+34%
Vas207.3L-35%
Qes0.3-9%
67%
Similarity

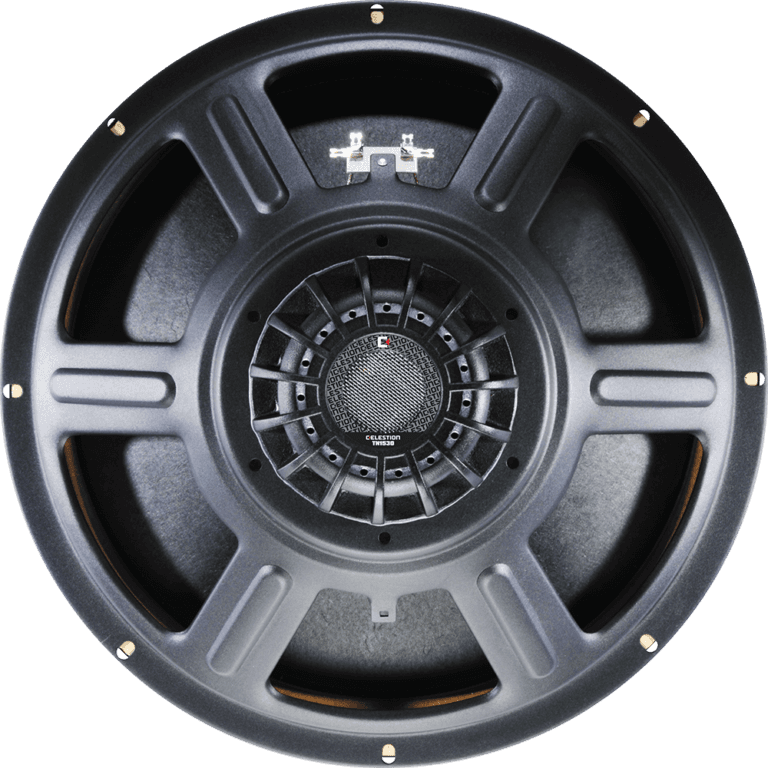

Celestion
TN1530
15"
Xmax3.8mm-6%
Qts0.32-2%
BL19.3Tm+23%
Vas156.6L-51%
Qes0.36+8%
67%
Similarity

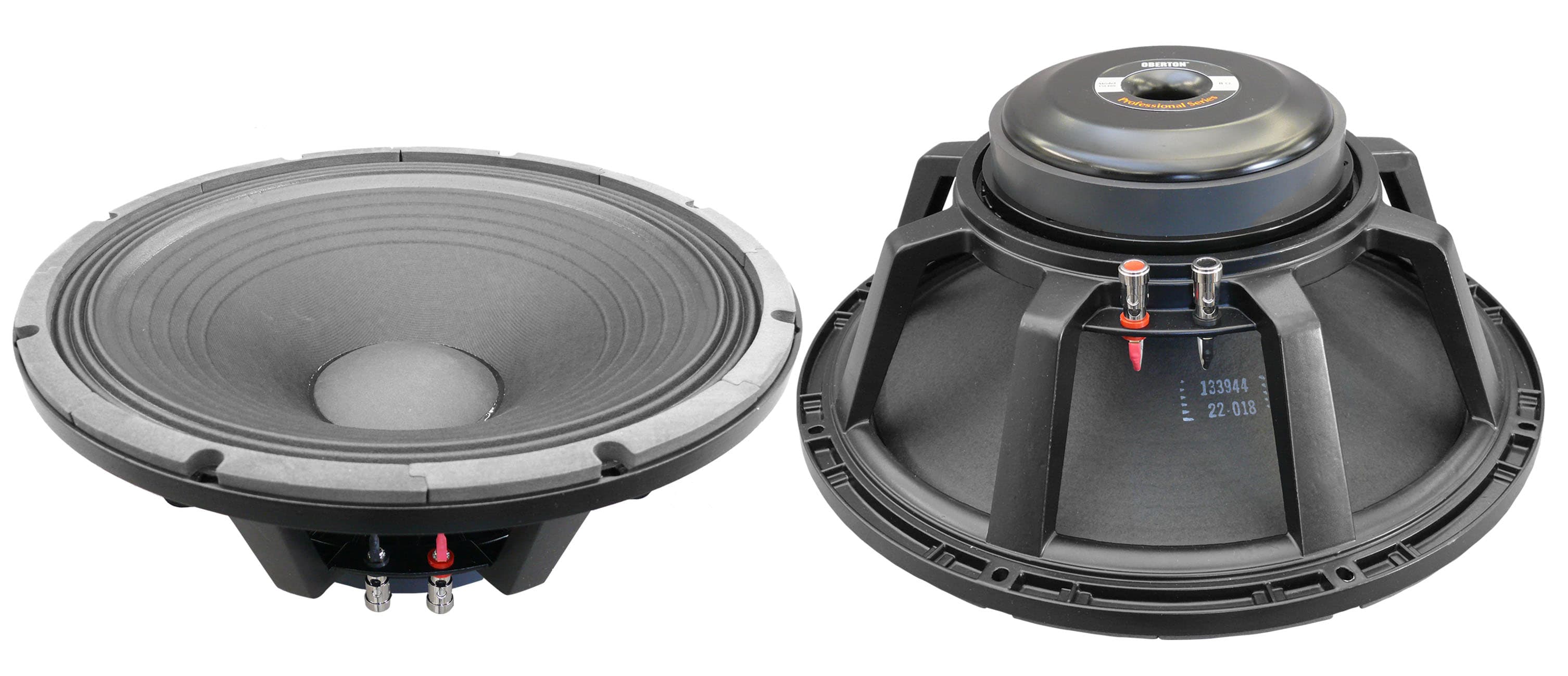

Oberton
15L400
15"
Xmax3.3mm-19%
Qts0.29-10%
BL16.9Tm+7%
Vas229.9L-28%
Qes0.29-11%
64%
Similarity
Monacor
SP-15A/402PA
15"
Xmax5mm+25%
Qts0.31-3%
BL19.9Tm+27%
Vas235L-27%
Qes0.330%
62%
Similarity

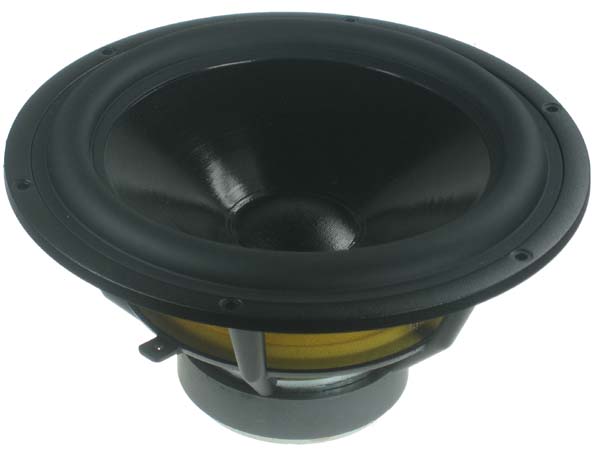

SEAS
H1316-08 CA26RE4X
15"
Xmax4mm0%
Qts0.28-12%
BL11.6Tm-26%
Vas164L-49%
Qes0.3-9%
57%
Similarity

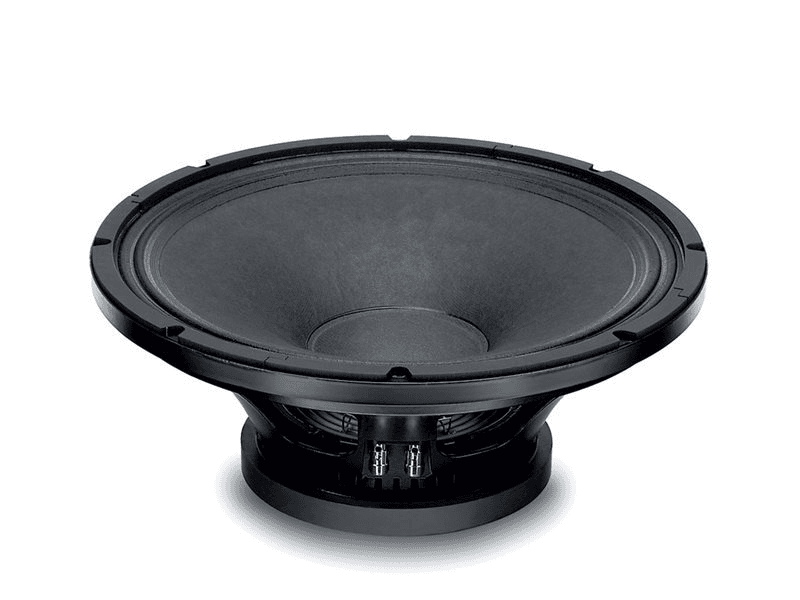

Eighteen Sound
15MB650
15"
Xmax4mm0%
Qts0.26-19%
BL20Tm+27%
Vas210L-35%
Qes0.27-18%
54%
Similarity
P.Audio
E15-300S-V2
15"
Xmax4.3mm+6%
Qts0.36+12%
BL20.1Tm+28%
Vas156.2L-51%
Qes0.38+15%
51%
Similarity

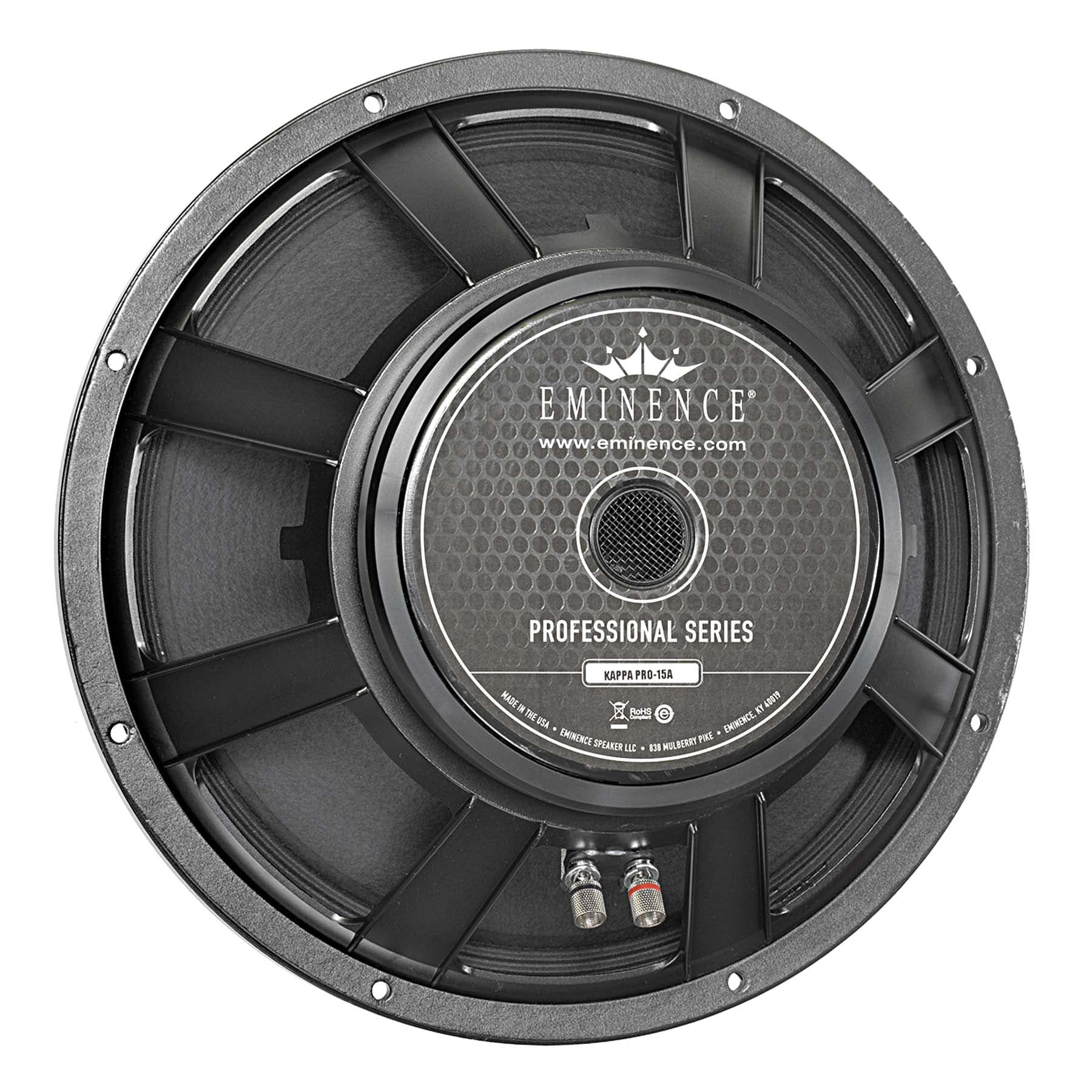

Eminence
KAPPA PRO-15A
15"
Xmax3.2mm-20%
Qts0.38+19%
BL16.6Tm+6%
Vas167.7L-48%
Qes0.4+21%
51%
Similarity

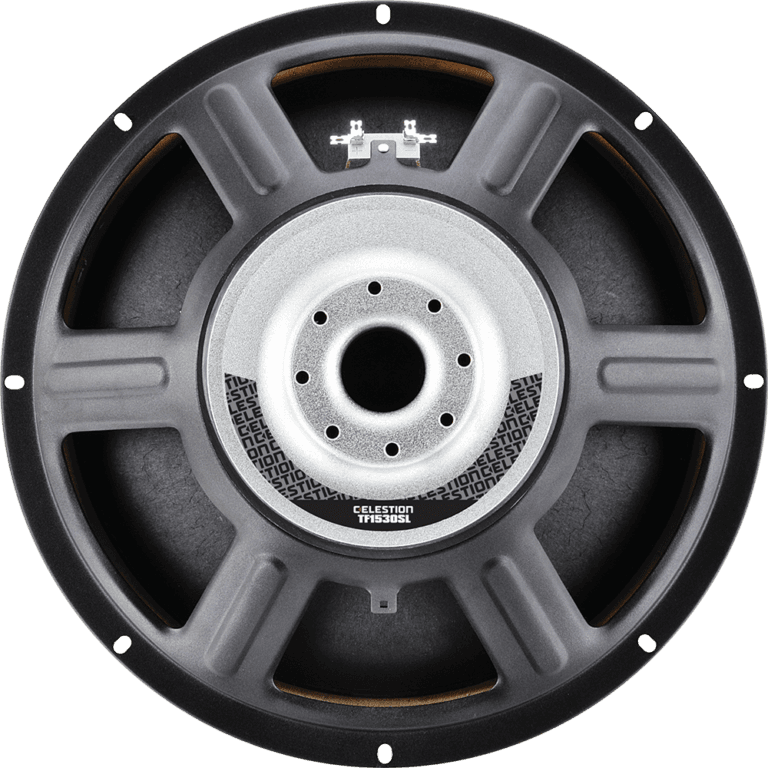

Celestion
TF1530SL
15"
Xmax4mm0%
Qts0.39+22%
BL17Tm+8%
Vas140.1L-56%
Qes0.45+35%
