Overview
LF DriverTRUVOX series
Celestion

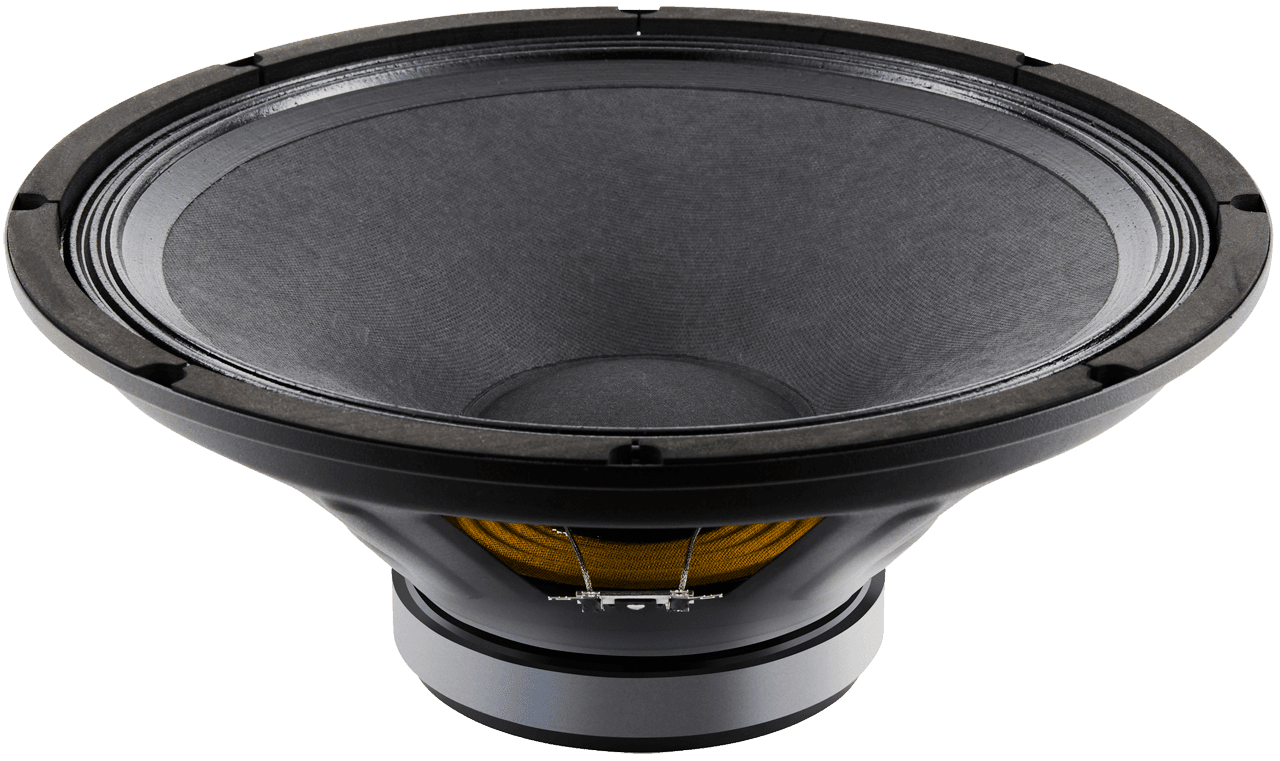

Celestion TRUVOX 1525
Celestion TRUVOX 1525 is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 49Hz, Qts 0.76, Vas 135.4L, Xmax 4.8mm, sensitivity 95dB, plus 406cm³ Vd and 61 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £99.00.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
95.0dB
96.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
61
Either alignment
Vd
406cm³
T/S Parameters
Valid
Fs49Hz
Qts0.76
Qes0.80
Qms12.9
Vas135.4L
Re6.6Ω
Le0.70mH
BL14.3Tm
Sd855cm²
Mms81g
Xmax4.8mm
SPL95dB
Power400W
Impedance8Ω
Voice Coil64mm
Pricing & availability
Price definitionsPrice movement
Best current price
£99.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.8kg
Diameter384.0mm
Overall Depth151.7mm
Cutout Diameter352.0mm
Bolt Circle Diameter372.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
TRUVOX 1525
15"
Best current price
£99.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
54%
Similarity
5% cheaper£94.00
Fane
SOVEREIGN 15-400LF
15"
Lower price
Xmax4.6mm-3%
Qts0.57-25%
BL13.5Tm-5%
Vas210L+55%
Qes0.62-23%
56%
Similarity
Peerless
FSL-1520R02-08
15"
Xmax6mm+26%
Qts0.7-7%
BL11.8Tm-17%
Vas203L+50%
Qes0.74-7%
52%
Similarity
SB Audience
BIANCO-15MW200
15"
Xmax5.9mm+25%
Qts0.58-23%
BL15.9Tm+11%
Vas153.3L+13%
Qes0.61-24%
