REDCATT 15FHW 8Ω
8 Ω
£110.13
Lautsprecherteile · 52 in stock · All 1 offer
- Fs
- 24Hz
- Xmax
- 4.8mm
- SPL
- 89dB
- Pe
- 400W
- BL
- 15.8T·m
- Vd
- 390cm³
- Qts
- 0.60
- Vas
- 221L

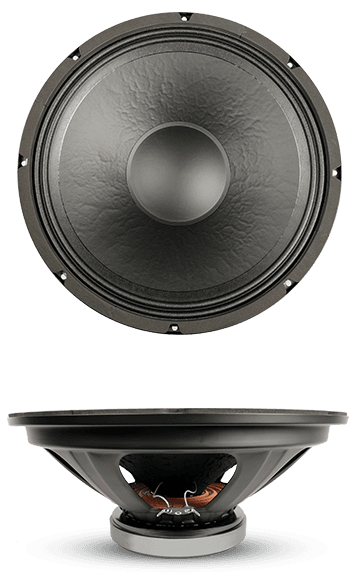

REDCATT 15FHW is a 15-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 24 Hz, Qts 0.60, Vas 221.2 L, Xmax 4.8 mm, sensitivity 88.9 dB, plus 390 cm³ Vd and 38 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £110.13.
The published T/S values agree with each other
Thiele/Small
- Fs
- 24Hz
- Qts
- 0.60
- Qes
- 0.63
- Qms
- 11.9
- Vas
- 221.2L
- Re
- 5.8Ω
- Le
- 0.96mH
Motor and cone
- BL
- 15.8T·m
- Sd
- 804cm²
- Mms
- 170g
- Xmax
- 4.8mm
- Vd †
- 390cm³
- Voice coil
- 76mm
Power and response
- Sensitivity †
- 88.9dB
- Manufacturer sensitivity
- 90.7dB
- Power
- 400W
- Impedance
- 8Ω
- EBP †
- 38 · Leans sealed
Size and mounting
- Diameter
- 385mm
- Cutout
- 349mm
- Bolt circle
- 371mm
- Weight
- 6.8kg
Other published values
- Xmech
- 14.85
- Power Peak
- 1600
Other dimensions
- Mounting Depth
- 168.1
Sensitivity shows 88.9 dB, calculated from the T/S values. REDCATT publishes 90.7 dB, 1.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 15″
- BL
- 15.8T·m
- Fs
- 24Hz
- Le
- 0.96mH
- Re
- 5.8Ω
- Sd
- 804cm²
- Mms
- 170g
- Qes
- 0.63
- Qms
- 11.9
- Qts
- 0.60
- SPL
- 88.9dB
- Vas
- 221.2L
- Xmax
- 4.8mm
- Xmech
- 14.85
- Power
- 400W
- Impedance
- 8Ω
- Power Peak
- 1600
- Sensitivity
- 90.7dB
- Calculated sensitivity †
- 88.9dB
- Manufacturer sensitivity
- 90.7dB
- Voice coil
- 76mm
- Weight
- 6.8kg
- Diameter
- 385mm
- Mounting Depth
- 168.1
- Cutout
- 349mm
- Bolt circle
- 371mm
