Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEminence BETA-15A 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverBETA series
Eminence

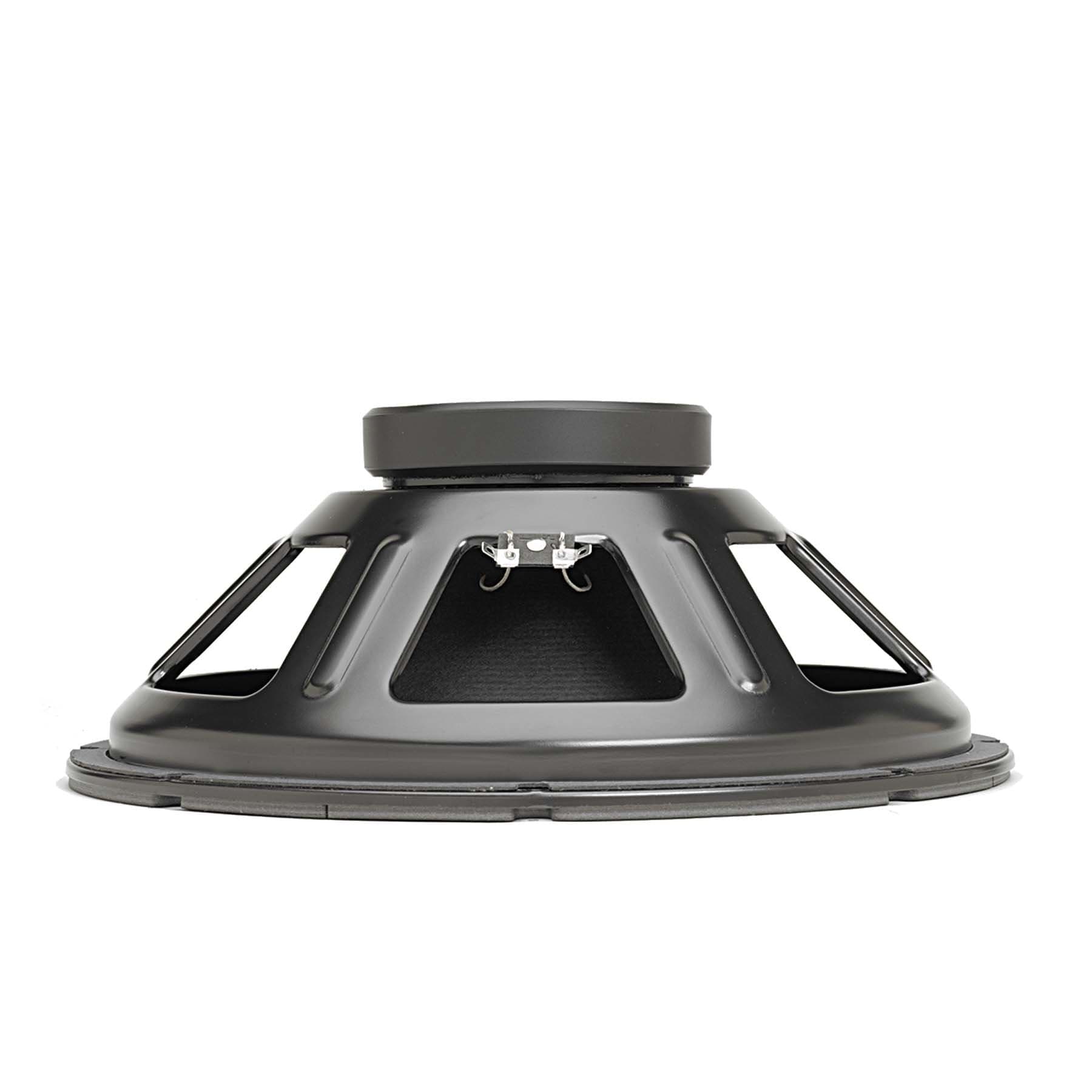

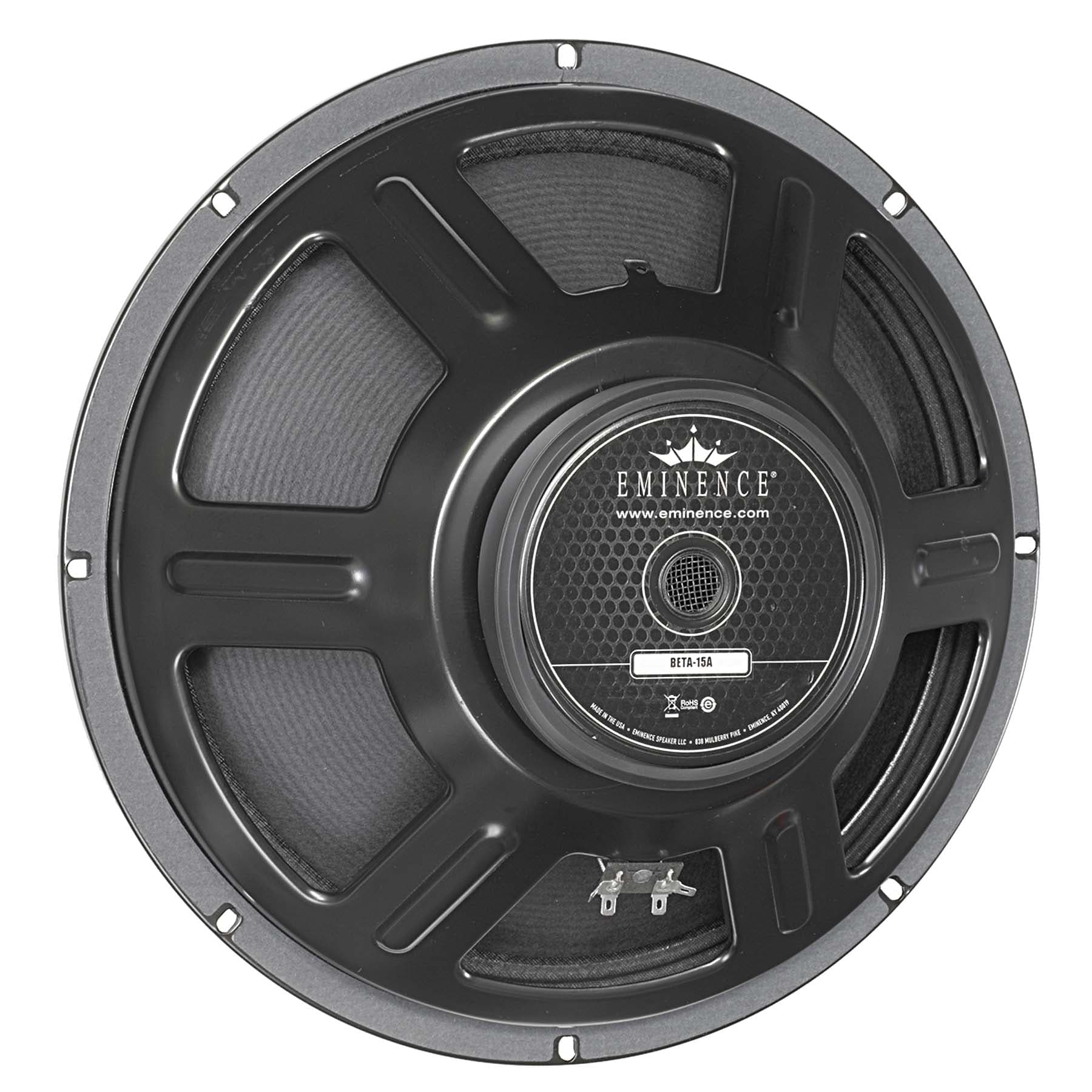

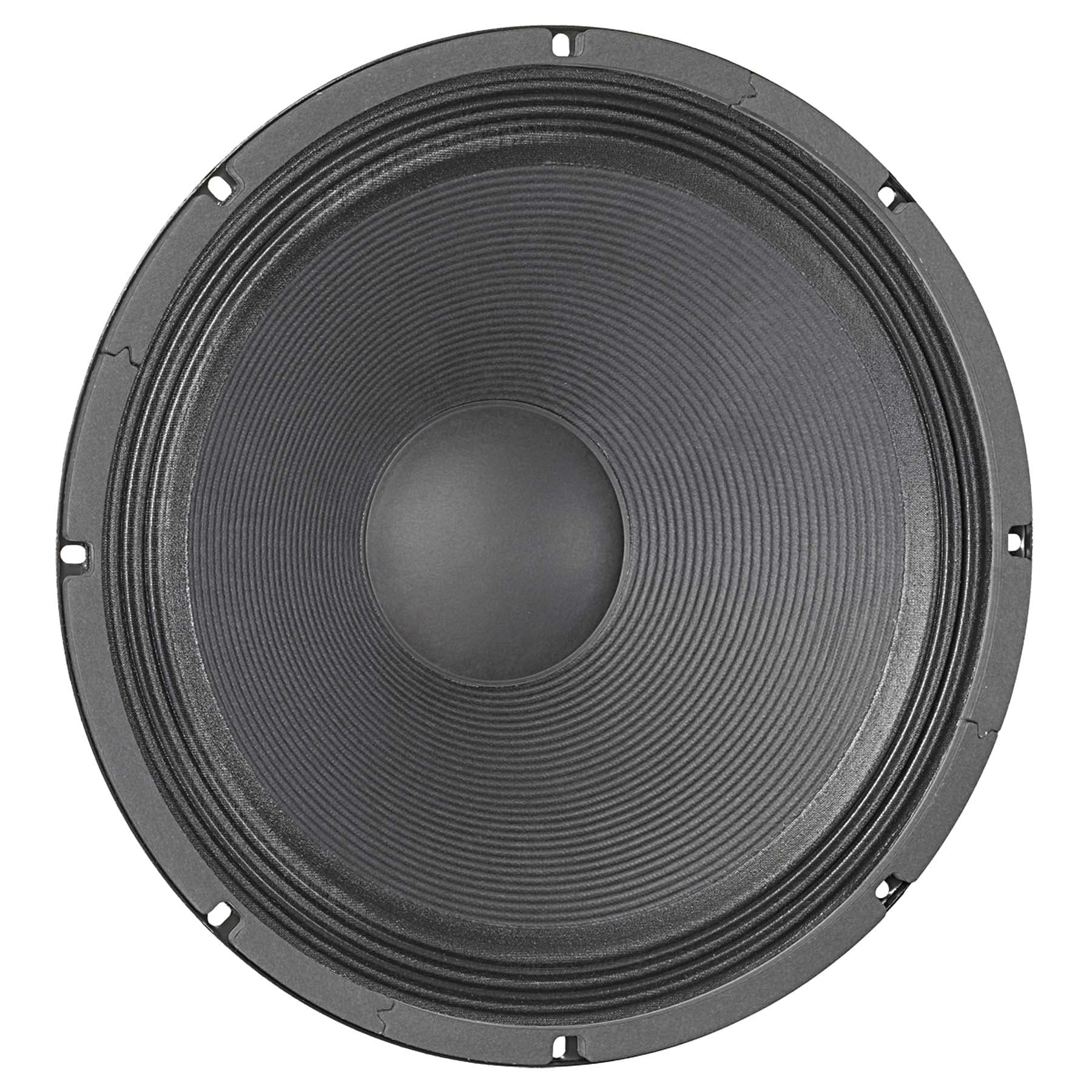

Eminence BETA-15A
Eminence BETA-15A is a 15" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 35Hz, Qts 0.58, Vas 334.6L, Xmax 4mm, sensitivity 95.6dB, plus 329cm³ Vd and 56 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £85.00.
Size
15"
Impedance
8Ω
RMS Power
300W
Sensitivity
95.6dB
98.2dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
56
Either alignment
Vd
329cm³
T/S Parameters
Valid
Fs35Hz
Qts0.58
Qes0.63
Qms8.1
Vas334.6L
Re6.3Ω
Le1.10mH
BL11.5Tm
Sd824cm²
Mms60g
Xmax4.0mm
SPL96dB
Power300W
Impedance8Ω
F Low45Hz
F High3000Hz
Pricing & availability
Price definitionsOffers & B-stock
1 hidden from price comparisons
Price movement
Other offers
3 vendorsleanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£99.00
inc VAT
leanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£103.09
inc VAT
Out of stock
partsexpress
Updated 11 Sept 2026
Source: ex VAT
£106.50
inc VAT
3 in stock
Best current price
Updated 11 Sept 2026
bluearan
£85.00
Avg £96.83£11.83 below avg (-12.2%)
inc VAT·8+ in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.0kg
Diameter384.8mm
Overall Depth153.7mm
Cutout Diameter352.3mm
Bolt Circle Diameter369.8mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
BETA-15A
15"
Best current price
£85.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
51%
Similarity
7% cheaper£79.00

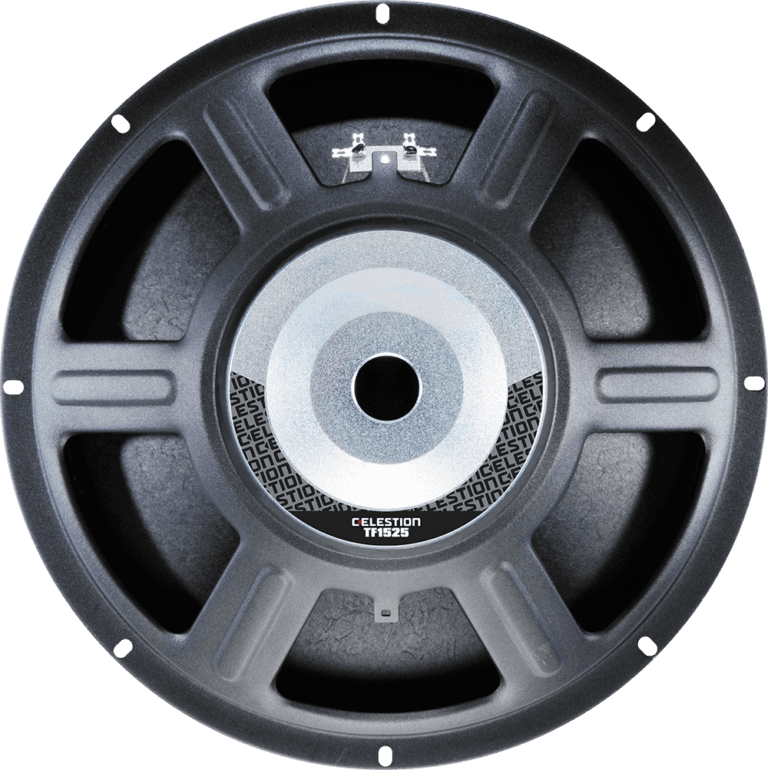

Celestion
TF1525
15"
Lower price
Xmax4.5mm+13%
Qts0.49-15%
BL14.6Tm+27%
Vas148.4L-56%
Qes0.56-10%
71%
Similarity
12% more£95.00
Fane
SOVEREIGN 15-400LF
15"
Higher price
Xmax4.6mm+15%
Qts0.57-2%
BL13.5Tm+18%
Vas210L-37%
Qes0.62-2%
50%
Similarity
32% more£112.42

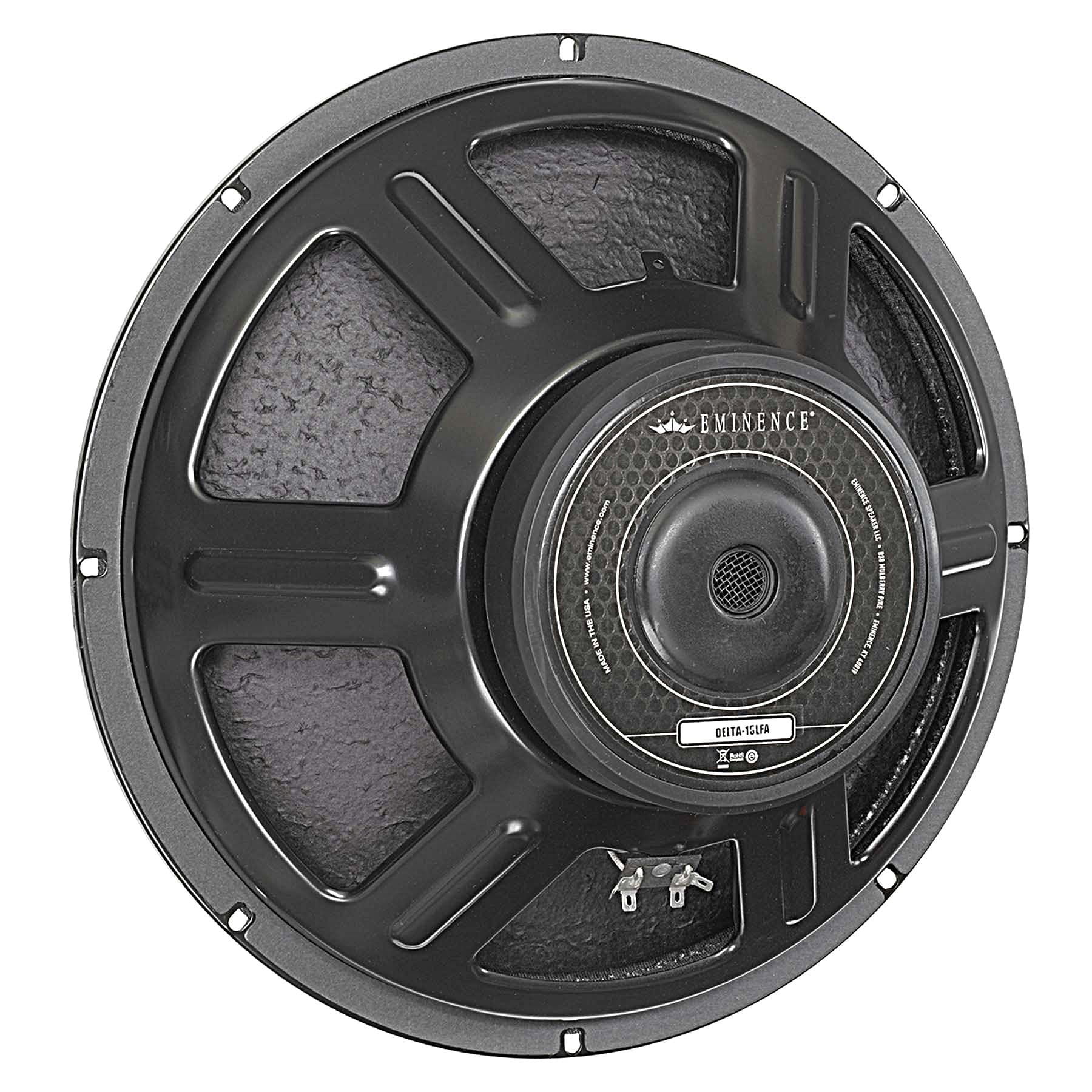

Eminence
DELTA 15LFA
15"
Higher price
Xmax4.8mm+20%
Qts0.48-17%
BL14.6Tm+27%
Vas241L-28%
Qes0.52-17%
71%
Similarity
71% more£145.52

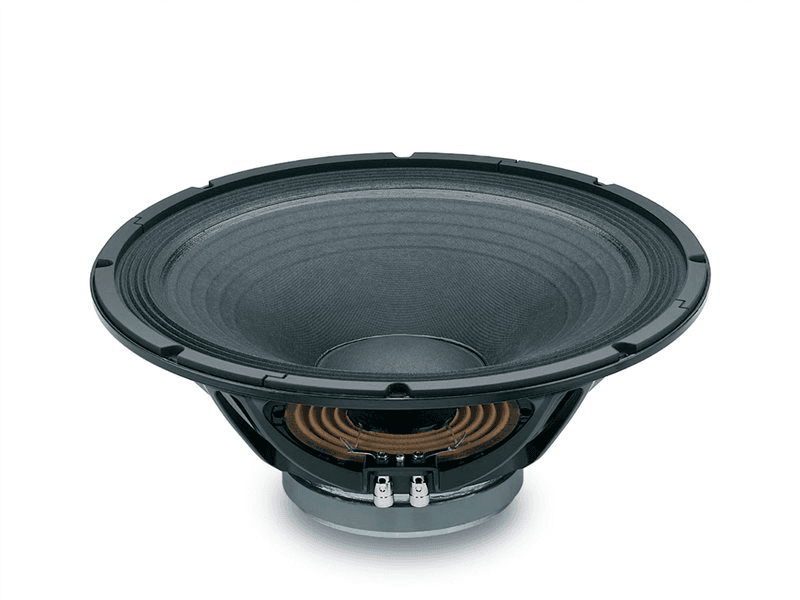

Eighteen Sound
15W500
15"
Higher price
Xmax4mm0%
Qts0.52-10%
BL12.6Tm+10%
Vas189L-44%
Qes0.55-13%
73%
Similarity

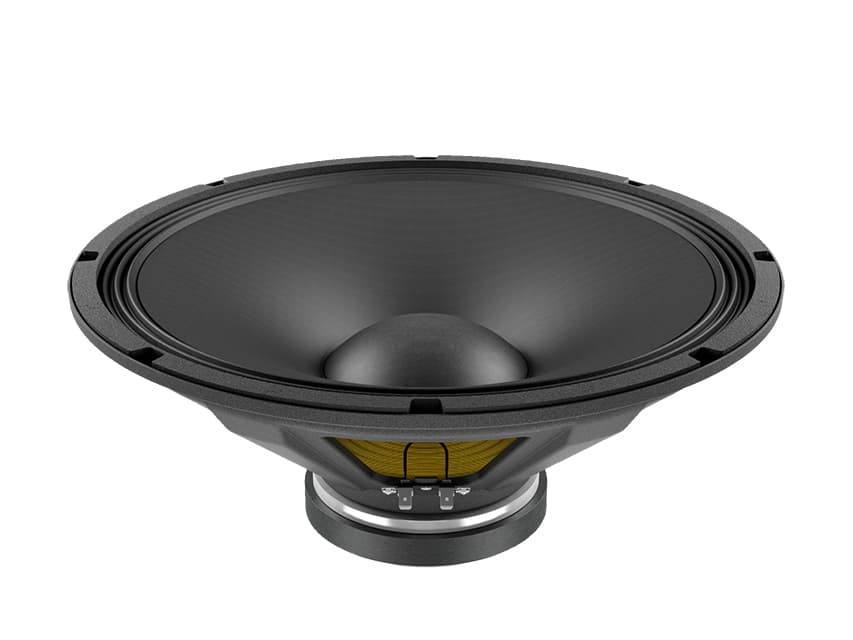

Lavoce
FBASS15-20
15"
Xmax4.3mm+7%
Qts0.53-9%
BL12.8Tm+11%
Vas234.4L-30%
Qes0.57-10%
51%
Similarity

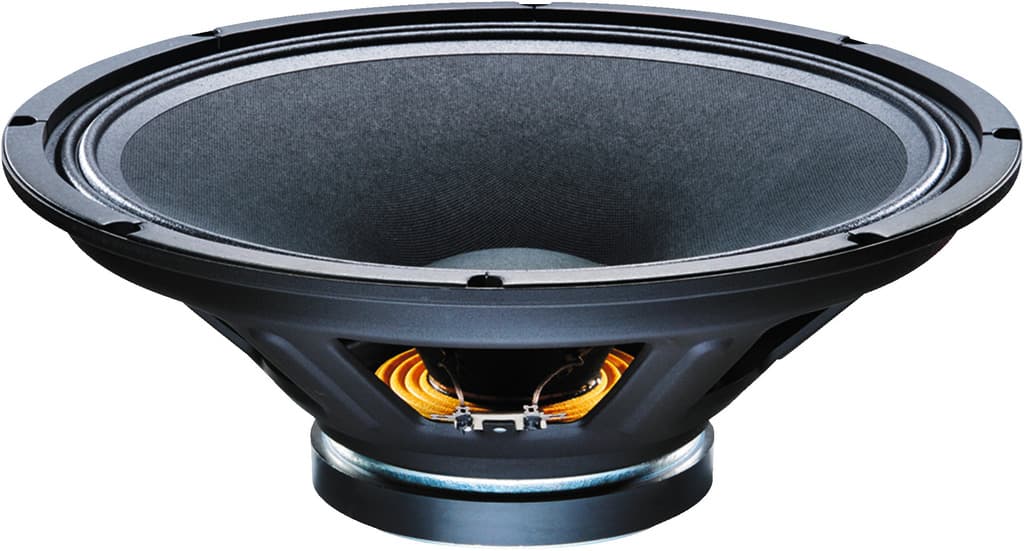

Monacor
TF1525/8
15"
Xmax4.5mm+13%
Qts0.49-15%
BL14.6Tm+27%
Vas148.4L-56%
Qes0.56-10%
34%
Similarity
P.Audio
IMF
15"
Xmax5mm+25%
Qts0.7+21%
BL13.5Tm+17%
Vas135.9L-59%
Qes0.83+32%
