Overview
LF Driver15CLX series
B&C

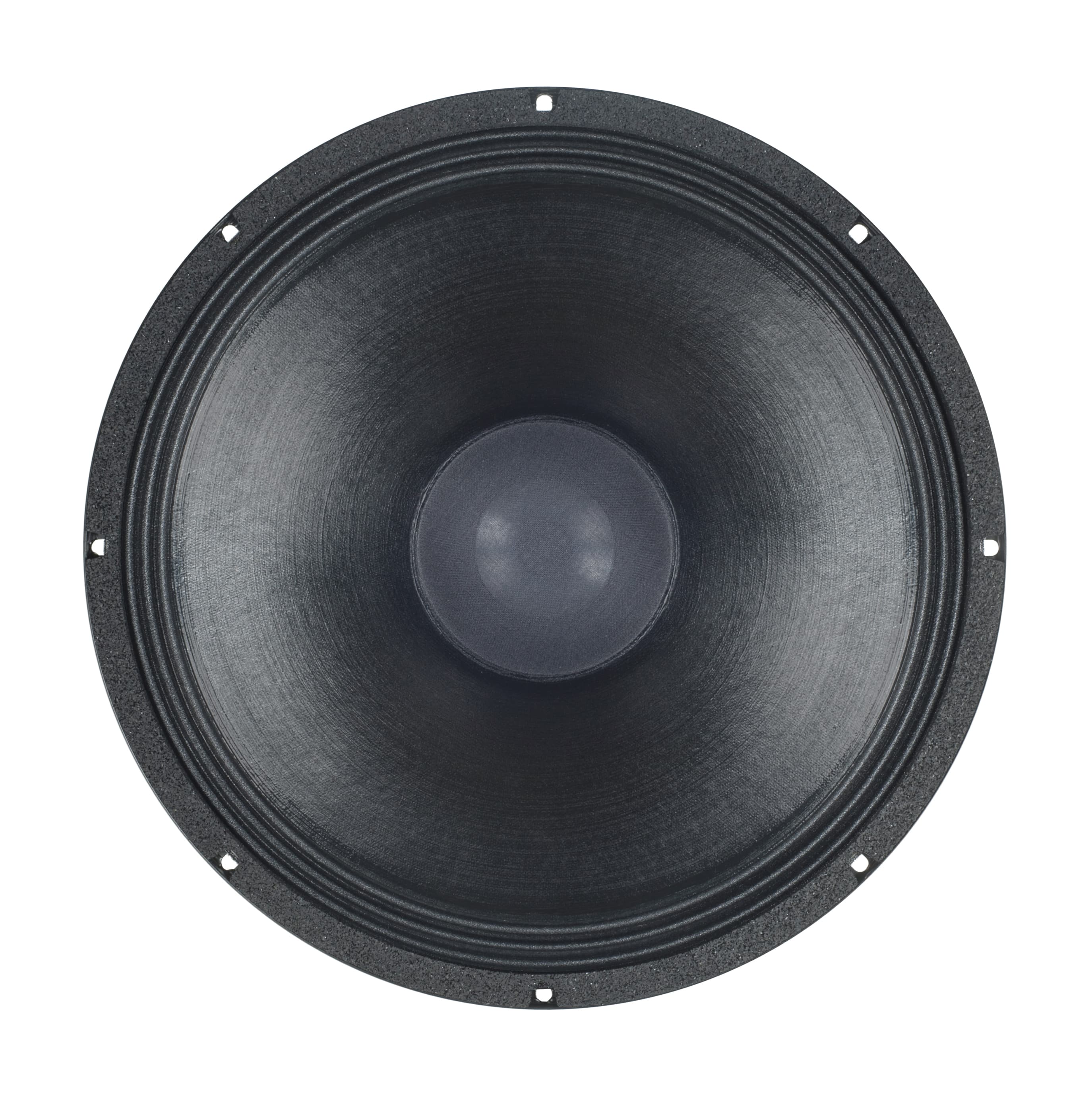

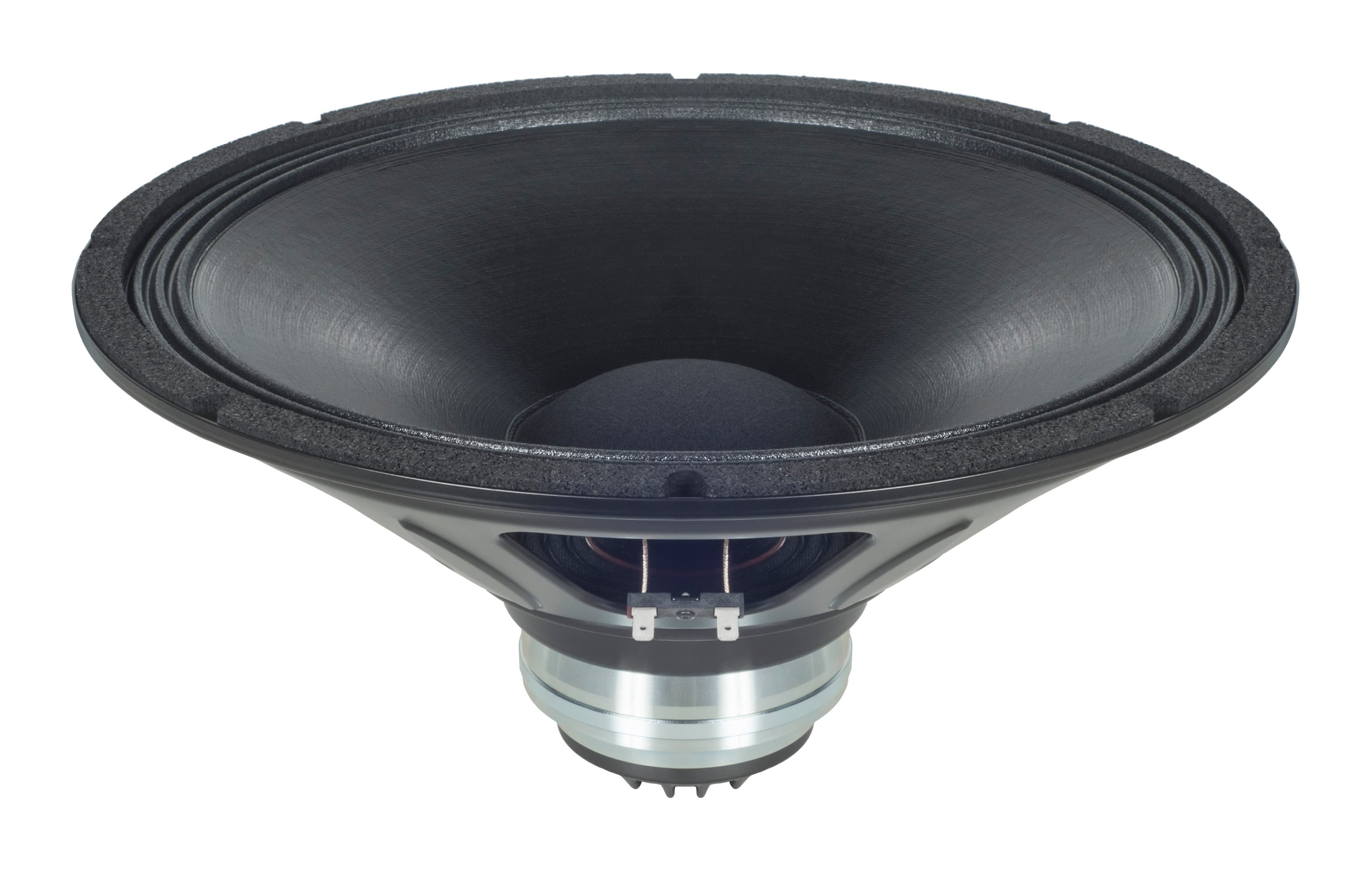

B&C 15CLX64
B&C 15CLX64 is a 15" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 37Hz, Qts 0.75, Vas 227L, Xmax 5.3mm, sensitivity 93.6dB, plus 453cm³ Vd and 46 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
250W
Sensitivity
93.6dB
95.2dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
46
Sealed alignment
Vd
453cm³

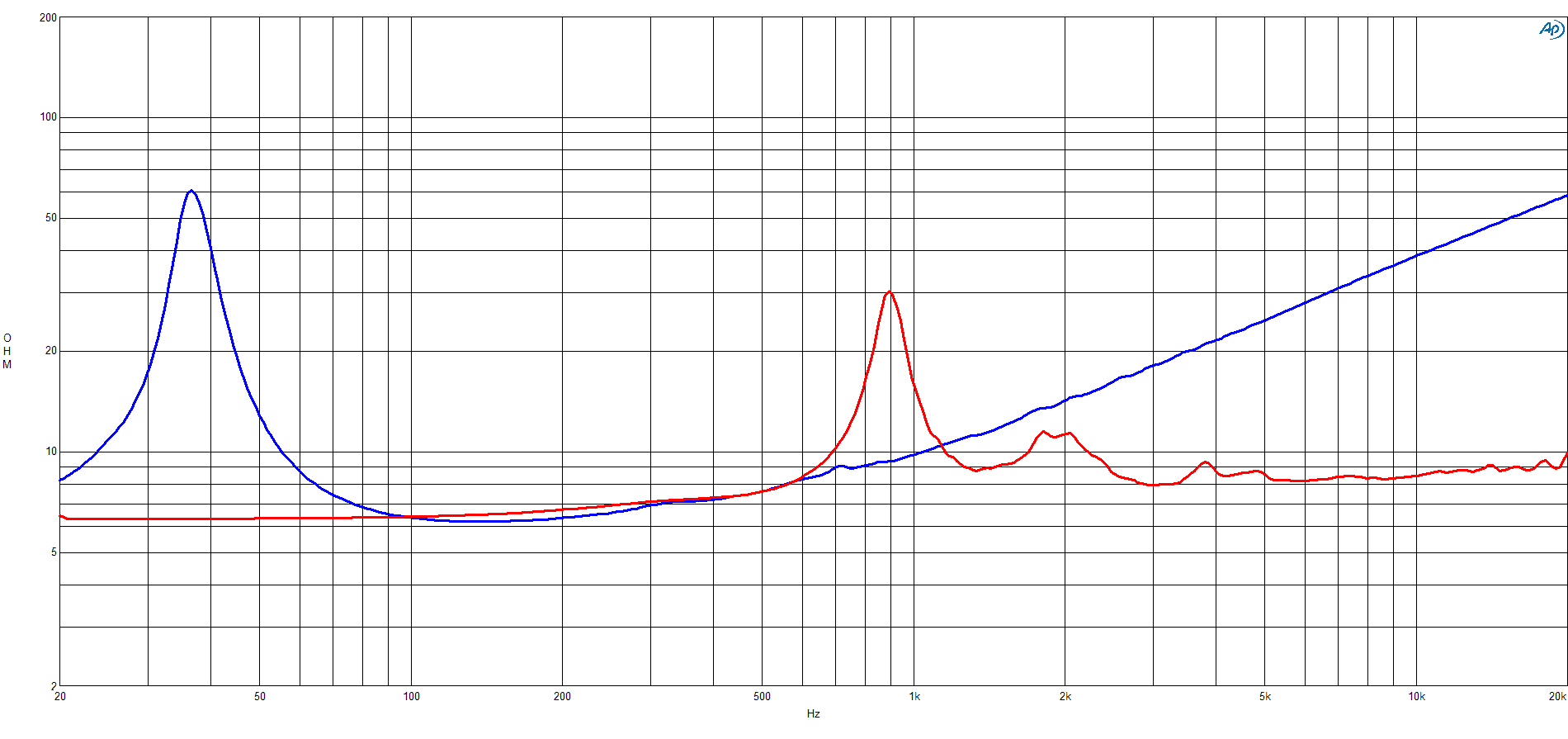

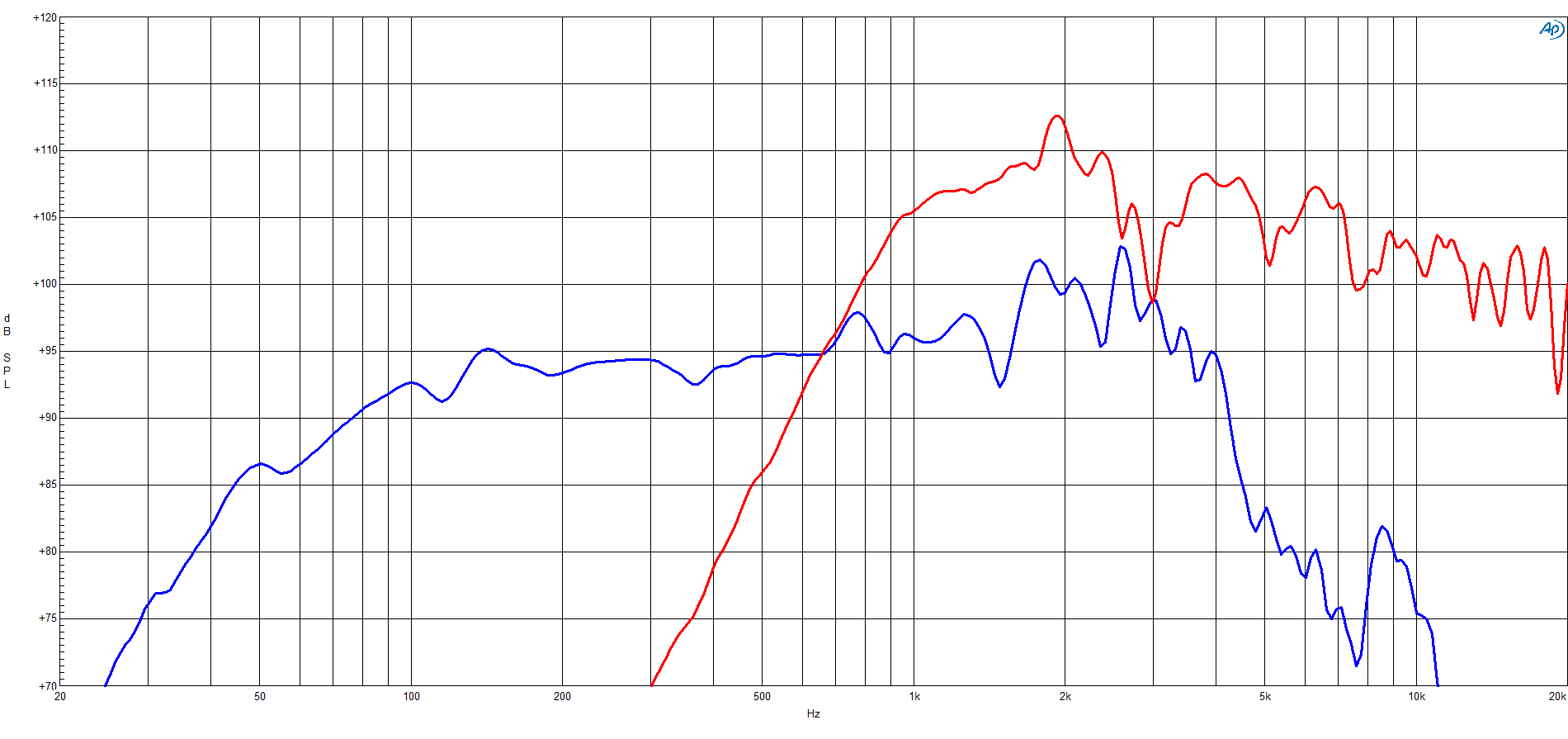

Frequency response

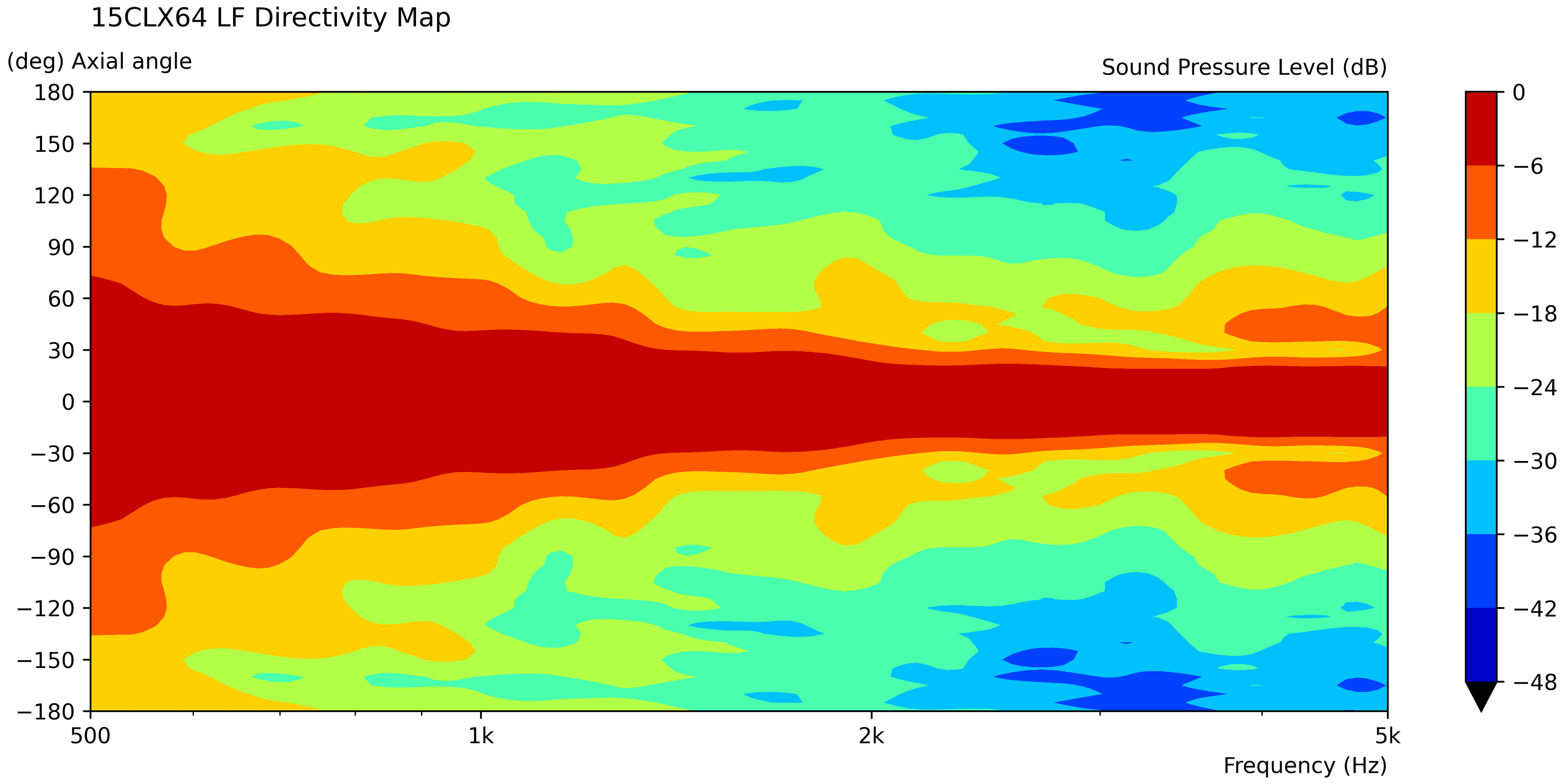

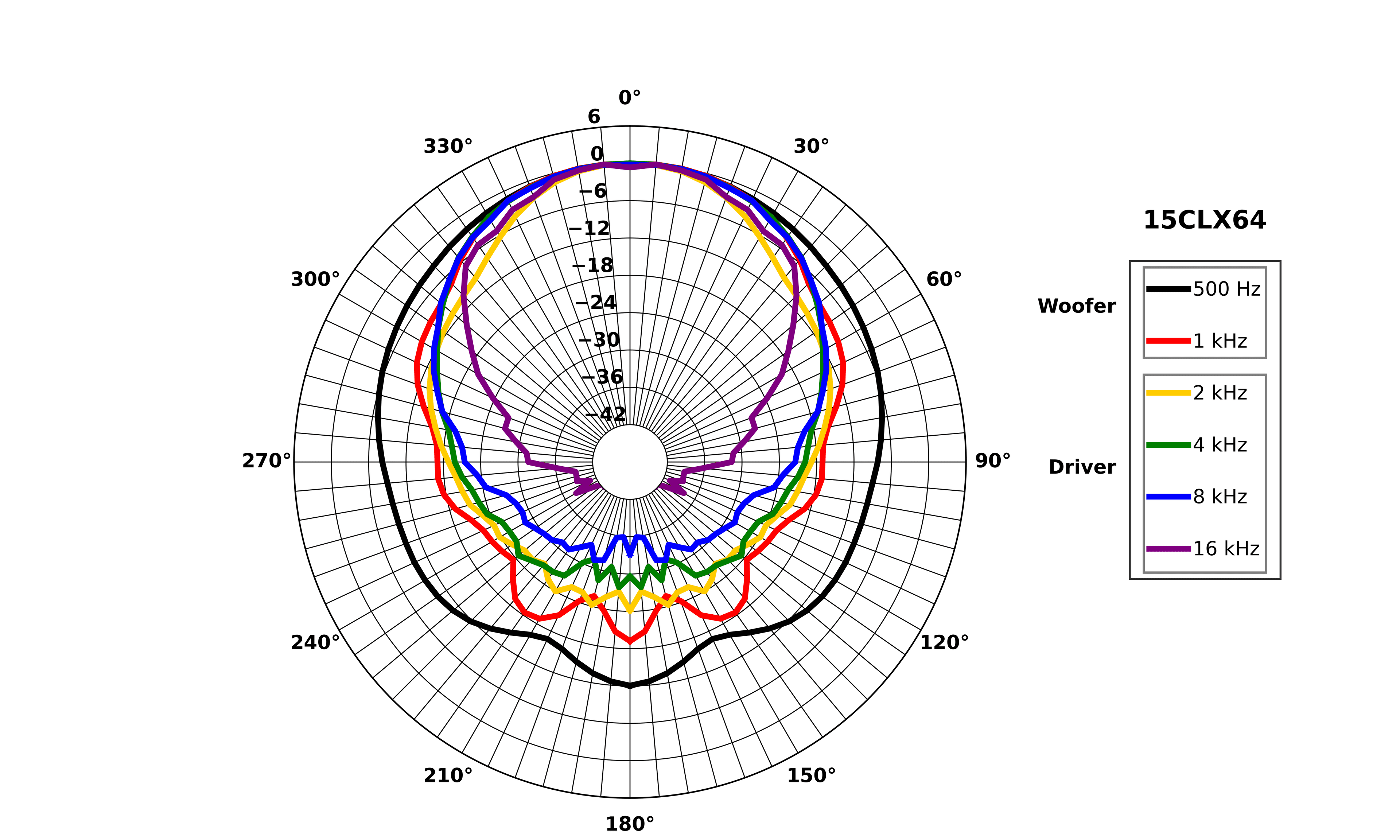

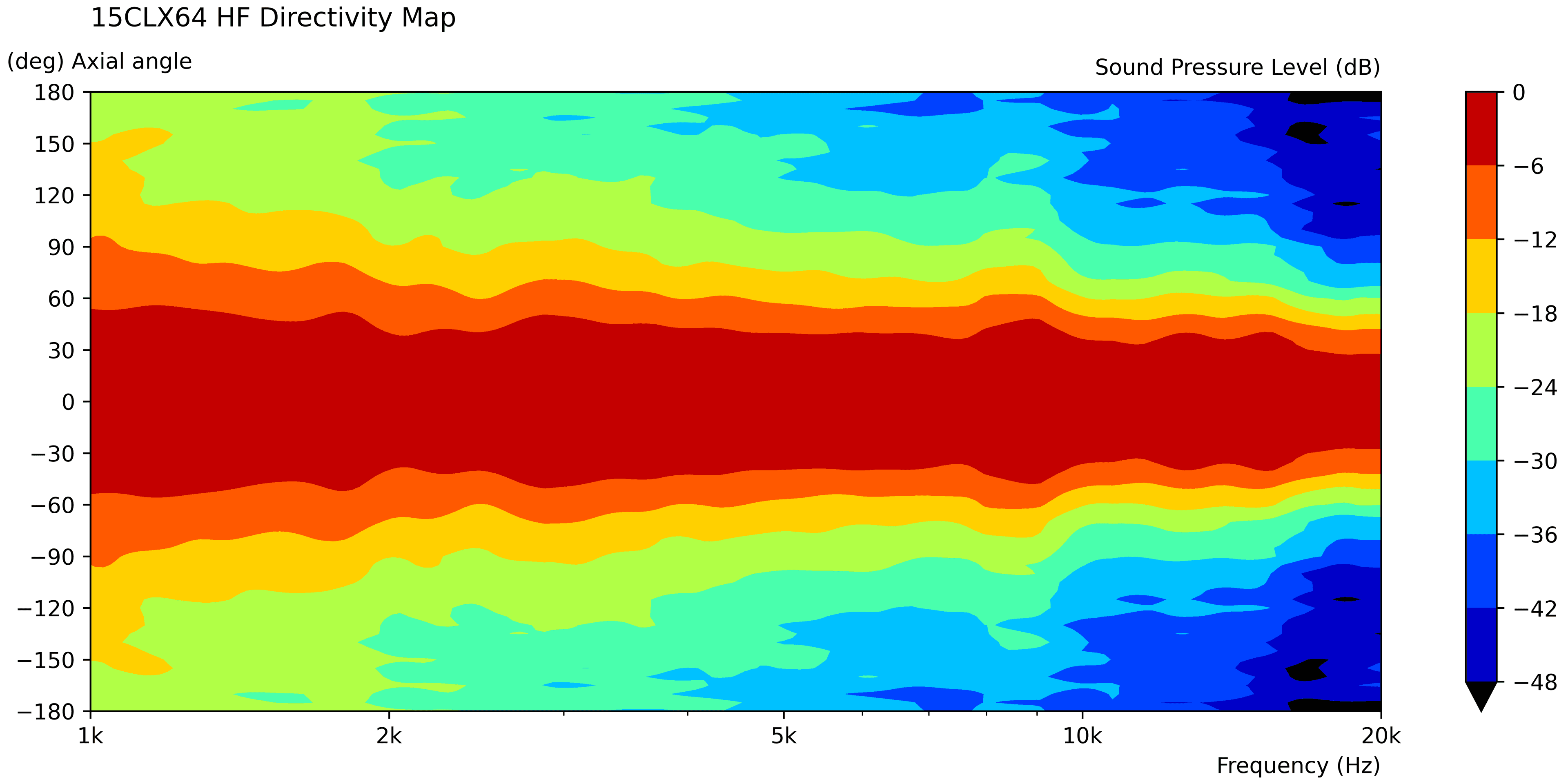

Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs37Hz
Qts0.75
Qes0.81
Qms9.4
Vas227.0L
Re5.5Ω
Le1.05mH
BL11.5Tm
Sd855cm²
Mms82g
Xmax5.3mm
SPL94dB
Power250W
Power Nominal250W
Impedance8Ω
Min Impedance6.2Ω
F Low1000Hz
F High17000Hz
Voice Coil64mm
Flux Density0.90T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs37 Hz
Qts0.75
Qes0.81
Qms9.4
Vas227.0 L
Re5.5 Ω
Le1.05 mH
BL11.5 Tm
Sd855 cm²
Mms82 g
Xmax5.3 mm
SPL94 dB
Power250 W
Power Nominal250 W
Impedance8 Ω
Min Impedance6.2 Ω
Voice Coil64 mm
Flux Density0.90 T
HFSpecifications HF unit
Le0.14 mH
SPL106 dB
Power70 W
Power Nominal70 W
Impedance8 Ω
Min Impedance7.9 Ω
F Low1000 Hz
F High17000 Hz
Xover1200 Hz
Voice Coil51 mm
Flux Density1.60 T
Additional Manufacturer Specs
Bl11.5 Tm
Fs37 Hz
Le1.05 mH
Re5.5 Ω
Sd855 cm² (132.5 in²)
Ebp46 Hz
Mms82 g
Qes0.81
Qms9.4
Qts0.75
Vas227 dm³ (8.02 ft³)
η01.44 %
Xmax5.3 mm
Xvar8 mm
Winding Depth14.5 mm (0.57 in)
Former MaterialGlass Fibre
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth8 mm (0.31 in)
