Overview
LF DriverTF1520 series
Celestion

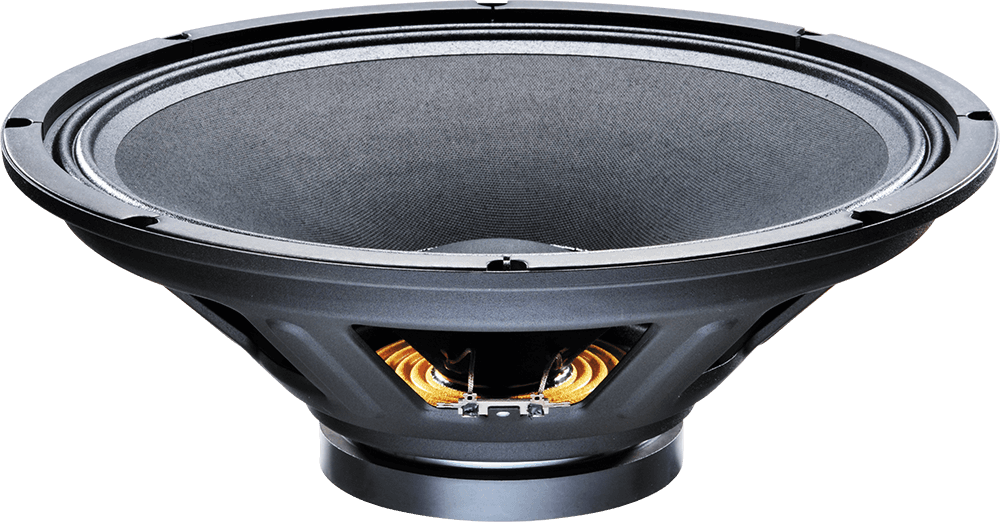

Celestion TF1520
Celestion TF1520 is a 15" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 55Hz, Qts 0.72, Vas 133.0L, Xmax 3mm, sensitivity 96.2dB, plus 257cm³ Vd and 65 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £75.00.
Size
15"
Impedance
8Ω
RMS Power
150W
Sensitivity
96.2dB
EBP
65
Either alignment
Vd
257cm³

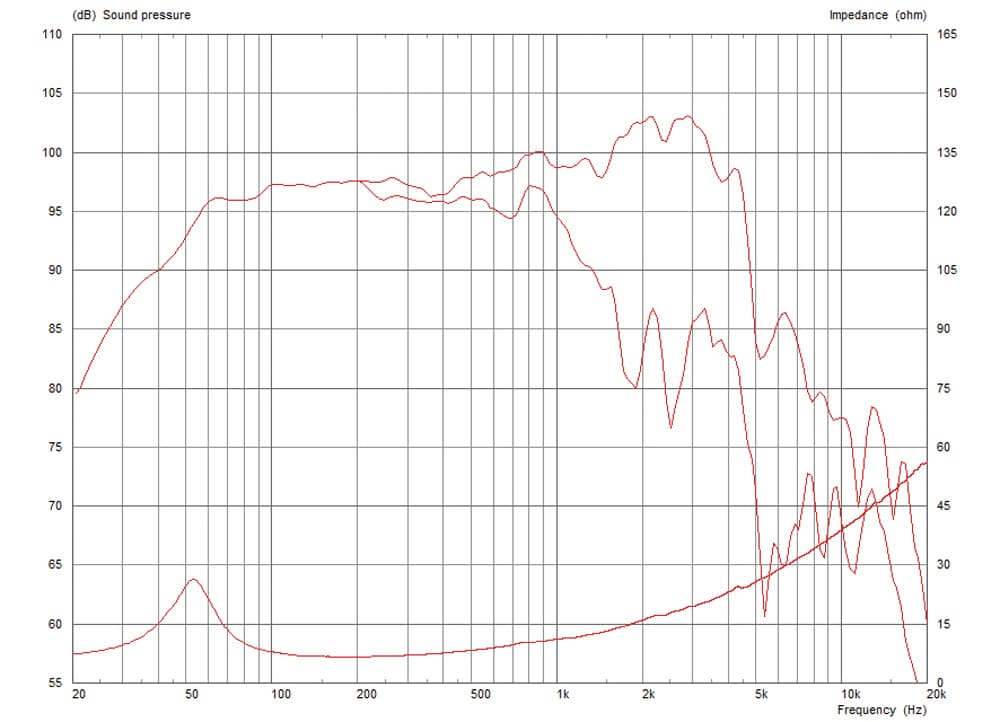

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence244 selected pixels of 274
T/S Parameters
Valid
Fs55Hz
Qts0.72
Qes0.84
Qms5.2
Vas133.0L
Re5.8Ω
Le0.80mH
BL12.5Tm
Sd855cm²
Mms65g
Xmax3.0mm
SPL96dB
Power150W
Impedance8Ω
Voice Coil50mm
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£75.00
inc VAT
Out of stock
Best current price
Updated 17 May 2026
leanbusiness
£75.00
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.0kg
Diameter385.0mm
Overall Depth158.0mm
Cutout Diameter352.0mm
Bolt Circle Diameter370.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
TF1520
15"
Best current price
£75.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
55%
Similarity
P.Audio
C15-400B-V2
15"
Xmax3.3mm+8%
Qts0.55-24%
BL15.6Tm+25%
Vas142L+7%
Qes0.61-27%
