LF Driver15NW series
B&C

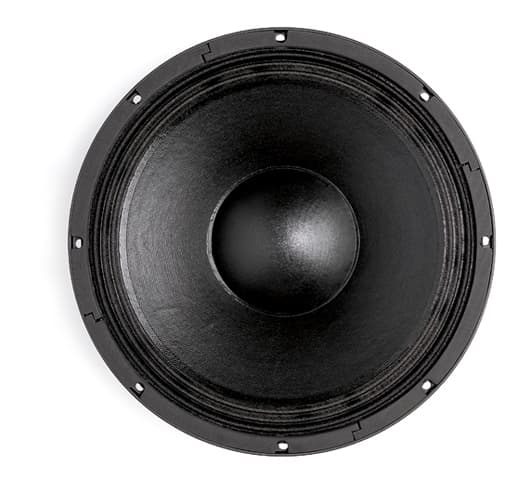

B&C 15NW76
B&C 15NW76 is a 15" 4 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 39Hz, Qts 0.21, Vas 143L, Xmax 8mm, sensitivity 98.1dB, plus 684cm³ Vd and 186 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £233.82.
Size
15"
Impedance
4Ω
RMS Power
600W
Sensitivity
98.1dB
EBP
186
Vented alignment
Vd
684cm³

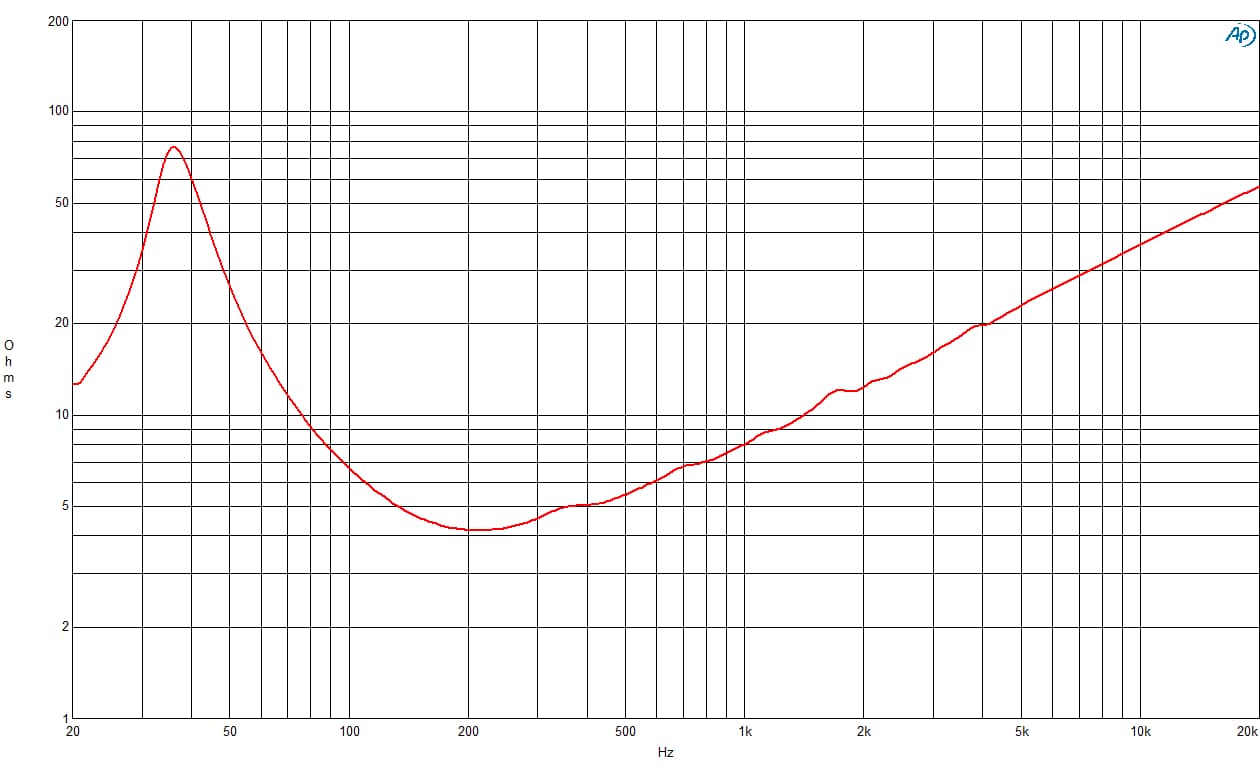

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs39Hz
Qts0.21
Qes0.21
Qms6.4
Vas143.0L
Re3.1Ω
Le0.88mH
BL20.6Tm
Sd855cm²
Mms119g
Xmax8.0mm
SPL98dB
Power600W
Power Nominal600W
Impedance4Ω
Min Impedance4.0Ω
F Low40Hz
F High2000Hz
Voice Coil76mm
Flux Density1.30T
Pricing & availability
Price definitionsPrice movement
Best current price
£233.82
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.6kg
Diameter393.0mm
Overall Depth177.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl20.64 Tm
Fs39 Hz
Le0.88 mH
Re3.1 Ω
Sd855 cm² (132.5 in²)
Ebp186 Hz
Mms119 g
Qes0.21
Qms6.41
Qts0.21
Vas143 dm³ (5.05 ft³)
η03.88 %
ConeRCK15NW764
Xmax8 mm
Xvar10 mm
SpiderDouble Silicone
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth19 mm (0.75 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Ring
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth11 mm (0.43 in)
Recommended Tuning53 Hz
Bolt Circle Diameter374 mm (14.7 in)
Recommended Enclosure90 dm³ (3.18 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter354 mm (13.9 in)
Flange And Gasket Thickness16 mm (0.62 in)
Air Volume Occupied By Driver3.7 dm³ (0.13 ft³)
