LF DriverPD series
Precision Devices

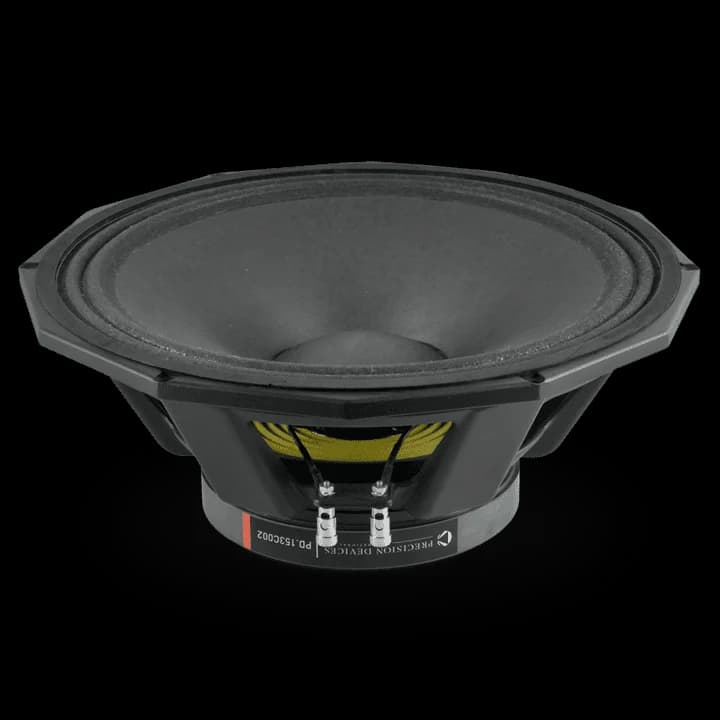

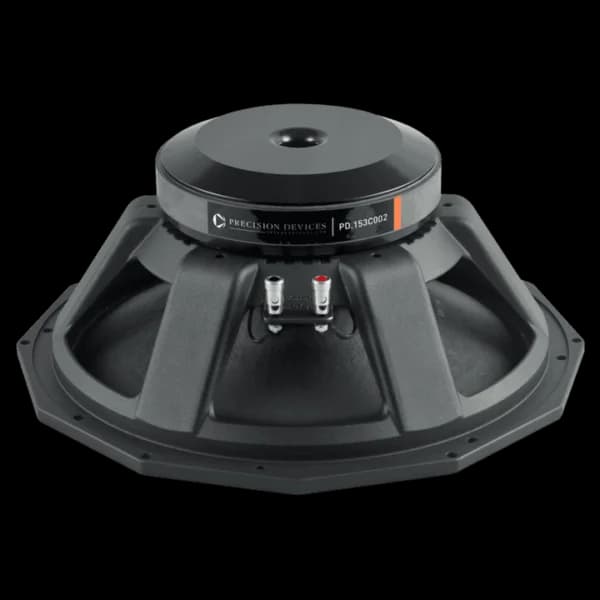

Precision Devices PD.153C002
Precision Devices PD.153C002 is a 15" 8 ohm LF driver rated at 550W RMS. The validated T/S data includes Fs 38Hz, Qts 0.25, Vas 263L, Xmax 6.8mm, sensitivity 99.4dB, plus 576cm³ Vd and 143 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
550W
Sensitivity
99.4dB
101.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
143
Vented alignment
Vd
576cm³
T/S Parameters
Valid
Fs38Hz
Qts0.25
Qes0.27
Qms4.0
Vas263.0L
Re5.6Ω
Le1.28mH
BL18.9Tm
Sd853cm²
Mms67g
Xmax6.8mm
SPL99dB
Power550W
Impedance8Ω
F Low40Hz
F High5000Hz
Voice Coil76mm
Flux Density1.20T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.8kg
Diameter408.3mm
Overall Depth155.0mm
Cutout Diameter356.0mm
Bolt Circle Diameter395.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Precision Devices
PD.153C002
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
83%
Similarity
£152.00
B&C
15CL76
15"
Xmax7mm+4%
Qts0.250%
BL19.1Tm+1%
Vas140L-47%
Qes0.27+2%
77%
Similarity
Eighteen Sound
15NMB420
15"
Xmax6.5mm-4%
Qts0.29+16%
BL19Tm+1%
Vas225L-14%
Qes0.3+13%
75%
Similarity
£396.97
B&C
15CXN76
15"
Xmax6mm-11%
Qts0.28+12%
BL17.8Tm-6%
Vas246L-6%
Qes0.3+13%
75%
Similarity
£399.49
B&C
15HCX76
15"
Xmax6mm-11%
Qts0.28+12%
BL17.8Tm-6%
Vas246L-6%
Qes0.3+13%
73%
Similarity
Sica
15 K 3 PL
15"
Xmax6.5mm-4%
Qts0.27+8%
BL21.4Tm+13%
Vas166.1L-37%
Qes0.28+6%
73%
Similarity

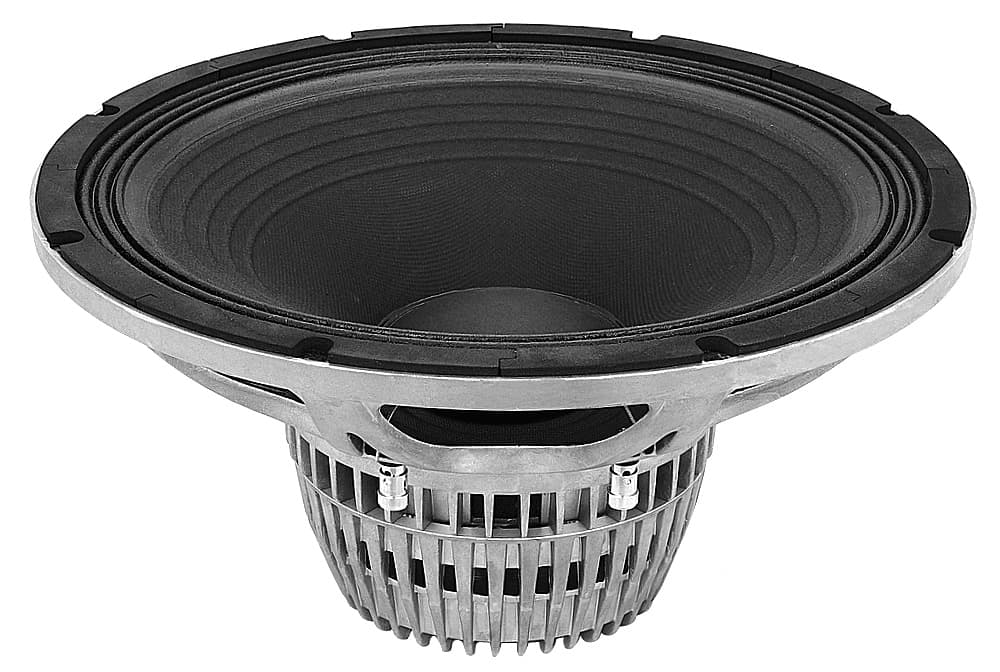

Oberton
15NB451
15"
Xmax7mm+4%
Qts0.26+3%
BL22.9Tm+21%
Vas145.2L-45%
Qes0.26-1%
72%
Similarity
Beyma
115WR408
15"
Xmax6.3mm-7%
Qts0.3+20%
BL19.2Tm+2%
Vas236L-10%
Qes0.31+17%
70%
Similarity
£193.05
Eighteen Sound
15W930
15"
Xmax7.5mm+11%
Qts0.22-12%
BL22.1Tm+17%
Vas240L-9%
Qes0.23-13%
70%
Similarity
£184.99
B&C
15NDL76
15"
Xmax7mm+4%
Qts0.22-12%
BL22.5Tm+19%
Vas195L-26%
Qes0.24-9%
69%
Similarity
Oberton
15B450 / 15B450A / 15B450A2
15"
Xmax6.8mm0%
Qts0.29+15%
BL20.4Tm+8%
Vas146.8L-44%
Qes0.29+11%
69%
Similarity
Monacor
FTX1530/8
15"
Xmax6mm-11%
Qts0.28+11%
BL20.2Tm+7%
Vas172.1L-35%
Qes0.3+12%
69%
Similarity
Celestion
FTX1530
15"
Xmax6mm-11%
Qts0.28+11%
BL20.2Tm+7%
Vas172.1L-35%
Qes0.3+12%
