LF Driver15NDL series
B&C

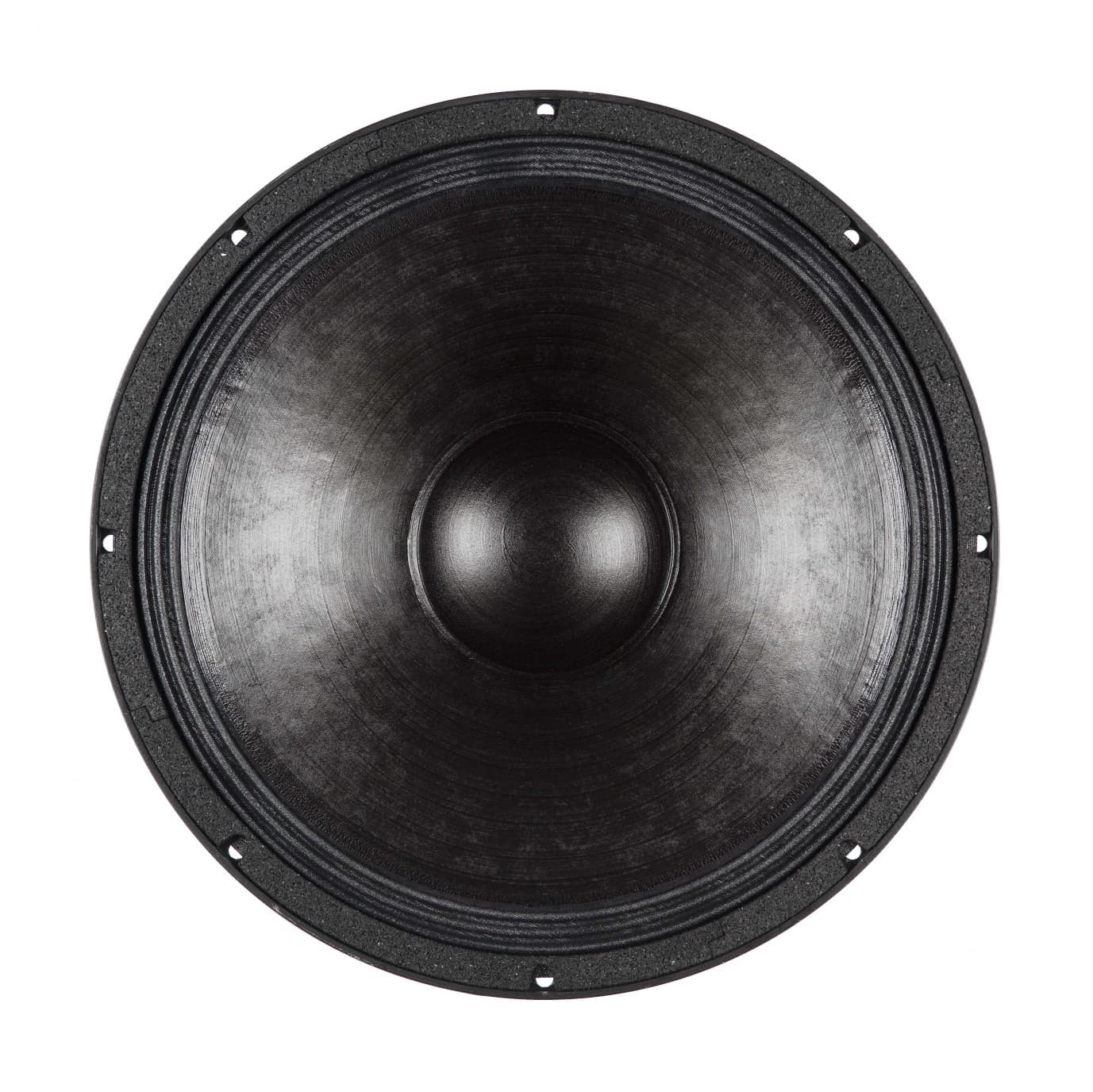

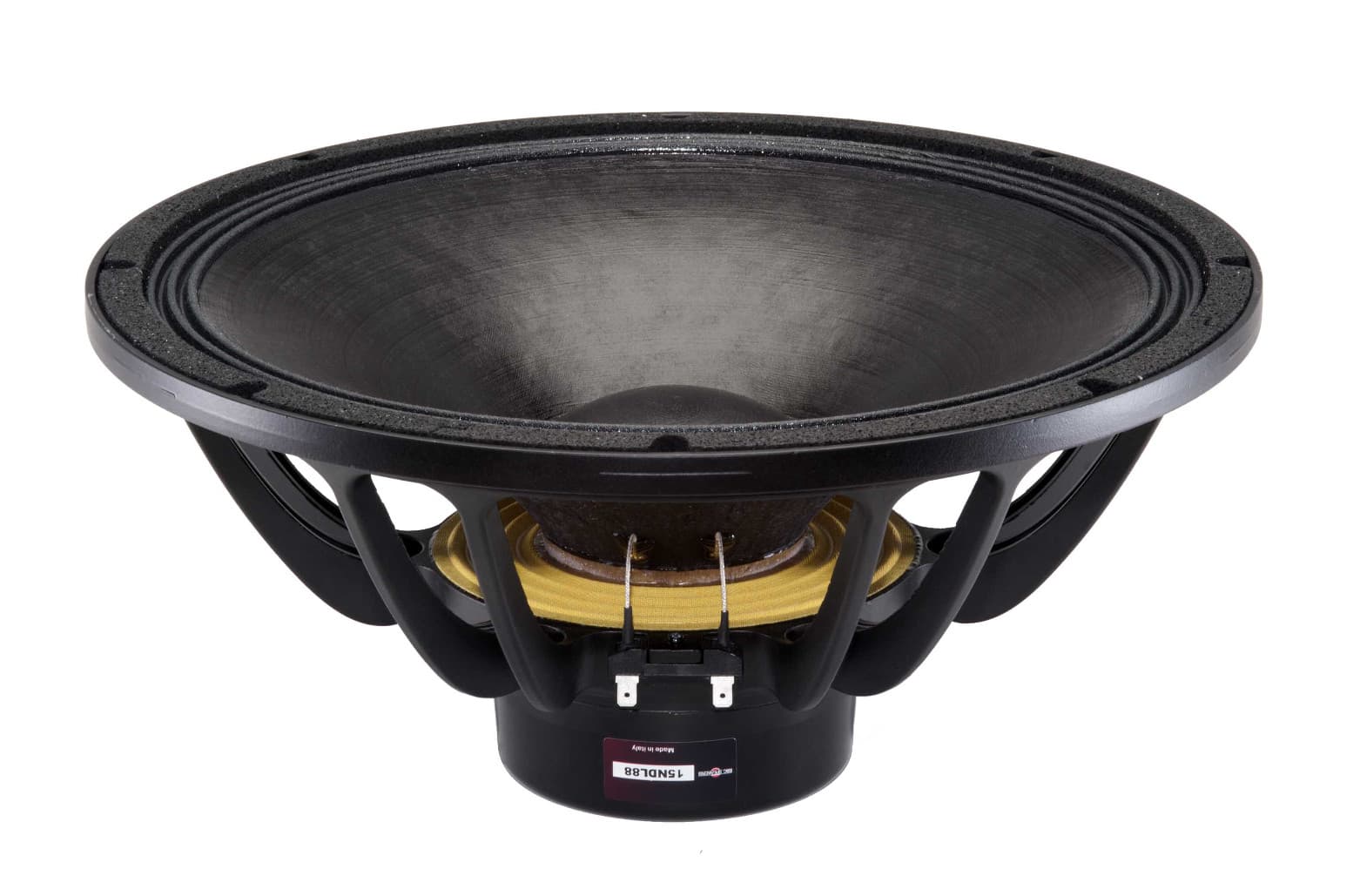

B&C 15NDL88
B&C 15NDL88 is a 15" 4 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 41Hz, Qts 0.28, Vas 154L, Xmax 8mm, sensitivity 97.7dB, plus 684cm³ Vd and 141 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £241.99.
Size
15"
Impedance
4Ω
RMS Power
700W
Sensitivity
97.7dB
99.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
141
Vented alignment
Vd
684cm³

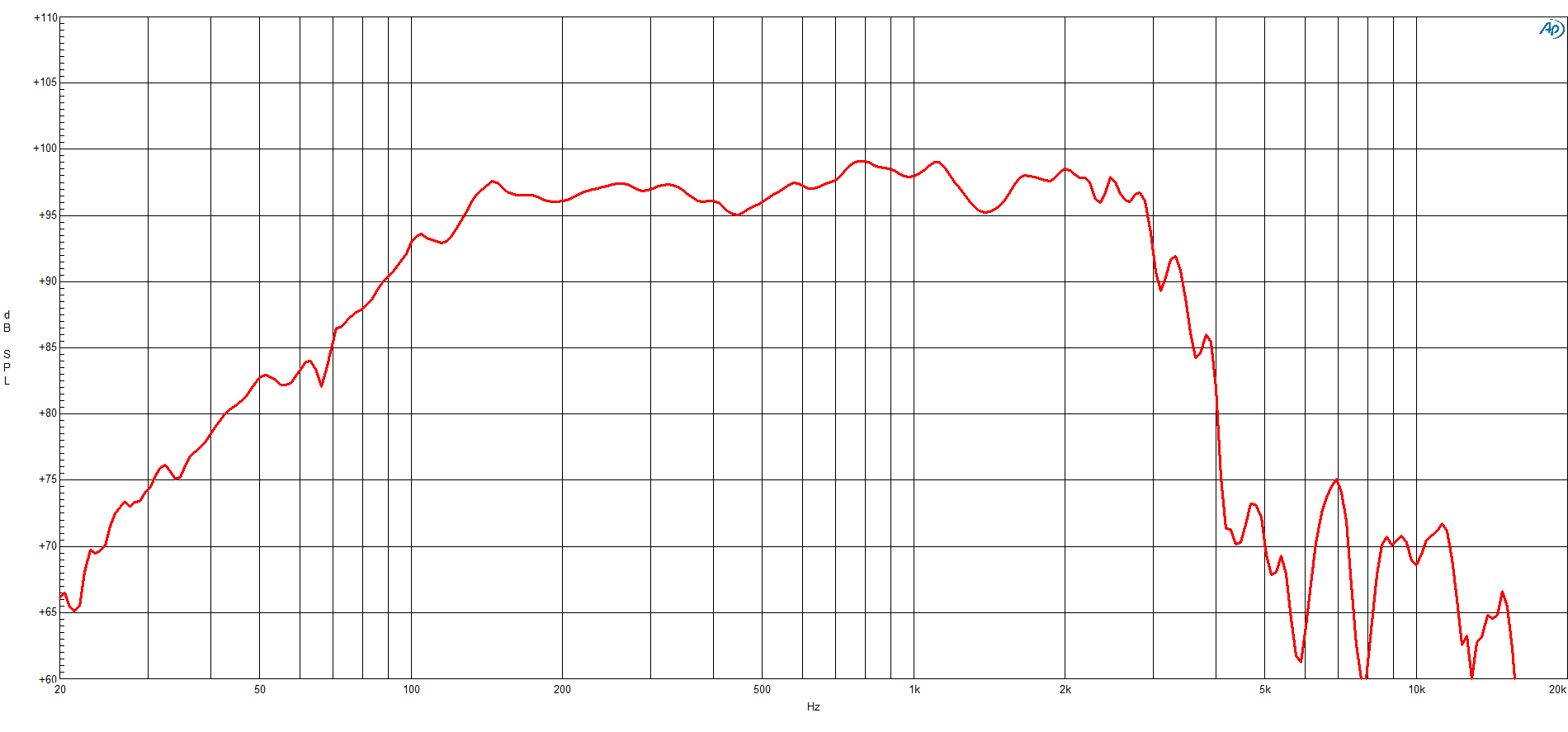

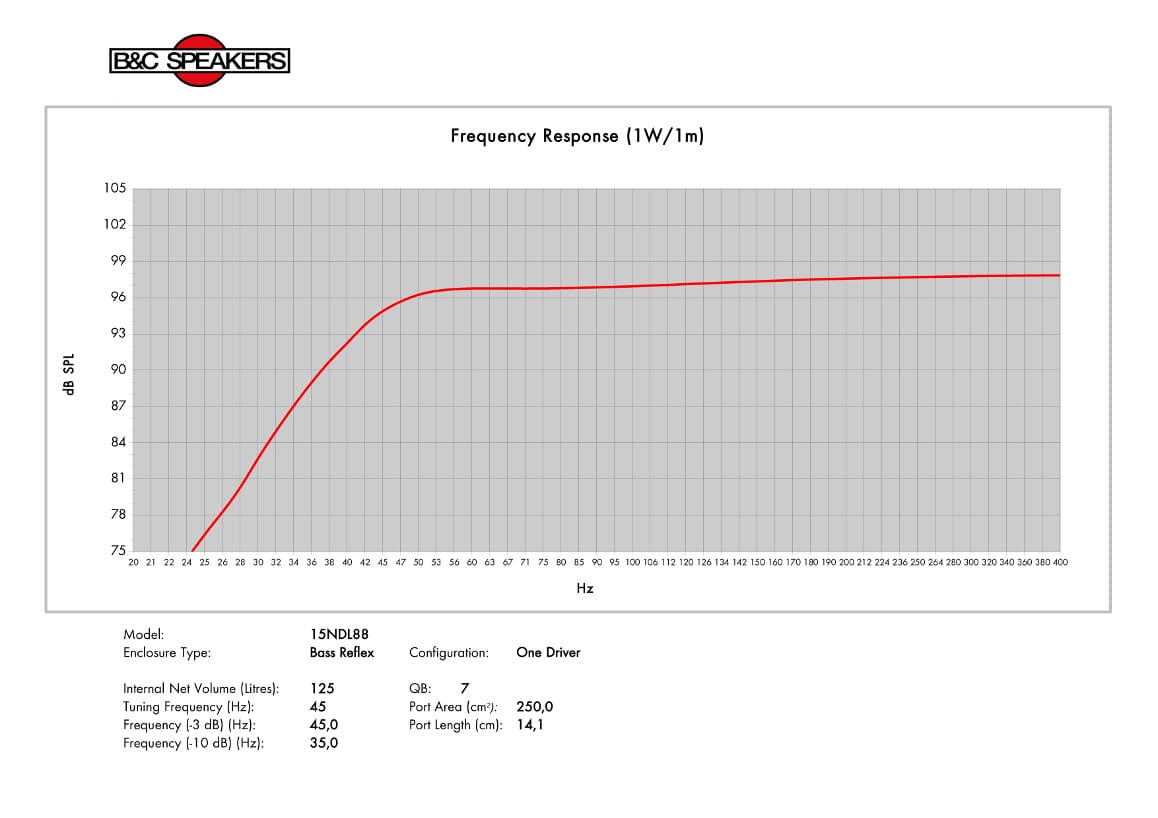

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs41Hz
Qts0.28
Qes0.29
Qms7.5
Vas154.0L
Re3.0Ω
Le0.90mH
BL16.5Tm
Sd855cm²
Mms102g
Xmax8.0mm
SPL98dB
Power700W
Power Nominal700W
Impedance4Ω
Min Impedance3.7Ω
F Low45Hz
F High3000Hz
Voice Coil88mm
Flux Density1.05T
Pricing & availability
Price definitionsPrice movement
Best current price
£241.99
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.7kg
Diameter393.0mm
Overall Depth177.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl16.5 Tm
Fs41 Hz
Le0.9 mH
Re3 Ω
Sd855 cm² (132.53 in²)
Ebp141 Hz
Mms102 g
Qes0.29
Qms7.5
Qts0.28
Vas154 dm³ (5.44 ft³)
η03.5 %
ConeRCK15NDL884
Xmax8 mm
Xvar10 mm
SpiderDouble Silicone
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth21.5 mm (0.85 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter380 mm (15 in)
Winding MaterialAluminium
Magnetic Gap Depth10 mm (0.39 in)
Recommended Tuning45 Hz
Bolt Circle Diameter374 mm (14.72 in)
Recommended Enclosure125 dm³ (4.41 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter354 mm (13.94 in)
Flange And Gasket Thickness13 mm (0.51 in)
Air Volume Occupied By Driver3.5 dm³ (0.12 ft³)
