Overview
LF DriverTF series
Monacor
Monacor TF1530/8
Monacor TF1530/8 is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 42Hz, Qts 0.28, Vas 162.2L, Xmax 4mm, sensitivity 97.9dB, plus 342cm³ Vd and 135 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
97.9dB
99.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
135
Vented alignment
Vd
342cm³
T/S Parameters
Valid
Fs42Hz
Qts0.28
Qes0.31
Qms2.7
Vas162.2L
Re5.8Ω
Le0.90mH
BL21.2Tm
Sd855cm²
Mms92g
Xmax4.0mm
SPL98dB
Power400W
Impedance8Ω
F Low40Hz
F High3000Hz
Voice Coil75mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.9kg
Diameter385.0mm
Overall Depth163.0mm
Cutout Diameter352.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
TF1530/8
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
£125.00

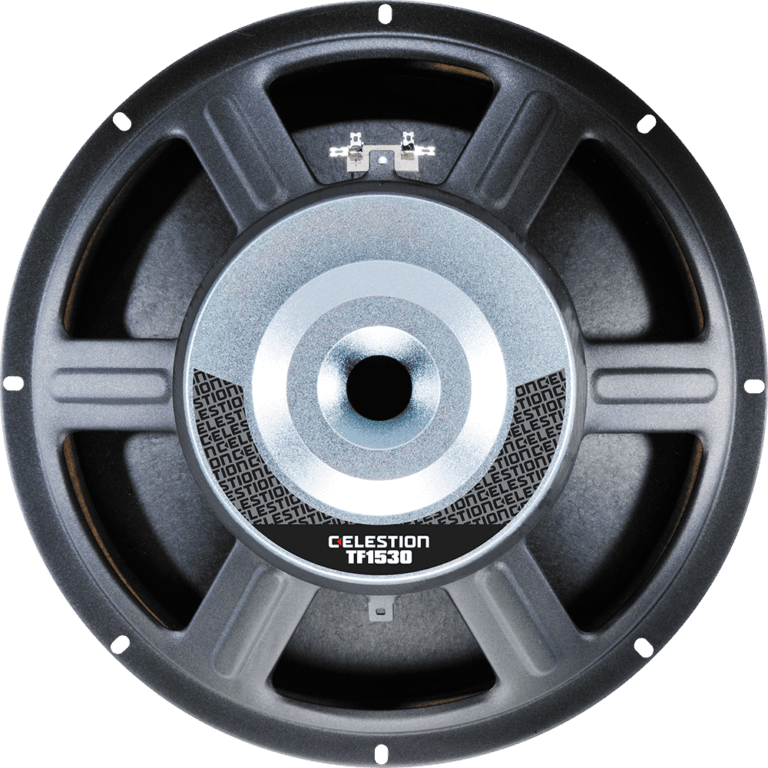

Celestion
TF1530
15"
Xmax4mm0%
Qts0.280%
BL21.2Tm0%
Vas162.2L0%
Qes0.31+1%
84%
Similarity
£208.72
BMS
15S320
15"
Xmax4.5mm+13%
Qts0.280%
BL23.3Tm+10%
Vas154L-5%
Qes0.29-6%
79%
Similarity
Eighteen Sound
15MB650
15"
Xmax4mm0%
Qts0.26-7%
BL20Tm-6%
Vas210L+29%
Qes0.27-13%
76%
Similarity
Celestion
TN1530
15"
Xmax3.8mm-6%
Qts0.32+12%
BL19.3Tm-9%
Vas156.6L-3%
Qes0.36+15%
76%
Similarity
£210.00
Celestion
NTR15-3018E
15"
Xmax5mm+25%
Qts0.28+1%
BL21.1Tm-1%
Vas207.3L+28%
Qes0.3-3%
75%
Similarity
BMS
15N820
15"
Xmax4.5mm+13%
Qts0.26-7%
BL24.2Tm+14%
Vas159L-2%
Qes0.27-13%
70%
Similarity
£191.58

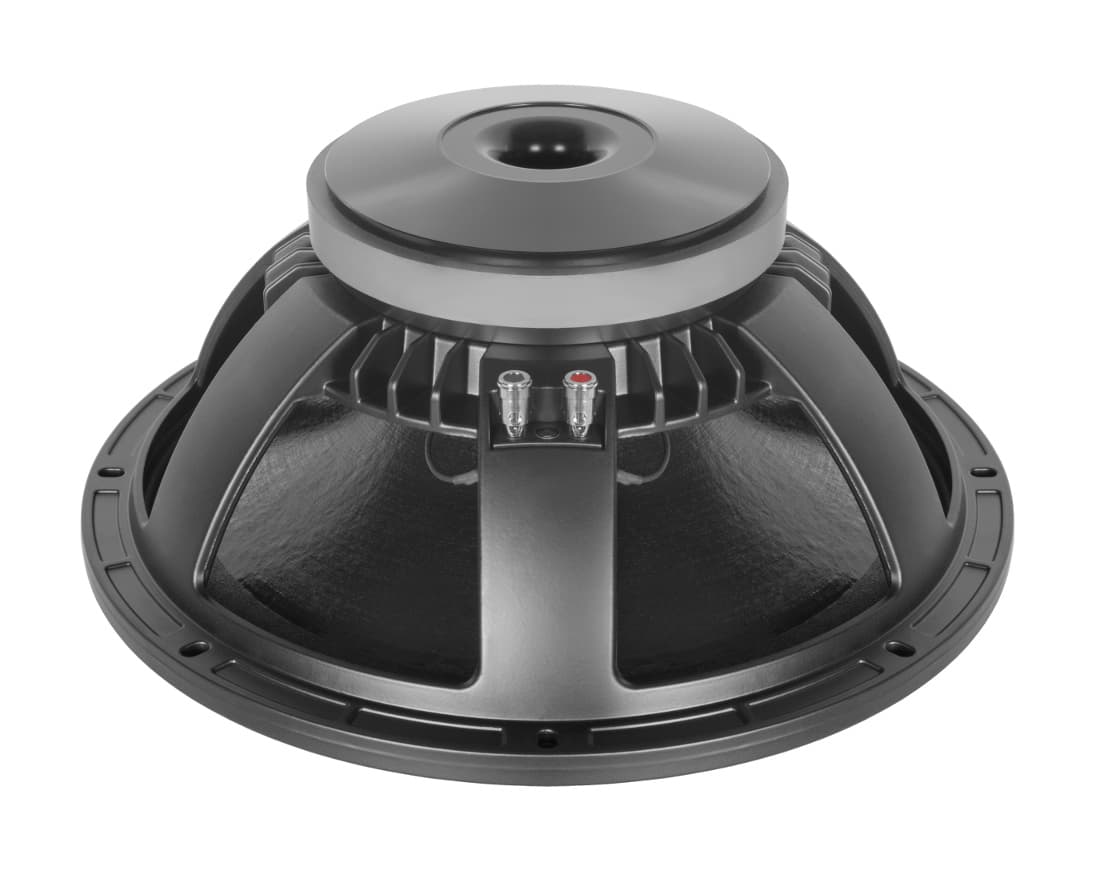

B&C
15PLB76
15"
Xmax5mm+25%
Qts0.25-11%
BL22.1Tm+4%
Vas164L+1%
Qes0.26-16%
69%
Similarity
Peerless
FSL-1530R01-08
15"
Xmax4.7mm+17%
Qts0.24-15%
BL21.8Tm+3%
Vas180L+11%
Qes0.25-19%
65%
Similarity
£103.54
Dayton Audio
PA380-8
15"
Xmax5mm+25%
Qts0.27-4%
BL25.8Tm+22%
Vas175L+8%
Qes0.27-13%
65%
Similarity
Oberton
15L400
15"
Xmax3.3mm-19%
Qts0.29+2%
BL16.9Tm-20%
Vas229.9L+42%
Qes0.29-5%
62%
Similarity
P.Audio
15FT-76MB
15"
Xmax4.7mm+18%
Qts0.35+25%
BL20.4Tm-4%
Vas150.9L-7%
Qes0.37+19%
61%
Similarity
P.Audio
15NX-76MB
15"
Xmax4.8mm+19%
Qts0.34+21%
BL21.4Tm+1%
Vas115.6L-29%
Qes0.35+13%
