Overview
LF Driver15DS series
B&C

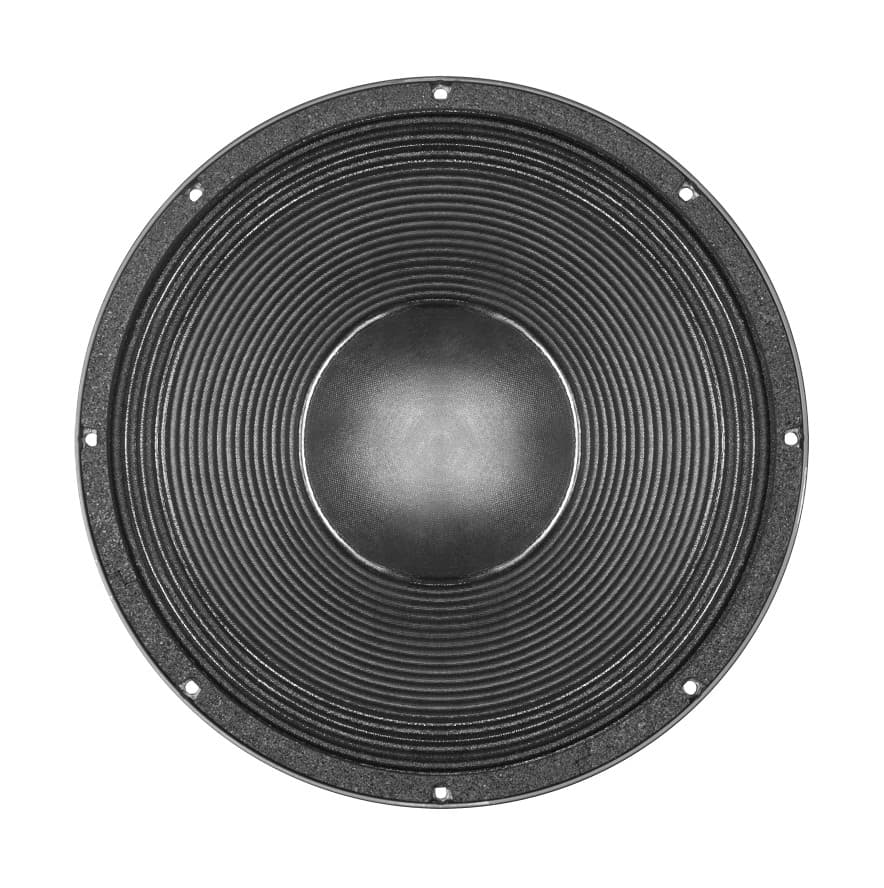

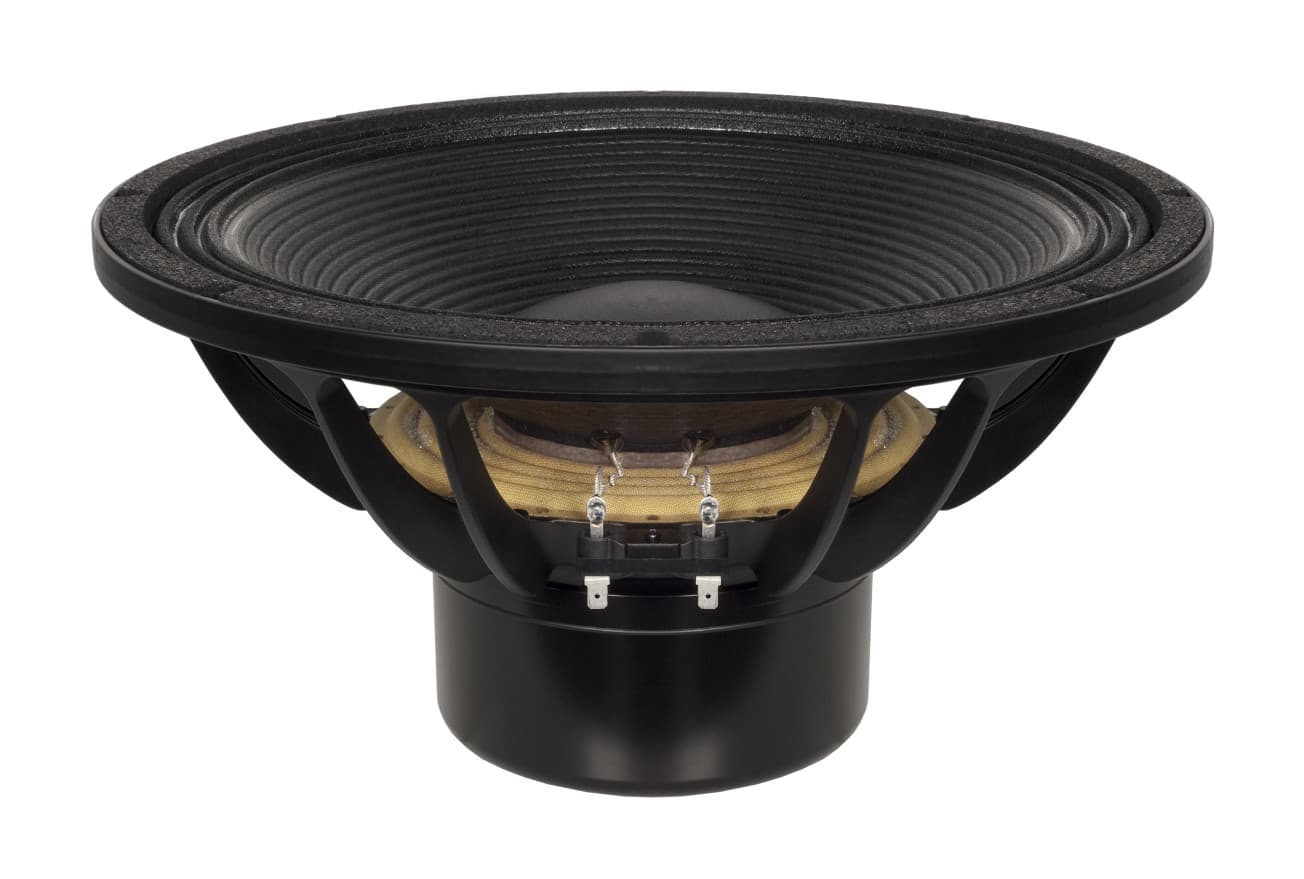

B&C 15DS115
B&C 15DS115 is a 15" 4 ohm LF driver rated at 1600W RMS. The validated T/S data includes Fs 34Hz, Qts 0.16, Vas 83L, Xmax 16.5mm, sensitivity 94.9dB, plus 1411cm³ Vd and 200 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £408.62.
Size
15"
Impedance
4Ω
RMS Power
1600W
Sensitivity
94.9dB
96.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
200
Vented alignment
Vd
1411cm³

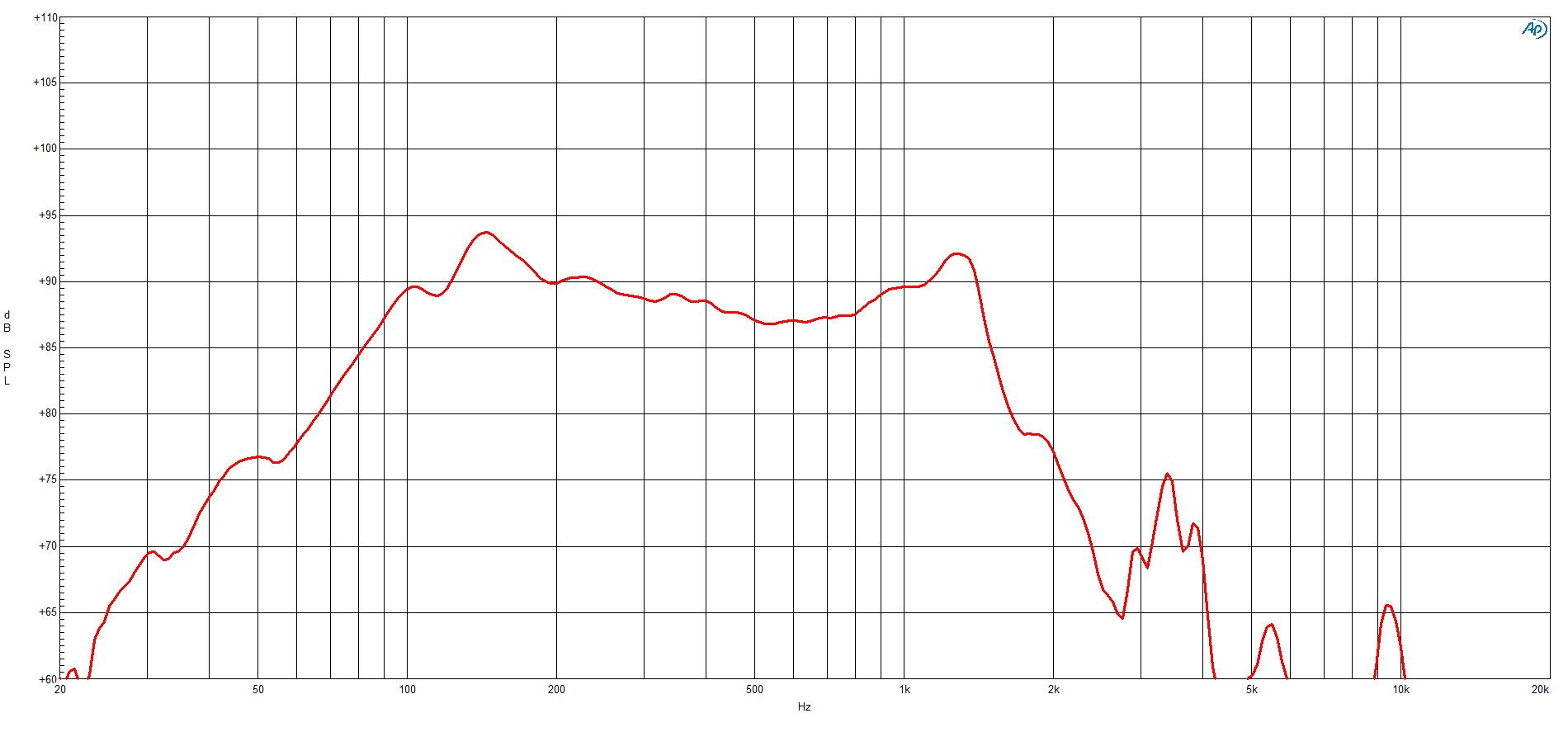

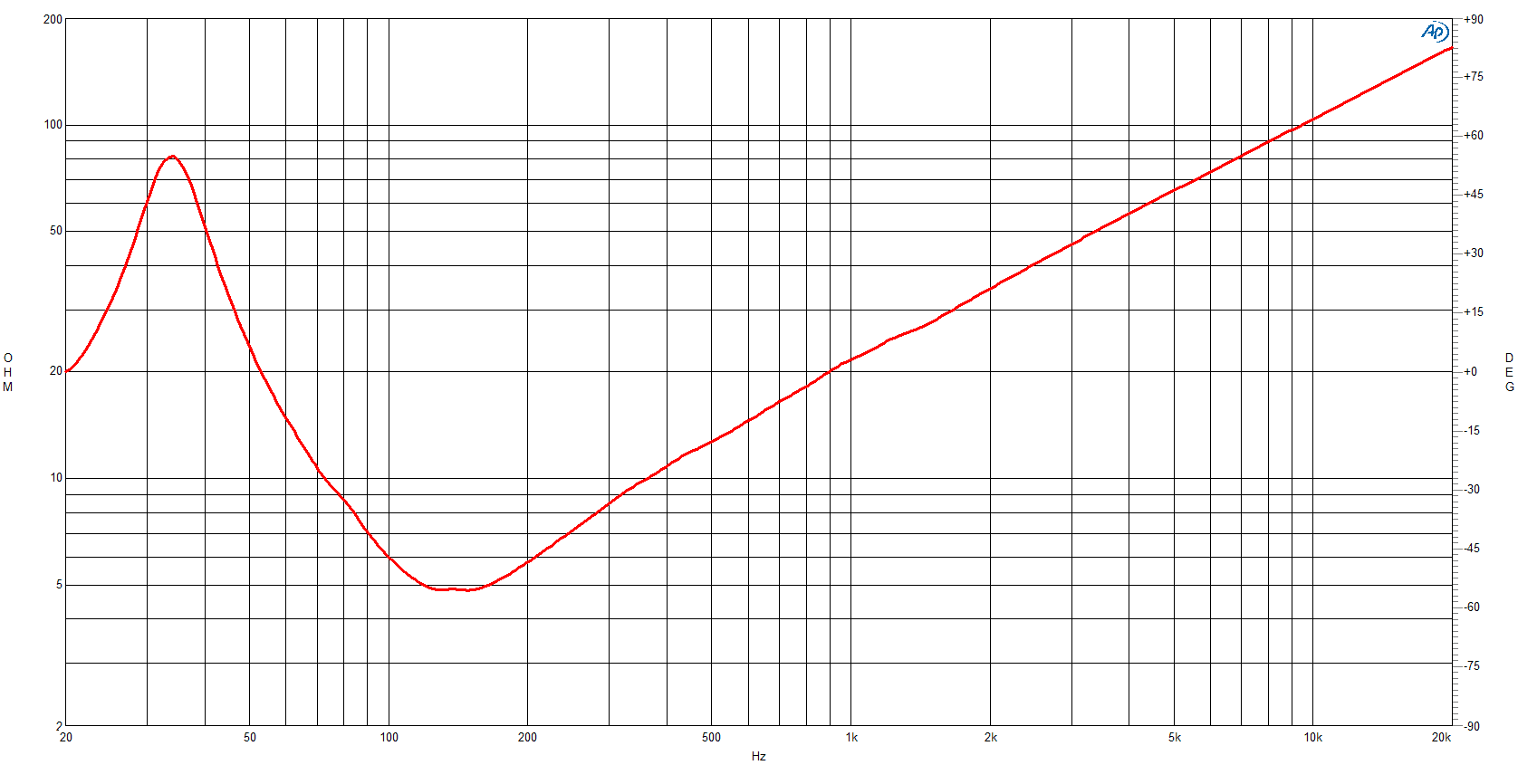

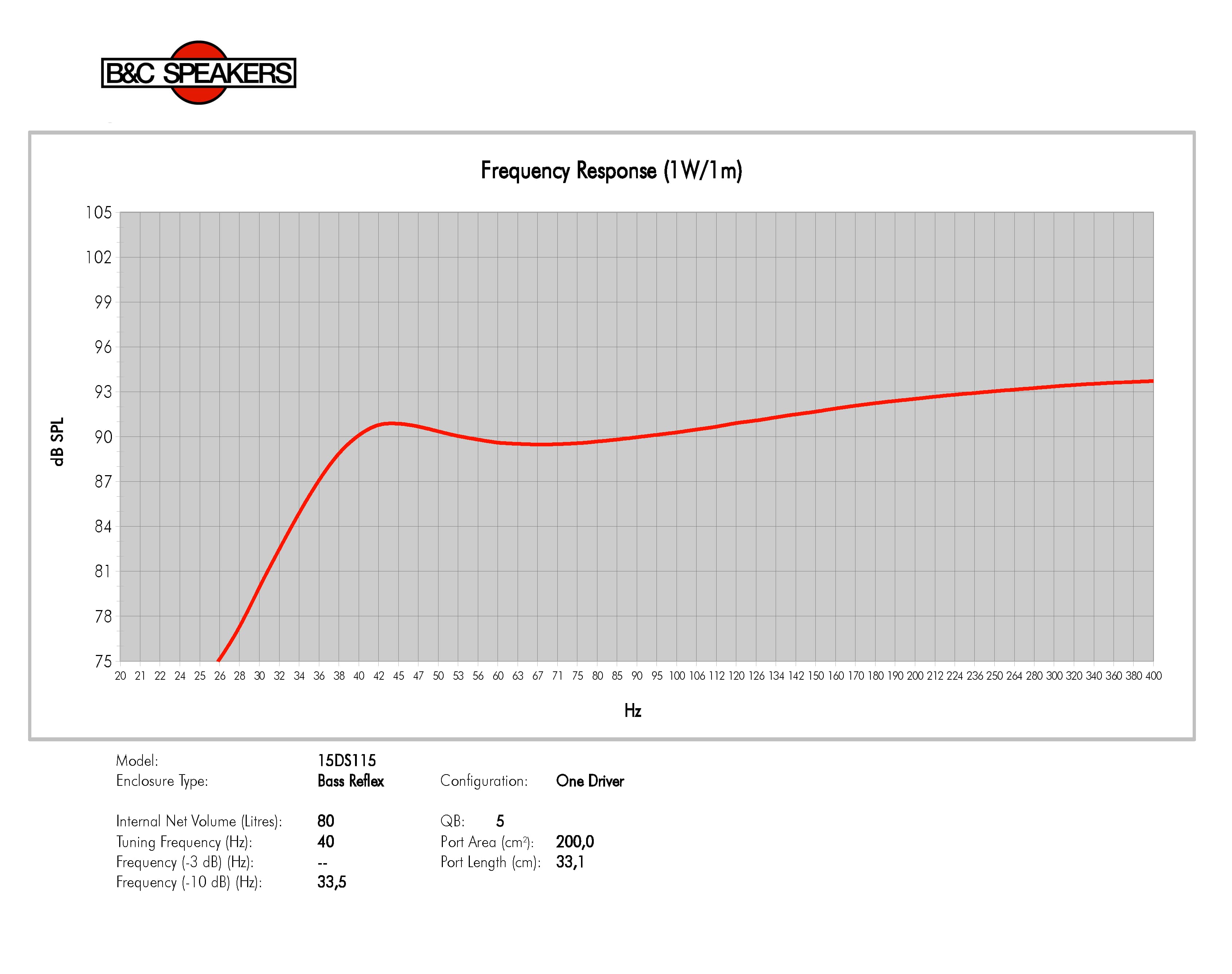

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs34Hz
Qts0.16
Qes0.17
Qms4.7
Vas83.0L
Re3.2Ω
Le3.20mH
BL33.6Tm
Sd855cm²
Mms273g
Xmax16.5mm
SPL95dB
Power1600W
Power Nominal1600W
Impedance4Ω
Min Impedance4.8Ω
F Low35Hz
F High1000Hz
Voice Coil116mm
Flux Density0.80T
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsjpleisure
Updated 11 Sept 2026· 4Ω
Source: ex VAT · 20%
£408.62
inc VAT
In stock
bluearan
Updated 11 Sept 2026· 4Ω
Source: inc VAT · 20%
£421.99
inc VAT
partsexpress
Updated 11 Sept 2026· 4Ω
Source: ex VAT
£511.73
inc VAT
Back order
Best current price
Updated 7 Aug 2026
jpleisure
£408.62
Avg £413.08£4.46 below avg (-1.1%)
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.7kg
Diameter393.0mm
Overall Depth199.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter375.0mm
Additional Manufacturer Specs
Bl33.6 Tm
Fs34 Hz
Le3.2 mH
Re3.2 Ω
Sd855 cm² (132.53 in²)
Ebp200 Hz
Mms273 g
Qes0.17
Qms4.7
Qts0.16
Vas83 dm³ (2.93 ft³)
η01.9 %
ConeRCK15DS1154
Xmax16.5 mm
Xvar14 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth40 mm (1.57 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter380 mm (15 in)
Winding MaterialAluminium
Magnetic Gap Depth14 mm (0.55 in)
Recommended Tuning40 Hz
Bolt Circle Diameter375 mm (14.76 in)
Recommended Enclosure80 dm³ (2.83 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter354 mm (13.94 in)
Flange And Gasket Thickness15 mm (0.59 in)
Air Volume Occupied By Driver7 dm³ (0.25 ft³)
