15-inch LF driver · 600 W

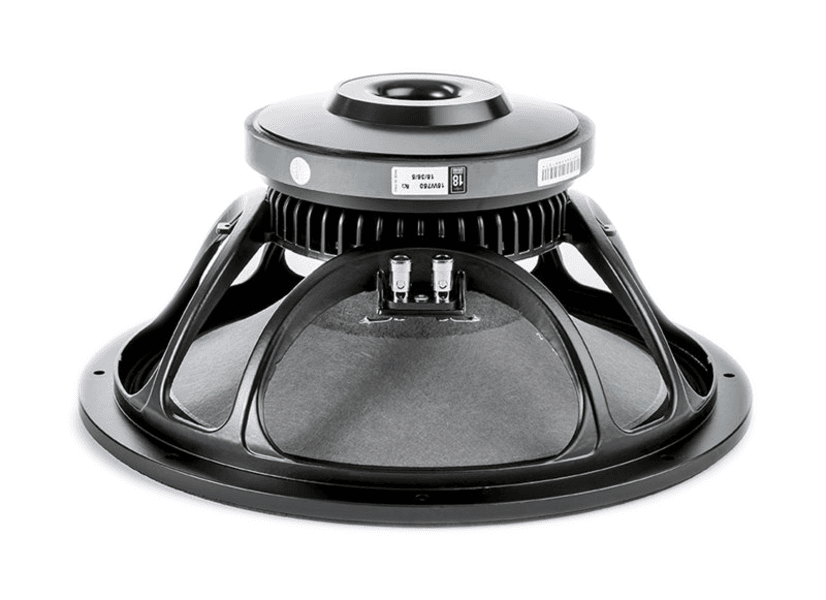

Eighteen Sound 15W750 16Ω

Name: Eighteen Sound 15W750 16 Ohm
Brand: Eighteen Sound
SKU: 15W750

50–4300 Hz

No price for delivery to the UK

All 1 offer

Open in 00 Simulator

Fs: 40Hz
Xmax: 8mm
SPL: 96dB
Pe: 600W
BL: 23.5T·m
Vd: 680cm³
Qts: 0.42
Vas: 182L

See all 25 specs

Published graphs

Eighteen Sound 15W750 manufacturer graph 1

Eighteen Sound 15W750 manufacturer graph 2

Specifications

Published by Eighteen Sound

Manufacturer page

Datasheet PDF

Eighteen Sound 15W750 is a 15-inch 16 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 40 Hz, Qts 0.42, Vas 182 L, Xmax 8 mm, sensitivity 96.3 dB, plus 680 cm³ Vd and 91 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 40Hz
Qts: 0.42
Qes: 0.44
Qms: 7.7
Vas: 182L
Re: 10.3Ω
Le: 1.27mH

Motor and cone

BL: 23.5T·m
Sd: 850cm²
Mms: 94g
Xmax: 8mm
Vd †: 680cm³

Power and response

Sensitivity †: 96.3dB
Manufacturer sensitivity: 98dB
Power: 600W
Nominal power: 600W
Impedance: 16Ω
Range: 50–4300Hz
EBP †: 91 · Sealed or vented

Size and mounting

Diameter: 393mm
Cutout: 354mm
Bolt circle: 371mm
Depth: 184mm
Weight: 7.9kg

Other published values

Power Program: 1200

Sensitivity shows 96.3 dB, calculated from the T/S values. Eighteen Sound publishes 98.0 dB, 1.7 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Eighteen Sound lists

LF · Primary · 15″

BL: 23.5T·m
Fs: 40Hz
Le: 1.27mH
Re: 10.3Ω
Sd: 850cm²
Mms: 94g
Qes: 0.44
Qms: 7.7
Qts: 0.42
SPL: 96.3dB
Vas: 182L
Xmax: 8mm
Power: 600W
Impedance: 16Ω
Sensitivity: 98dB
Low limit: 50Hz
Nominal power: 600W
Power Program: 1200
Calculated sensitivity †: 96.3dB
High limit: 4300Hz
Manufacturer sensitivity: 98dB
Weight: 7.9kg
Diameter: 393mm
Depth: 184mm
Cutout: 354mm
Bolt circle: 371mm

Designs

What Eighteen Sound suggests for the 15W750. No published designs name it yet.

How we find designs

Eighteen Sound’s suggested box

From Eighteen Sound’s 15W750 page

Eighteen Sound’s suggestion110 L vented boxFrom Eighteen Sound’s 15W750 page

Net volume: 110L
Tuning: 42Hz

Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.

Open this box in 00 Simulator

Modelling the box in 00 Simulator…

Compare

Same-size drivers, compared with the 15W750. Clear differences are green when better and red when worse.

This driver15W750

Best price

–

40 Hz

Qts

0.42

Vas

182 L

23.5 T·m

Xmax

8 mm

Sensitivity

96.3 dB

Power

600 W

GRS15PT-8

£52.90

Fs28 Hz −30%

Qts0.41 –

Vas242.1 L +33%

BL20.2 T·m −14%

Xmax7.8 mm –

Sensitivity92.9 dB −3.4

SB AudienceBIANCO-15MW500

£110.00

Fs39 Hz –

Qts0.40 −5%

Vas171 L −6%

BL18.8 T·m −20%

Xmax7.6 mm −5%

Sensitivity96 dB –

PRV Audio15W1600

£134.07

Fs54 Hz +34%

Qts0.42 –

Vas91.2 L −50%

BL24.1 T·m –

Xmax7 mm −13%

Sensitivity97.1 dB +0.8

CIAREPWA15.75

£146.26

Fs44 Hz +10%

Qts0.39 −7%

Vas135 L −26%

BL19.3 T·m −18%

Xmax7 mm −13%

Sensitivity96.5 dB –

FaneSOVEREIGN PRO 15-600LF

£152.00

Fs40 Hz –

Qts0.37 −12%

Vas188 L +3%

BL19.7 T·m −16%

Xmax6.9 mm −14%

Sensitivity97 dB +0.7

Beyma15MC500

£172.99

Fs46 Hz +15%

Qts0.45 +7%

Vas134 L −26%

BL18.3 T·m −22%

Xmax8 mm –

Sensitivity96.5 dB –

RCFL15P540

£173.78

Fs50 Hz +25%

Qts0.39 −7%

Vas100 L −45%

BL21.4 T·m −9%

Xmax7 mm −13%

Sensitivity96.9 dB +0.6

B&C15FW88

£181.46

Fs49 Hz +23%

Qts0.43 –

Vas103.7 L −43%

BL19.3 T·m −18%

Xmax8 mm –

Sensitivity96.4 dB –

B&C15PS100

£185.00

Fs39 Hz –

Qts0.43 –

Vas103 L −43%

BL21.2 T·m −10%

Xmax8 mm –

Sensitivity93.2 dB −3.1

CIAREPW396

£186.38

Fs43 Hz +8%

Qts0.41 –

Vas129 L −29%

BL20.5 T·m −13%

Xmax6.5 mm −19%

Sensitivity96 dB –

BMS15S330

£194.97

Fs39 Hz –

Qts0.32 −24%

Vas152 L −16%

BL23 T·m –

Xmax8 mm –

Sensitivity96.3 dB –

FaitalPRO15FH500

£216.46

Fs35 Hz −13%

Qts0.45 +7%

Vas217.1 L +19%

BL23.8 T·m –

Xmax9.3 mm +16%

Sensitivity95 dB −1.3

Beyma15LX60V2

£223.94

Fs42 Hz +5%

Qts0.44 +5%

Vas105.5 L −42%

BL21.1 T·m −10%

Xmax8 mm –

Sensitivity94.4 dB −1.9

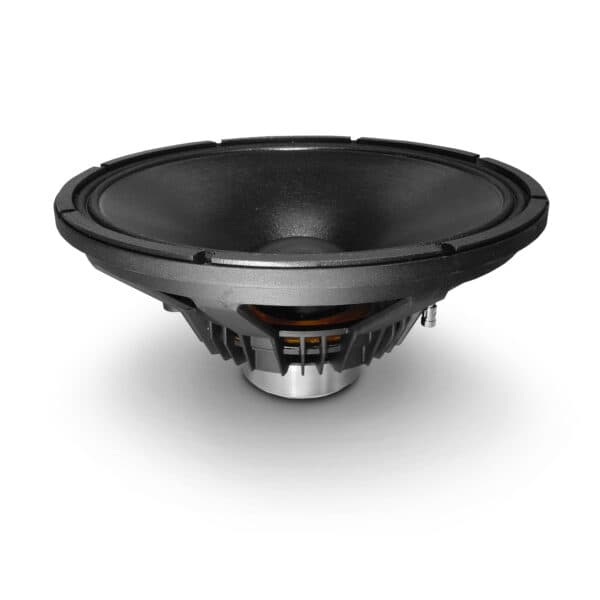

BMS15N630
