LF DriverPAW series
Visaton

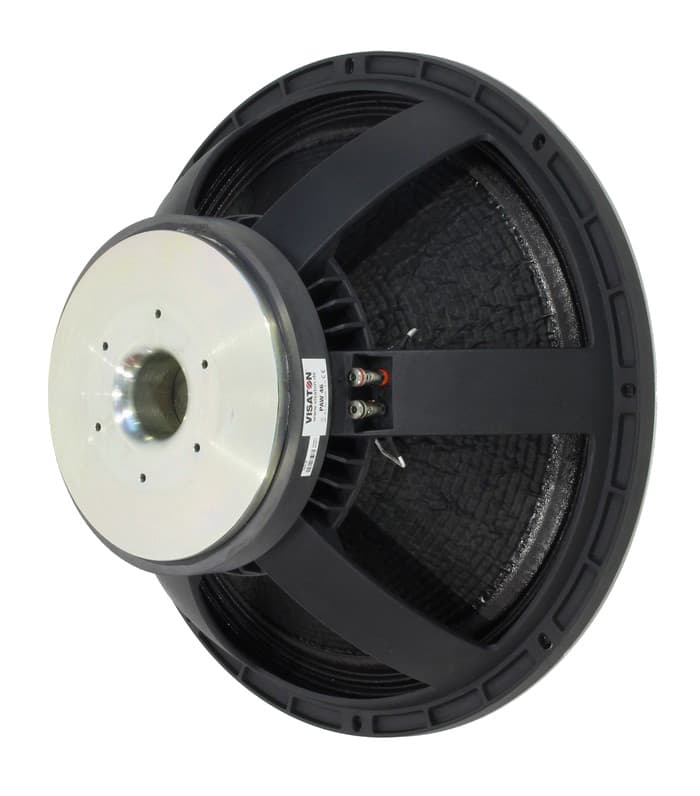

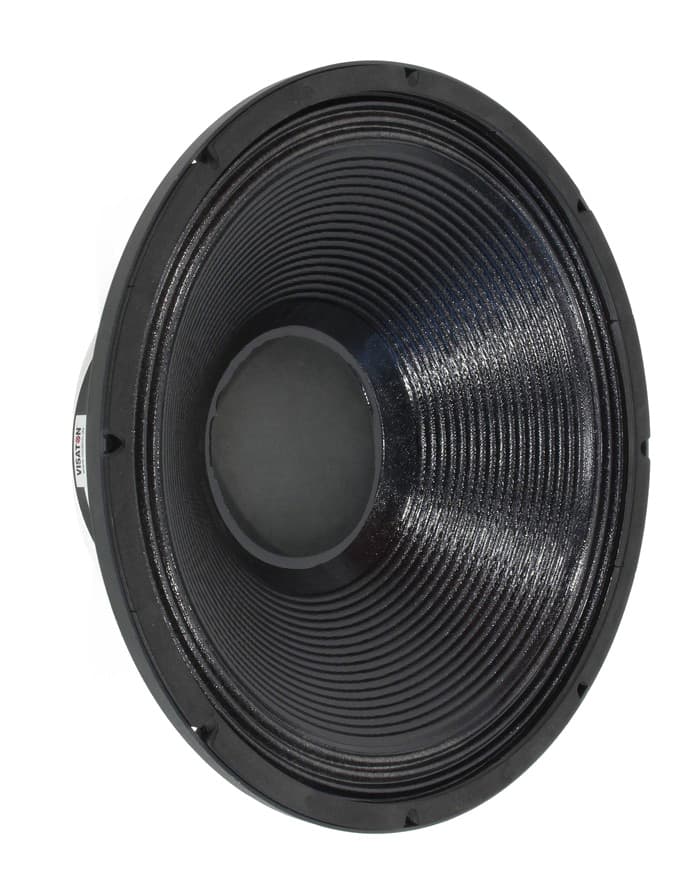

Visaton PAW 46 - 8 OHM
Visaton PAW 46 - 8 OHM is a 15" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 29Hz, Qts 0.36, Vas 325L, Xmax 10mm, sensitivity 95.2dB, plus 1210cm³ Vd and 76 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
700W
Sensitivity
95.2dB
93.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
76
Either alignment
Vd
1210cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence354 selected pixels of 1,350
T/S Parameters
Valid
Fs29Hz
Qts0.36
Qes0.38
Qms9.0
Vas325.0L
Re6.1Ω
Le1.50mH
BL23.6Tm
Sd1210cm²
Mms186g
Xmax10.0mm
SPL95dB
Power700W
Impedance8Ω
F High3200Hz
Voice Coil100mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.5kg
Diameter460.0mm
Cutout Diameter422.0mm
