LF DriverBIANCO series
SB Audience
SB Audience BIANCO-15SW600
SB Audience BIANCO-15SW600 is a 15" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 35Hz, Qts 0.38, Vas 159.1L, Xmax 11mm, sensitivity 94.3dB, plus 947cm³ Vd and 88 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
600W
Sensitivity
94.3dB
EBP
88
Either alignment
Vd
947cm³

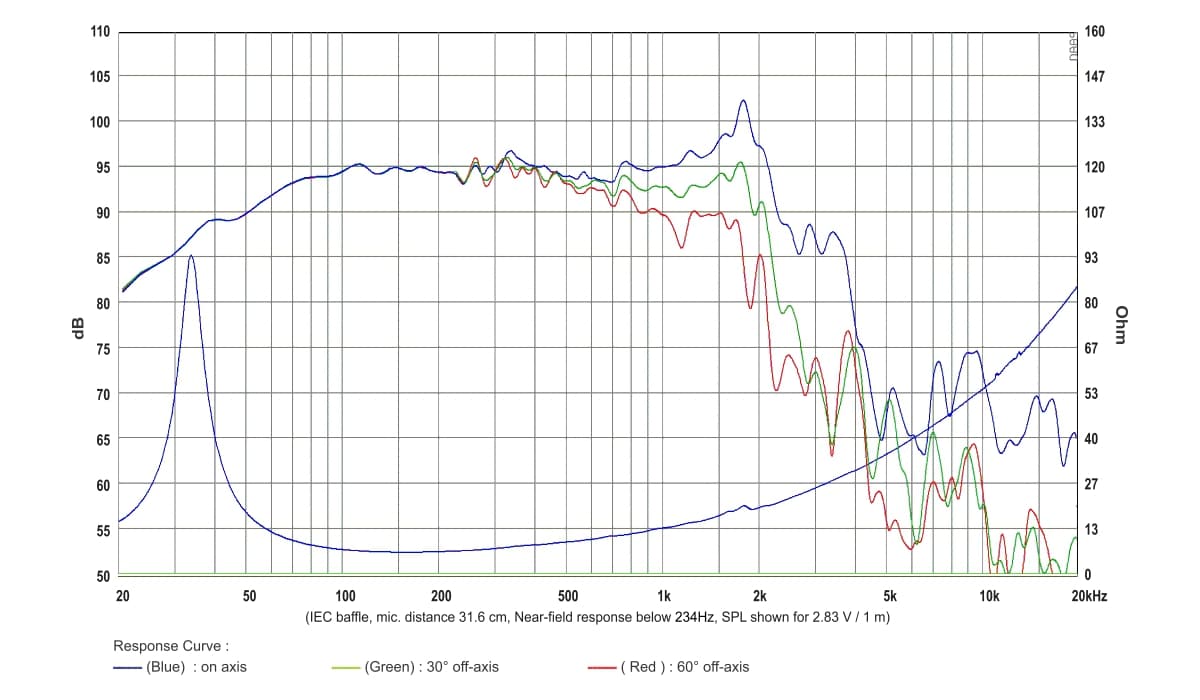

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs35Hz
Qts0.38
Qes0.40
Qms7.8
Vas159.1L
Re5.4Ω
Le1.51mH
BL20.2Tm
Sd861cm²
Mms138g
Xmax11.0mm
SPL94dB
Power600W
Impedance8Ω
Min Impedance6.2Ω
F Low34Hz
F High2500Hz
Voice Coil99mm
Flux Density1.05T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

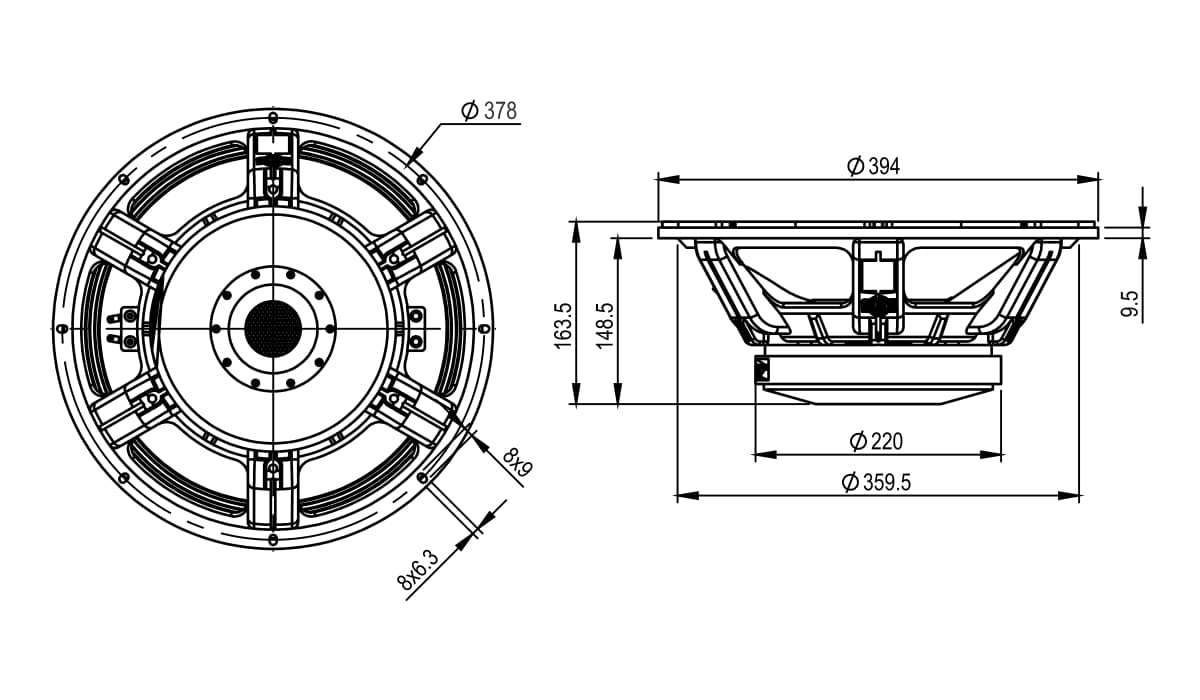

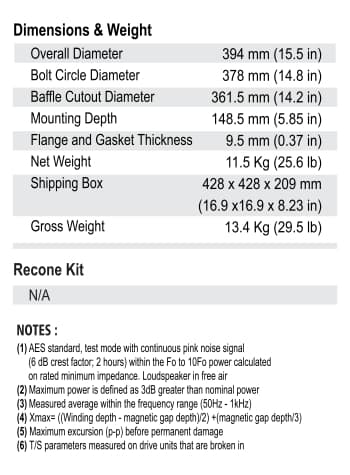

Dimensions & Physical
Diameter394.0mm
Cutout Diameter394.0mm
