Overview
LF DriverTF1230 series
Celestion

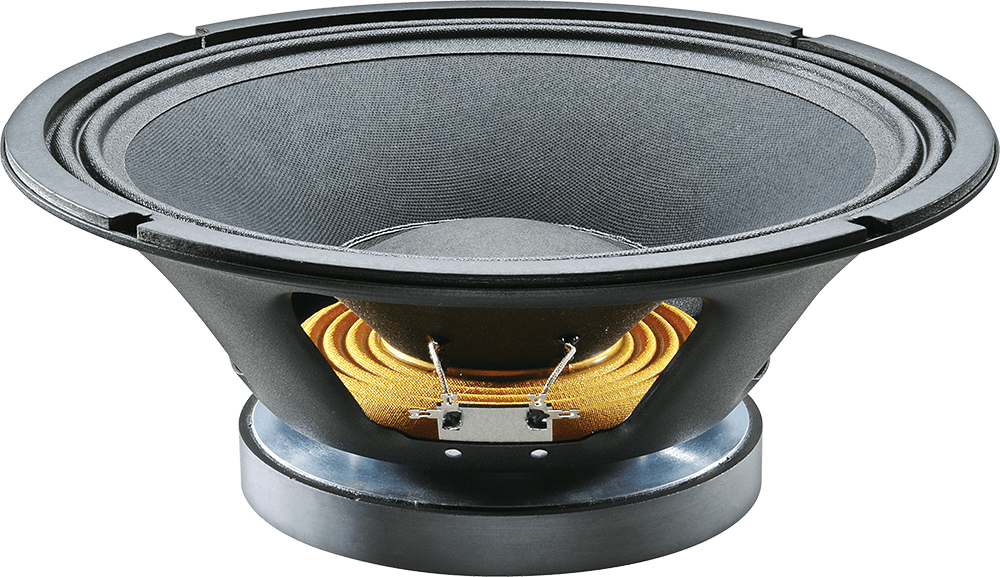

Celestion TF1230SL
Celestion TF1230SL is a 12" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 57Hz, Qts 0.39, Vas 53.8L, Xmax 6mm, sensitivity 95.6dB, plus 319cm³ Vd and 130 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
350W
Sensitivity
95.6dB
97.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
130
Vented alignment
Vd
319cm³

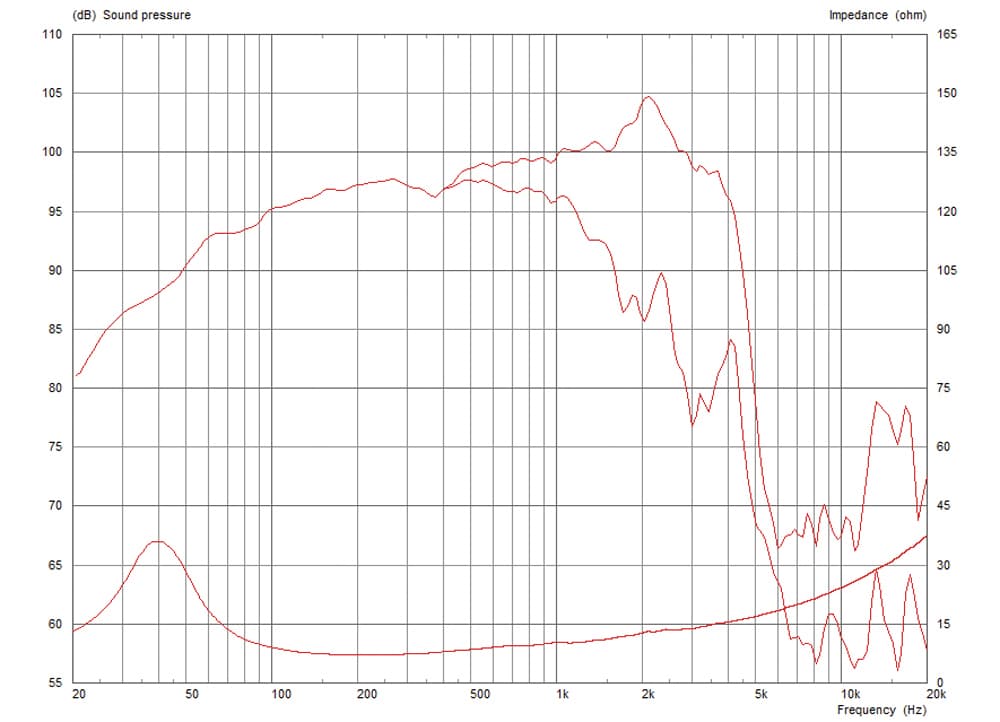

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence192 selected pixels of 344
T/S Parameters
Valid
Fs57Hz
Qts0.39
Qes0.44
Qms3.6
Vas53.8L
Re5.2Ω
Le0.89mH
BL15.7Tm
Sd531cm²
Mms58g
Xmax6.0mm
SPL96dB
Power350W
Impedance8Ω
Voice Coil75mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.3kg
Diameter309.0mm
Overall Depth137.0mm
Cutout Diameter283.0mm
Bolt Circle Diameter297.0mm
