Overview
LF Driver
Sica

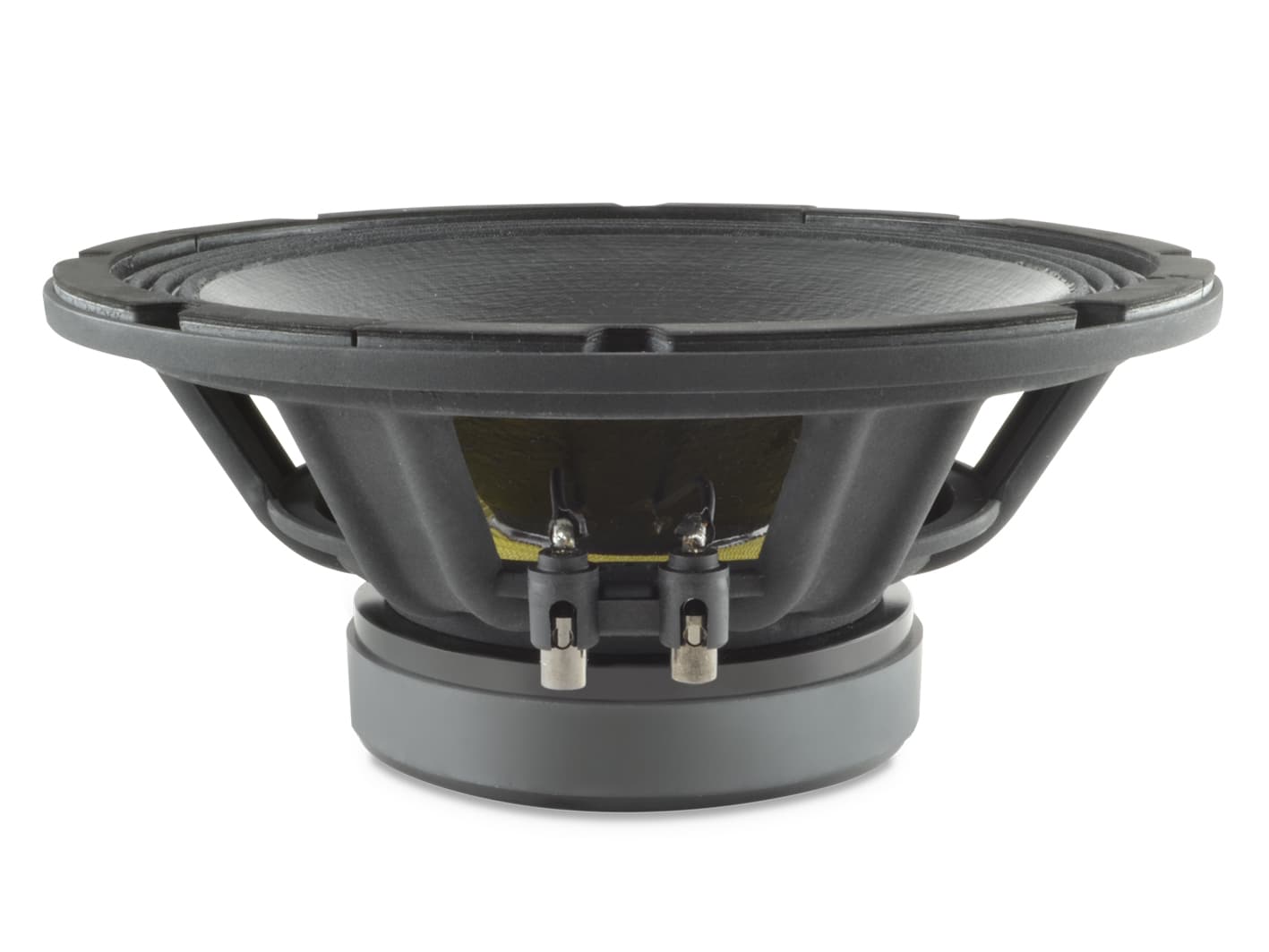

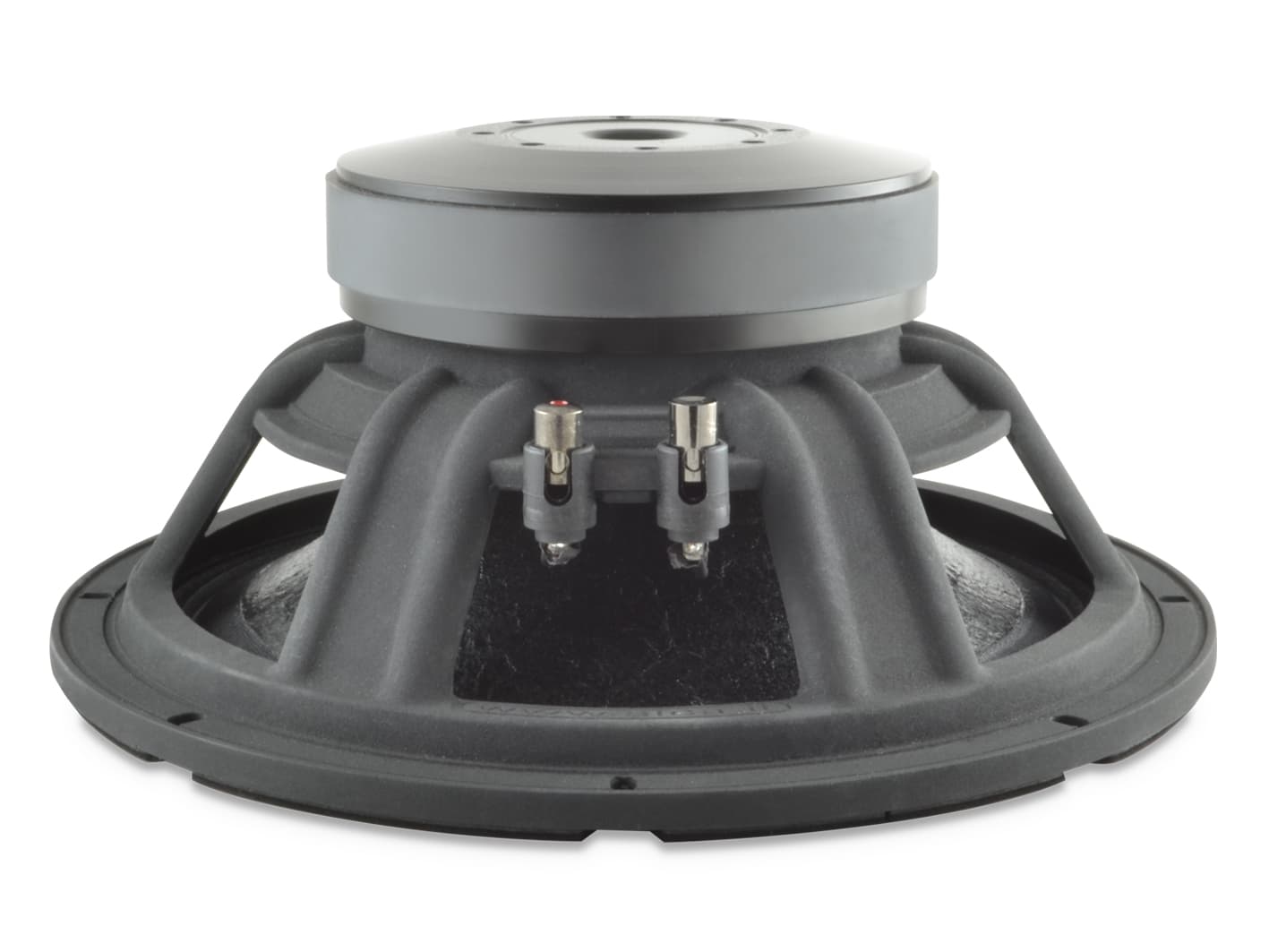

Sica 12 PF 3
Sica 12 PF 3 is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 47Hz, Qts 0.39, Vas 76.5L, Xmax 5.5mm, sensitivity 94.8dB, plus 292cm³ Vd and 112 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
94.8dB
96.4dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
112
Vented alignment
Vd
292cm³
T/S Parameters
Valid
Fs47Hz
Qts0.39
Qes0.42
Qms5.8
Vas76.5L
Re5.6Ω
Le0.70mH
BL15.4Tm
Sd531cm²
Mms60g
Xmax5.5mm
SPL95dB
Power500W
Impedance8Ω
Voice Coil75mm
Flux Density1.05T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.7kg
Diameter320.0mm
Overall Depth141.3mm
Cutout Diameter284.0mm
Bolt Circle Diameter301.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
12 PF 3
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
Fane
SOVEREIGN 12-300/2
12"
Xmax5mm-9%
Qts0.4+3%
BL15.6Tm+1%
Vas80L+5%
Qes0.42+1%
88%
Similarity
£130.60
FaitalPRO
12PR310
12"
Xmax4.9mm-11%
Qts0.4+3%
BL14.4Tm-6%
Vas73.5L-4%
Qes0.41-2%
85%
Similarity
£239.00
Celestion
FTX1225
12"
Xmax6mm+9%
Qts0.4+2%
BL14Tm-9%
Vas84.6L+11%
Qes0.44+4%
85%
Similarity
Monacor
FTX1225/8
12"
Xmax6mm+9%
Qts0.4+2%
BL14Tm-9%
Vas84.6L+11%
Qes0.44+4%
85%
Similarity
£213.97
Lavoce
CAF123.00T
12"
Xmax6mm+9%
Qts0.36-8%
BL15.2Tm-1%
Vas71.4L-7%
Qes0.39-7%
85%
Similarity
£218.82
Lavoce
CAF123.00TH
12"
Xmax6mm+9%
Qts0.36-8%
BL15.2Tm-1%
Vas71.4L-7%
Qes0.39-7%
84%
Similarity
Celestion
TF1230SL
12"
Xmax6mm+9%
Qts0.390%
BL15.7Tm+2%
Vas53.8L-30%
Qes0.44+4%
80%
Similarity
Monacor
TF1225/8
12"
Xmax4.5mm-18%
Qts0.37-5%
BL14.3Tm-7%
Vas67.3L-12%
Qes0.420%
80%
Similarity
£80.00
Celestion
TF1225
12"
Xmax4.5mm-18%
Qts0.37-5%
BL14.3Tm-7%
Vas67.3L-12%
Qes0.420%
80%
Similarity
£63.26
Lavoce
WSN122.50
12"
Xmax4.7mm-15%
Qts0.36-8%
BL15.8Tm+3%
Vas69.4L-9%
Qes0.39-7%
77%
Similarity
£127.22
Eminence
DELTA PRO
12"
Xmax4.6mm-16%
Qts0.35-10%
BL15.3Tm-1%
Vas81.7L+7%
Qes0.37-12%
77%
Similarity
£294.14
B&C
12FCX76
12"
Xmax5mm-9%
Qts0.34-13%
BL15.6Tm+1%
Vas82L+7%
Qes0.35-17%
