Monacor SP-12A/302PA 8Ω
8 Ω · 3–4000 Hz
No current price
- Fs
- 50Hz
- Xmax
- 5mm
- SPL
- 96dB
- Pe
- 300W
- BL
- 17.0T·m
- Vd
- 265cm³
- Qts
- 0.34
- Vas
- 77L
Monacor SP-12A/302PA is a 12-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.34, Vas 77 L, Xmax 5 mm, sensitivity 96.4 dB, plus 265 cm³ Vd and 143 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.34
- Qes
- 0.35
- Qms
- 7.9
- Vas
- 77L
- Re
- 6.4Ω
- Le
- 0.80mH
Motor and cone
- BL
- 17.0T·m
- Sd
- 530cm²
- Mms
- 50g
- Xmax
- 5mm
- Vd †
- 265cm³
- Voice coil
- 66mm
Power and response
- Sensitivity †
- 96.4dB
- Manufacturer sensitivity
- 99dB
- Power
- 300W
- Impedance
- 8Ω
- Range
- 3–4000Hz
- EBP †
- 143 · Leans vented

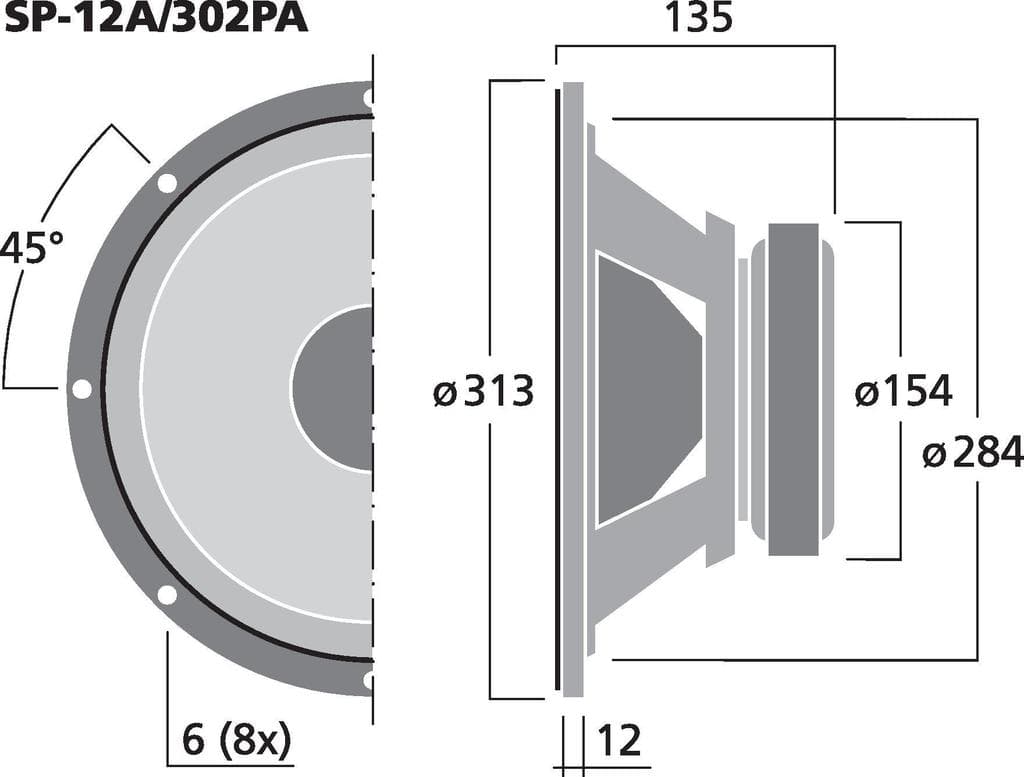

Size and mounting
- Diameter
- 313mm
- Cutout
- 284mm
- Depth
- 135mm
- Weight
- 5.1kg
Other published values
- Cms
- 0.19mm/N
- Power Peak
- 600
Other dimensions
- Mounting Depth
- 123
Sensitivity shows 96.4 dB, calculated from the T/S values. Monacor publishes 99.0 dB, 2.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 12″
- BL
- 17.0T·m
- Fs
- 50Hz
- Le
- 0.80mH
- Re
- 6.4Ω
- Sd
- 530cm²
- Cms
- 0.19mm/N
- Mms
- 50g
- Qes
- 0.35
- Qms
- 7.9
- Qts
- 0.34
- SPL
- 96.4dB
- Vas
- 77L
- Xmax
- 5mm
- Power
- 300W
- Impedance
- 8Ω
- Power Peak
- 600
- Sensitivity
- 99dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 96.4dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 99dB
- Voice coil
- 66mm
- Weight
- 5.1kg
- Diameter
- 313mm
- Depth
- 135mm
- Mounting Depth
- 123
- Cutout
- 284mm
