- Net volume
- 40L
- Tuning
- 55Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

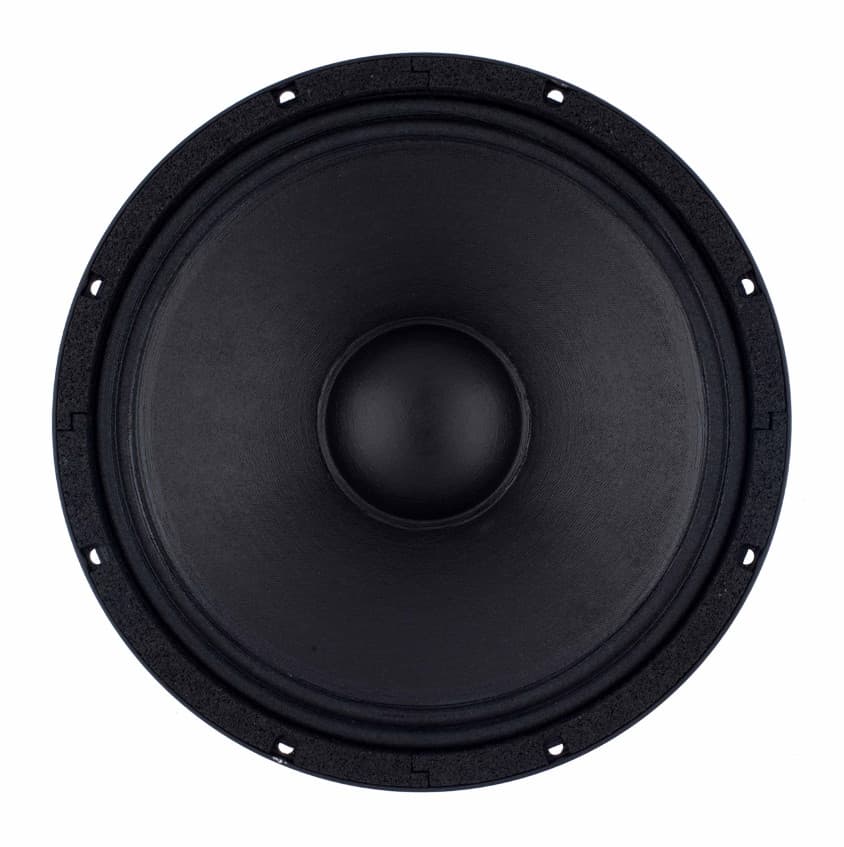

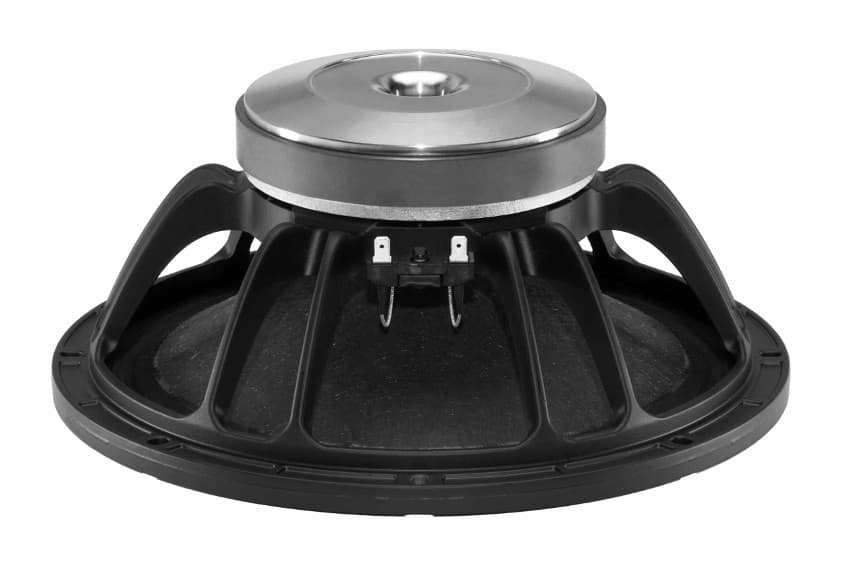

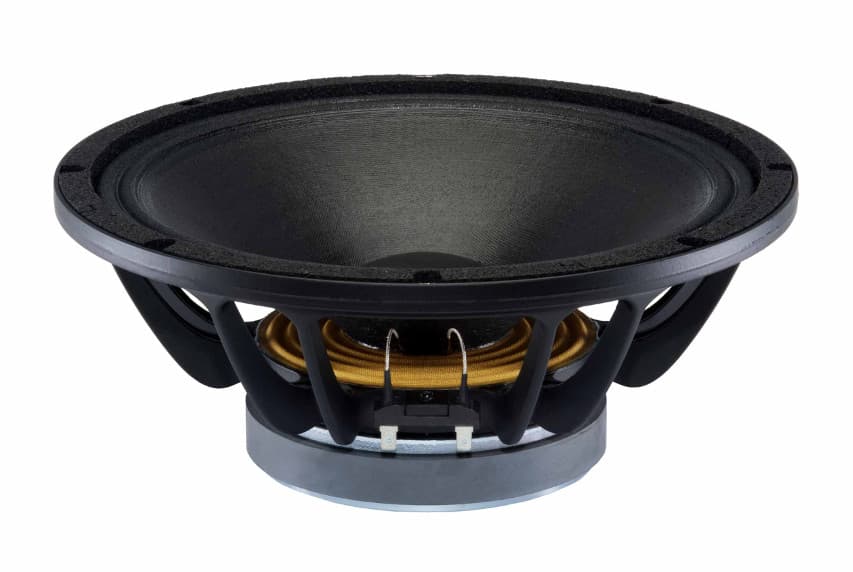

12-inch LF driver · 12FL series · 64 mm voice coil · 250 W
B&C 12FL64 8Ω
8 Ω · 50–4000 Hz
No current price
- Fs
- 51Hz
- Xmax
- 5mm
- SPL
- 95dB
- Pe
- 250W
- BL
- 20.2T·m
- Vd
- 261cm³
- Qts
- 0.32
- Vas
- 50L

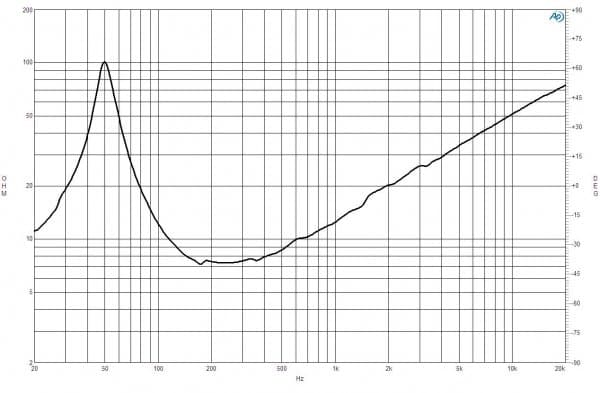

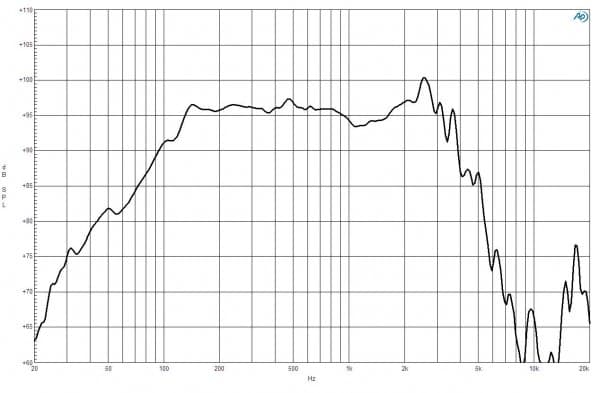

Published graphs
B&C 12FL64 is a 12-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 51 Hz, Qts 0.32, Vas 50 L, Xmax 5 mm, sensitivity 94.9 dB, plus 261 cm³ Vd and 150 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 51Hz
- Qts
- 0.32
- Qes
- 0.34
- Qms
- 6.6
- Vas
- 50L
- Re
- 5.7Ω
- Le
- 1.60mH
Motor and cone
- BL
- 20.2T·m
- Sd
- 522cm²
- Mms
- 75g
- Xmax
- 5mm
- Vd †
- 261cm³
- Voice coil
- 64mm
- Flux density
- 1.20T
Power and response
- Sensitivity †
- 94.9dB
- Manufacturer sensitivity
- 96.5dB
- Power
- 250W
- Nominal power
- 250W
- Impedance
- 8Ω
- Min. impedance
- 7Ω
- Range
- 50–4000Hz
- EBP †
- 150 · Leans vented
Size and mounting
- Diameter
- 315mm
- Cutout
- 283mm
- Bolt circle
- 298mm
- Depth
- 135mm
- Weight
- 5kg
Sensitivity shows 94.9 dB, calculated from the T/S values. B&C publishes 96.5 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 20.2T·m
- Fs
- 51Hz
- Le
- 1.60mH
- Re
- 5.7Ω
- Sd
- 522cm²
- Mms
- 75g
- Qes
- 0.34
- Qms
- 6.6
- Qts
- 0.32
- SPL
- 94.9dB
- Vas
- 50L
- Xmax
- 5mm
- Power
- 250W
- Impedance
- 8Ω
- Flux density
- 1.20T
- Sensitivity
- 96.5dB
- Low limit
- 50Hz
- Nominal power
- 250W
- Calculated sensitivity †
- 94.9dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 96.5dB
- Min. impedance
- 7Ω
- Voice coil
- 64mm
- Weight
- 5kg
- Diameter
- 315mm
- Depth
- 135mm
- Cutout
- 283mm
- Bolt circle
- 298mm
- Bl
- 20.2 Tm
- Fs
- 51 Hz
- Le
- 1.6 mH
- Re
- 5.7 Ω
- Sd
- 522 cm² (80.9 in²)
- Ebp
- 150 Hz
- Mms
- 75 g
- Qes
- 0.34
- Qms
- 6.6
- Qts
- 0.32
- Vas
- 50 dm³ (1.76 ft³)
- Η0
- 1.9 %
- Cone
- RCK12FL648
- Xmax
- 5 mm
- Xvar
- 6 mm
- Depth
- 135 mm (5.3 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 5 kg (11 lb)
- Pole design
- T-Pole
- Sensitivity
- 96.5 dB
- Flux density
- 1.2 T
- Shipping box
- 360x360x200 mm (14.17x14.17x7.87 in)
- Winding depth
- 13 mm (0.51 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Glass Fibre
- Frequency range
- 50 Hz - 4000 Hz
- Shipping weight
- 5.9 kg (13.01 lb)
- Nominal diameter
- 320 mm (12 in)
- Overall diameter
- 315 mm (12.4 in)
- Winding material
- Copper
- Minimum impedance
- 7 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 9 mm (0.35 in)
- Recommended tuning
- 55 Hz
- Voice coil diameter
- 64 mm (2.5 in)
- Bolt circle diameter
- 298 mm (11.7 in)
- Recommended enclosure
- 40 dm³ (1.4 ft³)
- Woofer cone treatment
- WP Waterproof Front Side
- Baffle cutout diameter
- 283 mm (11.1 in)
- Nominal power handling
- 250 W
- Continuous power handling
- 500 W
- Flange and gasket thickness
- 14 mm (0.55 in)
- Air volume occupied by driver
- 3 dm³ (0.1 ft³)

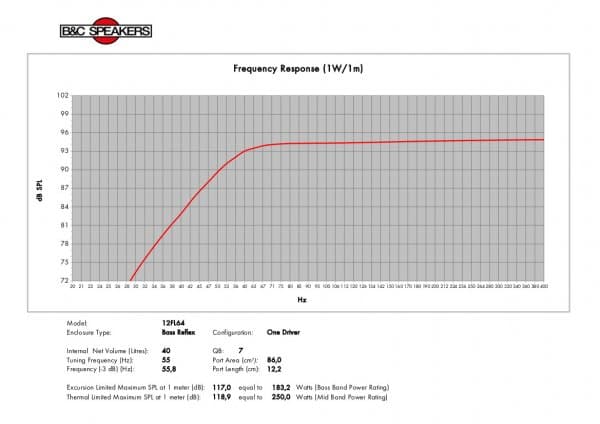

B&C’s suggested box
From B&C’s 12FL64 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 12FL64. Clear differences are green when better and red when worse.
This driver12FL64
Best price
–
Fs
51 Hz
Qts
0.32
Vas
50 L
BL
20.2 T·m
Xmax
5 mm
Sensitivity
94.9 dB
Power
250 W
LavoceWSF122.50
£75.52Fs49 Hz −4%
Qts0.33 +3%
Vas70.2 L +40%, worse
BL17.2 T·m −15%, worse
Xmax4.7 mm −6%
Sensitivity95.8 dB +0.9
B&C12CL64
£79.00Fs52 Hz –
Qts0.30 −6%
Vas64 L +28%, worse
BL17.5 T·m −13%, worse
Xmax4.5 mm −10%, worse
Sensitivity96.5 dB +1.6
CelestionTF1225E
£99.00Fs53 Hz +3%
Qts0.33 +4%
Vas67.7 L +35%, worse
BL17.7 T·m −13%, worse
Xmax5.3 mm +5%
Sensitivity96.3 dB +1.4
MonacorTF1225E/8
£105.60Fs53 Hz +3%
Qts0.33 +4%
Vas67 L +34%, worse
BL17.7 T·m −13%, worse
Xmax5 mm –
Sensitivity96.3 dB +1.4
CIAREPWA12.64
£115.74Fs55 Hz +8%
Qts0.35 +9%
Vas58 L +16%, worse
BL17.6 T·m −13%, worse
Xmax4.5 mm −10%, worse
Sensitivity96.3 dB +1.4
CIAREPWA12.75
£122.50Fs53 Hz +4%
Qts0.30 −6%
Vas52 L +4%
BL19.6 T·m –
Xmax5.8 mm +16%, better
Sensitivity95.9 dB +1
CelestionFTR12-3070C
£134.32Fs65 Hz +28%, worse
Qts0.32 –
Vas43.7 L −13%, better
BL18.6 T·m −8%
Xmax5.5 mm +10%, better
Sensitivity97.3 dB +2.4, better
PRV Audio12MR2000
£143.49Fs57 Hz +12%, worse
Qts0.33 +3%
Vas52.5 L +5%
BL21.3 T·m +5%
Xmax6.6 mm +32%, better
Sensitivity96.6 dB +1.7
B&C12FW88
£163.69Fs53 Hz +4%
Qts0.33 +3%
Vas45.7 L −9%
BL19.5 T·m −3%
Xmax8 mm +60%, better
Sensitivity94.9 dB –
FaitalPRO12HP1010
£191.59Fs45 Hz −12%, better
Qts0.34 +6%
Vas56.5 L +13%, worse
BL19.8 T·m –
Xmax9.3 mm +85%, better
Sensitivity93.7 dB −1.2
PRV Audio12MR2000-NDY
£211.49Fs54 Hz +7%
Qts0.34 +6%
Vas48.2 L −4%
BL22.8 T·m +13%, better
Xmax6.2 mm +23%, better
Sensitivity95.5 dB +0.6
Eighteen Sound12LW1400
£260.72Fs45 Hz −12%, better
Qts0.30 −6%
Vas55 L +10%, worse
BL20 T·m –
Xmax8.3 mm +65%, better
Sensitivity94 dB −0.9
Eighteen Sound12NTLW3500
£288.08Fs53 Hz +4%
Qts0.33 +3%
Vas45 L −10%, better
BL19.5 T·m −3%
Xmax8.3 mm +66%, better
Sensitivity94.8 dB –
Dayton AudioRSS315HO-4
£294.84Fs26 Hz −49%, better
Qts0.31 −3%
Vas53.7 L +7%
BL20 T·m –
Xmax12.3 mm +146%, better
Sensitivity86.7 dB −8.2, worse
Sica12 PNS 4
£362.42Fs42 Hz −18%, better
Qts0.31 −3%
Vas50.2 L –
BL22.3 T·m +10%, better
Xmax9.5 mm +90%, better
Sensitivity92.6 dB −2.3, worse
P.Audio12NT-88MB
No current priceFs55 Hz +8%
Qts0.32 –
Vas49.1 L –
BL20.9 T·m +3%
Xmax5 mm –
Sensitivity95.8 dB +0.9
P.Audio12NX-76MB
No current priceFs55 Hz +8%
Qts0.31 −3%
Vas50.3 L –
BL21.4 T·m +6%
Xmax4.8 mm −5%
Sensitivity96.3 dB +1.4
MonacorFTR12-3070C/8
No current priceFs65 Hz +28%, worse
Qts0.32 –
Vas43.7 L −13%, better
BL18.6 T·m −8%
Xmax5.5 mm +10%, better
Sensitivity97.3 dB +2.4, better
Oberton12HCX
No current priceFs53 Hz +3%
Qts0.33 +4%
Vas55.5 L +11%, worse
BL17.8 T·m −12%, worse
Xmax5.3 mm +5%
Sensitivity95.6 dB +0.7
CelestionNTR12-3018D
No current priceFs59 Hz +15%, worse
Qts0.30 −8%
Vas50.4 L –
BL19.9 T·m –
Xmax4 mm −20%, worse
Sensitivity97 dB +2.1, better
P.Audio12BMA-500B
No current priceFs57 Hz +12%, worse
Qts0.34 +6%
Vas61.4 L +23%, worse
BL16.7 T·m −17%, worse
Xmax5 mm –
Sensitivity97 dB +2.1, better
FaneCOLOSSUS 12MB
No current priceFs55 Hz +8%
Qts0.29 −11%, better
Vas56 L +12%, worse
BL18.3 T·m −9%
Xmax5.5 mm +10%, better
Sensitivity96.5 dB +1.6
CelestionCF1230F
No current priceFs57 Hz +11%, worse
Qts0.32 –
Vas49.6 L –
BL18.3 T·m −9%
Xmax7.5 mm +50%, better
Sensitivity96.2 dB +1.3
Oberton12CX
No current priceFs51 Hz –
Qts0.35 +8%
Vas58.5 L +17%, worse
BL17.4 T·m −14%, worse
Xmax5.3 mm +5%
Sensitivity95.4 dB +0.5
Eighteen Sound12LW801
No current priceFs54 Hz +6%
Qts0.33 +3%
Vas41 L −18%, better
BL20.3 T·m –
Xmax8 mm +60%, better
Sensitivity94.8 dB –
Oberton12NCX
No current priceFs58 Hz +14%, worse
Qts0.30 −6%
Vas62.9 L +26%, worse
BL17.2 T·m −15%, worse
Xmax5.3 mm +5%
Sensitivity98.1 dB +3.2, better
P.Audio12FT-88MB
No current priceFs48 Hz −6%
Qts0.37 +16%, worse
Vas45.4 L −9%
BL19.1 T·m −5%
Xmax4.7 mm −6%
Sensitivity93.1 dB −1.8
B&C12FL76
No current priceFs50 Hz –
Qts0.30 −6%
Vas57 L +14%, worse
BL18.7 T·m −7%
Xmax6 mm +20%, better
Sensitivity95.5 dB +0.6
Oberton12NSW600
No current priceFs42 Hz −18%, better
Qts0.32 –
Vas62.3 L +25%, worse
BL20.2 T·m –
Xmax14.3 mm +185%, better
Sensitivity93.5 dB −1.4
CIARE12.75W1
No current priceFs49 Hz −4%
Qts0.33 +3%
Vas67 L +34%, worse
BL18.9 T·m −6%
Xmax6 mm +20%, better
Sensitivity95.7 dB +0.8
