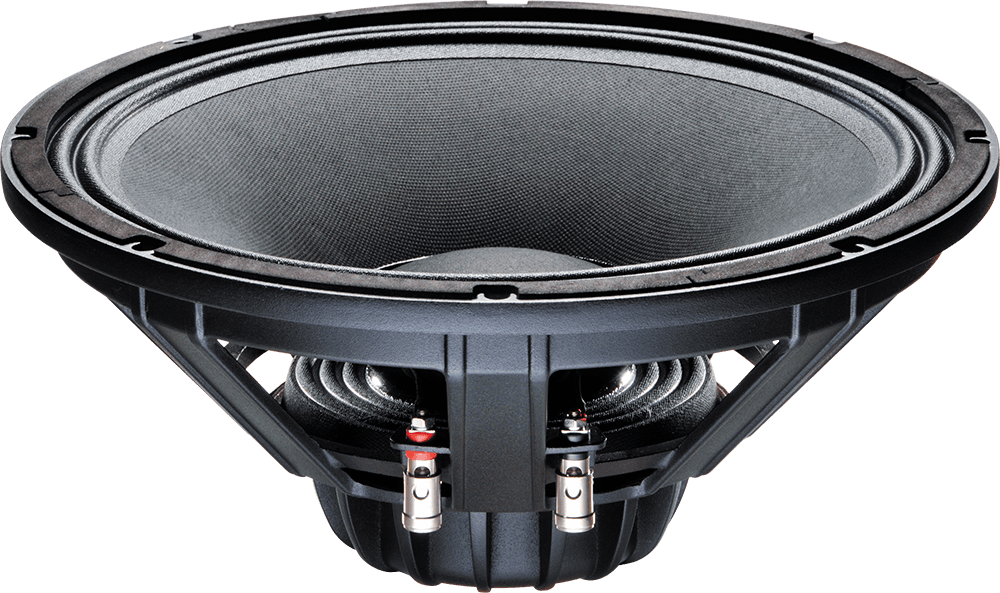

Celestion NTR12-3018D 8Ω
8 Ω · 50–4000 Hz
No price for delivery to the UK
- Fs
- 59Hz
- Xmax
- 4mm
- SPL
- 97dB
- Pe
- 350W
- BL
- 19.9T·m
- Vd
- 212cm³
- Qts
- 0.30
- Vas
- 50L

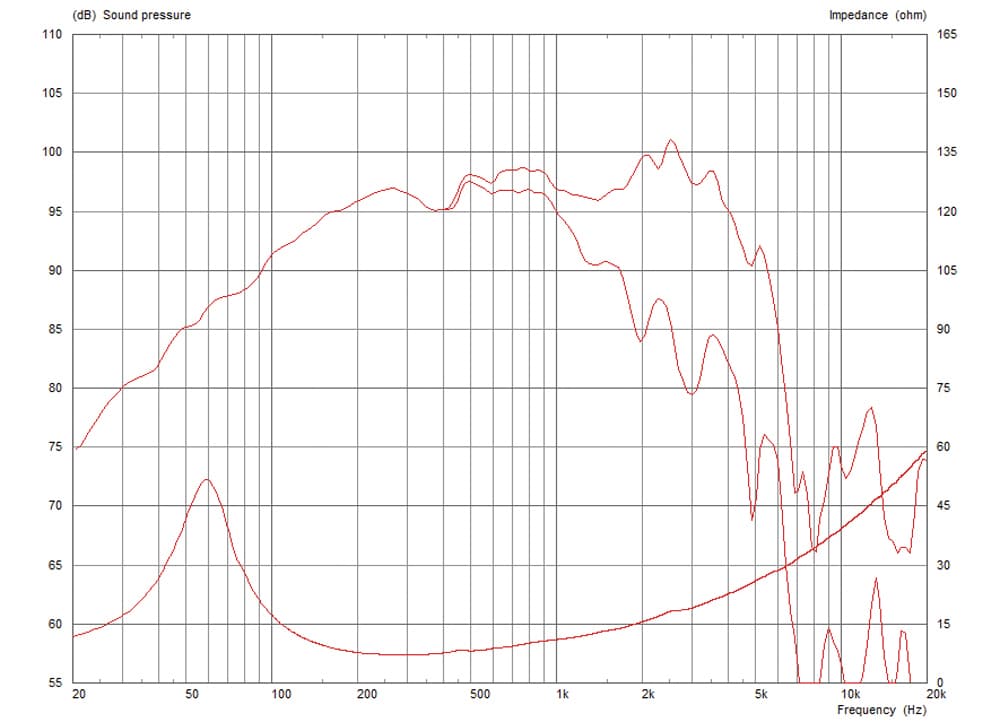

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence220 selected pixels of 384
Published graphs
Celestion NTR12-3018D is a 12-inch 8 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 59 Hz, Qts 0.30, Vas 50.4 L, Xmax 4 mm, sensitivity 97 dB, plus 212 cm³ Vd and 181 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 59Hz
- Qts
- 0.30
- Qes
- 0.33
- Qms
- 3.4
- Vas
- 50.4L
- Re
- 6.0Ω
- Le
- 0.80mH
Motor and cone
- BL
- 19.9T·m
- Sd
- 531cm²
- Mms
- 58g
- Xmax
- 4mm
- Vd †
- 212cm³
- Voice coil
- 75mm
Power and response
- Sensitivity †
- 97dB
- Manufacturer sensitivity
- 98dB
- Power
- 350W
- Impedance
- 8Ω
- Range
- 50–4000Hz
- EBP †
- 181 · Leans vented
Size and mounting
- Diameter
- 318mm
- Cutout
- 286mm
- Bolt circle
- 304mm
- Depth
- 137mm
- Weight
- 2.6kg
Other published values
- Cms
- 0.13mm/N
- Rms
- 6.32kg/s
- Power Program
- 700
Sensitivity shows 97.0 dB, calculated from the T/S values. Celestion publishes 98.0 dB, 1.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 12″
- BL
- 19.9T·m
- Fs
- 59Hz
- Le
- 0.80mH
- Re
- 6.0Ω
- Sd
- 531cm²
- Cms
- 0.13mm/N
- Mms
- 58g
- Qes
- 0.33
- Qms
- 3.4
- Qts
- 0.30
- Rms
- 6.32kg/s
- SPL
- 97dB
- Vas
- 50.4L
- Xmax
- 4mm
- Power
- 350W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 50Hz
- Power Program
- 700
- Calculated sensitivity †
- 97dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 98dB
- Voice coil
- 75mm
- Weight
- 2.6kg
- Diameter
- 318mm
- Depth
- 137mm
- Cutout
- 286mm
- Bolt circle
- 304mm
