Overview
LF Driver
Eighteen Sound
Eighteen Sound 12LW801
Eighteen Sound 12LW801 is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 54Hz, Qts 0.33, Vas 41L, Xmax 8mm, sensitivity 94.8dB, plus 425cm³ Vd and 159 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
94.8dB
96.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
159
Vented alignment
Vd
425cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

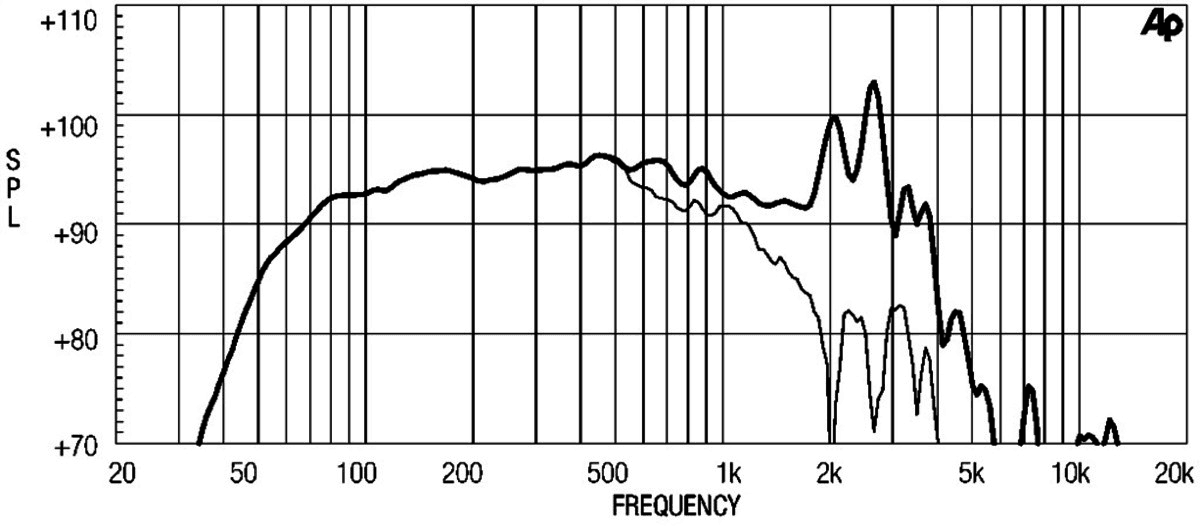

Frequency response
240 plotted pointsMedium confidence2,963 selected pixels of 3,876 - Trace datasheet-response-trace-poc/v1
impedance

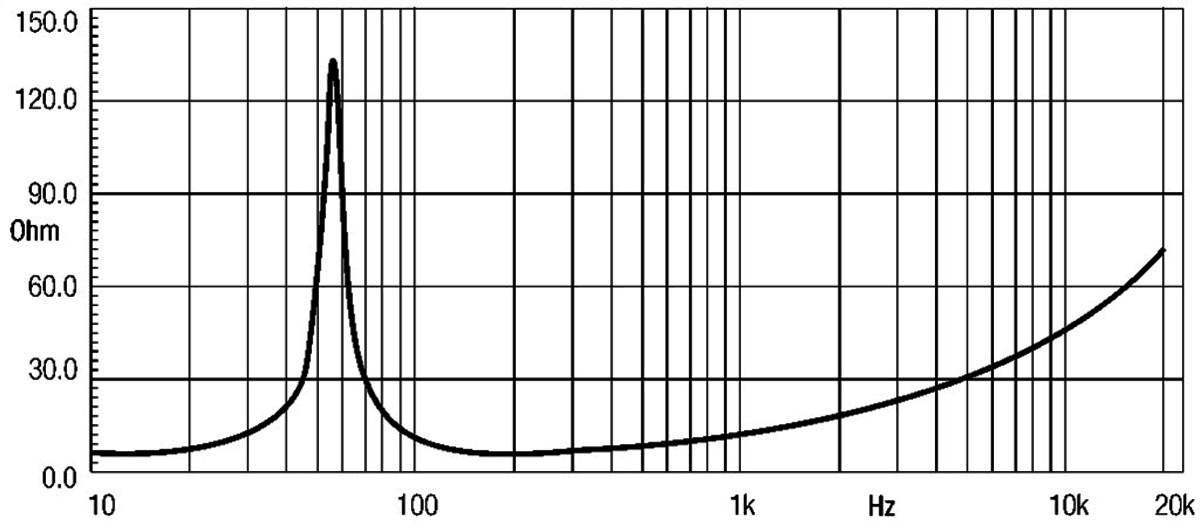

Impedance response
240 plotted pointsMedium confidence1,934 selected pixels of 2,111
T/S Parameters
Valid
Fs54Hz
Qts0.33
Qes0.34
Qms9.0
Vas41.0L
Re5.0Ω
Le1.70mH
BL20.3Tm
Sd531cm²
Mms84g
Xmax8.0mm
SPL95dB
Power500W
Power Nominal500W
Impedance8Ω
F Low40Hz
F High4000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.1kg
Diameter315.0mm
Overall Depth159.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter296.0mm
